Product Introduction

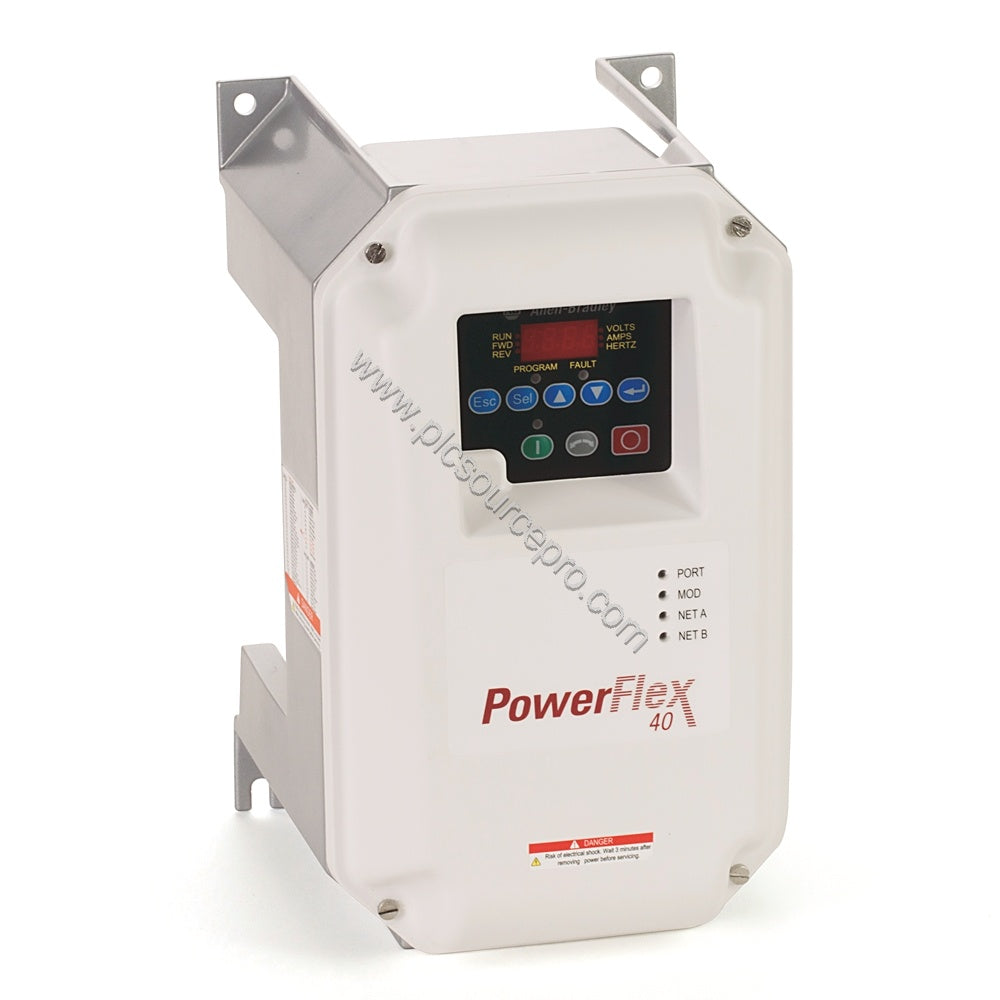

In industrial automation applications requiring precise motor speed and torque control, the Allen-Bradley 22B-E4P2H204 adjustable frequency drive provides a reliable solution. This PowerFlex 40 series drive is designed to control compatible variable speed motors within PLC systems, offering real-time diagnostic data updates to enhance performance and simplify troubleshooting. Its input voltage rating is 600 Volts AC, and its output current rating is 4.2 Amps, making it suitable for a range of applications that demand dynamic speed adjustments.
Technical Specifications Breakdown
The Allen-Bradley 22B-E4P2H204 drive features key specifications that ensure robust operation.
| Specification |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22B-E4P2H204 |
| Product Line |
PowerFlex 40 |
| Input Voltage |
600 Volts AC |
| Output Current |
4.2 Amps |
| Phase |
3 Phase |
| Horsepower |
3 HP (2.2 kW) |
| Frequency |
50/60 Hz |
| Control Method |
Volt per Hertz and Sensorless Vector Control |
| Communication |
RS-485 |
| Enclosure |
IP20 (Front), NEMA/UL Type Open (Plate Drive) |
| Weight |
1.68 kg (3.7 lbs) |
| Dimensions |
125.0 x 204.0 x 97.5 mm (4.92 x 8.03 x 3.84 in) |
The drive also includes a built-in Brake IGBT and supports a control voltage of 24 Volts sink/source. Its shock ratings are 30.0 G operating and 50.0 G nonoperating, ensuring durability in demanding environments.
Industry Applications
The Allen-Bradley 22B-E4P2H204 drive excels in applications requiring variable speed and torque control. Common use cases include conveyor systems that need smooth start/stop operations, pump and fan drives where energy savings are critical, and material handling equipment that demands precise acceleration and deceleration. Its real-time diagnostic capabilities reduce downtime by enabling proactive maintenance, aligning with a cost-benefit approach to improve overall equipment efficiency.
Installation & Setup Guidance
When installing the Allen-Bradley 22B-E4P2H204, follow standard drive installation practices. Mount the unit in a clean, dry environment with adequate ventilation. The enclosure is IP20 front, so install in a panel that provides additional protection. Ensure proper wiring of the RS-485 communication cable for remote monitoring. Use a keypad for local input configuration. Given the drive's sensitive ESD components, follow static control precautions during handling and installation.
Maintenance & Reliability
To maximize the lifespan of the Allen-Bradley 22B-E4P2H204, perform routine inspections of the cooling fans and heat sink to prevent overheating. The drive's robust shock ratings and sensorless vector control contribute to reliable long-term operation. Regular diagnostic data checks can identify wear patterns early, reducing costly unscheduled downtime and supporting a positive return on investment.
Selection Guide & Purchasing Advice
