Product Overview

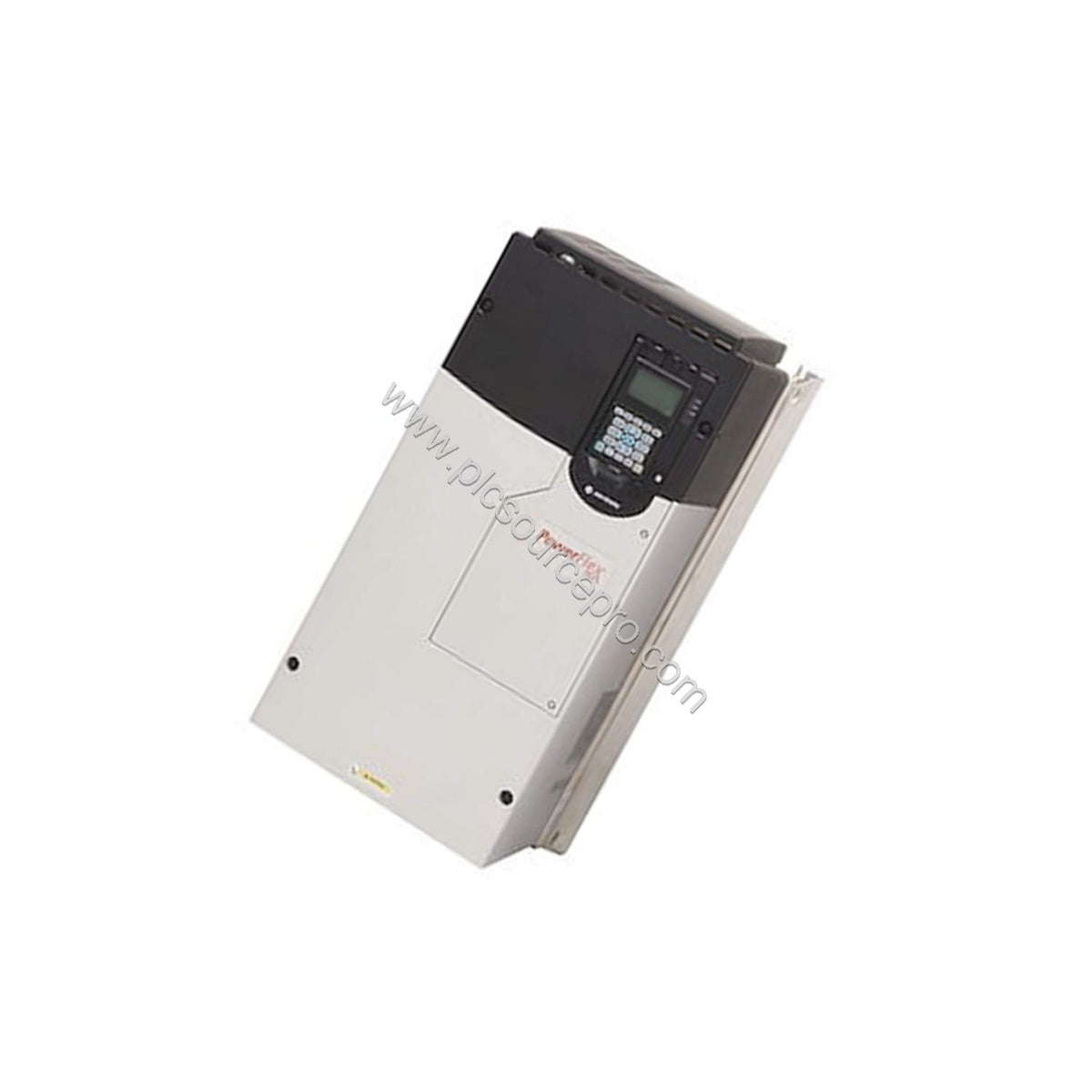

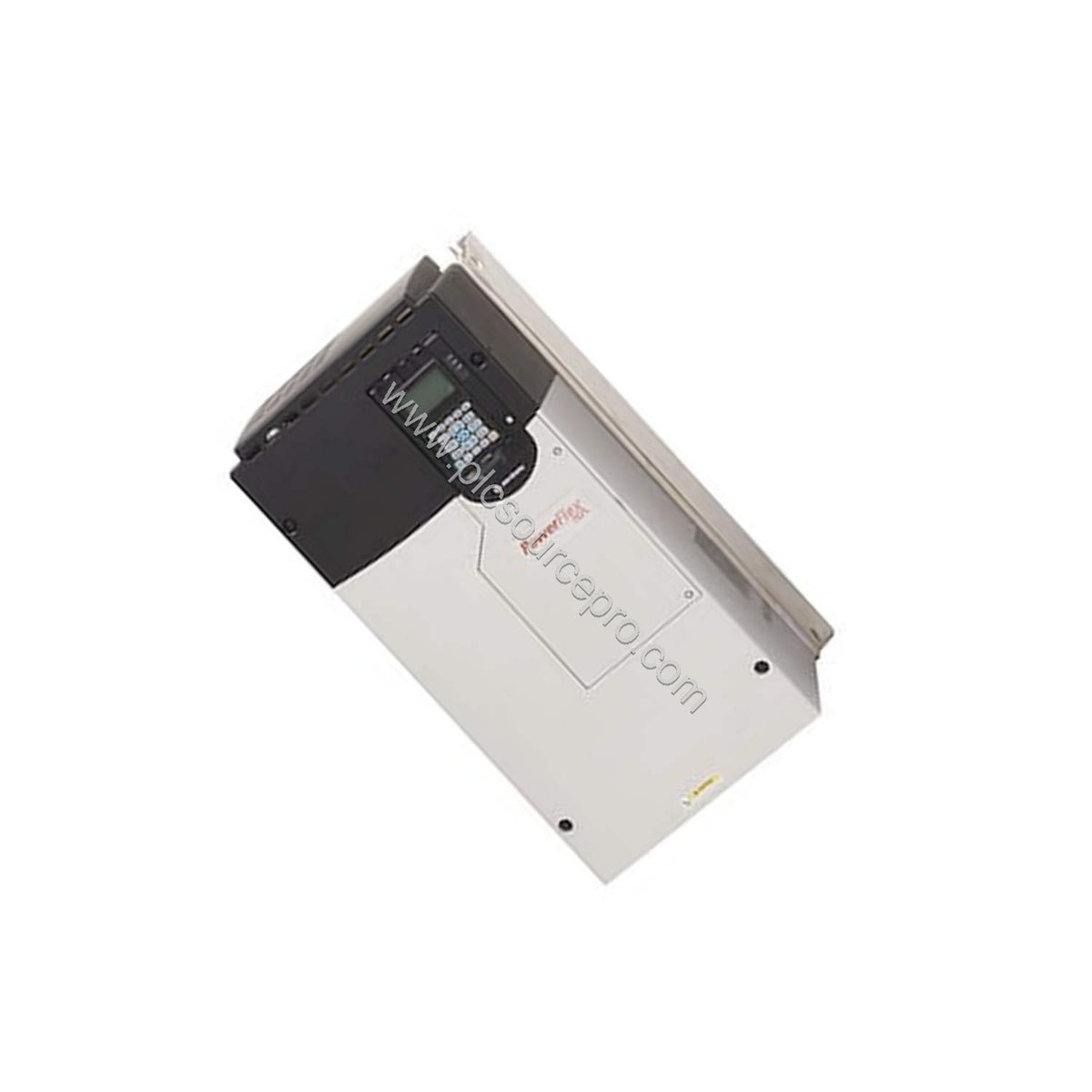

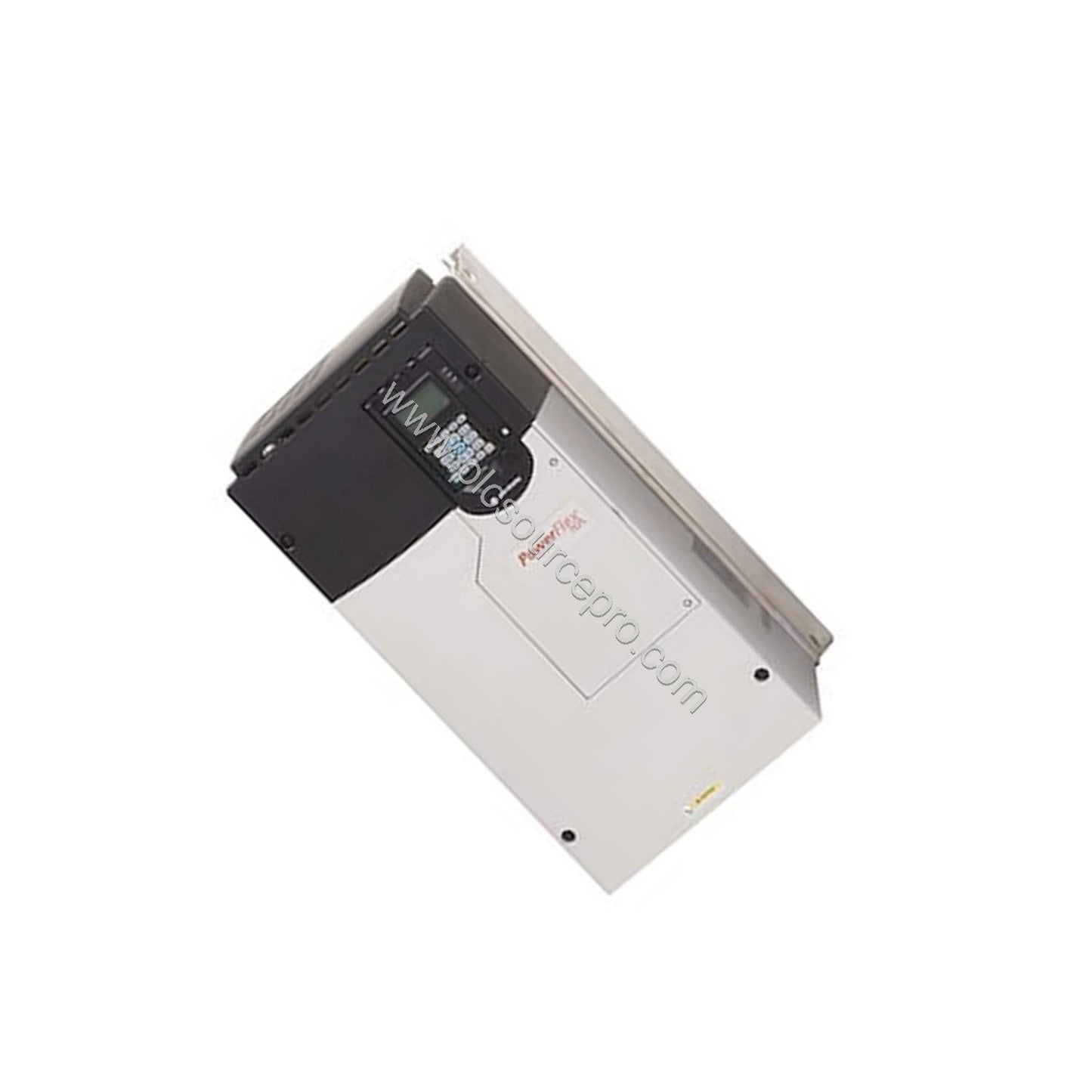

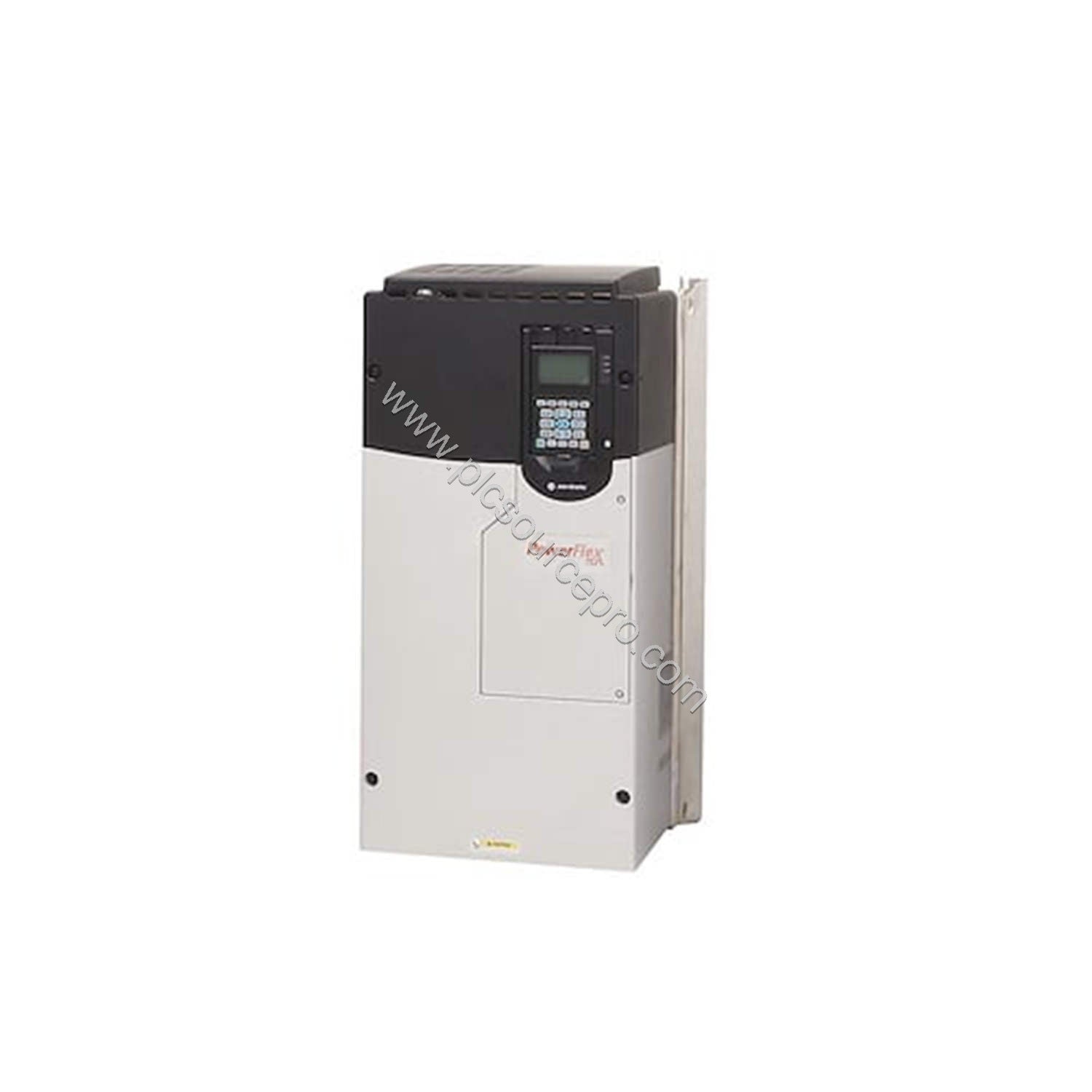

The Allen-Bradley 20F1AND125JN0NNNNN is a robust AC drive from the PowerFlex 753 series, engineered for demanding industrial applications that require precise motor control and reliable three-phase power. This industrial automation module delivers consistent performance with a rated voltage of 480V AC and supports up to 650V DC, making it versatile for various manufacturing environments.
Key Specifications
Every technical parameter of the 20F1AND125JN0NNNNN is designed to meet rigorous operational standards. Below are the critical specifications:
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Product Type |
AC Drive |
| Product Line |
PowerFlex 753 |
| Part Number |
20F1AND125JN0NNNNN |
| UPC |
889508554693 |
| Weight |
125.00 lbs (56.70 kg) |
| Rated Voltage |
480V AC / 650V DC |
| Number of Phases |
3-Phase |
| Rated Frequency |
60 Hz |
| Normal Duty Horsepower |
100 HP |
| Normal Duty Output Current |
125 A |
| Heavy Duty Horsepower |
75 HP |
| Heavy Duty Output Current |
96 A |
| Protection Category |
IP00 |
| Frame Size |
Frame 6 |
| Temperature Range |
0 to 40°C |
| Maximum Storage Humidity |
80% (non-condensing) |
| Maximum Operating Humidity |
80% (non-condensing) |
| Maximum Operating Altitude |
1000 meters above sea level |
Performance and Duty Ratings
The 20F1AND125JN0NNNNN offers dual-duty ratings to adapt to varying load requirements. Under normal duty, it delivers 100 HP with a continuous output current of 125 A, ideal for constant-torque applications. For heavy-duty scenarios, it provides 75 HP and 96 A, ensuring reliable operation under shock loads or overload conditions.
Applications
This AC drive excels in industries such as automotive manufacturing, material handling, and pump/fan control. For example, in a conveyor system, the 20F1AND125JN0NNNNN ensures smooth acceleration and deceleration, reducing mechanical stress. In HVAC applications, it modulates fan speed to optimize energy consumption, directly contributing to lower operational costs.
Installation and Setup
When installing the 20F1AND125JN0NNNNN, ensure adequate cooling clearance around the Frame 6 enclosure, as the IP00 rating requires protection from dust and water. Verify that the input voltage matches the 480V AC rating and that the three-phase supply is properly grounded. Follow the manufacturer’s torque specifications for all power and control wiring terminals.
Maintenance and Reliability
Regular maintenance of the 20F1AND125JN0NNNNN extends its service life and prevents unplanned downtime. Periodically inspect the cooling fans and heatsink for dust accumulation, as the drive relies on forced air cooling. Check all power connections for signs of overheating or corrosion. Operating within the specified temperature range of 0 to 40°C and humidity below 80% ensures optimal reliability.
Selection and Purchasing Guide
Before purchasing the 20F1AND125JN0NNNNN, confirm that your application’s voltage, phase, and horsepower requirements align with the drive’s ratings. Verify the physical dimensions and mounting compatibility with your panel. For genuine parts and expert support, choose PLC Source PRO as your trusted supplier, ensuring authenticity and fast delivery for your industrial automation needs.
