Product Overview

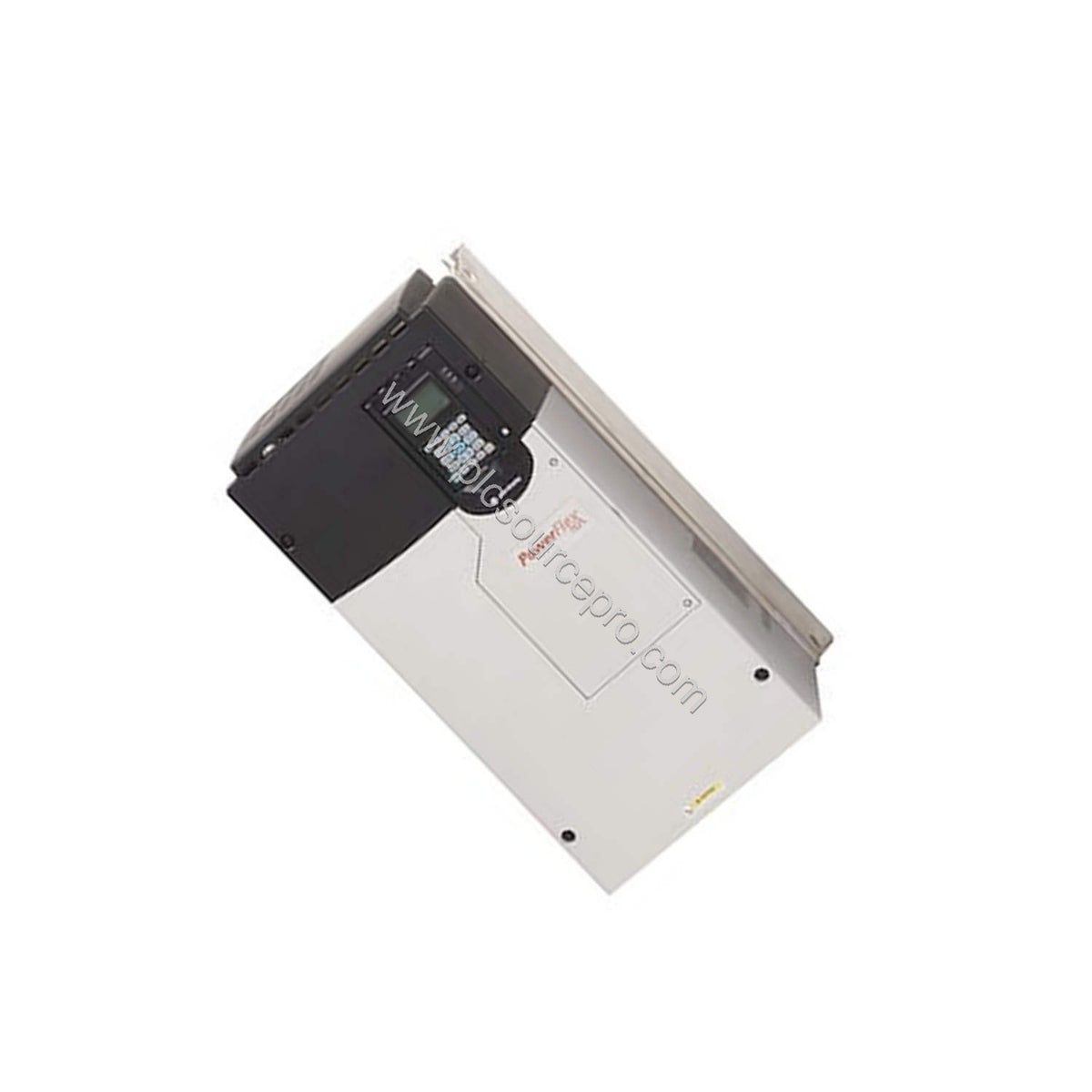

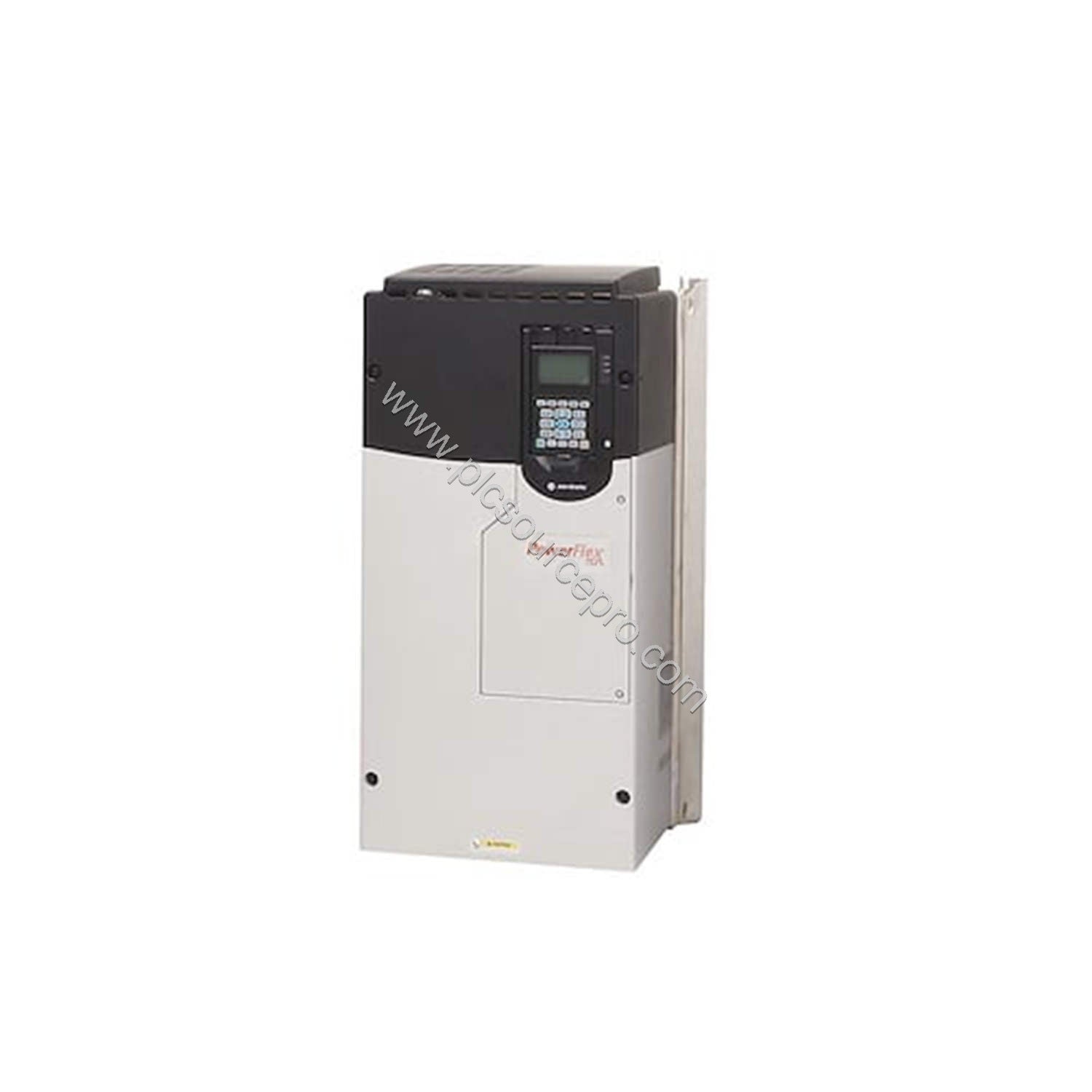

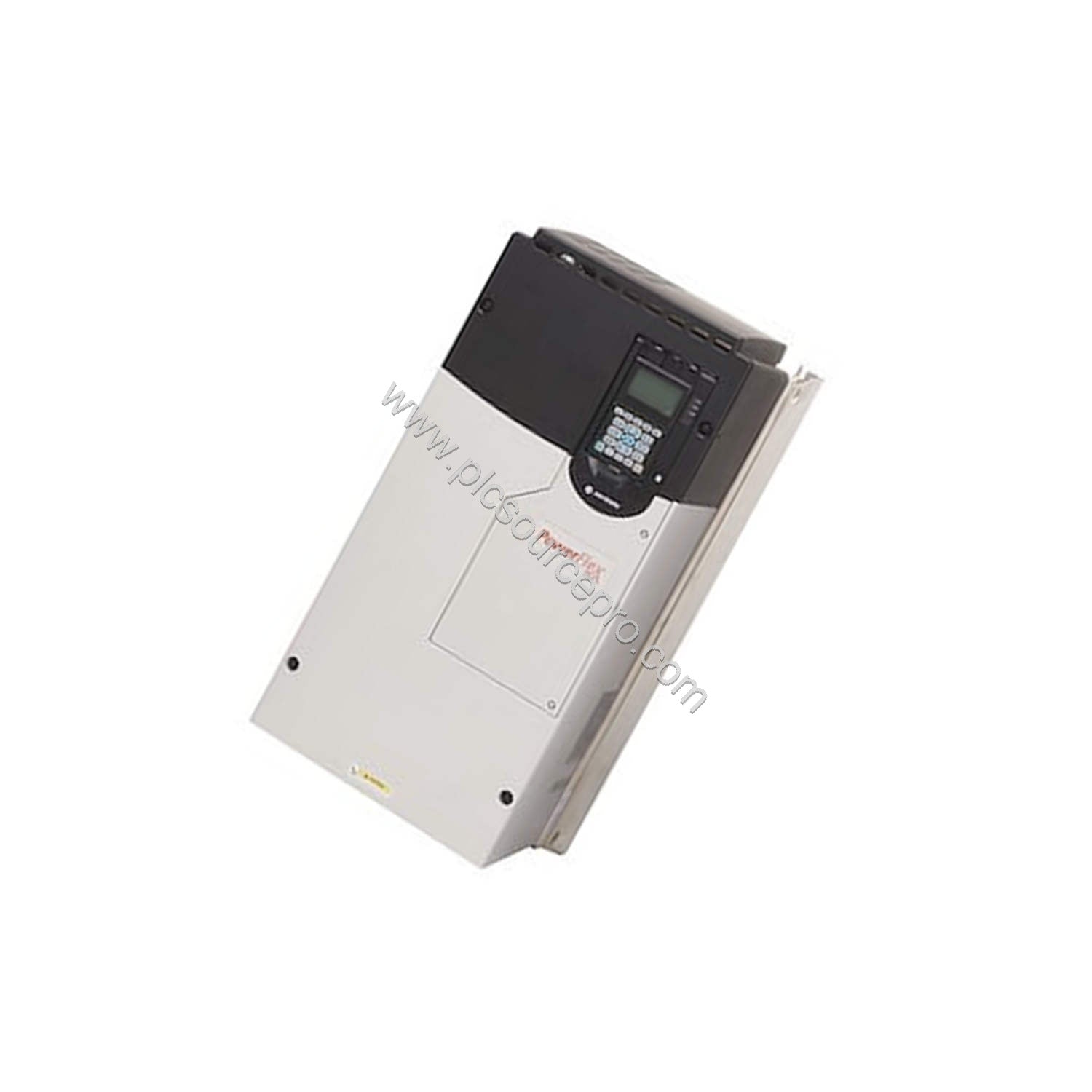

The Allen-Bradley 20F1ANC205JA0NNNNN is a high-performance AC drive from the PowerFlex 753 series, engineered for demanding industrial applications. With an input voltage of 400V AC and a heavy-duty power rating of 90 kW, this drive delivers robust motor control in a compact, panel-friendly design. As an Industrial Automation Module, the 20F1ANC205JA0NNNNN ensures reliable operation, advanced features, and seamless integration into existing control systems.
Part of the PowerFlex 753 family, the 20F1ANC205JA0NNNNN combines flexibility with durability. It supports both normal duty (110 kW) and heavy-duty (90 kW) ratings, allowing you to match the drive to your specific load requirements. The drive’s open-type enclosure (IP20/IP00) is ideal for panel mounting, while forced air cooling maintains optimal thermal performance even under continuous load.
Key Features
-
Robust Power Handling: Heavy-duty rating of 90 kW and normal duty rating of 110 kW.
-
High Output Current: Delivers up to 205 A to handle demanding motor loads.
-
Efficient Cooling: Forced air cooling keeps the drive within safe temperature limits.
-
Integrated Filtering: Reduces electromagnetic interference for cleaner operation.
-
Common Mode Jumper: Pre-installed to minimize noise and improve power quality.
-
Internal Transistor: Enhances switching efficiency and drive performance.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen Bradley |
| Product Type |
AC Drive |
| Product Line |
PowerFlex 753 |
| Part Number |
20F1ANC205JA0NNNNN |
| Weight |
39.00 lbs (17.69 kg) |
| Input Voltage |
400V AC |
| DC Bus Voltage |
540V DC |
| Power Rating (Heavy Duty) |
90 kW |
| Power Rating (Normal Duty) |
110 kW |
| Input Configuration |
AC Input with Precharge |
| Filtering |
Yes |
| Input Phases |
3 |
| Enclosure Type |
Open Type (IP20/IP00) |
| Internal Transistor |
Yes |
| Common Mode Capacitor Jumper |
Installed |
| Output Current |
205 A |
| Cooling Method |
Forced Air |
Real-World Applications
The 20F1ANC205JA0NNNNN excels in applications that require precise speed control and high torque. Typical use cases include:
-
Conveyor Systems: In manufacturing plants, the drive’s 205 A output ensures smooth, reliable operation of heavy conveyor belts, even under variable load conditions.
-
Pumps and Fans: With its 90 kW heavy-duty rating, the drive efficiently controls large pumps and fans in HVAC systems, reducing energy consumption and extending equipment life.
-
Machine Tools: The normal duty rating of 110 kW provides ample headroom for intermittent peak loads, making it suitable for CNC machines and presses.
Installation & Setup Guidance
Proper installation ensures optimal performance and longevity. Follow these guidelines:
-
Mounting: Install the drive in a clean, dry, and well-ventilated panel. Maintain recommended clearance around the unit for airflow.
-
Wiring: Use appropriately rated cables for the 400V AC input and 205 A output. Ensure proper grounding to minimize electromagnetic interference.
-
Precharge: The AC input with precharge configuration helps limit inrush current during startup. Verify that the precharge circuit is functional before energizing.
-
Cooling: Keep the forced air cooling vents unobstructed. Avoid mounting near heat sources or in confined spaces that restrict airflow.
Maintenance & Reliability
Routine maintenance extends the life of the 20F1ANC205JA0NNNNN and prevents costly downtime. Key practices include:
-
Inspection: Periodically check for dust accumulation on heatsinks and fans. Clean with dry compressed air to maintain cooling efficiency.
-
Connections: Tighten all power and control wiring connections annually to prevent loose contacts that can cause overheating.
-
Capacitors: Monitor DC bus capacitors for signs of bulging or leakage. Replace them every 7–10 years as a preventive measure.
-
Environmental: Operate the drive within its specified temperature range. Avoid exposure to corrosive gases or excessive humidity.
Compatibility & Integration
The PowerFlex 753 series is designed for flexible integration. The 20F1ANC205JA0NNNNN supports standard 3-phase AC input and can be easily configured using the optional HIM (Human Interface Module) or software tools. It interfaces seamlessly with Allen-Bradley controllers and other industrial automation systems. The drive’s open-type enclosure (IP20/IP00) makes it suitable for panel integration, and the built-in filtering reduces the need for external EMC filters.
Selection Guide & Purchasing Advice
Before purchasing the 20F1ANC205JA0NNNNN, verify that your application matches the drive’s specifications: 400V AC input, 205 A output, and the required power rating (90 kW HD or 110 kW ND). Confirm the enclosure type and cooling method meet your installation environment. PLC Source PRO offers this Industrial Automation Module with fast shipping and competitive pricing. Ensure you have the necessary accessories, such as a HIM or communication modules, to fully utilize the drive’s capabilities.
