Product Overview

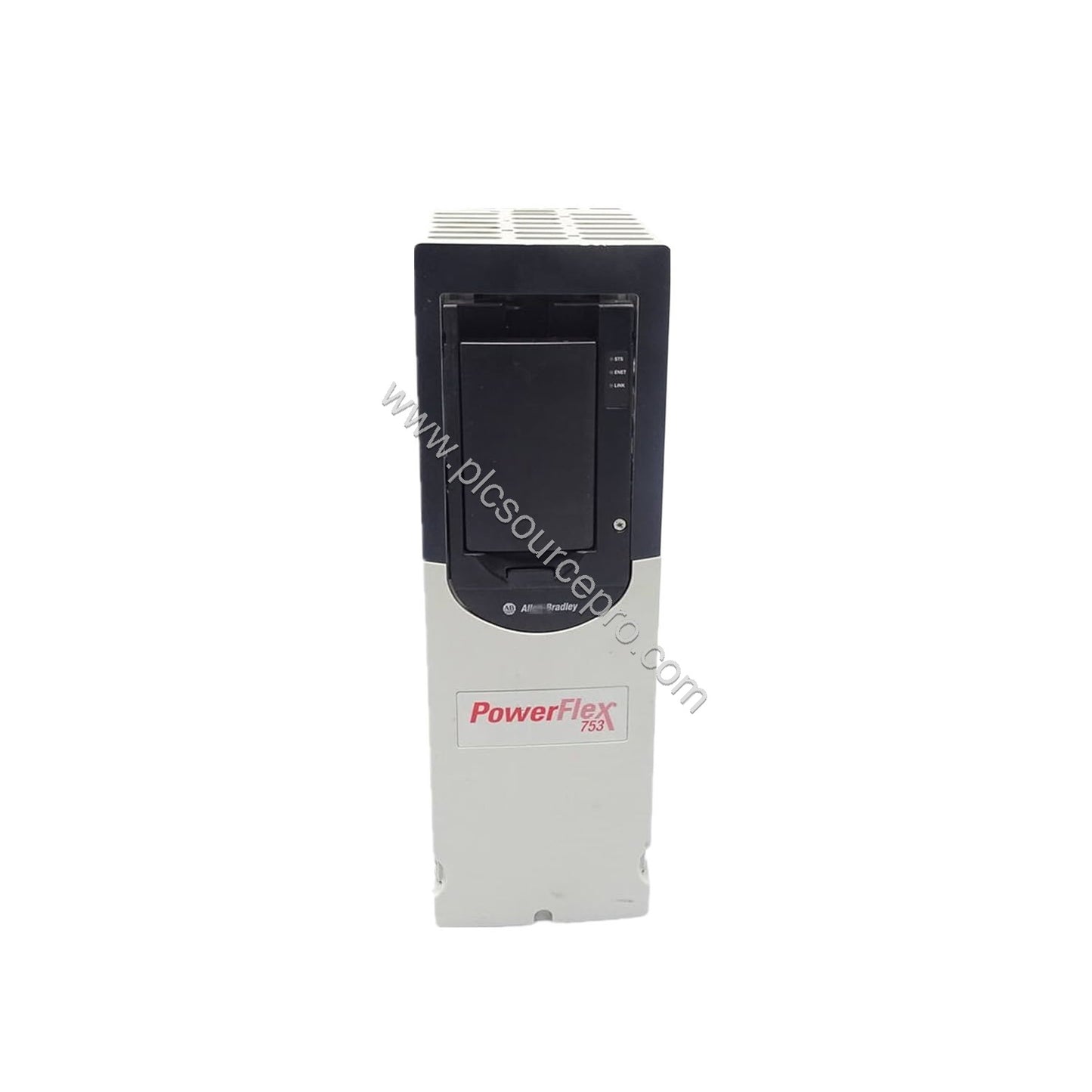

The Allen-Bradley 20F11ND022AA0NNNNN is an adjustable frequency drive from the PowerFlex 753 series, engineered for precise motor control in demanding industrial environments. With a robust output current rating of 22 A, this drive supports multiple control methods including V/Hz, vector, and sensorless operation, giving you the flexibility to match performance to your application.
Part of the PowerFlex 753 family, the 20F11ND022AA0NNNNN delivers reliable air-cooled thermal management, ensuring consistent operation even under sustained loads. Its open-type mounting and IP20/IP00 enclosure make it suitable for panel installation in controlled environments.
Technical Specifications
The table below lists the key parameters for the Allen-Bradley 20F11ND022AA0NNNNN, sourced directly from the manufacturer's data.
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Product Type |
Adjustable Frequency Drive |
| Product Line |
PowerFlex 753 |
| Part Number |
20F11ND022AA0NNNNN |
| UPC |
884951163638 |
| Weight |
20.00 lbs (9.07 kg) |
| Cooling Method |
Air Cooled |
| Output Current |
22 A |
| Control Method |
V/Hz, Vector, Sensorless |
| Input Voltage |
480 VAC / 650 VDC |
| Power Rating (ND) |
11 kW / 15 HP |
| Frequency Range |
0 to 599 Hz |
| Input Type |
AC with Precharge |
| Power Rating (HD) |
7.5 kW / 10 HP |
| Ambient Temp Range |
0°C to 50°C |
| Phase |
Three-Phase |
| Overload Capacity |
110% for 60 sec |
| Enclosure Rating |
IP20 / IP00 |
| Mounting Style |
Open Type |
| Brake Transistor |
Internal |
Industry Applications
The 20F11ND022AA0NNNNN excels in applications requiring variable speed control, such as conveyors, pumps, fans, and mixers. Its wide frequency range of 0 to 599 Hz allows precise speed regulation across diverse processes.
In a typical manufacturing line, the drive's 110% overload capacity for 60 seconds handles short-duration peak loads without tripping, reducing downtime. For HVAC systems, the sensorless control mode provides accurate torque control without the need for an encoder, simplifying installation and lowering component costs.
Installation & Setup Guidance
When installing the Allen-Bradley 20F11ND022AA0NNNNN, ensure the ambient temperature remains between 0°C and 50°C. Mount the drive in a clean, dry enclosure with adequate airflow to support its air-cooled design.
Wire the three-phase input to the terminals, noting that the drive accepts 480 VAC or 650 VDC input. The internal brake transistor simplifies dynamic braking setup—just connect an external brake resistor if needed. Always follow local electrical codes and the manufacturer's manual for safe installation.
Maintenance & Reliability
Routine maintenance of the 20F11ND022AA0NNNNN focuses on keeping the cooling fins and internal fan free of dust and debris. Inspect the unit quarterly and clean with compressed air if necessary.
Given its IP20/IP00 rating, the drive is not sealed against dust; therefore, a clean environment extends component life. The air-cooled design reduces failure points compared to liquid-cooled systems, lowering overall maintenance costs and supporting long-term reliability.
Compatibility & Integration
The PowerFlex 753 series integrates seamlessly with common industrial control networks. While specific communication protocols are not detailed in the provided data, the drive supports standard control I/O and can be paired with PLCs and HMIs from major brands.
For system integration, verify that your control voltage and logic levels match the drive's inputs. The 20F11ND022AA0NNNNN's flexible control methods—V/Hz, vector, and sensorless—make it adaptable to both simple and complex automation architectures.
Buying Guide & Selection Advice
Before purchasing the Allen-Bradley 20F11ND022AA0NNNNN, confirm your motor's voltage, current, and horsepower requirements. The drive's 22 A output and 15 HP ND rating suit many standard three-phase motors, but always cross-check with your motor's full-load current.
Consider whether you need the heavy-duty rating (7.5 kW / 10 HP) for demanding applications. Also, verify your enclosure's IP rating needs; this drive offers IP20/IP00, which is suitable for most indoor panels. PLC Source PRO stocks this model and can provide genuine Allen-Bradley parts with fast shipping.
