Product Overview

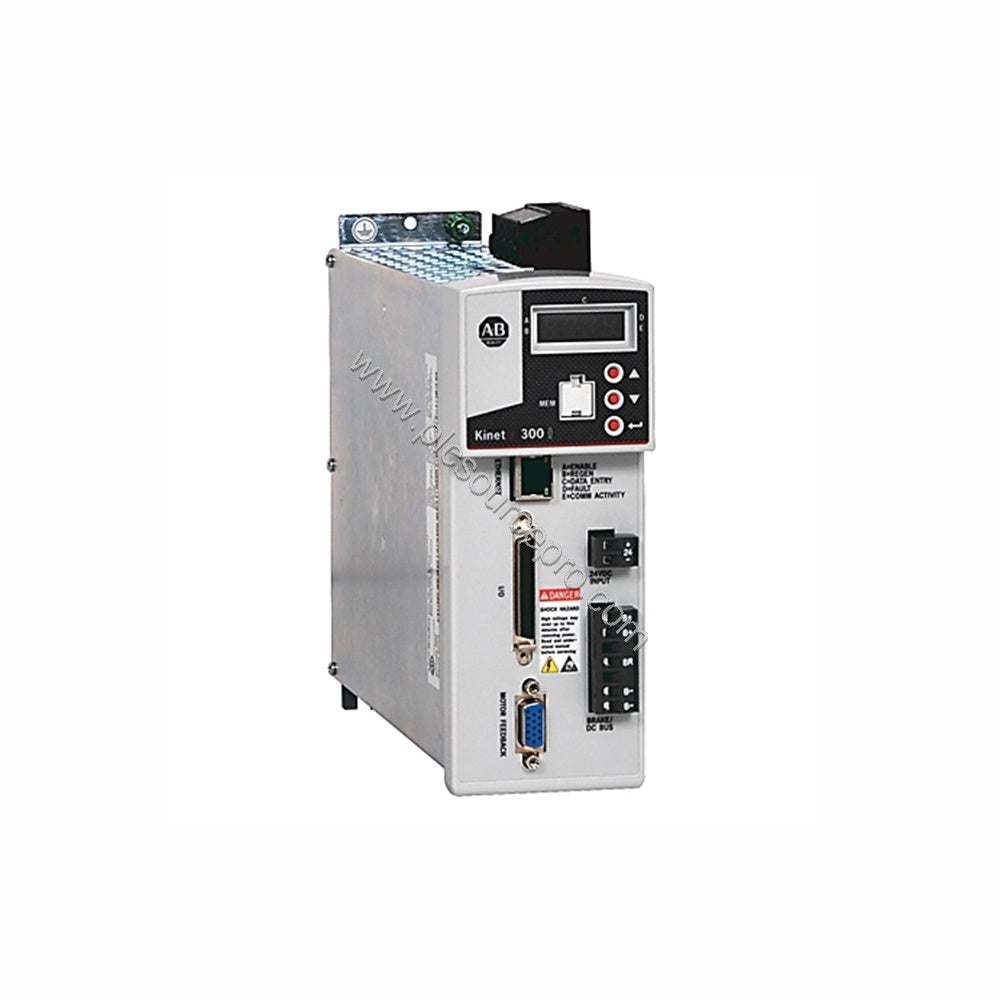

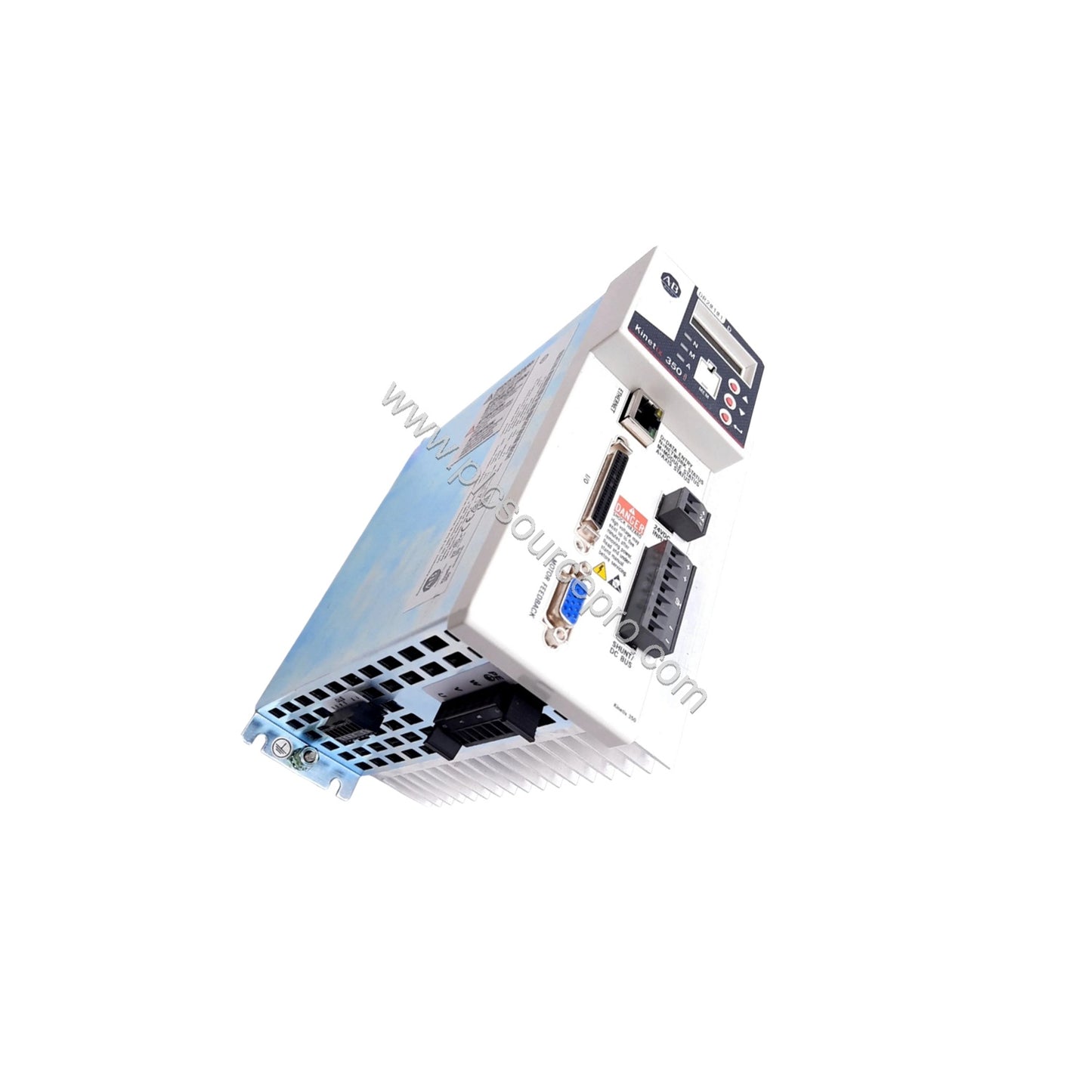

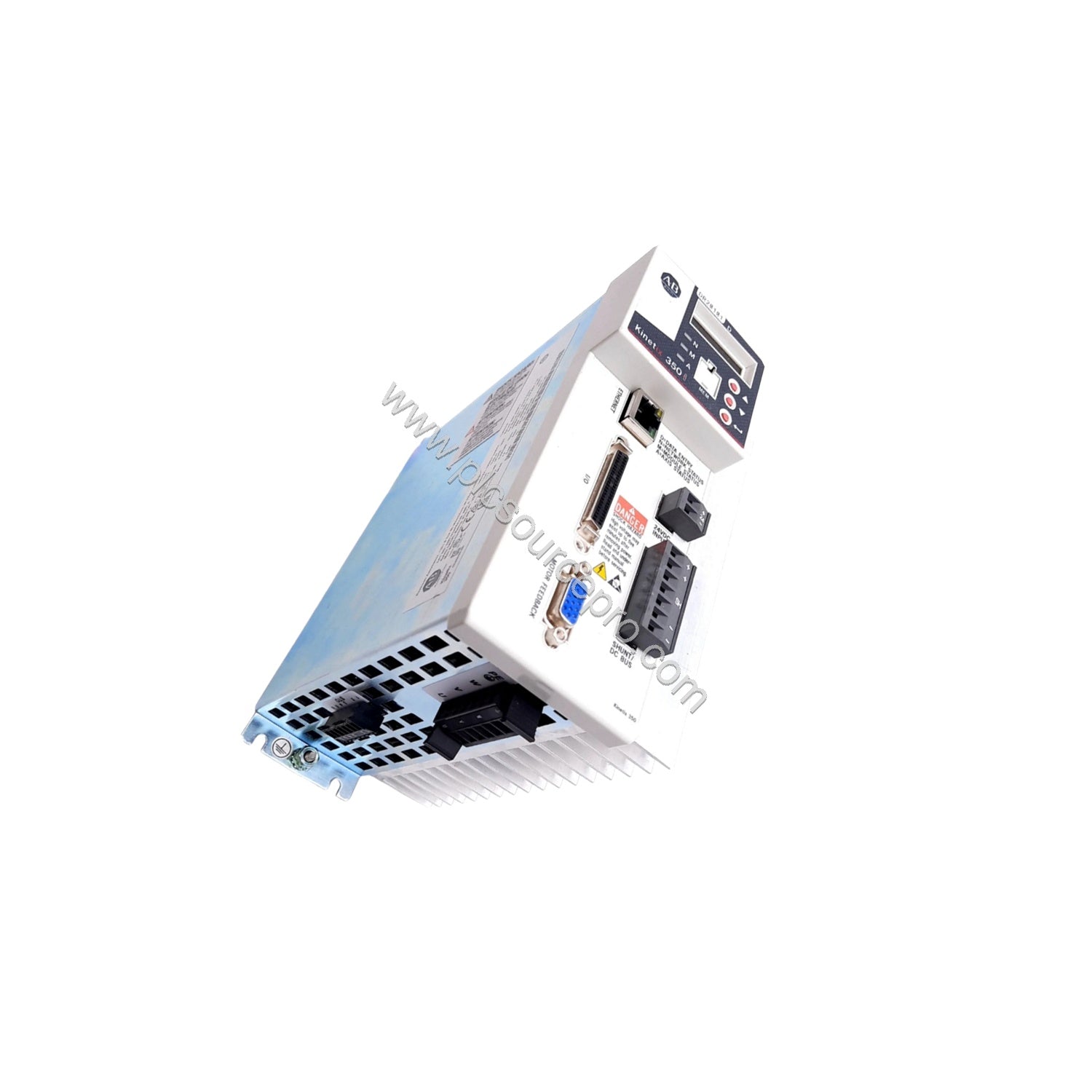

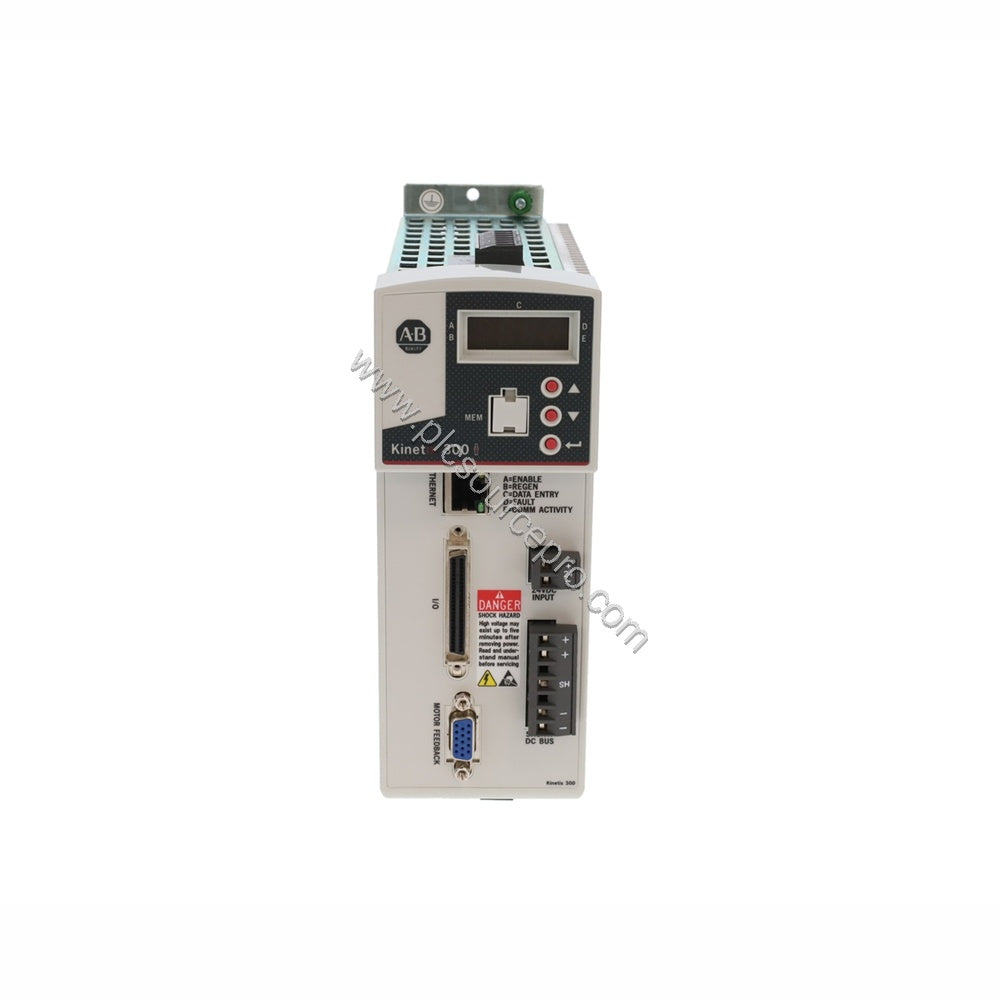

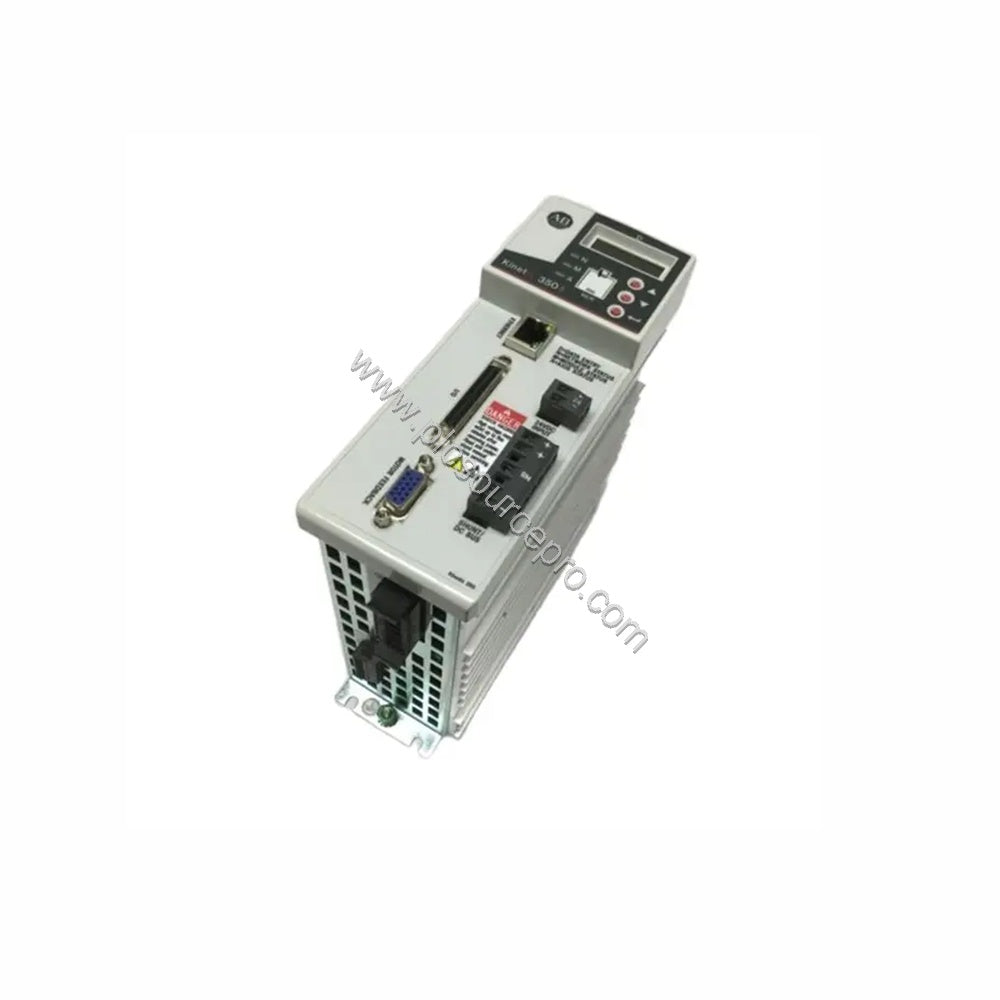

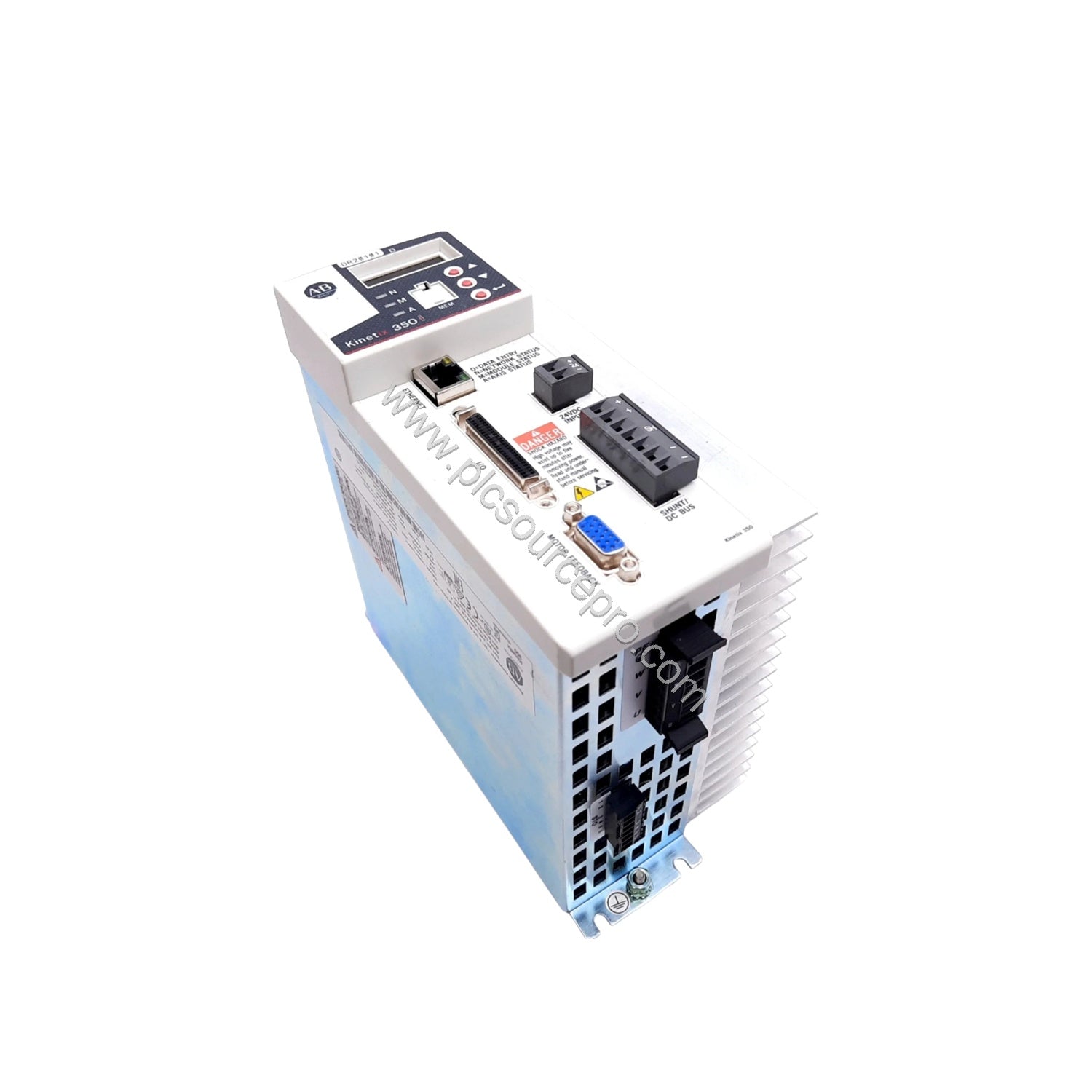

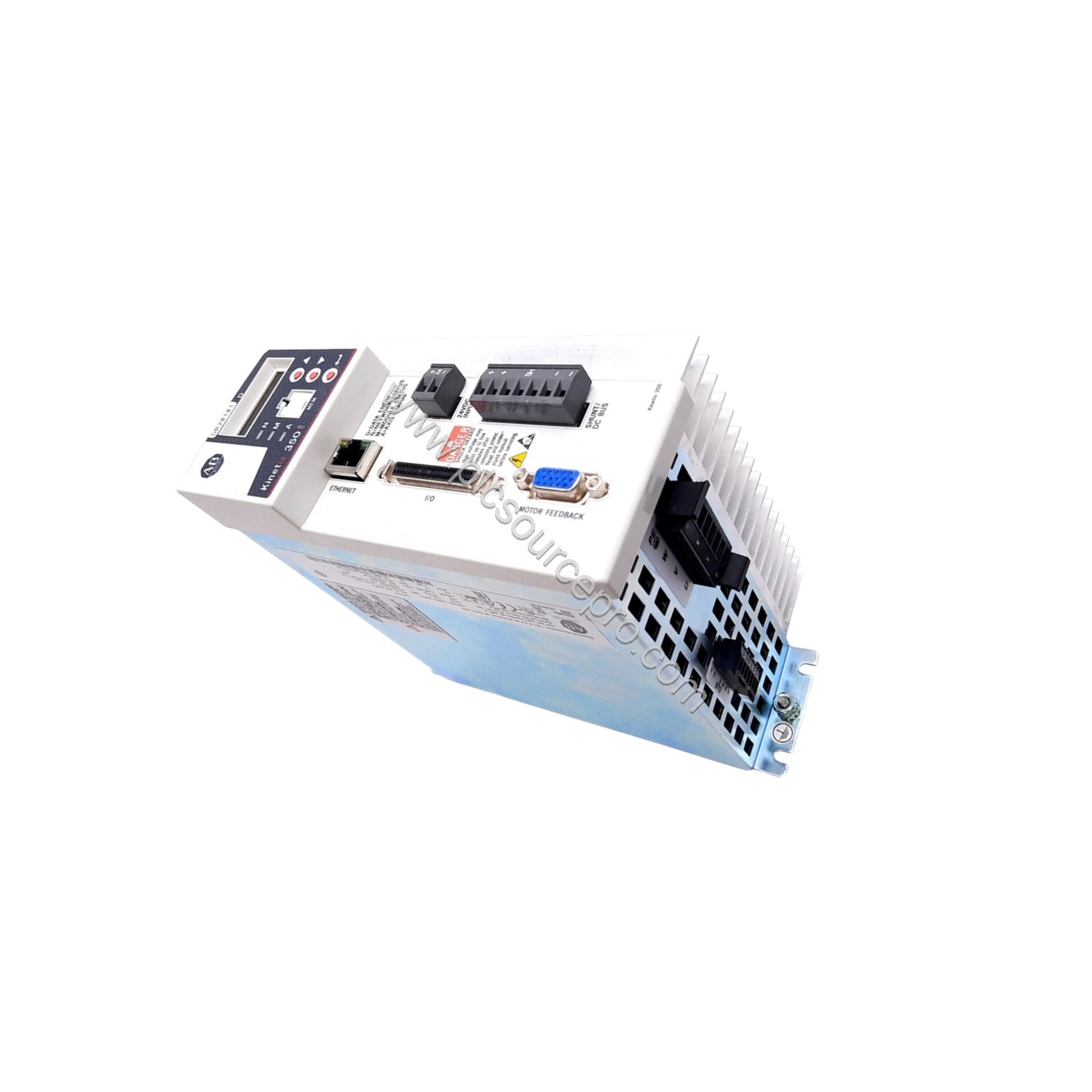

The Allen-Bradley 2097-V34PR5-LM is a Kinetix 350 single-axis EtherNet/IP servo drive engineered for precise motion control in industrial automation. With an input voltage of 320–528V AC three-phase (480V nominal) and a continuous power output of 2.0 kW, this drive delivers robust performance for demanding applications. Its embedded Safe Torque-Off (STO) function enhances operator safety by immediately disabling torque without removing power, meeting modern safety standards.
Technical Specifications
Below are the key specifications for the 2097-V34PR5-LM:
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Input Voltage |
320…528V rms three-phase (480V nom) |
| Input Frequency |
48…62 Hz |
| Main AC input current (rms) |
5.5 A |
| Continuous output current (rms) |
4.0 A |
| Peak output current (rms) |
12.0 A |
| Continuous power output |
2.00 kW |
| Safe Torque-Off |
Yes |
| Dimensions |
9.37 x 7.29 x 4.1 in (238 x 186.1 x 104.1 mm) |
| Weight |
4.4 lbs (2.0 kg) |
For detailed control power backup specs, the drive accepts 20–26V DC input with a nominal current of 500 mA and a maximum inrush of 30 A. The integrated AC (EMC) line filter is not provided, so external filtering may be required depending on the installation environment.
Key Features & Benefits
-
Precise Motion Control: The Kinetix 350 platform supports integrated motion over EtherNet/IP, enabling seamless coordination with CompactLogix PLCs.
-
Safe Torque-Off (STO): Provides a safety-rated torque disable function, reducing the need for external safety contactors.
-
Compact Footprint: At just 9.37 x 7.29 x 4.1 inches, it saves valuable cabinet space.
-
Automatic Motor Identification: When used with Allen-Bradley MP-Series or TL-Series motors, the drive auto-identifies them on the network, simplifying commissioning.
-
Regenerative Capability: Supports shunt resistors for regenerative applications, improving energy efficiency.
Industry Applications
The 2097-V34PR5-LM is ideal for packaging machinery, material handling, and converting equipment where precise speed and position control are critical. Its ability to handle 2.0 kW continuous power and 5.7 A continuous output current (0-pk) makes it suitable for a wide range of servo motors. In a typical packaging line, the drive ensures accurate registration and repeatable motion, reducing waste and downtime.
Installation & Setup
Mount the drive on a flat, vertical surface to ensure proper airflow. Maintain clearance around the unit for heat dissipation. Connect the AC input to terminals L1, L2, L3, and ground. For control power backup, connect 24V DC (20–26V range) to the appropriate terminals. Use shielded cables for motor and feedback connections to minimize electromagnetic interference. After wiring, power up and configure the drive using the built-in web interface or RSLogix/Studio 5000 software.
Compatibility & Integration
This drive is engineered for EtherNet/IP networks and works seamlessly with the CompactLogix family of PLCs to support Integrated Motion. It also integrates with other Allen-Bradley controllers that support CIP Motion. The drive automatically identifies MP-Series and TL-Series motors, reducing setup time.
Maintenance & Reliability
To ensure long service life, keep the drive clean and free of dust. Check all electrical connections periodically for tightness. The operating temperature range is 0 to 50°C (32 to 122°F), and storage temperature is -25 to 85°C (-13 to 185°F). The drive is certified with c-UL-us, CE, C-Tick, and KC, meeting international safety standards.
Selection Guide
Before purchasing, verify that your motor’s voltage and current ratings match the drive’s output capabilities. For UL applications, use the recommended fuse KTK-R-10 (10 A), circuit breaker 1489-A3C100, and motor protection CB 140M-C2E-C10. For IEC applications, use DIN gG fuses (10 A max), 1492-SP3D100 breaker, and 140M-C2E-C10. Ensure your control transformer provides 460V AC input and 750VA with 120-240V AC output. When you need reliable automation parts, PLC Source PRO offers genuine components and expert support.
