Product Introduction

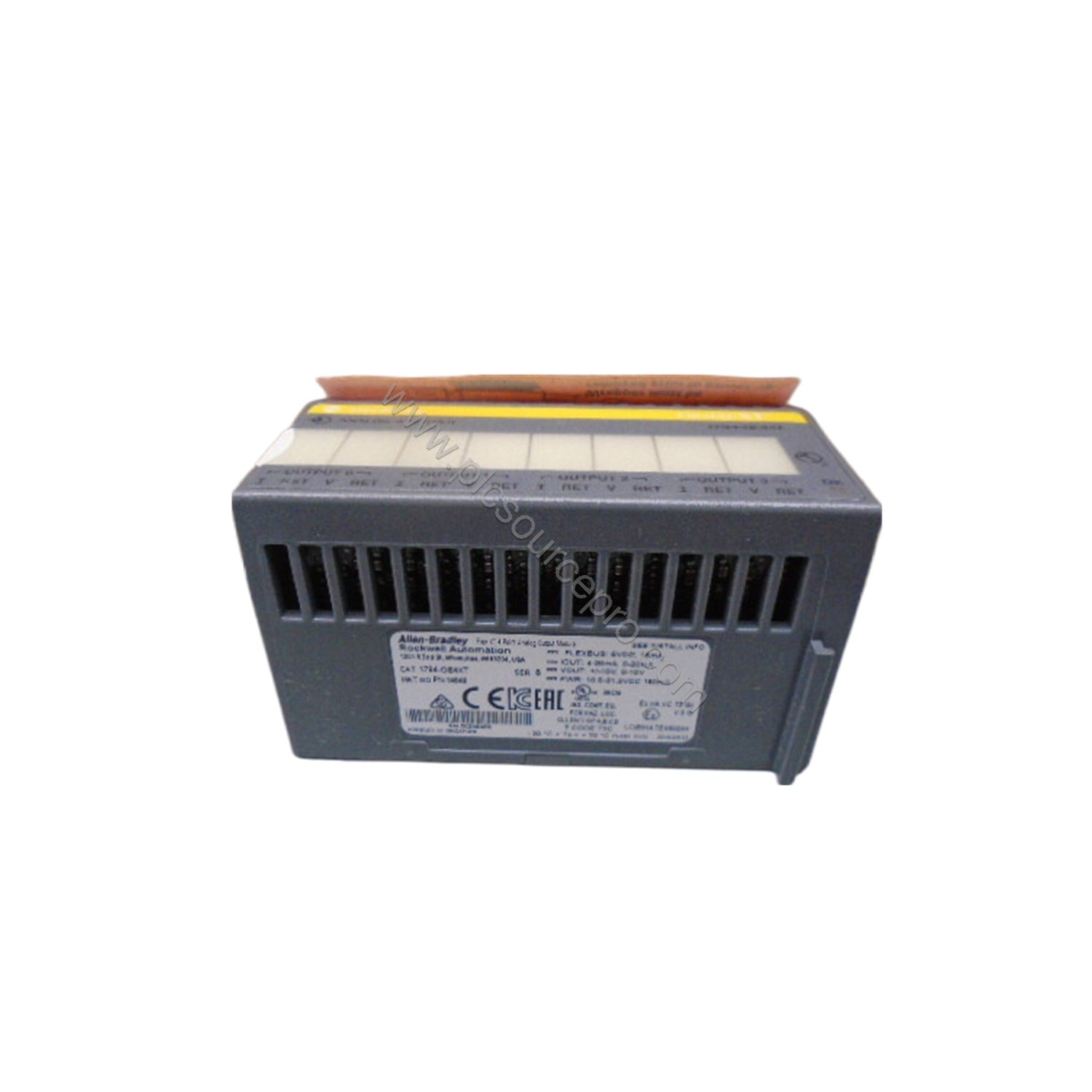

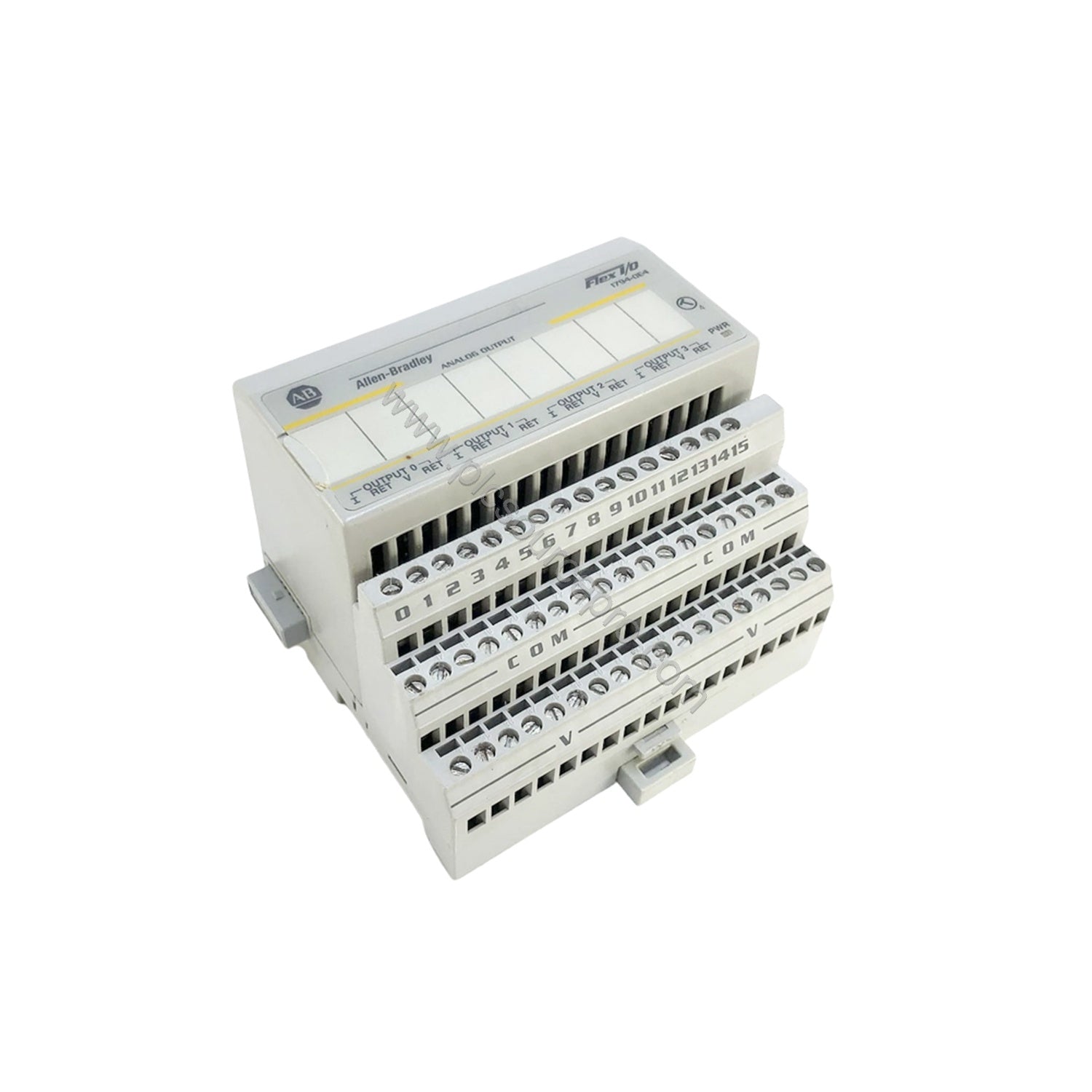

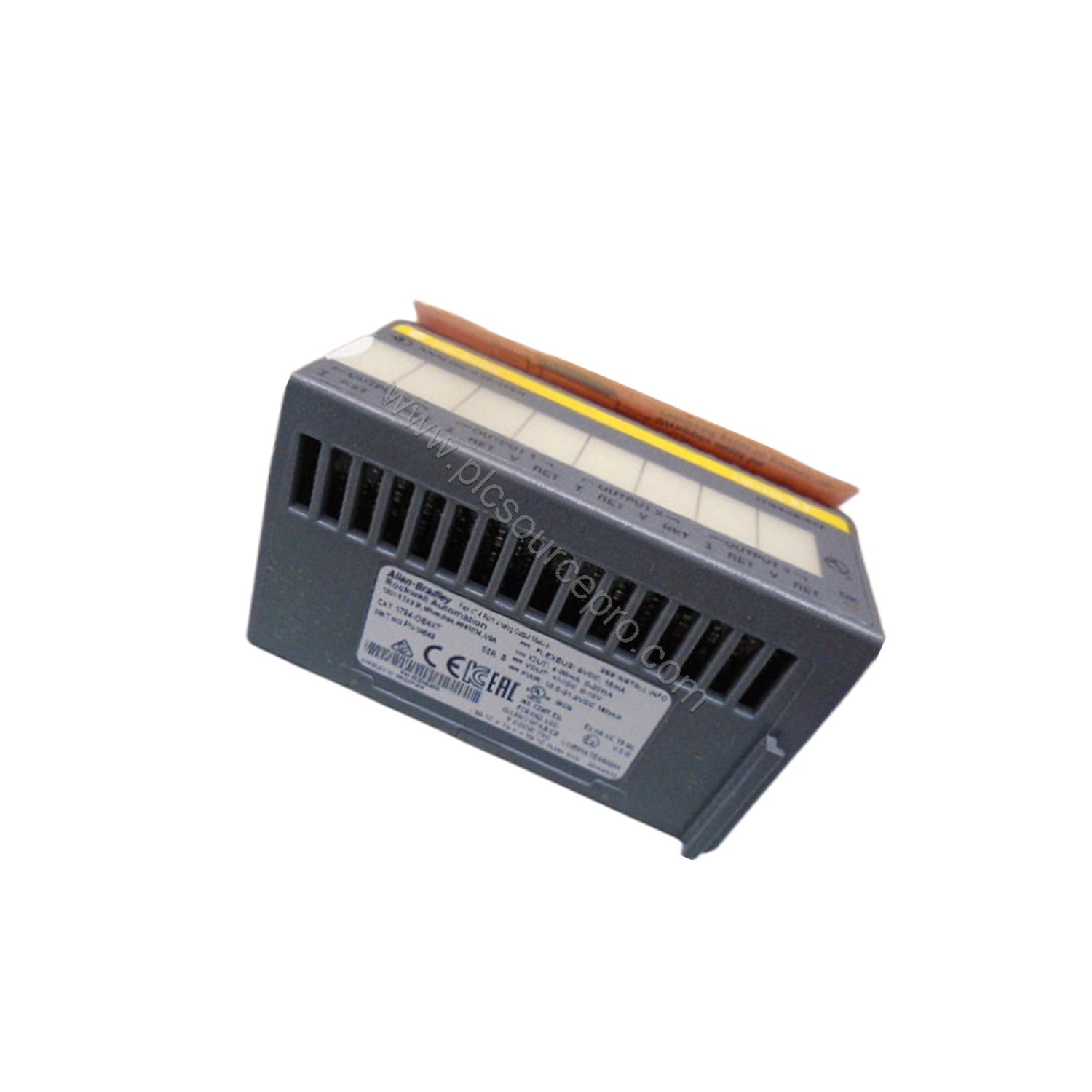

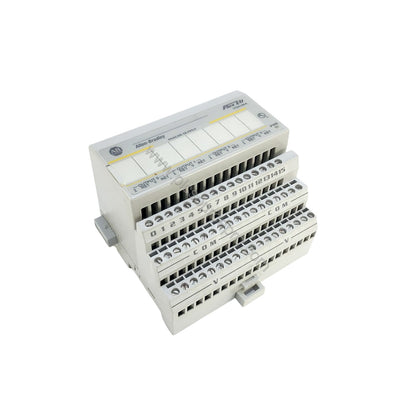

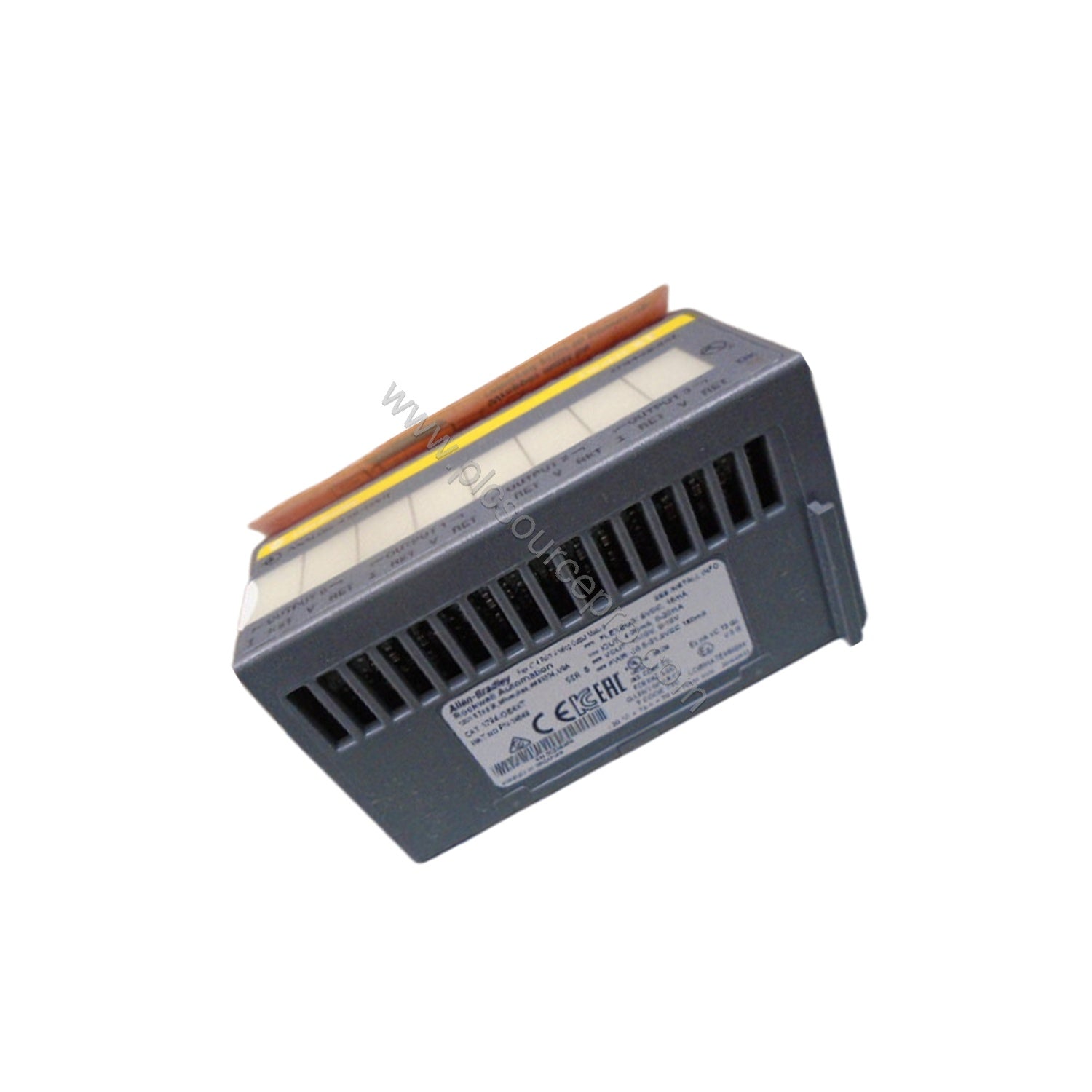

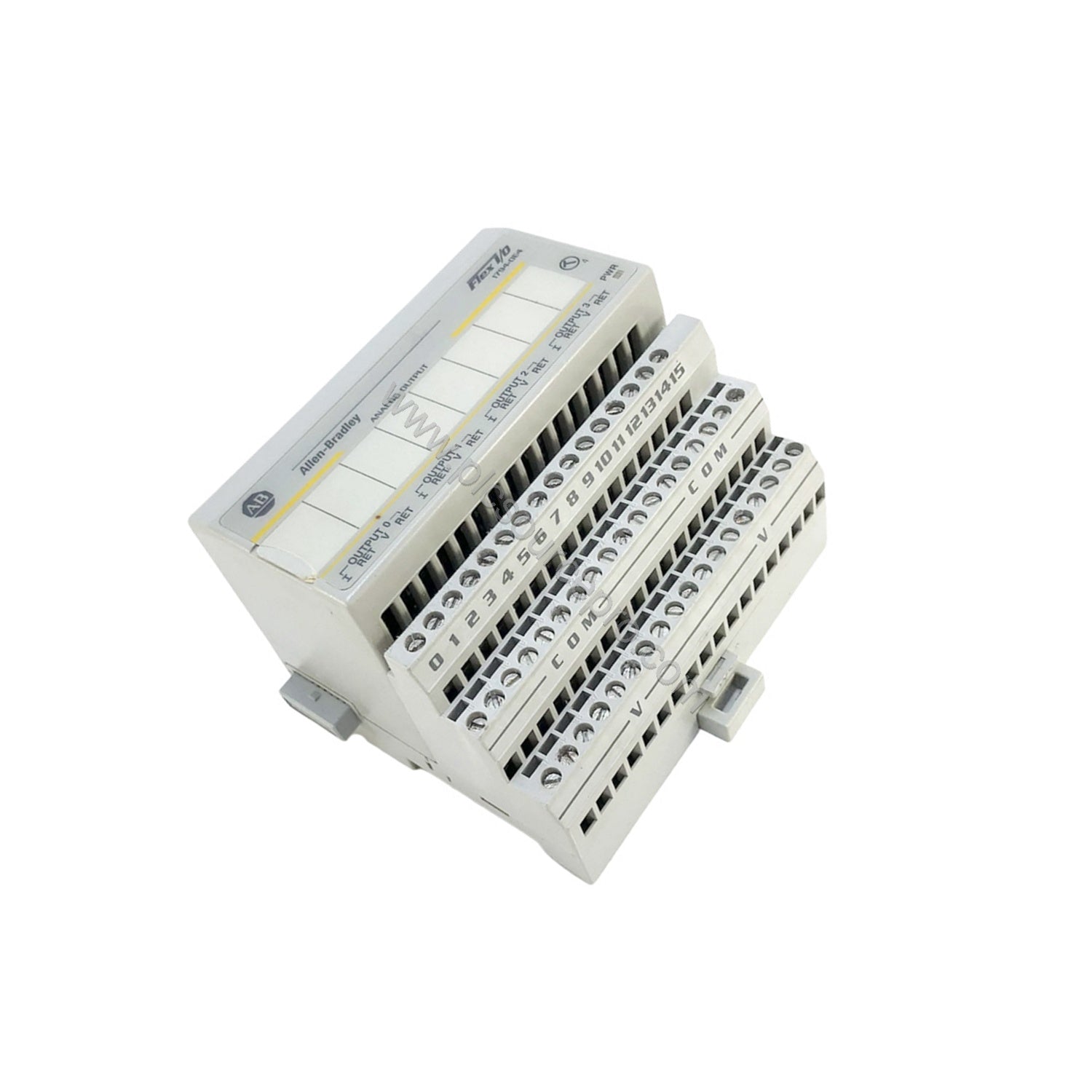

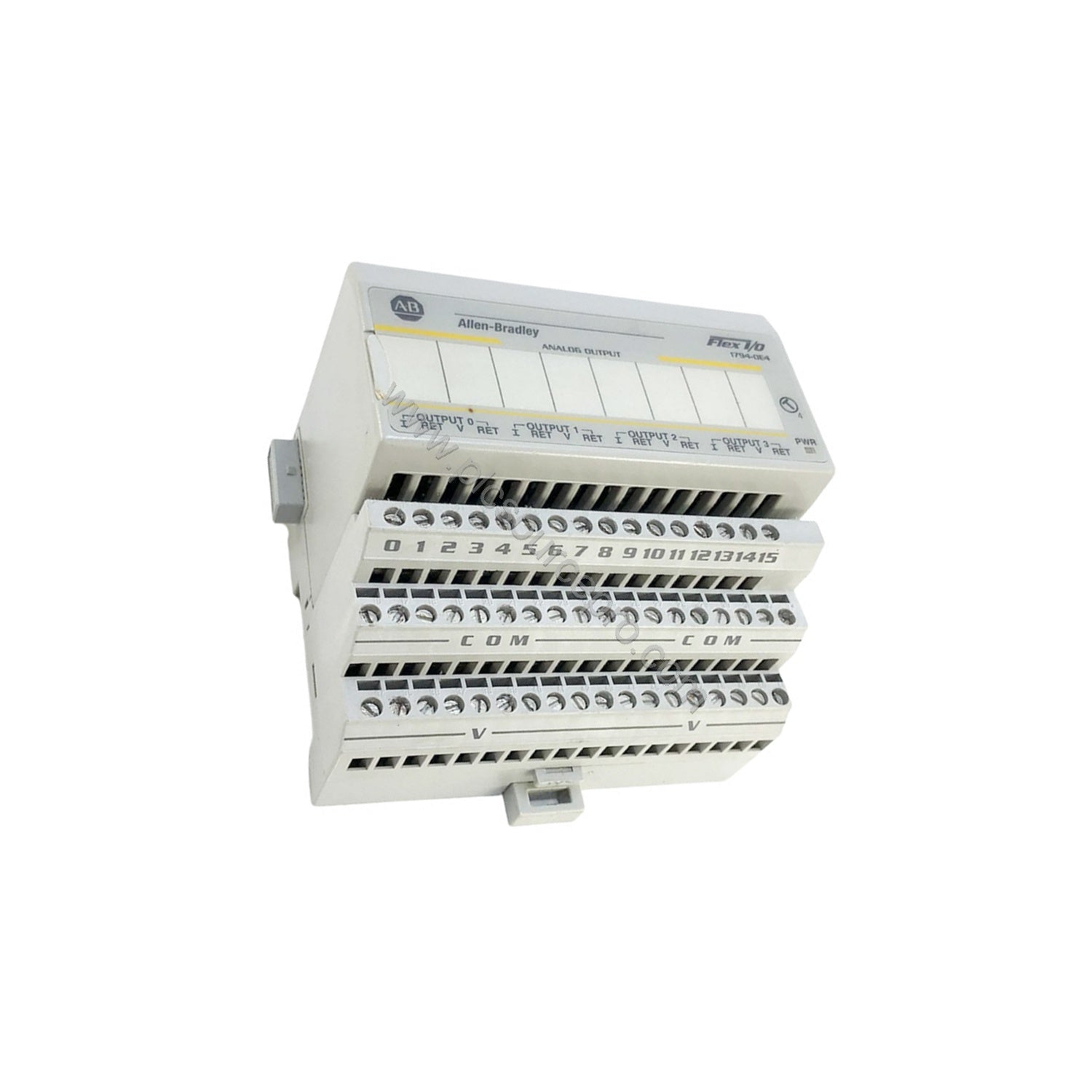

The Allen-Bradley 1794-OE4 is a Flex I/O analog output module engineered for precise control in distributed I/O nodes. This module delivers four single-ended output channels configurable for 0 to 20 mA, 4 to 20 mA, ±10 VDC, or 0 to 10 VDC signals. With its robust design and compatibility with Flex I/O communication adapters, the 1794-OE4 is a reliable choice for automating modulating devices like variable frequency drives (VFDs), control valves, and dampers.
Technical Specifications Breakdown
Key performance metrics from the Allen-Bradley 1794-OE4 include:
-
Resolution: 12 bits plus sign, with voltage increments of 2.56 mV/cnt and current increments of 5.13 µA/cnt.
-
Conversion Type: Pulse width modulation (PWM) ensures stable analog output.
-
Data Format: Left-justified, 16-bit 2’s complement for seamless integration.
-
Output Ranges: 0–20 mA, 4–20 mA, ±10 VDC, 0–10 VDC with 3 mA maximum load on voltage output.
-
Power and Dissipation: External DC supply 24 V nominal (10.0–31.2 V DC), FlexBus current 20 mA, power dissipation 4.5 W max at 31.2 V DC, thermal dissipation 13.6 BTU/hr max at 31.2 V DC.
These specifications enable precise analog control for demanding industrial processes.
Industry Applications
In process control applications, the Allen-Bradley 1794-OE4 excels at driving final control elements. For example, in a water treatment plant, this module regulates chemical dosing pumps via 4–20 mA signals. In a manufacturing line, it controls VFD speed using ±10 VDC outputs. The module’s 12-bit resolution and fast conversion rate (1.024 ms max) ensure responsive and accurate adjustments, reducing process variability.
Installation & Setup Guidance
Mount the 1794-OE4 on a DIN rail using one of the compatible terminal bases: 1794-TB2, -TB3, -TB3S, -TB3T, -TB3TS, or -TBN. The keyswitch position must be set to 4. Wiring size depends on the terminal base selected. Connect the external DC supply (24 V nominal) to power the module. The integrated green/red status LED provides immediate feedback on power and operational status.
Compatibility & Integration
The Allen-Bradley 1794-OE4 integrates seamlessly with Flex I/O communication adapters such as 1794-ACN15, 1794-ACNR15, 1794-AND, 1794-AENT, and 1794-AENTR. It can also work with MicroLogix controllers using 1794-ASB or 1794-APB adapters. This flexibility allows the 1794-OE4 to fit into Ethernet, ControlNet, Profibus, and Remote I/O networks, making it a versatile component for system upgrades.
Selection Guide & Purchasing Advice
When ordering the Allen-Bradley 1794-OE4, verify your system’s communication adapter and terminal base requirements. The module does not require calibration, simplifying setup. For reliable supply of genuine automation parts, consider UBEST Automation (available at ubest101 store). Ensure your panel has adequate ventilation to maintain the operating temperature range of 0 to 55 °C.
