Product Introduction

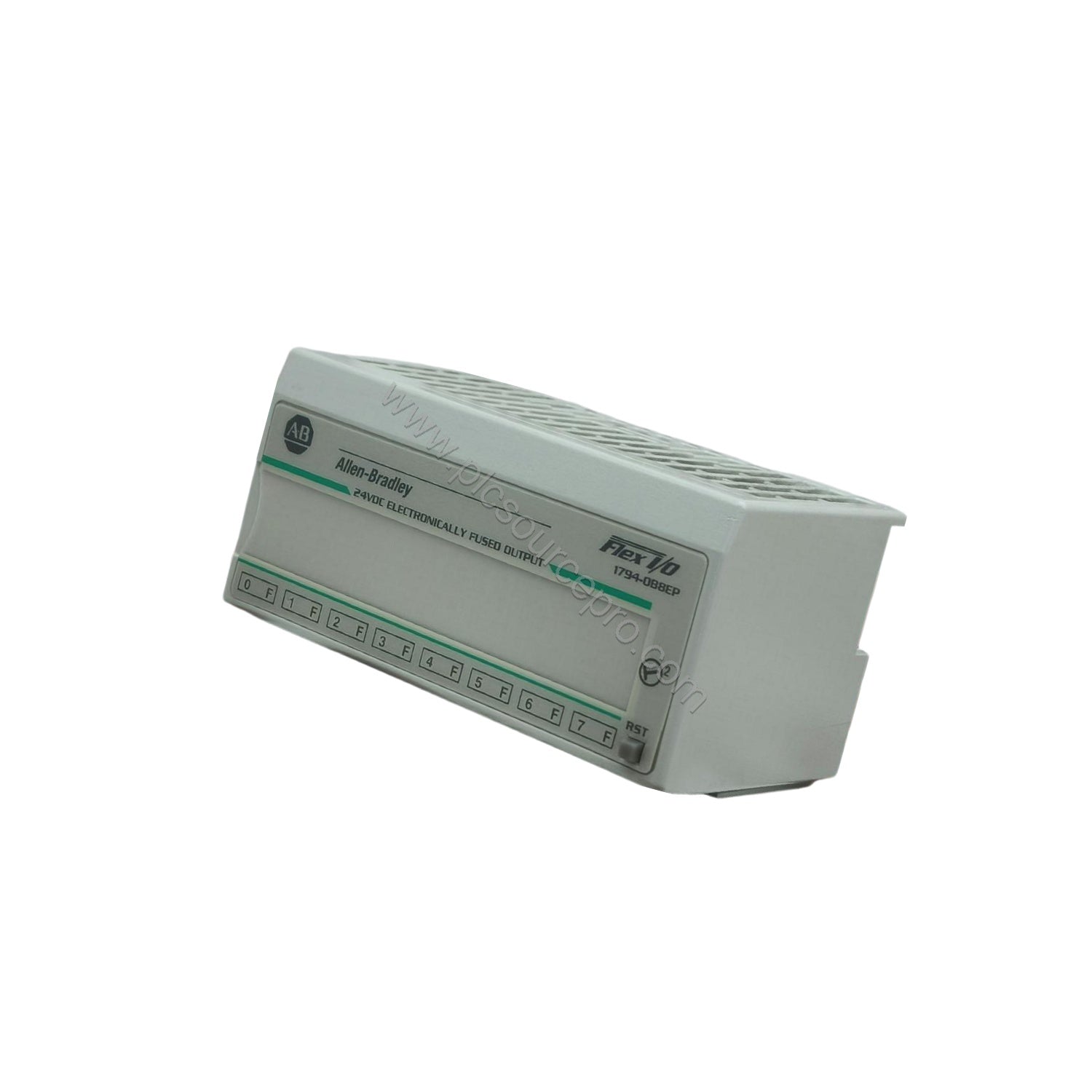

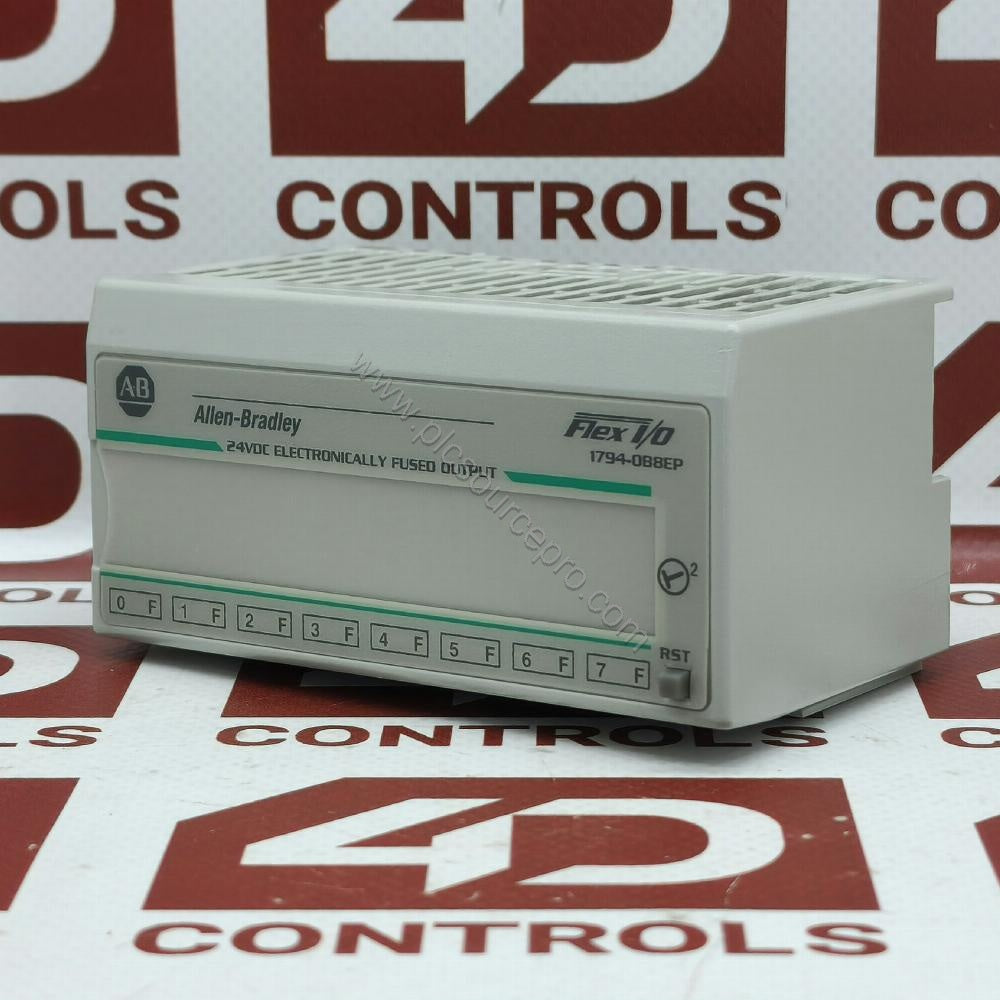

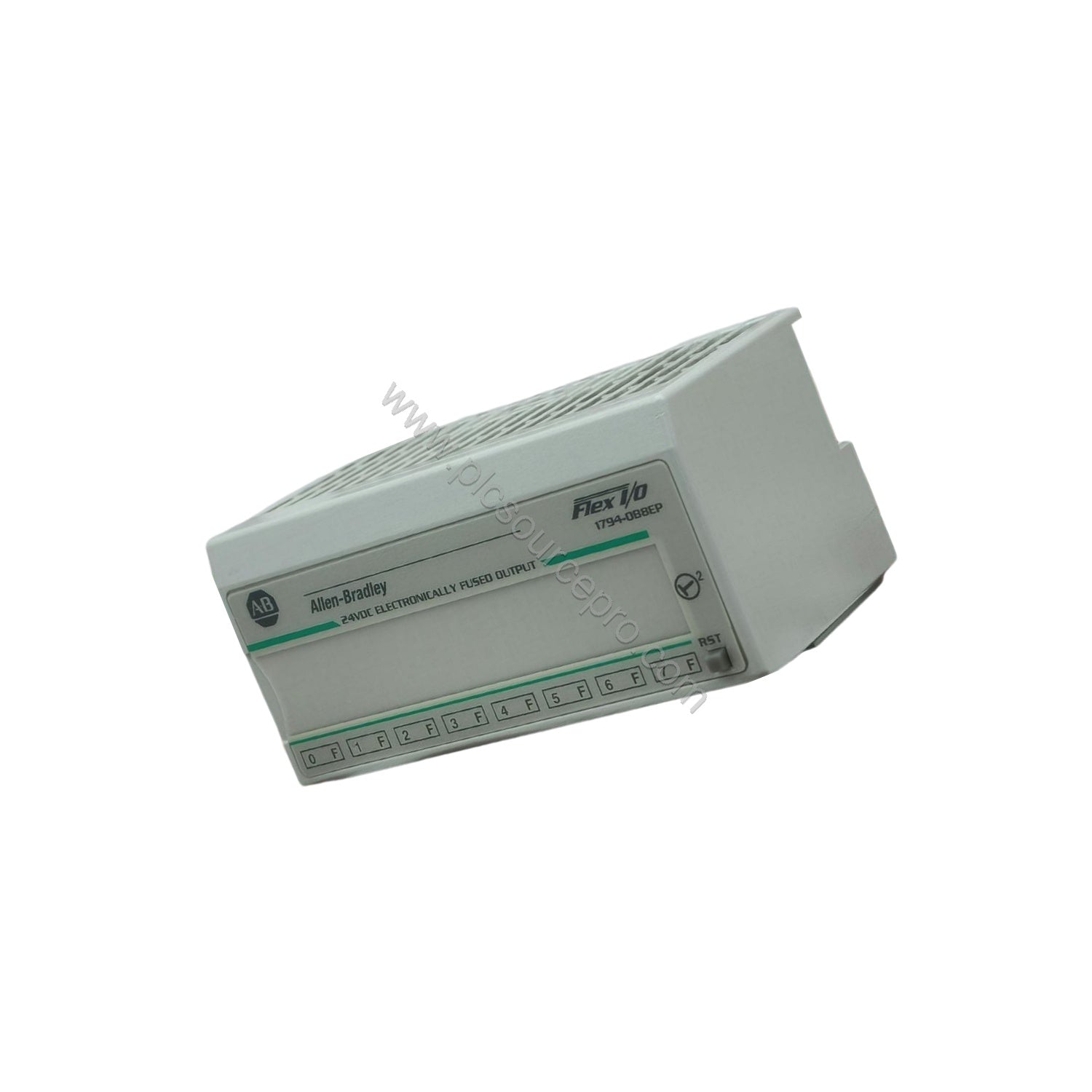

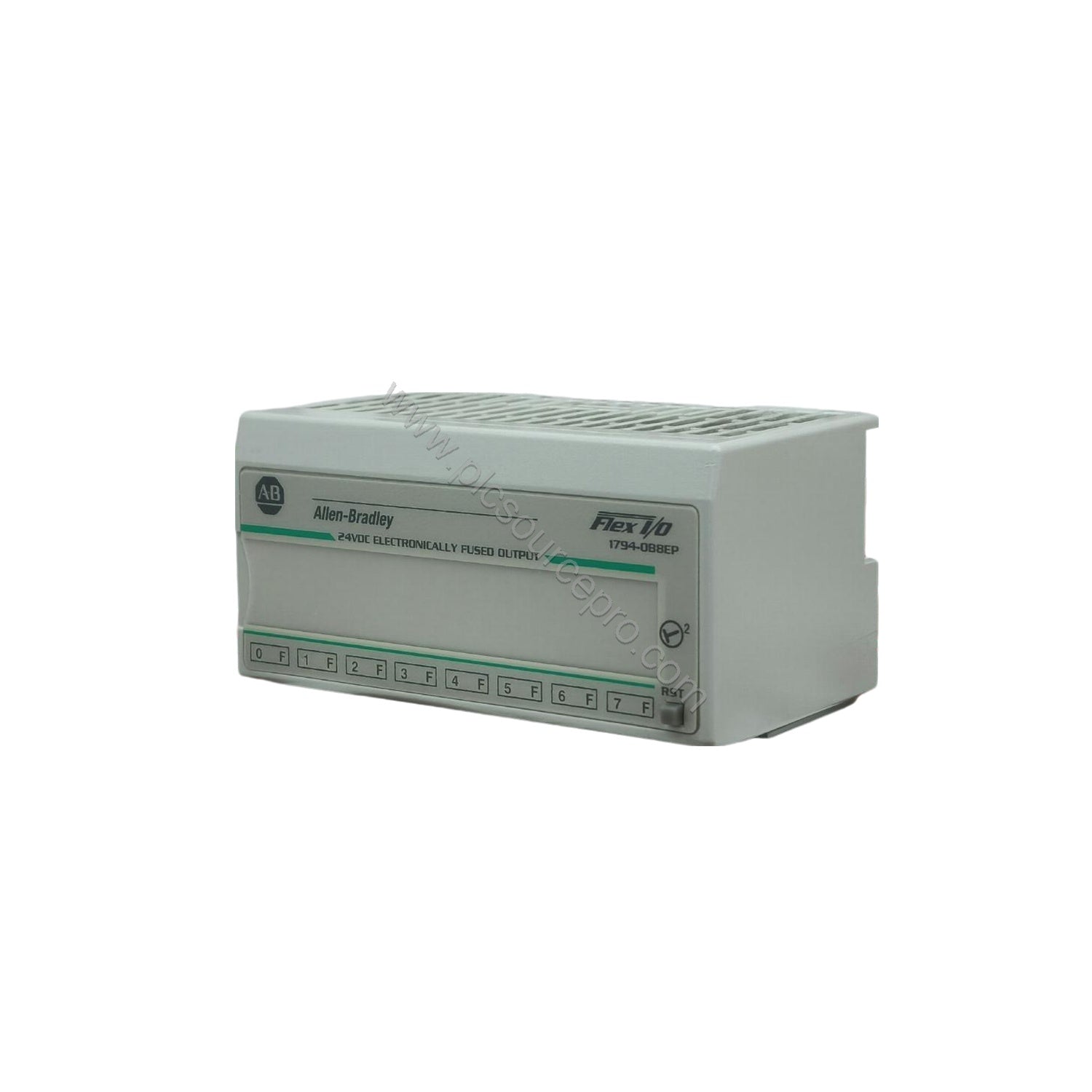

When a fault threatens to disrupt your industrial control system, the Allen-Bradley 1794-OB8EP Flex I/O Digital DC Output Module acts decisively. This module integrates an electronic fuse (EP) that disconnects outputs upon fault detection, protecting downstream equipment and minimizing downtime. Designed for the Flex I/O family, the 1794-OB8EP provides 8 sourcing current outputs with a 24V DC nominal on-state voltage and a 2A maximum output current rating per channel.
Technical Specifications Breakdown
The 1794-OB8EP delivers reliable performance under demanding conditions. Key specifications from the datasheet include:
-
On-state Voltage Drop max.: 0.2V DC – ensures efficient power delivery with minimal loss.
-
Off-state Leakage Current max.: 0.5mA – prevents false activation when outputs are off.
-
Isolation Voltage: 50V Continuous – protects against ground loops and transients.
-
Flexbus Current: 73mA @ 5V DC – low backplane power consumption.
-
Power Dissipation: 5.5W @ 31.2V DC max. – heat generated is manageable for dense enclosures.
-
Thermal Dissipation: 18.8 BTU/hr. @ 31.2V DC max. – aids in thermal management design.
Application Scenarios
The 1794-OB8EP excels in environments where output faults can cause costly shutdowns. Typical applications include:
-
Conveyor systems: Sourcing outputs drive solenoids and motor starters; the electronic fuse prevents overcurrent damage.
-
Packaging machinery: Fast 0.1ms off-to-on and on-to-off delay times support high-speed actuation.
-
Material handling: The 24V DC nominal voltage aligns with standard control voltages, simplifying integration.
Installation & Setup Guidance
Mount the 1794-OB8EP on a DIN rail by snapping it into place. No direct wiring is needed on the module itself – connections are made through the terminal base unit. Compatible bases include 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, and 1794-TBKD. The module supports hot insertion and removal, reducing system restart overhead. Ensure an external power supply of 19.2–31.2V DC with less than 5% AC ripple is available, drawing 20–35mA.
Compatibility & Integration
The 1794-OB8EP communicates over multiple networks: ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. This flexibility allows seamless integration into Rockwell Automation architectures and mixed-vendor systems. The module’s 16 yellow LED status indicators provide real-time per-channel feedback for input and output signals.
Selection Guide & Purchasing Advice
Before ordering, confirm that your system’s backplane power supply can deliver 73mA at 5V DC for the Flexbus. Verify the terminal base unit compatibility with your existing wiring scheme. For extreme environments, consider the XT version of the 1794-OB8EP, which extends operating temperature range and reduces panel costs. UBEST Automation offers genuine Allen-Bradley 1794-OB8EP modules with full manufacturer support. Trust UBEST Automation for reliable industrial spares that keep your operations running.
