Product Introduction

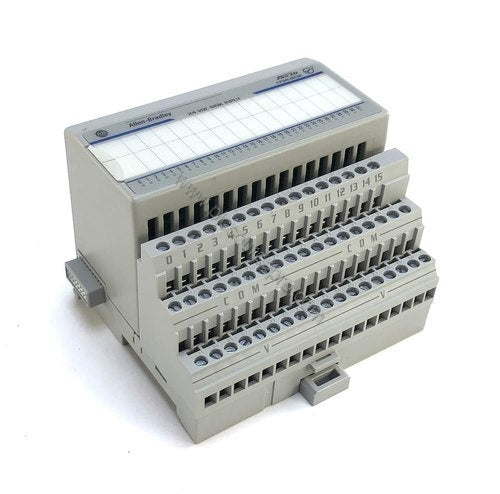

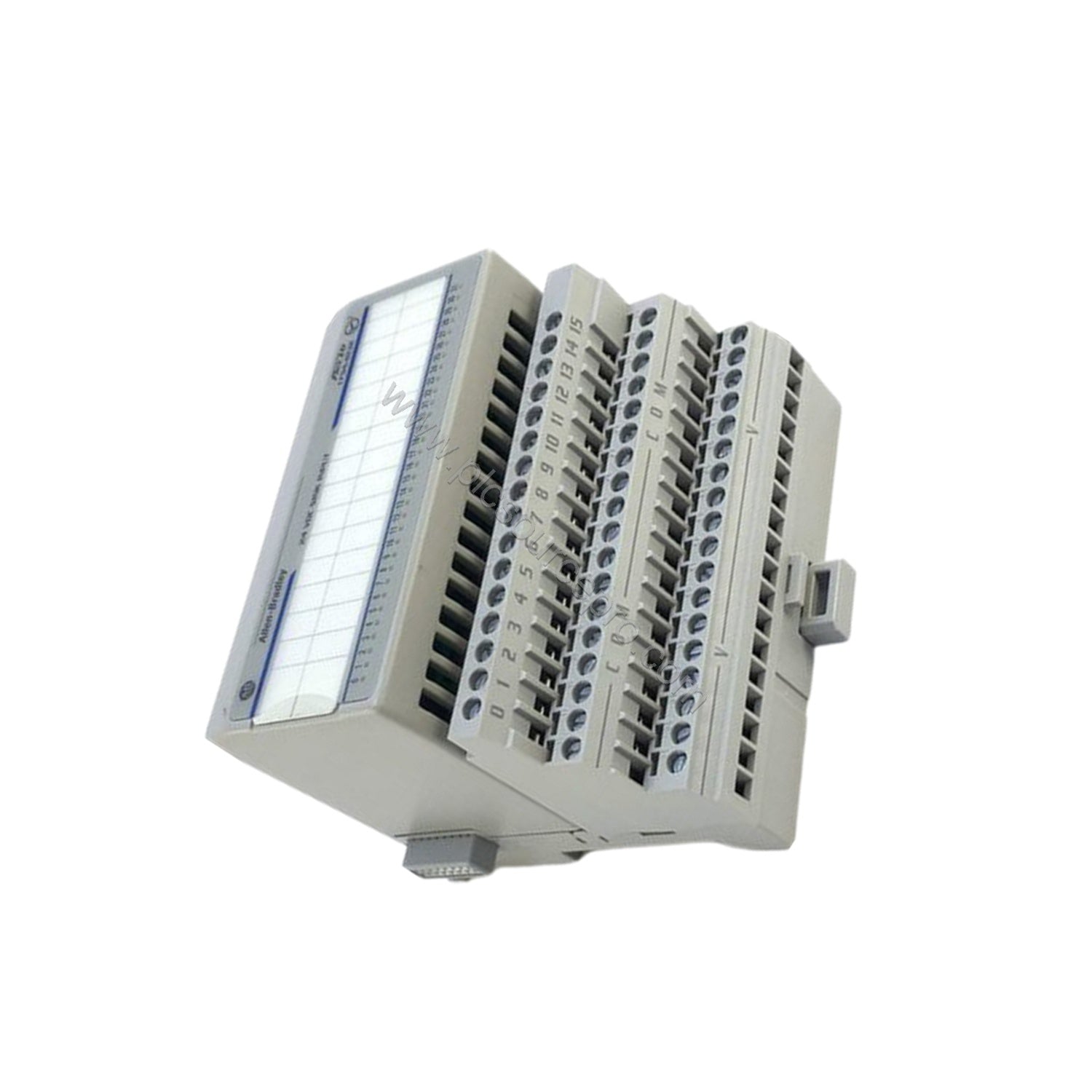

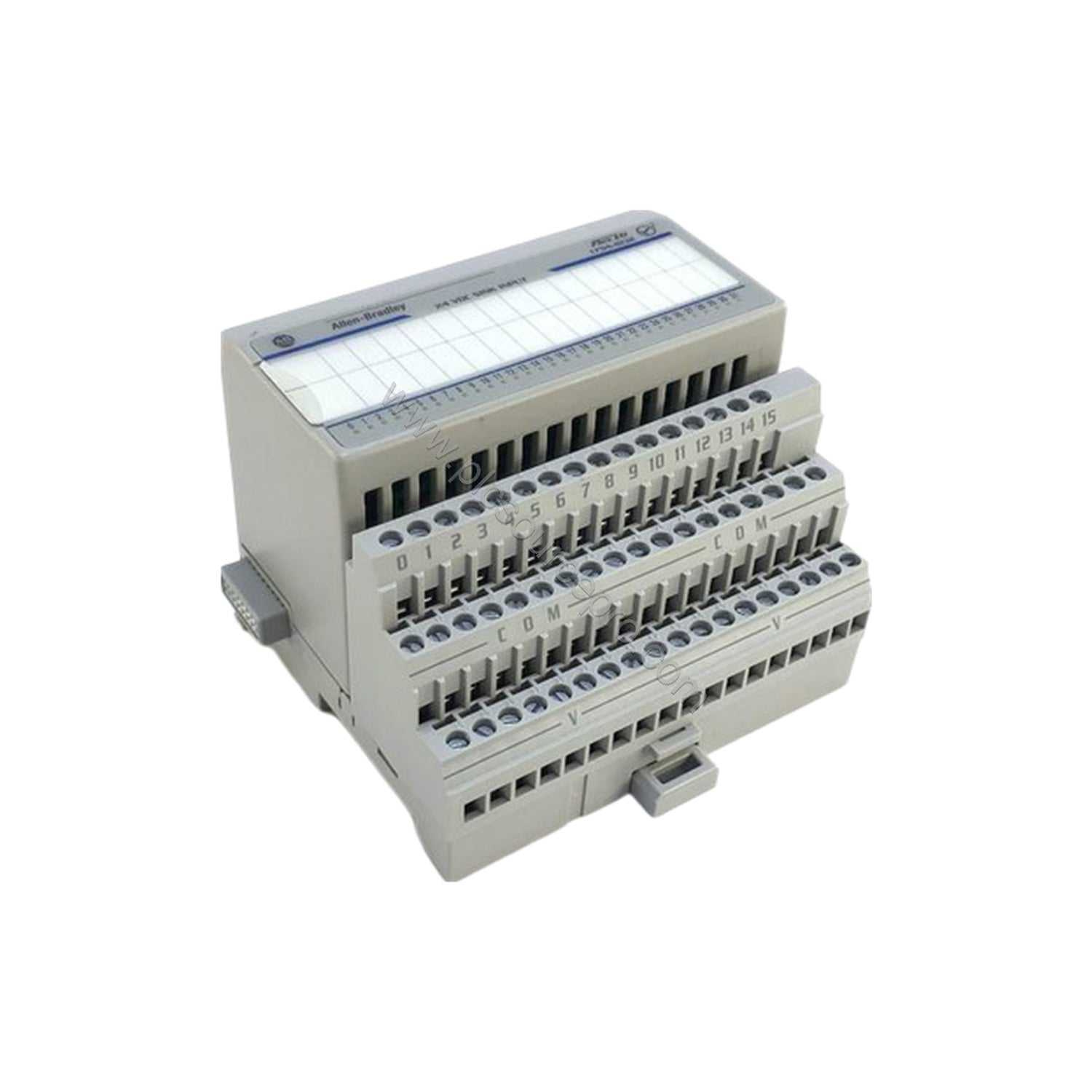

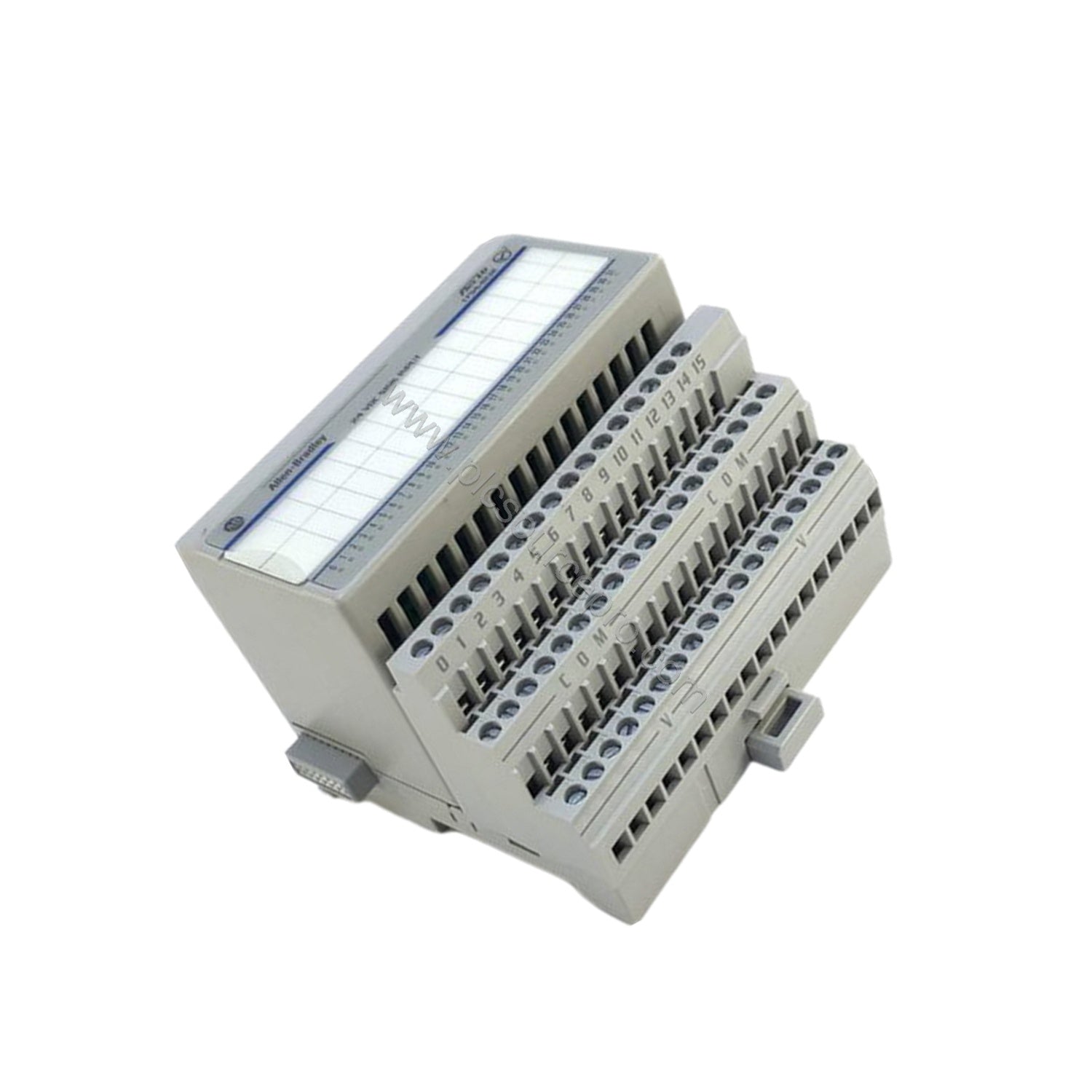

The Allen-Bradley 1794-IB32 is a Flex I/O Digital Input Modules part of the Flex I/O family from Rockwell Automation. This high-density module offers thirty-two (32) current sinking input channels, each accepting DC signals with an input voltage range of 19.2-31.2 VDC. Designed to integrate field devices like pushbuttons, limit switches, proximity sensors, and relay contacts into automated control systems, the 1794-IB32 provides reliable signal acquisition in a compact form factor. By consolidating 32 inputs into a single module, it reduces wiring complexity and panel space, delivering tangible cost savings in large-scale installations.
Technical Specifications
The 1794-IB32 module delivers precise electrical parameters for industrial environments. Key specifications from the datasheet include:
-
Number of Inputs: 32 current sinking channels
-
On-state Voltage Range: 19.2 to 31.2 VDC minimum to maximum
-
Off-state Voltage (max): 5 VDC
-
Off-state Current (max): 1.5 mA
-
On-state Current Range: 2.0 to 6.0 mA (nominal 4.1 mA at 24 VDC)
-
Nominal Input Impedance: 22.2 kΩ
-
FlexBus Current: 30 mA at 5 VDC
-
Power Dissipation: 6.0 W at 31.2 VDC max
-
Thermal Dissipation: 20.47 BTU/hour at 31.2 VDC
-
Isolation Voltage: 50 V continuous between system and field
-
Operating Temperature: 0 to 55 °C
-
Storage Temperature: -40 to 85 °C
-
Vibration: 5 g at 10–500 Hz
-
Operating Shock: 30 g
-
Indicators: 32 yellow LED status indicators per channel
-
Mounting: DIN rail
-
Dimensions (H x W x D): 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.)
-
Enclosure Type Rating: None (open-style)
These parameters ensure dependable performance in demanding industrial conditions, with the 1794-IB32 handling up to 6.0 mA per channel while maintaining low power consumption.
Application Scenarios
The 1794-IB32 excels in applications requiring dense DC input monitoring. Typical use cases include:
-
Assembly Line Monitoring: Connect 32 proximity sensors to track part presence on a high-speed conveyor. The module’s fast response and LED indicators enable quick status checks, reducing downtime.
-
Machine Safety Interlocks: Wire limit switches and emergency stop buttons directly to the 1794-IB32. Its reliable off-state detection (≤5 VDC) ensures safe operation even in noisy environments.
-
Process Control Integration: Interface with float switches, temperature switches, and relay contacts in a batch processing plant. The module’s 19.2–31.2 VDC range accommodates standard 24 VDC signals and tolerates voltage fluctuations.
By leveraging the 1794-IB32’s high channel count, users reduce the number of I/O modules needed, lowering hardware costs and simplifying system layout.
Compatibility & Integration
The 1794-IB32 integrates seamlessly with Flex I/O communication adapters that support Ethernet, ControlNet, Remote I/O, and other networks. It mounts on compatible terminal bases including 1794-TB32, 1794-TB32S, 1794-TB62DS, and 1794-TB62EXD4X15. The module also accepts terminal bases from the 1794-TB3 series (TB3, TB3S, TBN, TB3K, TB3SK, TBNK) with keyswitch position 2. This flexibility allows the 1794-IB32 to be installed in existing Flex I/O racks without re-engineering, making it an ideal upgrade path for legacy systems.
Installation & Setup Guidance
Install the 1794-IB32 on a DIN rail using the selected terminal base. Ensure the keyswitch is set to position 2 for proper alignment. Wire field devices to the terminal base per the manufacturer’s guidelines; wire size depends on the base chosen. The module supports removal and insertion under power (RIUP) when used with compatible terminal bases, minimizing system downtime. After mounting, check the 32 yellow LED indicators – each lights when the corresponding input channel is active, simplifying commissioning and troubleshooting.
Selection Guide & Purchasing Advice
Before purchasing the 1794-IB32, verify that your system’s communication adapter and terminal base are compatible. For new installations, order the module along with the appropriate base (e.g., 1794-TB32 for standard wiring). For replacement, confirm the existing terminal base matches the module’s keyswitch position. At UBEST Automation, we stock genuine Allen-Bradley 1794-IB32 modules and accessories, ensuring fast delivery and expert support. Contact ubest101 for bulk pricing or customized solutions.
