Product Introduction

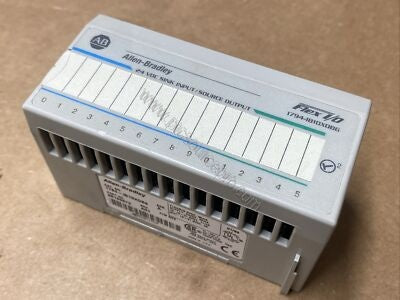

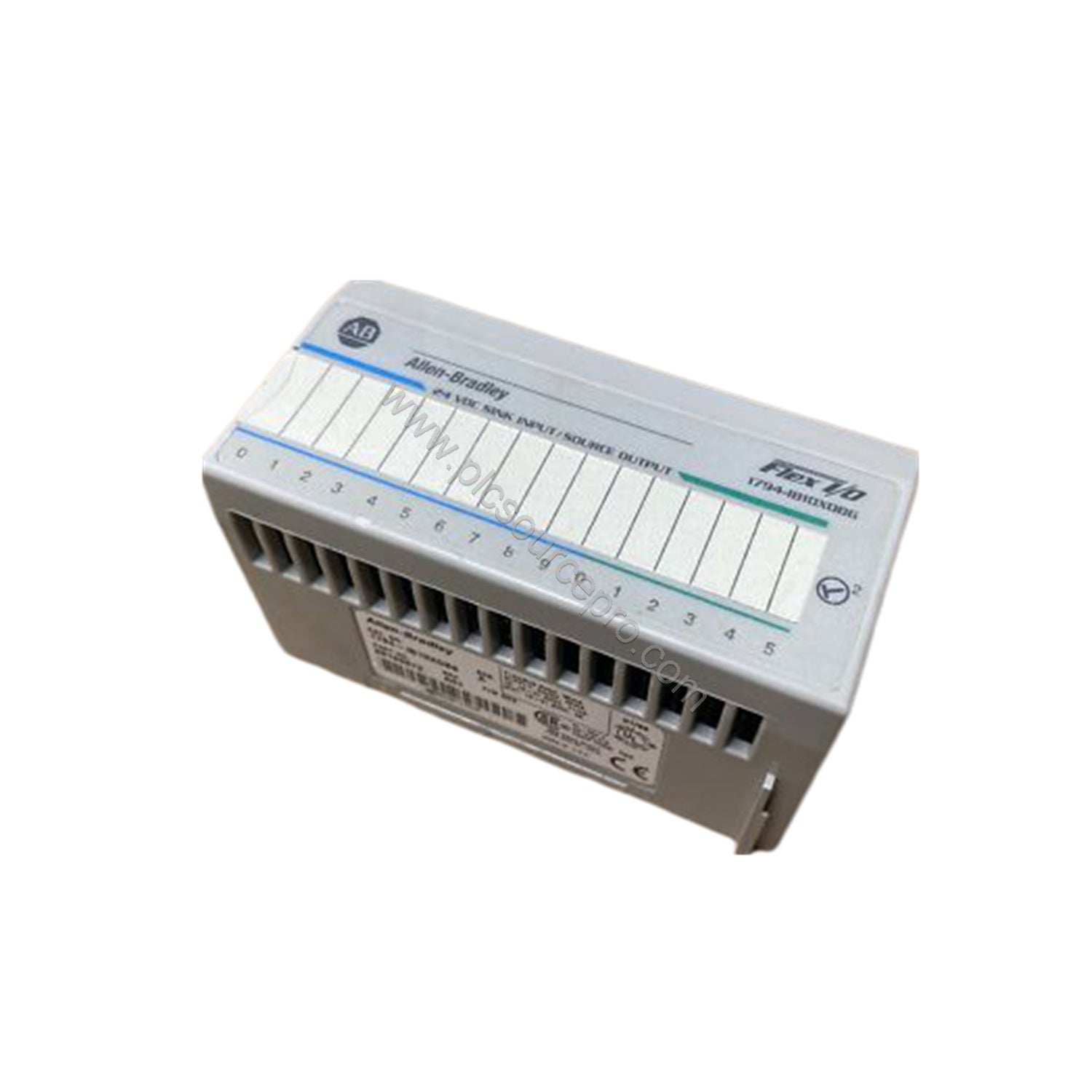

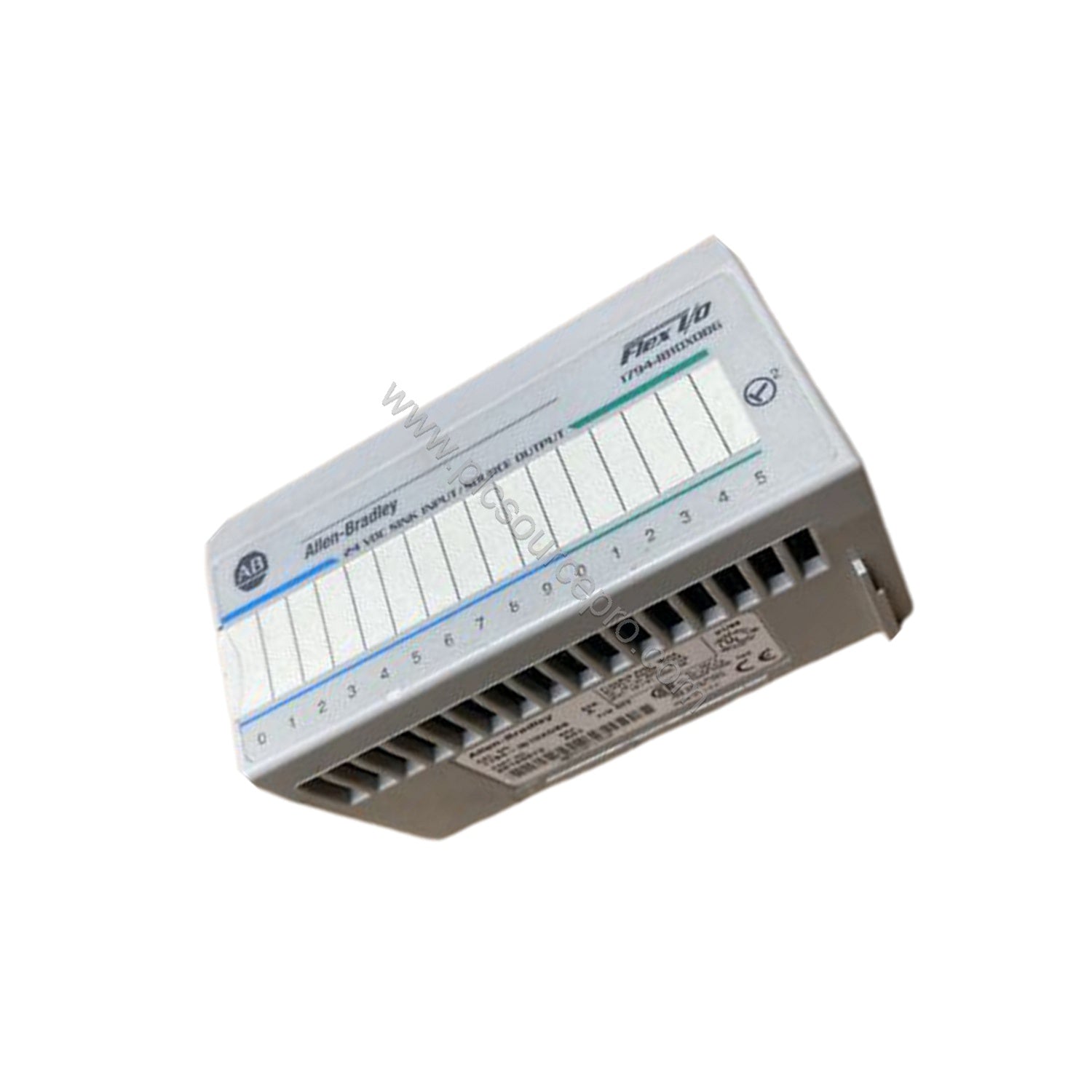

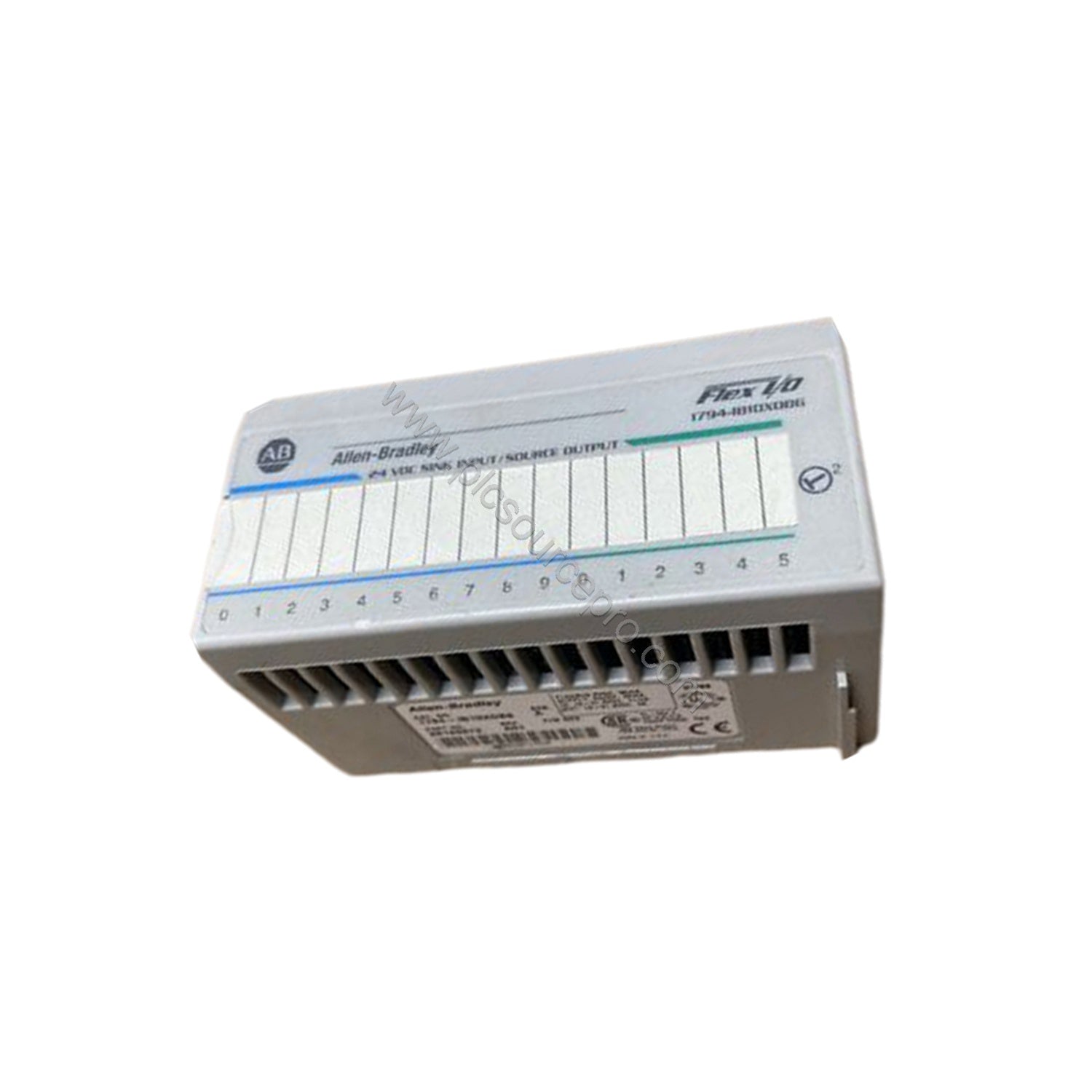

The Allen-Bradley 1794-IB10XOB6 is a digital combination I/O module designed for use within the Flex I/O 1794 series. This module provides a compact and versatile solution for managing both digital inputs and outputs in industrial automation systems. As part of the trusted Allen-Bradley family, the 1794-IB10XOB6 integrates seamlessly into control environments requiring reliable signal processing. Whether you are upgrading an existing system or building a new one, this module offers a straightforward path to efficient I/O management.
Industry Applications
The 1794-IB10XOB6 finds use in a variety of industries including manufacturing, process control, material handling, and packaging. Its ability to handle both inputs and outputs makes it suitable for applications such as monitoring sensor states and controlling actuators. For example, in a conveyor system, the module can read proximity sensors and control motor starters, all within a single unit. In batch processing, it can manage valve positions and status feedback. The module's design supports reliable operation in standard industrial environments.
Installation Guidance
Installing the Allen-Bradley 1794-IB10XOB6 requires mounting it onto a Flex I/O 1794 series terminal base. Ensure the base is properly wired according to the system's schematic. The module snaps onto the base and locks into place. Connect input and output wiring to the designated terminals, observing polarity for DC signals. The module communicates with the controller via the Flexbus backplane. Always verify that power is off before handling the module. Refer to the installation manual for detailed steps and torque specifications.
Selection Guide & Purchasing Advice
When selecting the 1794-IB10XOB6, verify that your controller supports Flex I/O 1794 series modules. Check the number of inputs and outputs required; this module offers 10 inputs and 6 outputs. Ensure your application voltage matches the module's nominal values. For bulk orders or technical support, contact UBEST Automation. We carry a wide inventory of Allen-Bradley spares. Visit ubest101.myshopify.com for additional details or to place an order. Our team can help you find the right parts for your system.
