Product Overview

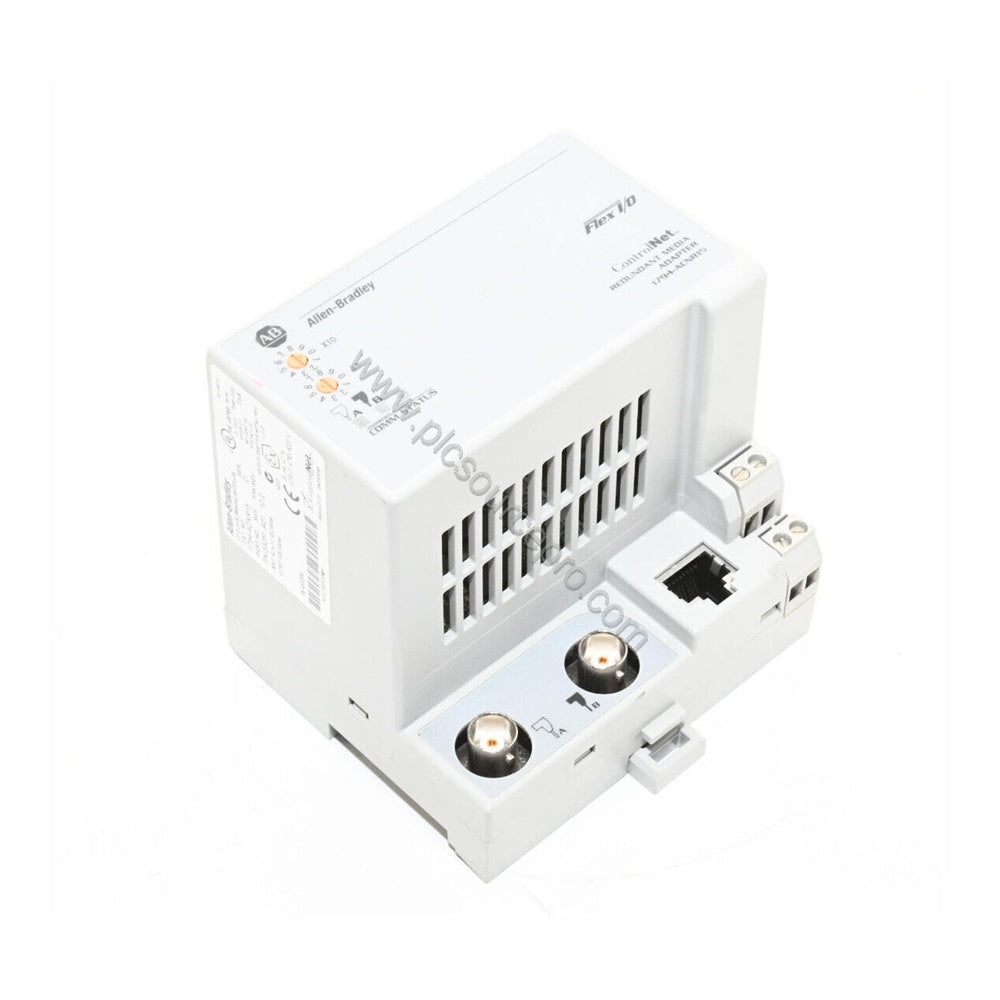

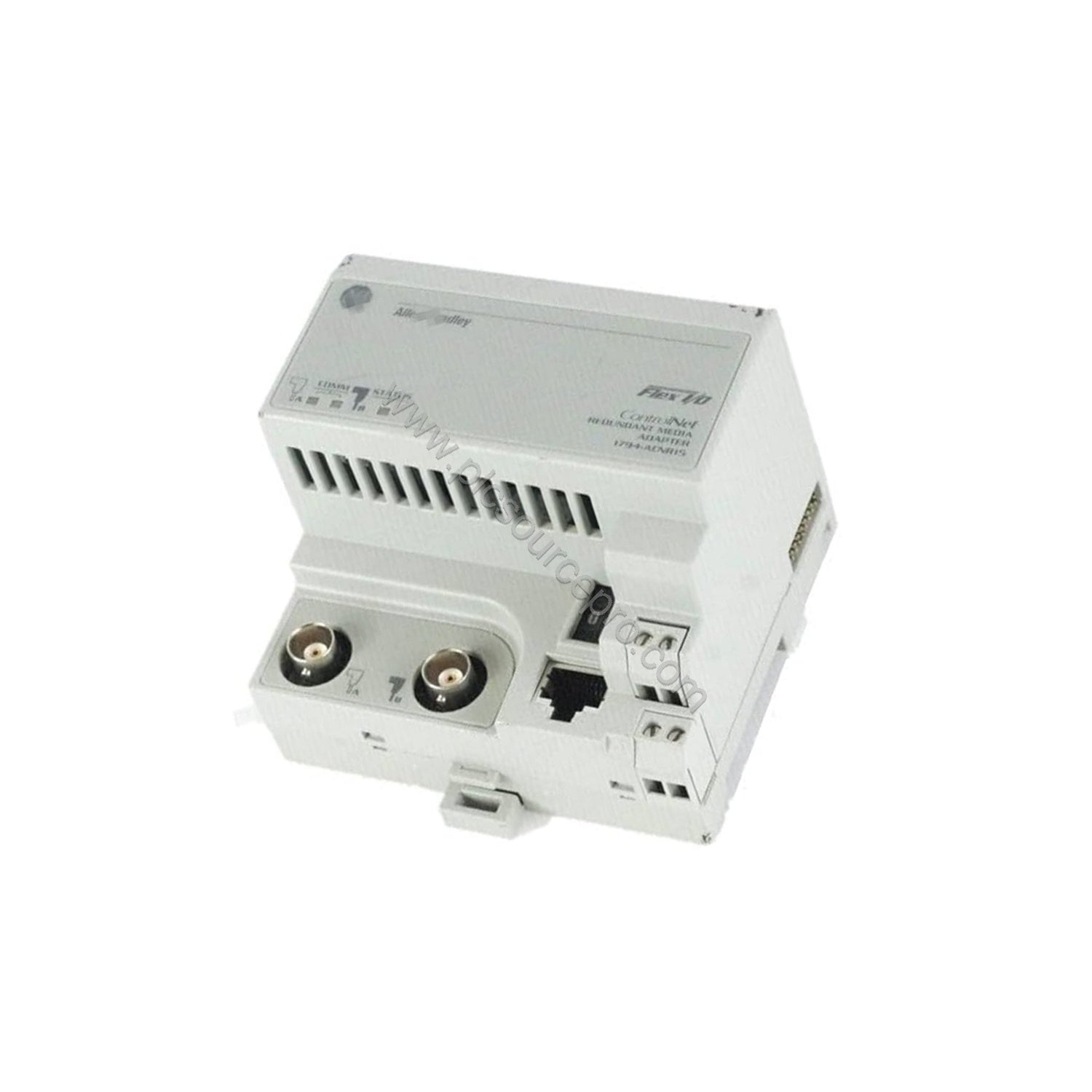

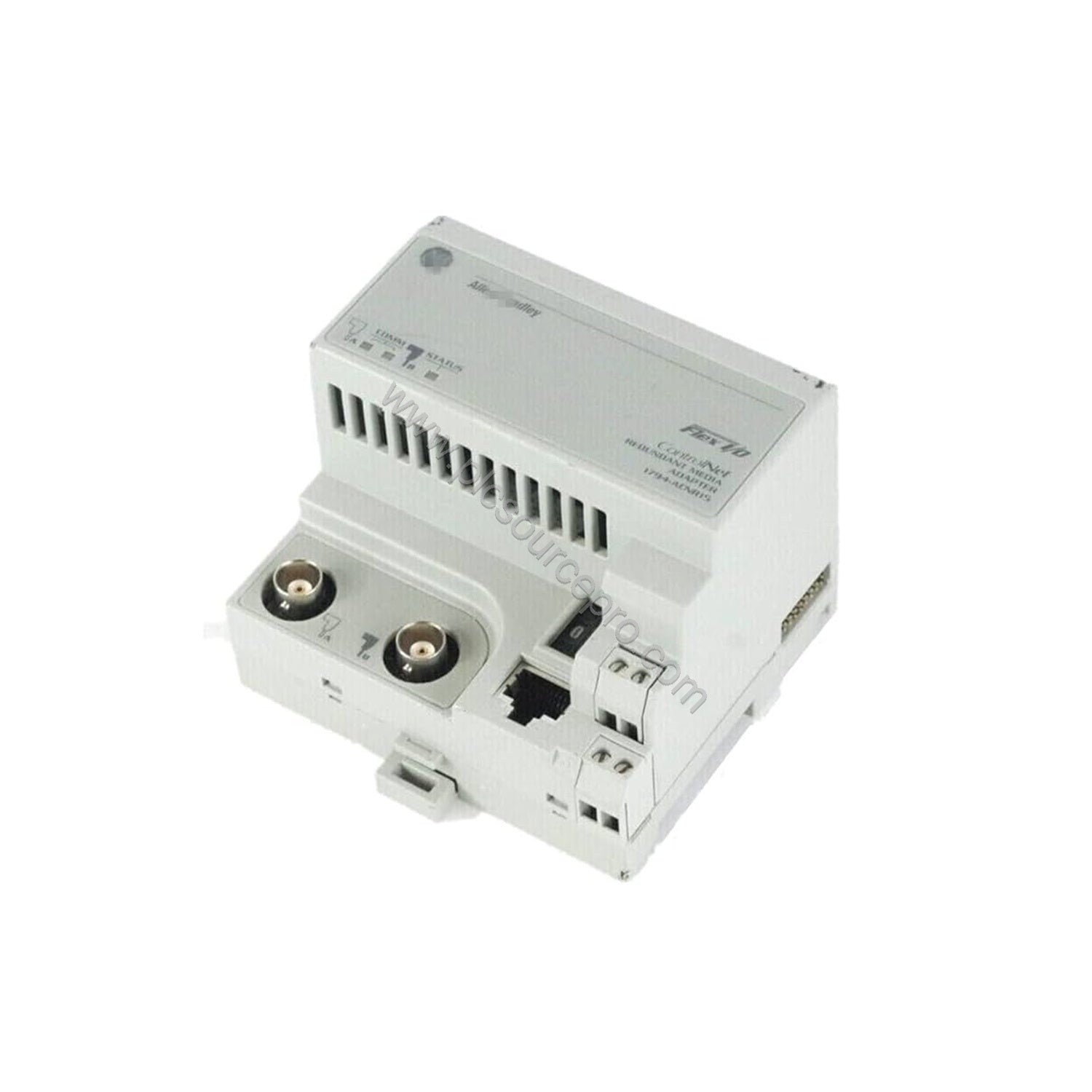

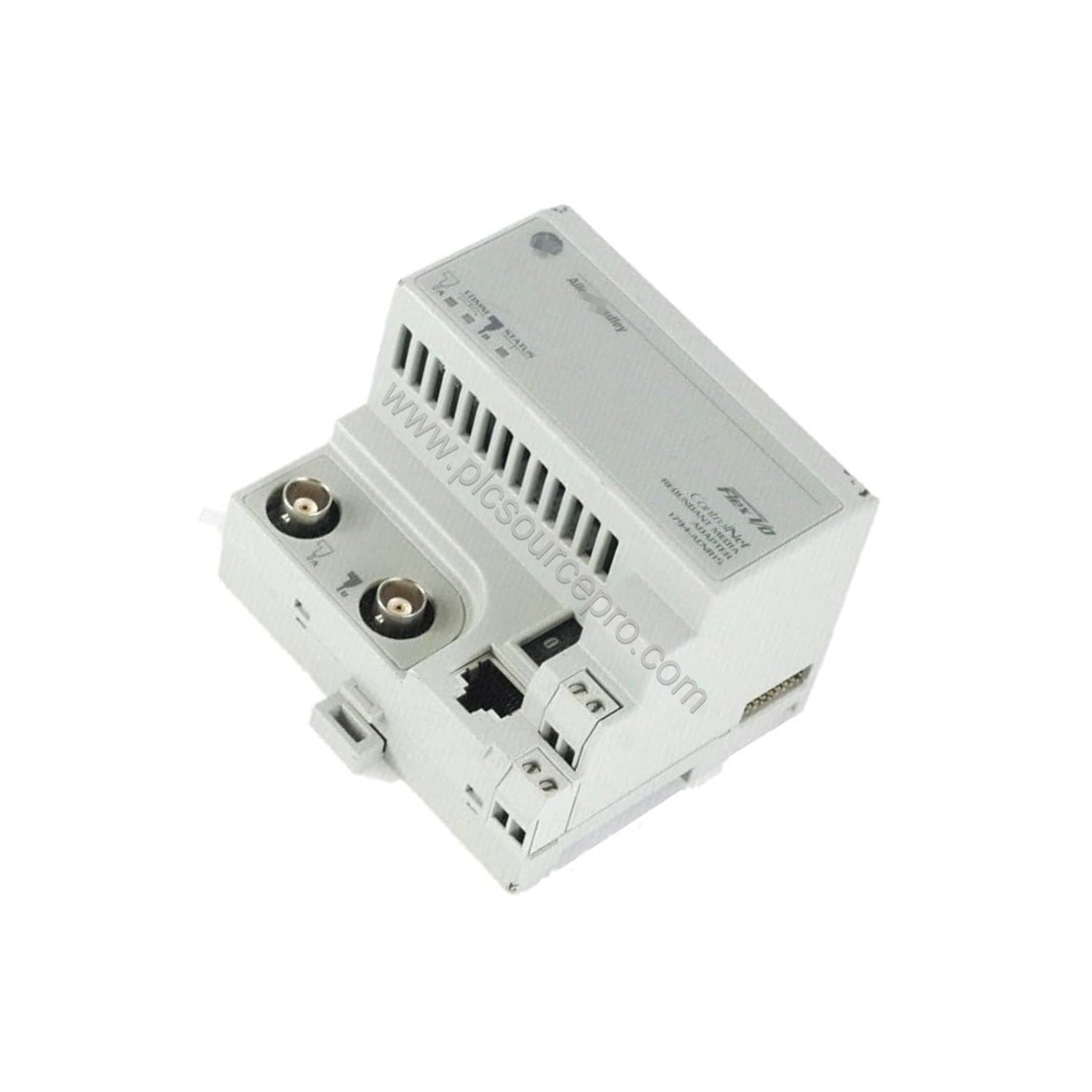

When industrial environments demand reliable communication and extended service life, the Allen-Bradley 1794-ACNR15XT Flex I/O ControlNet adapter delivers consistent performance. Designed for the Flex I/O 1794 series, this module supports communication over ControlNet networks, enabling seamless integration with distributed control systems. Its robust construction includes approval for hazardous locations, where vapors, mist, and gases are infrequent, reducing the risk of costly downtime.
Technical Specifications
Key parameters of the 1794-ACNR15XT ensure it meets demanding industrial requirements:
-
Input Voltage: 19.2 to 31.2 VDC
-
Current Consumption: 400 mA
-
Peak Power Dissipation: 3.4 W at 19.2 VDC
-
I/O Capacity: 8 modules
-
Weight: 0.31 lbs (0.14 kg)
-
Dimensions: 87.4 x 94 x 92 mm
-
Approvals: T4A (North America), T4 ATEX and IECEx temperature codes
These specs translate into reliable operation in harsh conditions, helping maximize return on investment by reducing unplanned maintenance.
Industry Applications
The Allen-Bradley 1794-ACNR15XT excels in sectors where ControlNet connectivity and durable hardware are essential. Typical applications include:
-
Oil & Gas: Used in remote terminal units for pipeline monitoring, its hazardous location approvals ensure safe, long-term operation.
-
Chemical Processing: Integrates with Flex I/O modules to manage reactor and distillation column controls, lowering total cost of ownership through reliable data exchange.
-
Water & Wastewater: Provides stable communication for pump and valve control networks, reducing downtime with its rugged design.
Maintenance & Reliability
To preserve the cost benefits of the 1794-ACNR15XT, routine maintenance focuses on cleanliness and power integrity. Clean the module only with a soft anti-static cloth; avoid harsh chemicals. Verify that the DC input remains within 19.2–31.2 VDC to prevent power-related failures. In hazardous areas, always disconnect power before servicing. The module’s low peak power dissipation (3.4 W) minimizes heat stress, extending service life and reducing energy costs.
Selection Guide & Purchasing Advice
Before purchasing, confirm that your ControlNet backbone is properly terminated and uses Belden RG-6/U cable for optimal signal quality. The adapter supports up to eight I/O modules; plan your I/O count accordingly. For wiring, use 22–12 AWG copper wire and torque terminals to max 7 lb-in. To ensure reliable delivery and genuine Allen‑Bradley parts, order your 1794-ACNR15XT from UBEST Automation (ubest101), a trusted supplier of industrial automation spares.
