Product Overview

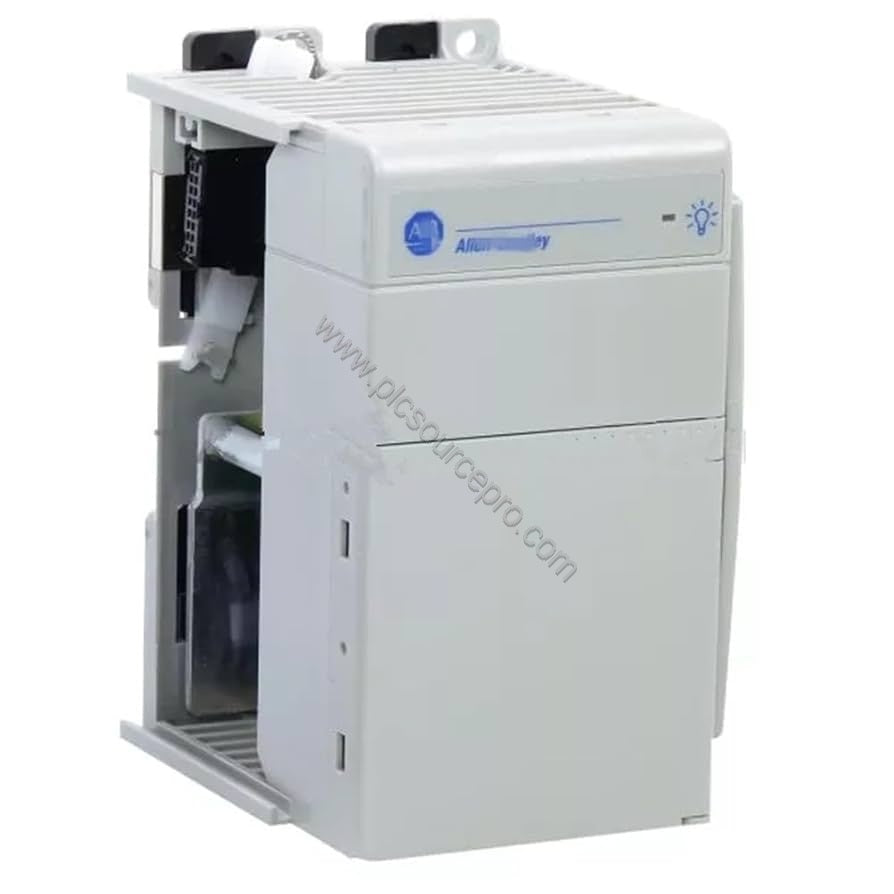

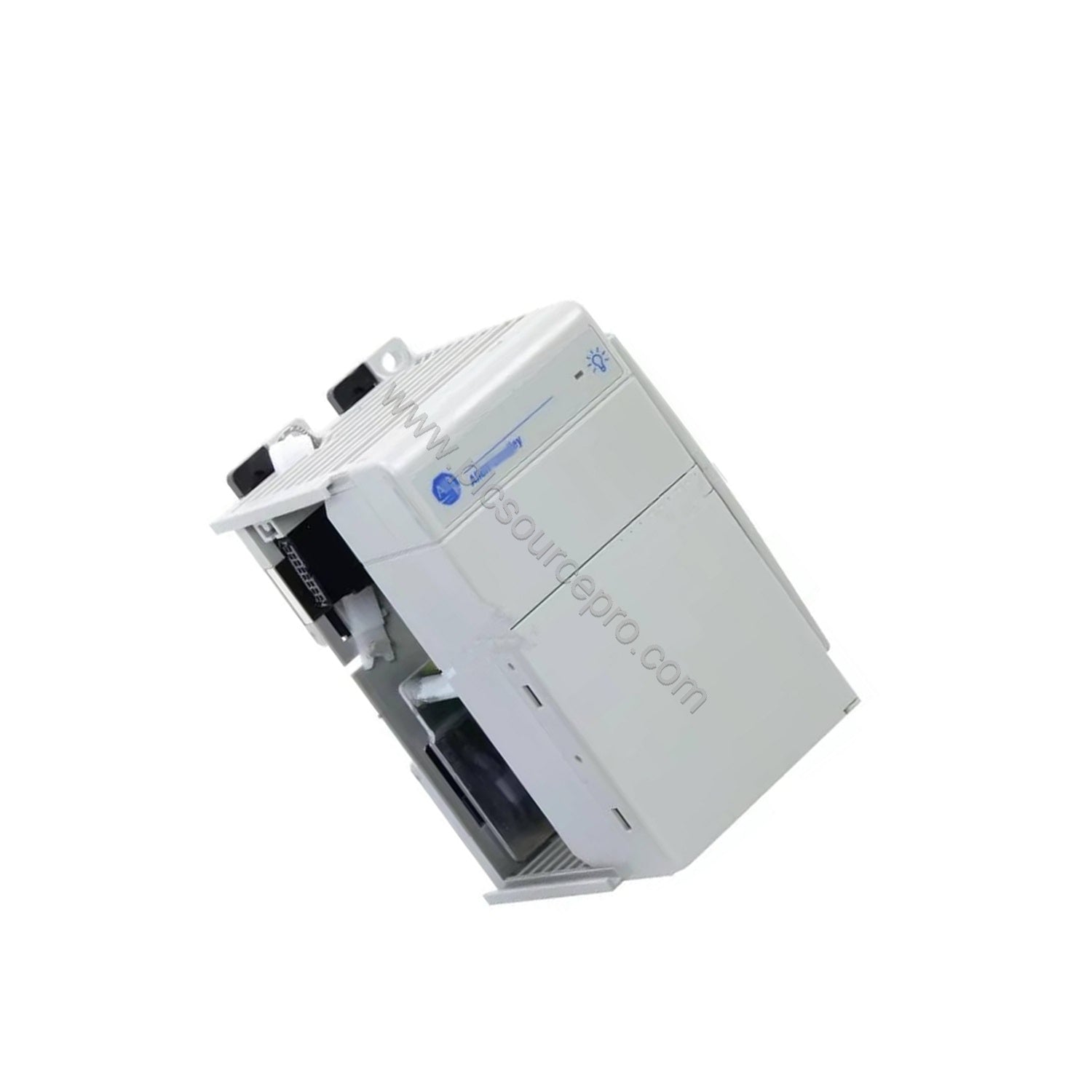

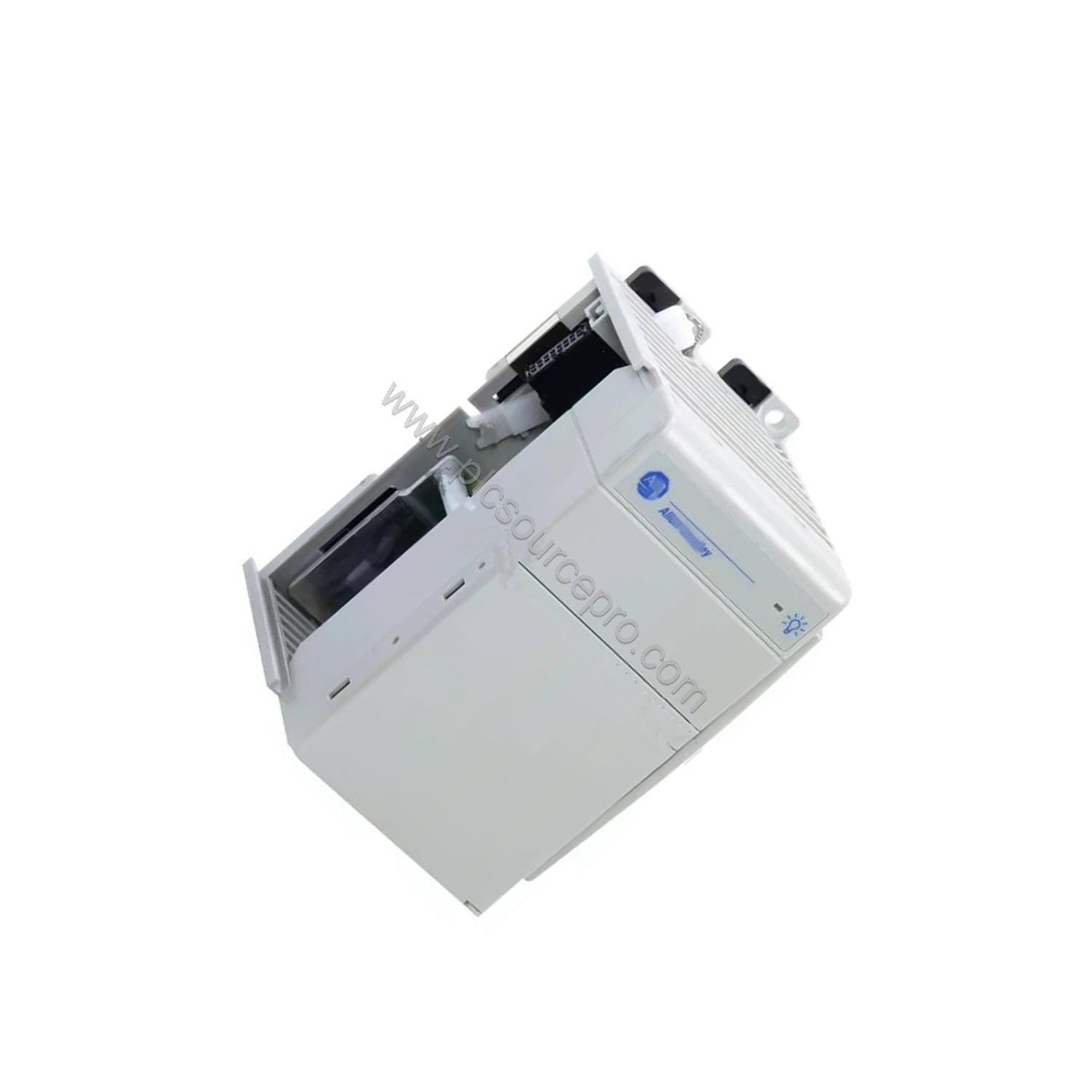

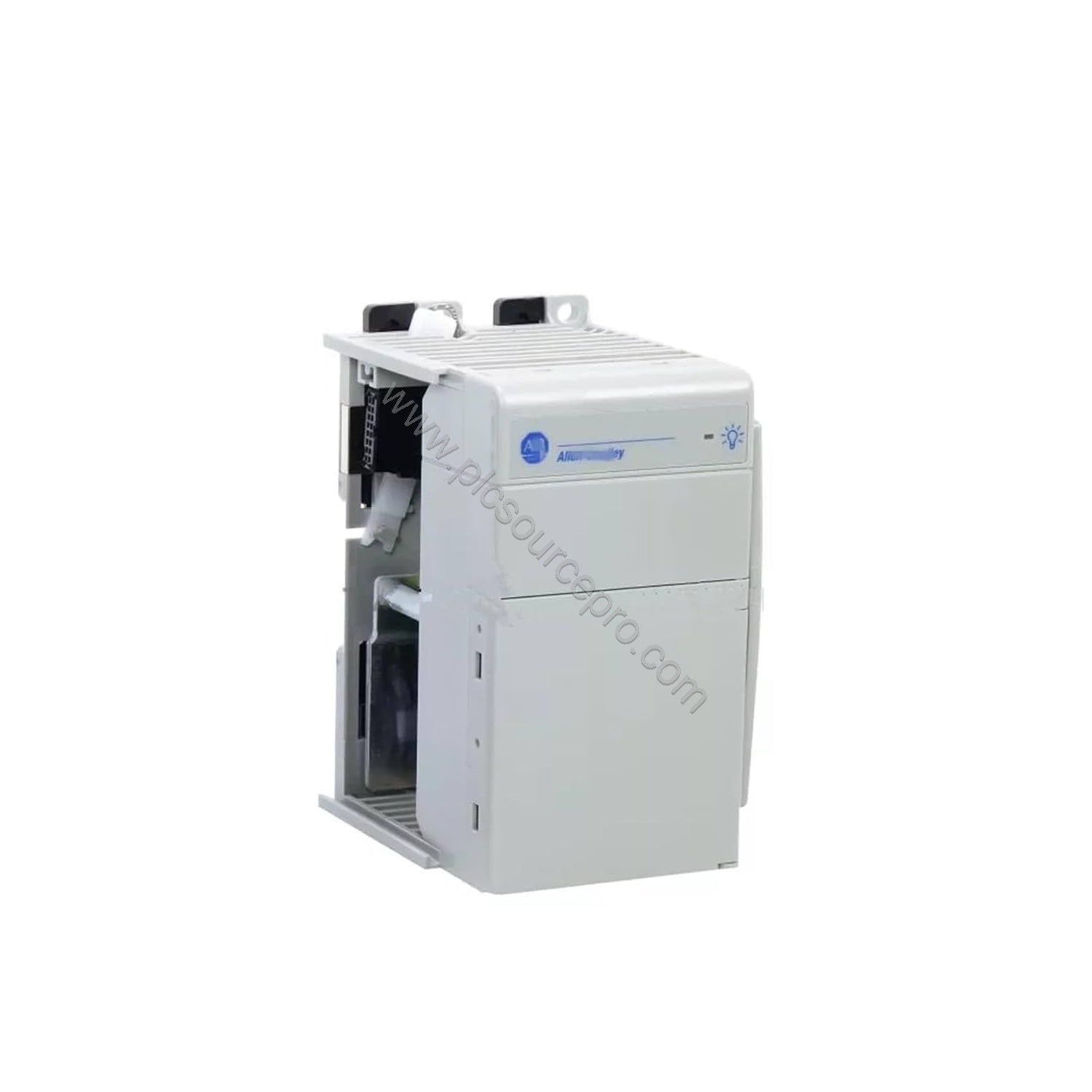

The Allen-Bradley 1769-PB2 is an I/O power supply module designed for CompactLogix automation platforms. This module provides reliable power distribution to I/O modules, ensuring stable operation of your control system. Ideal for replacement or system expansion, the 1769-PB2 is a trusted component from Rockwell Automation. As a key component in CompactLogix systems, the 1769-PB2 ensures that I/O modules receive the necessary power for accurate signal processing and actuator control. Its robust design minimizes downtime in industrial environments.
Installation & Setup
Installing the Allen-Bradley 1769-PB2 is straightforward. The module supports DIN rail or panel mounting, following standard CompactLogix mounting practices. Ensure proper wire sizing and use copper conductors with adequate insulation. The module includes finger-safe covers and barrier terminals for secure connections. Always mount the assembly inside an enclosure for protection against environmental factors. Before installation, verify that the enclosure meets the required ingress protection level. Use appropriate tools to secure the module onto the DIN rail. Wire the input power supply following local electrical codes. The module's terminal blocks are labeled for easy identification.
Compatibility & Integration
The 1769-PB2 integrates seamlessly with Allen-Bradley CompactLogix controllers and expansion banks. It can be placed in the main rack or in an expansion bank to provide local I/O power. The module is compatible with Series A and B units, making it a versatile replacement part. This power supply is designed to work with a wide range of CompactLogix I/O modules, including digital and analog types. It also supports expansion connections for larger system configurations. The 1769-PB2 is a direct replacement for earlier versions.
Troubleshooting & Common Issues
Common issues with power supplies include blown fuses or insufficient power delivery. If the 1769-PB2 stops providing output, check the internal fuse first. Ensure input power is within the designed range. For persistent problems, consult the product manual or contact UBEST Automation support for assistance. If the system experiences intermittent power issues, inspect the wiring connections for looseness or corrosion. The internal fuse may need replacement if the module fails to power up. Always use the specified fuse type as recommended by the manufacturer. For detailed diagnostics, refer to the technical documentation.
Selection Guide & Purchasing Advice
When purchasing an Allen-Bradley 1769-PB2, verify that it matches your system requirements. Contact UBEST Automation with your current module details to confirm compatibility. We provide genuine parts and can assist with specification inquiries. Visit ubest101.myshopify.com for more product listings. When ordering, double-check the part number on your existing module to ensure you receive the correct item. UBEST Automation stocks a wide inventory of Allen-Bradley parts, including the 1769-PB2. Our knowledgeable staff can help you with any questions regarding specifications or cross-references.
