Product Introduction

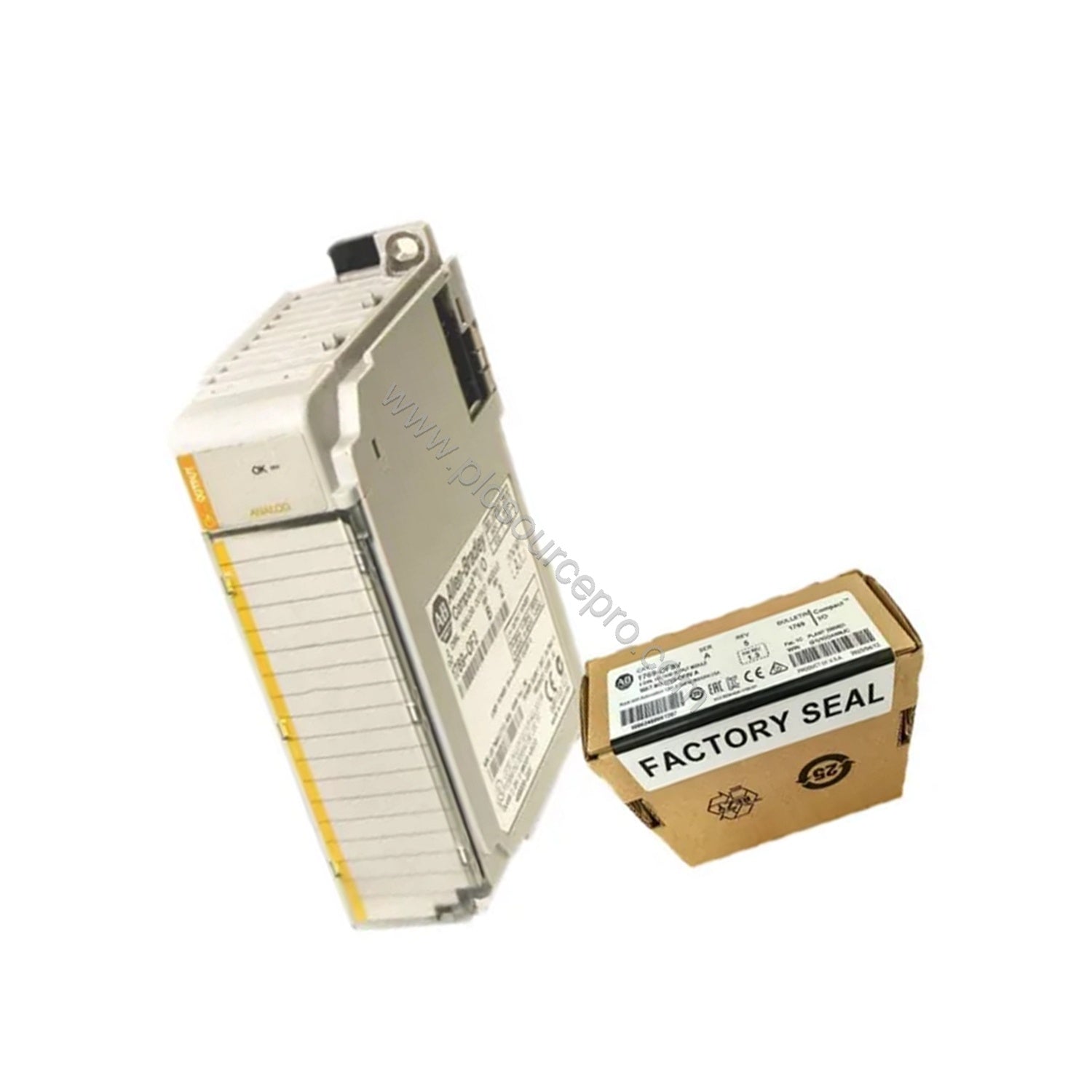

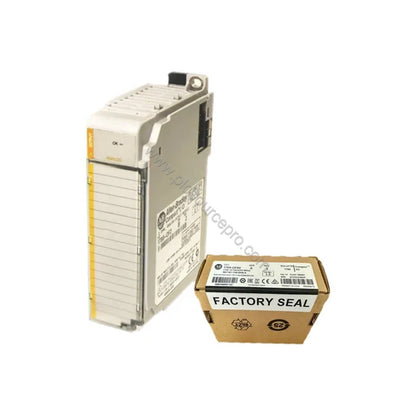

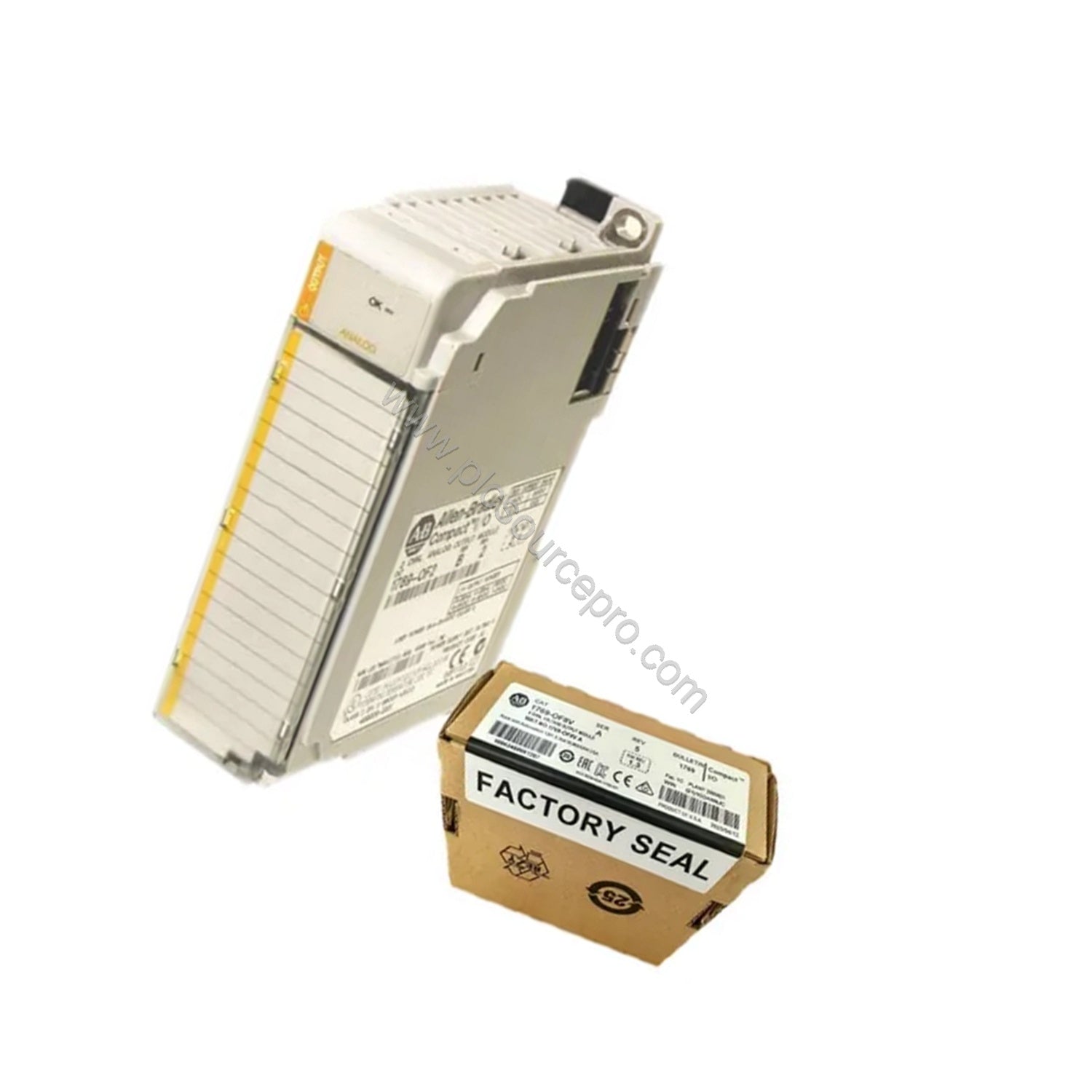

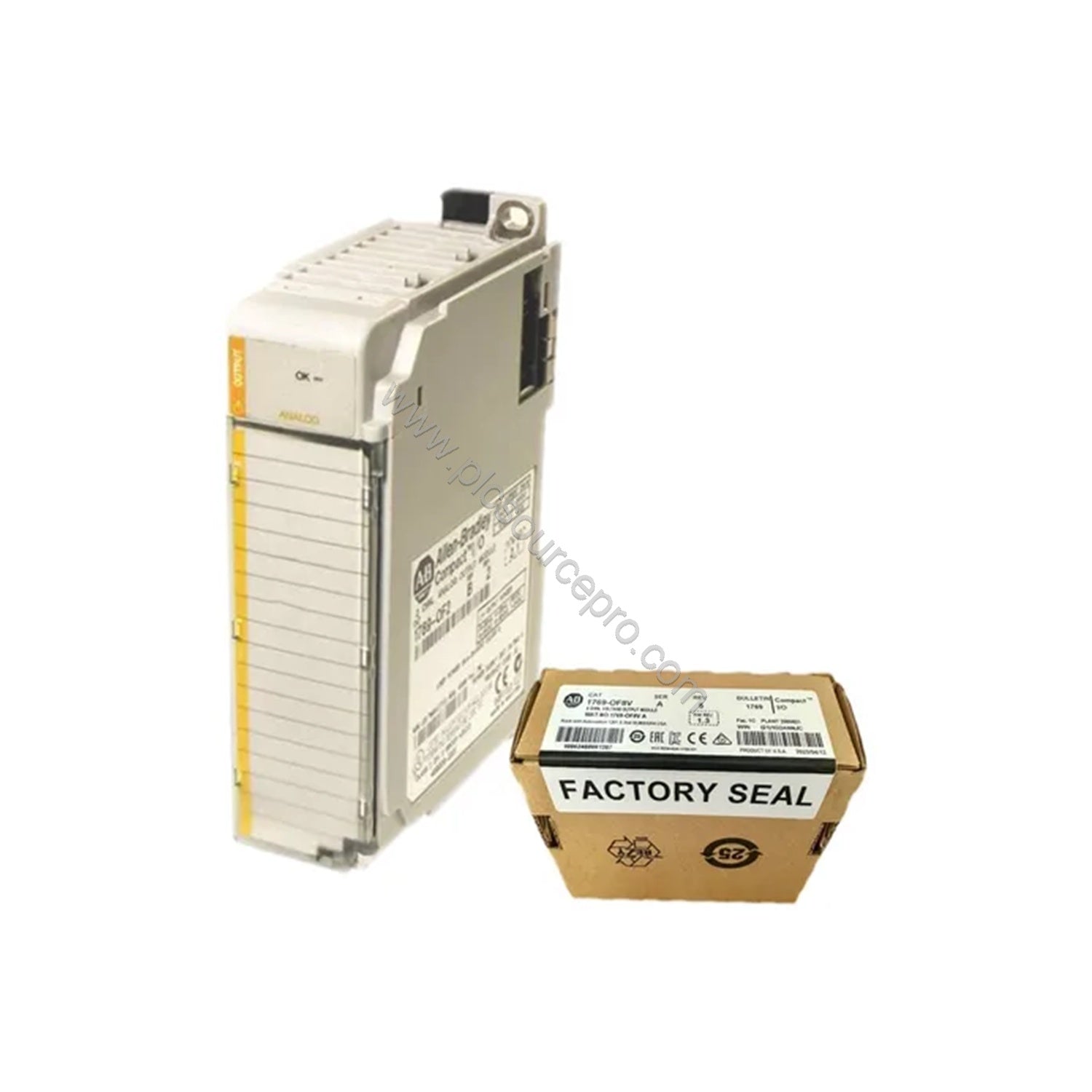

When upgrading legacy analog output systems, the Allen-Bradley 1769-OF8V Analog Output Module provides a reliable, high‑resolution solution. Part of the Compact I/O family, this module offers eight single‑ended voltage outputs configurable for ±10V DC, 0–10V DC, 0–5V DC, or 1–5V DC. It is designed for seamless integration with CompactLogix and MicroLogix controllers, making it an ideal choice for modernizing control systems.
Technical Specifications Breakdown
The Allen-Bradley 1769-OF8V delivers precise analog output with a 16‑bit plus sign digital resolution. Key performance metrics include:
- Output channels: Eight (8) single‑ended
- Analog ranges: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC
- Bus current draw: 145 mA at 5V DC; 135 mA at 24V DC
- Conversion rate: 5 ms per channel
- Overall accuracy: ±0.5% full scale at 25 °C (77 °F)
The module’s resolution varies by range: ±10V DC provides 15.89 bits (330 µV/bit), while 0–10V DC gives 14.89 bits. This granularity ensures fine voltage control for precise industrial applications.
Industry Applications
In manufacturing lines requiring tight voltage regulation, the Allen-Bradley 1769-OF8V excels at controlling actuators, valve positioners, and speed references. For example, a packaging machine using 0–10V DC signals can rely on the module’s 14.89‑bit resolution to maintain consistent film tension. The module’s 5 ms conversion rate supports fast process updates, minimizing lag in closed‑loop systems.
Compatibility & Integration
The 1769-OF8V works natively with CompactLogix and MicroLogix 1500 controllers. It uses a single slot width and supports both Series A (no external power supply) and Series B (allows external 24V DC power). This flexibility makes it a drop‑in upgrade for older I/O racks. The module communicates over the backplane, requiring no special programming beyond standard analog configuration in RSLogix 500 or Studio 5000.
Troubleshooting & Common Issues
One frequent challenge with single‑ended wiring is noise susceptibility. The Allen-Bradley 1769-OF8V mitigates this through built‑in short‑circuit protection (up to 30 mA) and over‑voltage protection. If outputs drift, verify grounding and check the “Module OK” LED indicator. For series‑specific behavior, note that Series A does not support external power; upgrading to Series B can improve stability in electrically noisy environments.
Selection Guide & Purchasing Advice
Before ordering the 1769-OF8V, confirm your controller model (CompactLogix or MicroLogix) and required voltage range. Ensure the module’s bus current draw (145 mA at 5V DC) is within your power supply margin. For additional support, UBEST Automation provides genuine Allen‑Bradley modules with fast shipping. Visit ubest101.myshopify.com for current stock and pricing.
