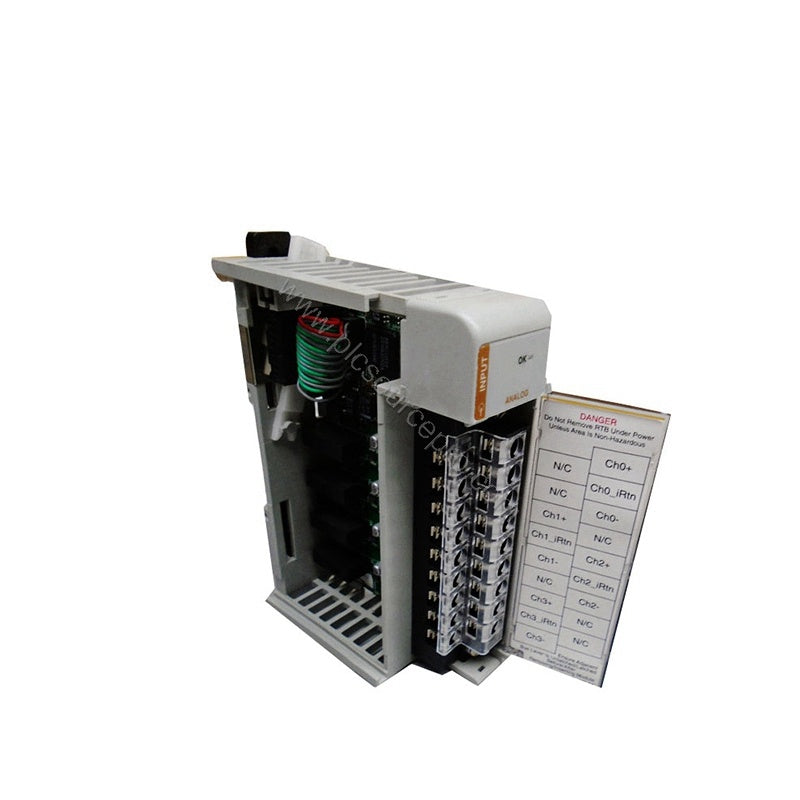

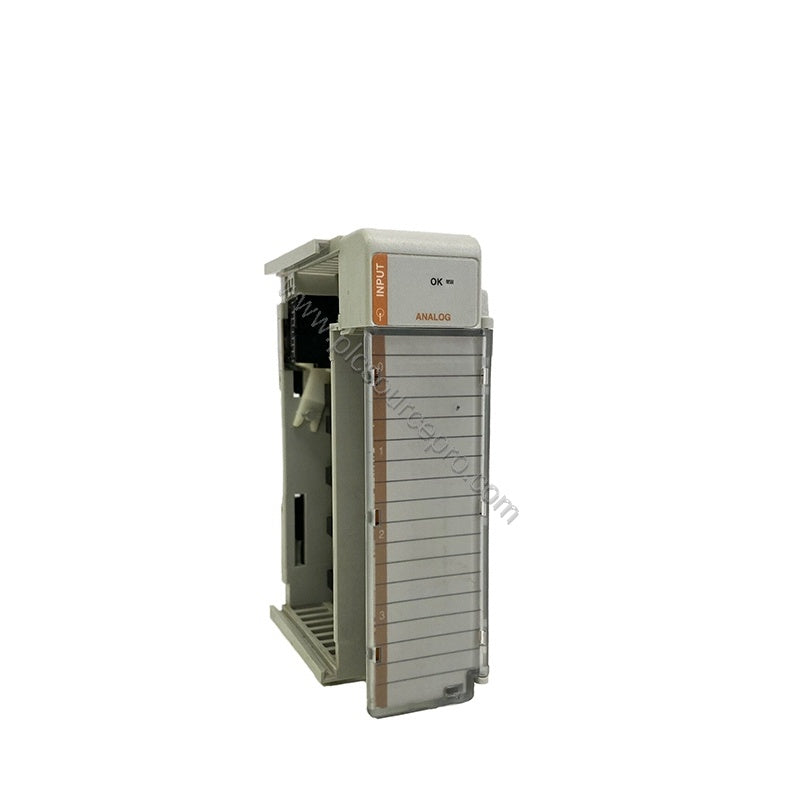

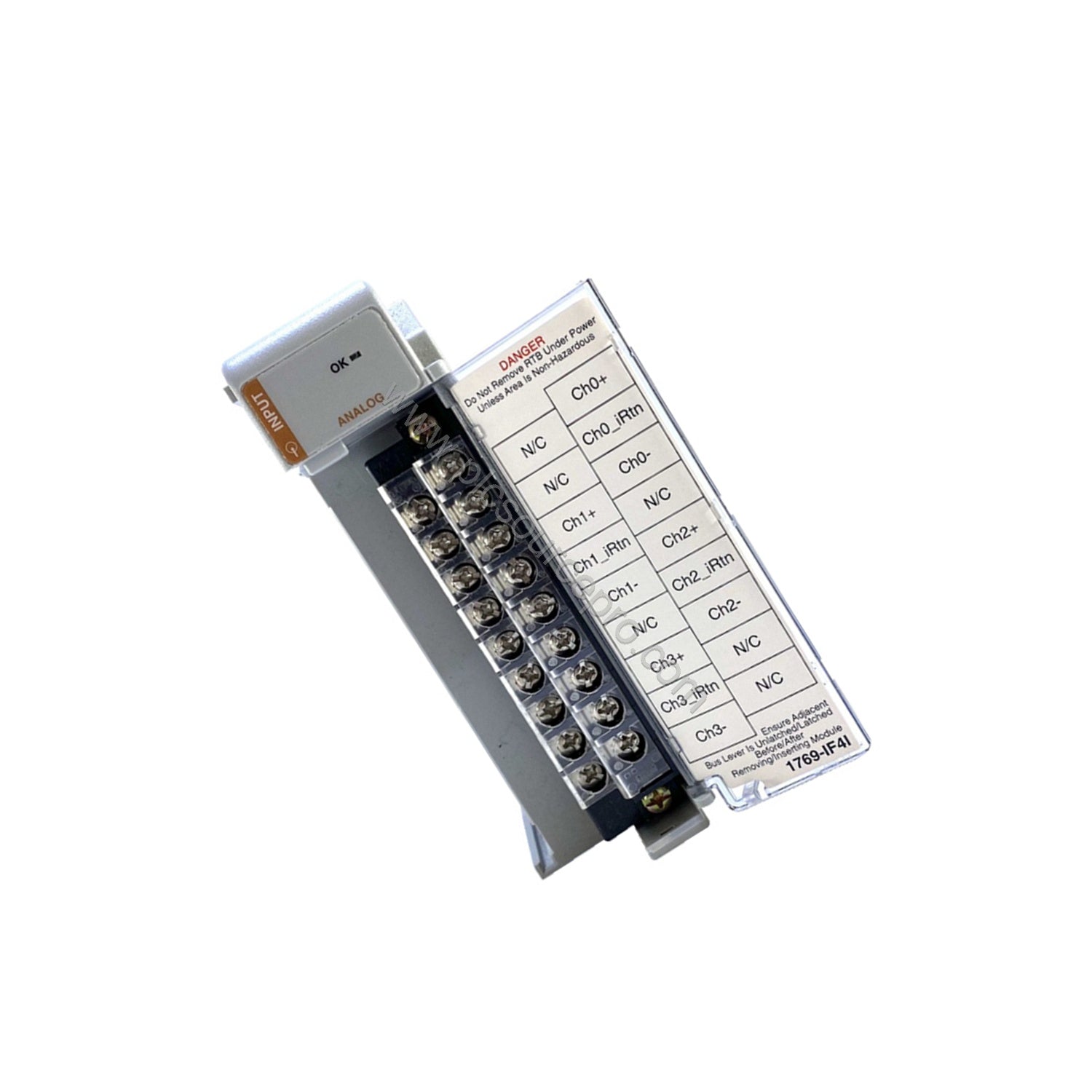

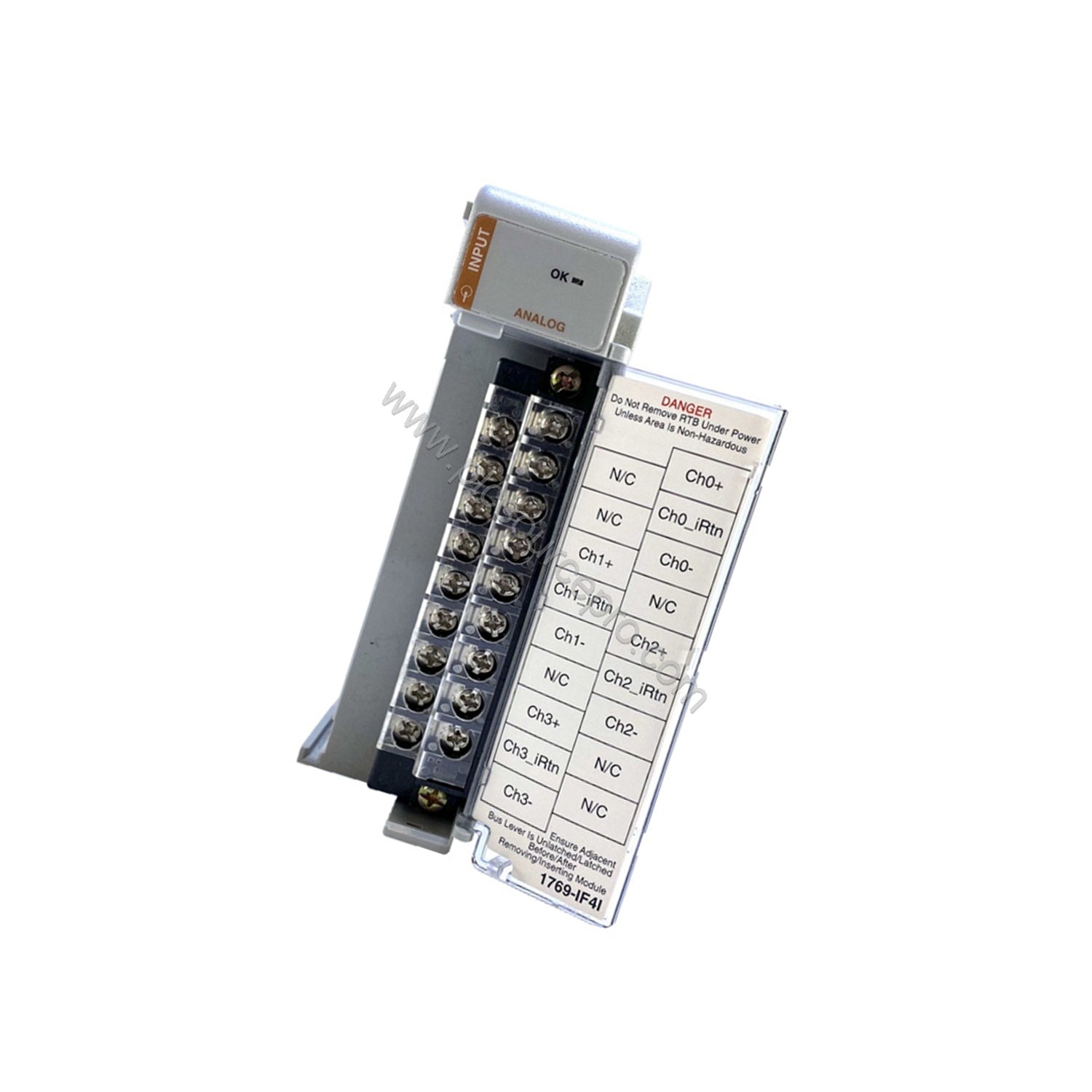

Product Introduction – Allen-Bradley 1769-IF4I Analog Input Module
When signal noise and ground loop interference threaten the accuracy of your process measurements, the Allen-Bradley 1769-IF4I isolated analog input module provides a robust solution. Part of the CompactLogix family, this module delivers four individually isolated differential input channels, converting analog current and voltage signals into precise digital values for your control system. Whether you are upgrading a legacy MicroLogix 1500 system or expanding a CompactLogix 5370 controller, the 1769-IF4I ensures data integrity even in electrically noisy industrial environments.
Technical Specifications Breakdown
The 1769-IF4I offers a comprehensive set of specifications tailored for demanding applications. Key parameters include:
-
Input Type: 4 individually isolated differential or single-ended analog inputs
-
Input Ranges: Current 0…20 mA, 4…20 mA (full range 0…21 mA, 3.2…21 mA); Voltage ±10V, 0…10V, 0…5V, 1…5V (full ranges up to ±10.5V)
-
Resolution: 16-bit unipolar / 15-bit plus sign bipolar
-
Converter Type: Sigma-Delta ADC
-
Power Supply: 5V DC and 24V DC via bus interface; distance rating 8 modules from system power supply
-
Heat Dissipation: 3 Watts maximum
-
Dimensions: 118 mm (H) × 87 mm (D) × 35 mm (W); including mounting tabs 138 mm (H)
-
Wire Size: 22…14 AWG solid copper (90°C)
-
Rated Working Voltage: 30VAC / 30VDC
-
Channel Diagnostics: Over-range, under-range, open circuit, configuration errors via bit reporting and process alarms
-
Recommended Cable: Belden 8761 (shielded)
Industry Applications
The 1769-IF4I excels in applications where signal integrity is critical. Common use cases include:
-
Process Monitoring: Isolated inputs allow direct connection to 4-20 mA transmitters for pressure, temperature, and flow measurements, preventing ground loops.
-
Motor Control Centers: Monitoring voltage and current signals from variable frequency drives (VFDs) where common-mode noise can cause errors – the module's isolation ensures reliable data.
-
Batch Processing: The 16-bit resolution provides tight control over dosing and mixing operations, reducing waste and improving product consistency.
By preventing failures such as signal drift and channel crosstalk, the 1769-IF4I minimizes unplanned downtime and protects your production line integrity.
Installation & Setup Guidance

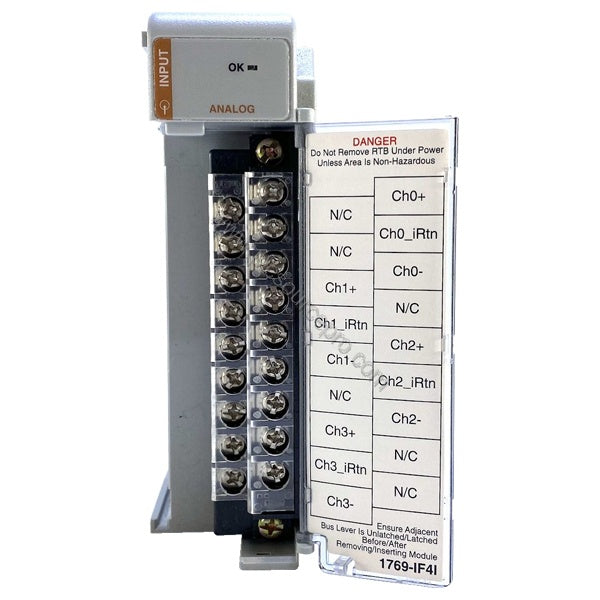

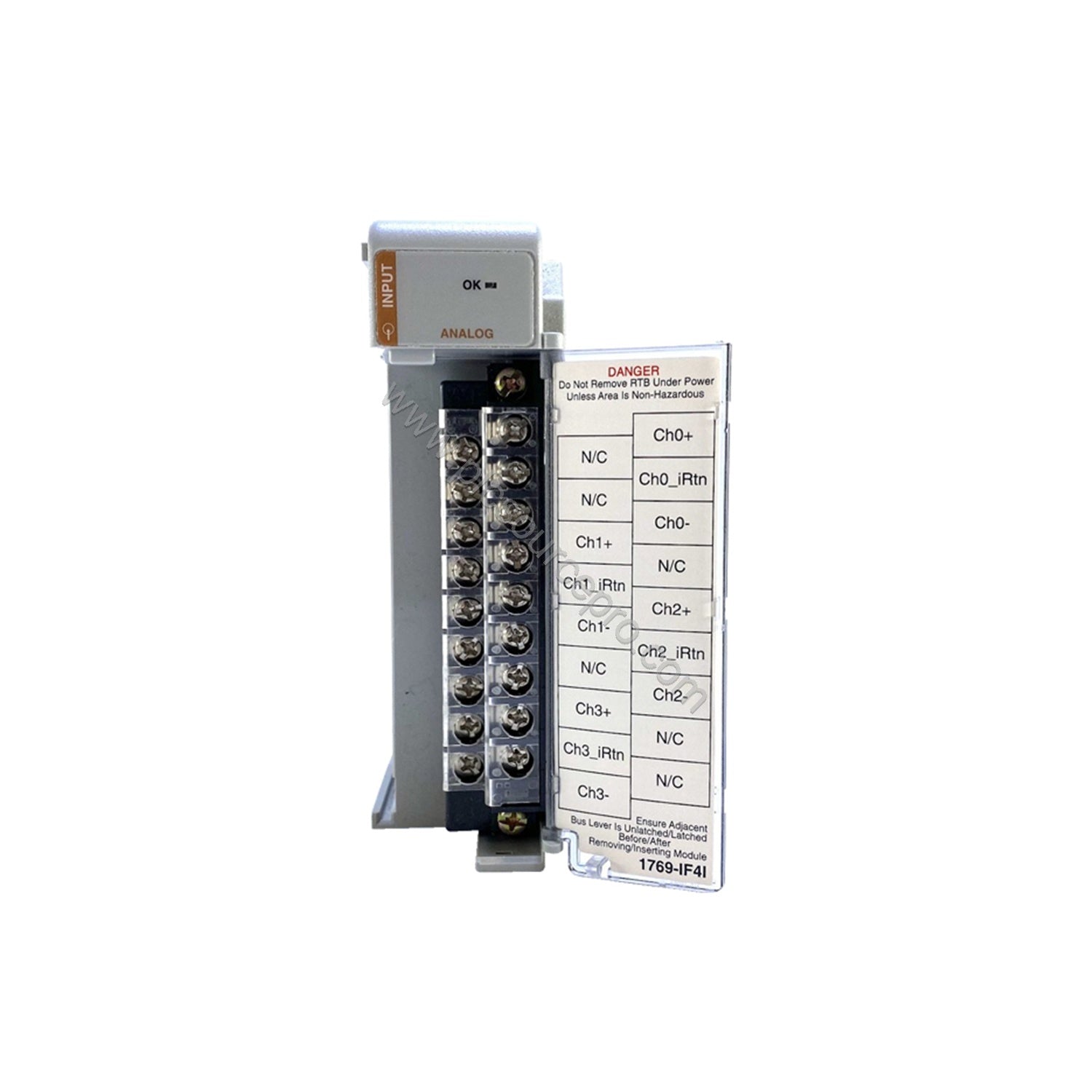

Mount the 1769-IF4I in a 1769 CompactLogix chassis or a MicroLogix 1500 system using either the integrated panel tabs or a DIN rail. The module occupies a single slot and must be placed no more than 8 modules away from the system power supply. Use the removable terminal block (replacement part 1769-RTBN18) for easy wiring. For current inputs, connect the positive lead to the appropriate terminal and the negative to the common; for voltage inputs, connect the signal leads and ensure the differential configuration is used for best noise rejection. Always use shielded Belden 8761 cable and keep runs as short as possible to minimize impedance and capacitance.
Maintenance & Reliability
Routine inspection of the 1769-IF4I should focus on the terminal block connections and the status LED. A lit LED indicates a fault during power-up diagnostics or normal operation. Periodically check for loose wires and ensure the module's ambient temperature remains within industrial limits. The sigma-delta converter and digital filtering reduce the need for recalibration, but if signal drift occurs, review the channel diagnostics for over- or under-range conditions. The module's isolation extends service life by protecting the internal circuitry from voltage spikes and grounding errors common in rugged environments.
Compatibility & Integration
The 1769-IF4I is designed for the CompactLogix 5370 controller series and MicroLogix 1500 systems. It communicates with the controller via the backplane bus interface, receiving power and exchanging data without additional wiring. The module supports both current and voltage inputs on the same channels, allowing mixed-signal applications. It is compatible with RSLogix 5000 and Studio 5000 environments for easy configuration and scaling. No external signal conditioners are needed thanks to the built-in sigma-delta ADC and individual channel isolation.
Selection Guide & Purchasing Advice
Before purchasing the 1769-IF4I, verify that your controller chassis has an available slot and that the system power supply can support an additional module at the required distance. Although the manufacturer has discontinued this unit, UBEST Automation stocks a limited supply of certified tested modules – contact us at ubest101.com for current availability and pricing. Confirm your signal type (voltage or current) and wiring configuration to ensure the module meets your specific application needs. For replacement or upgrade scenarios, the 1769-IF4I remains a cost-effective choice due to its robust isolation and diagnostic features.
