Product Introduction

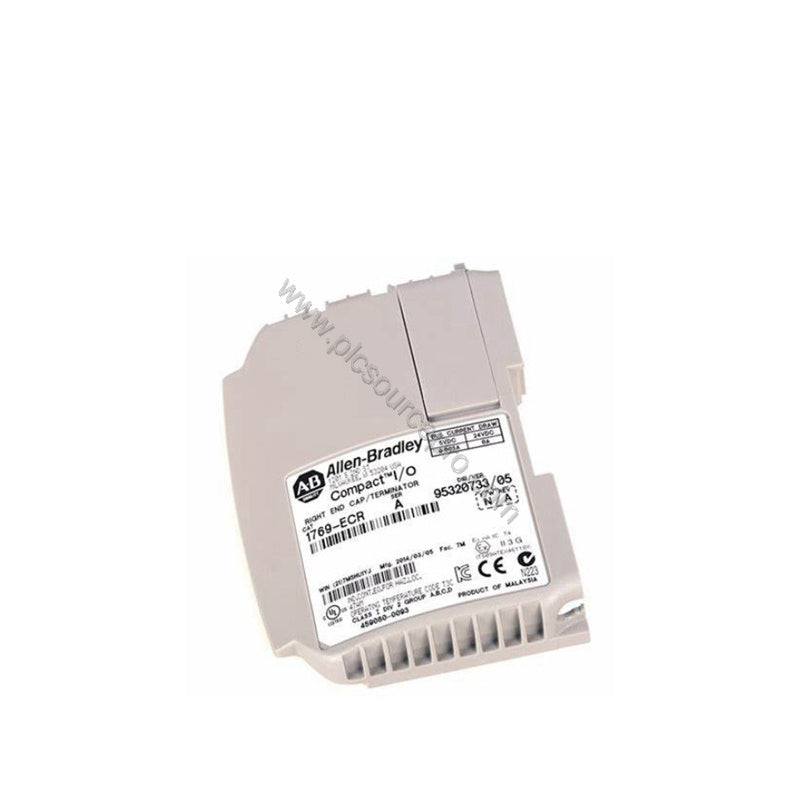

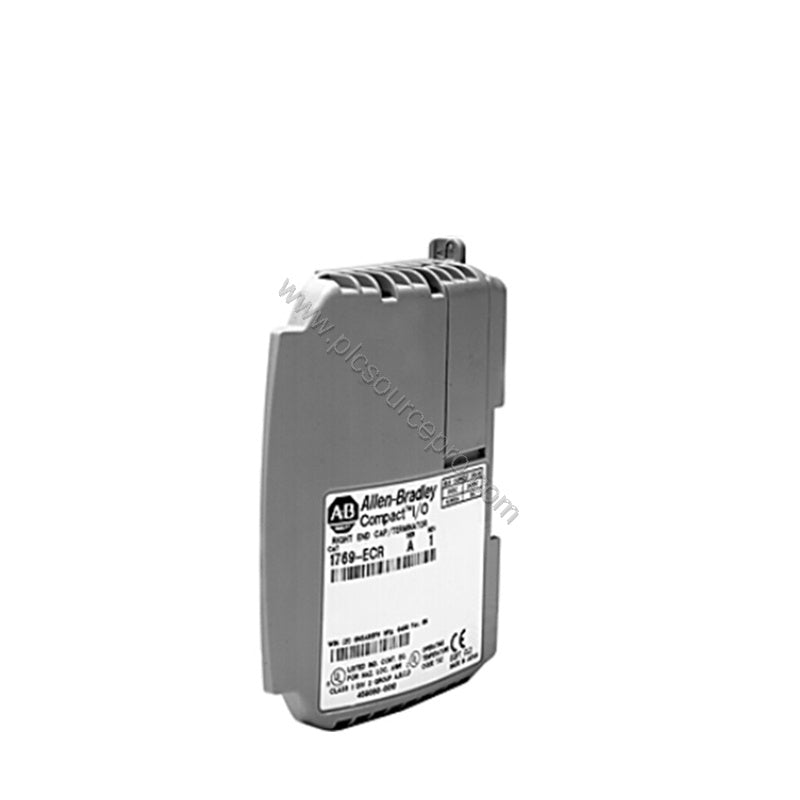

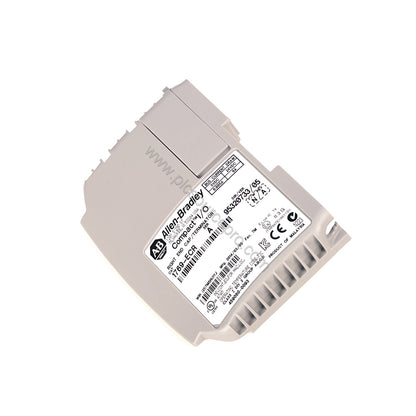

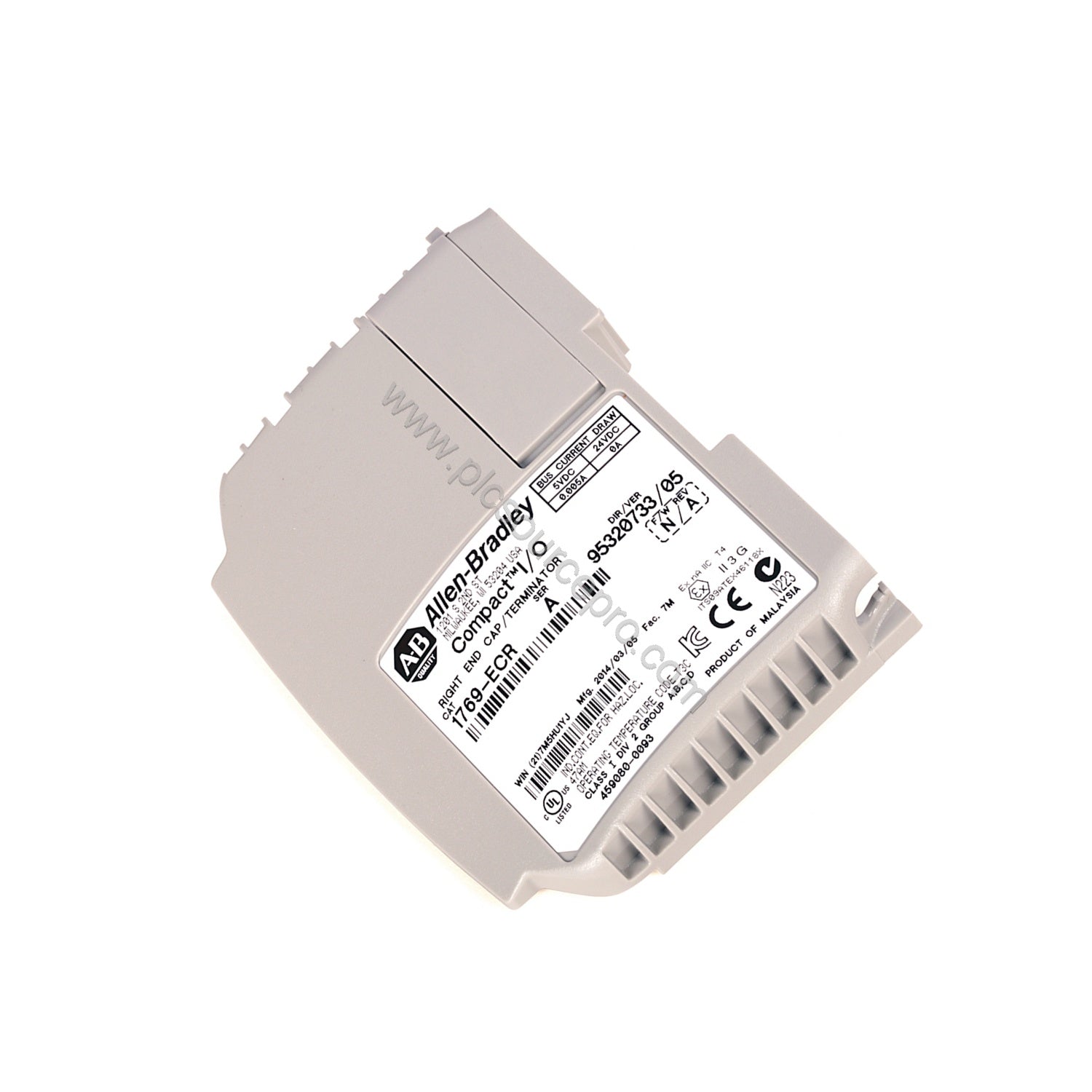

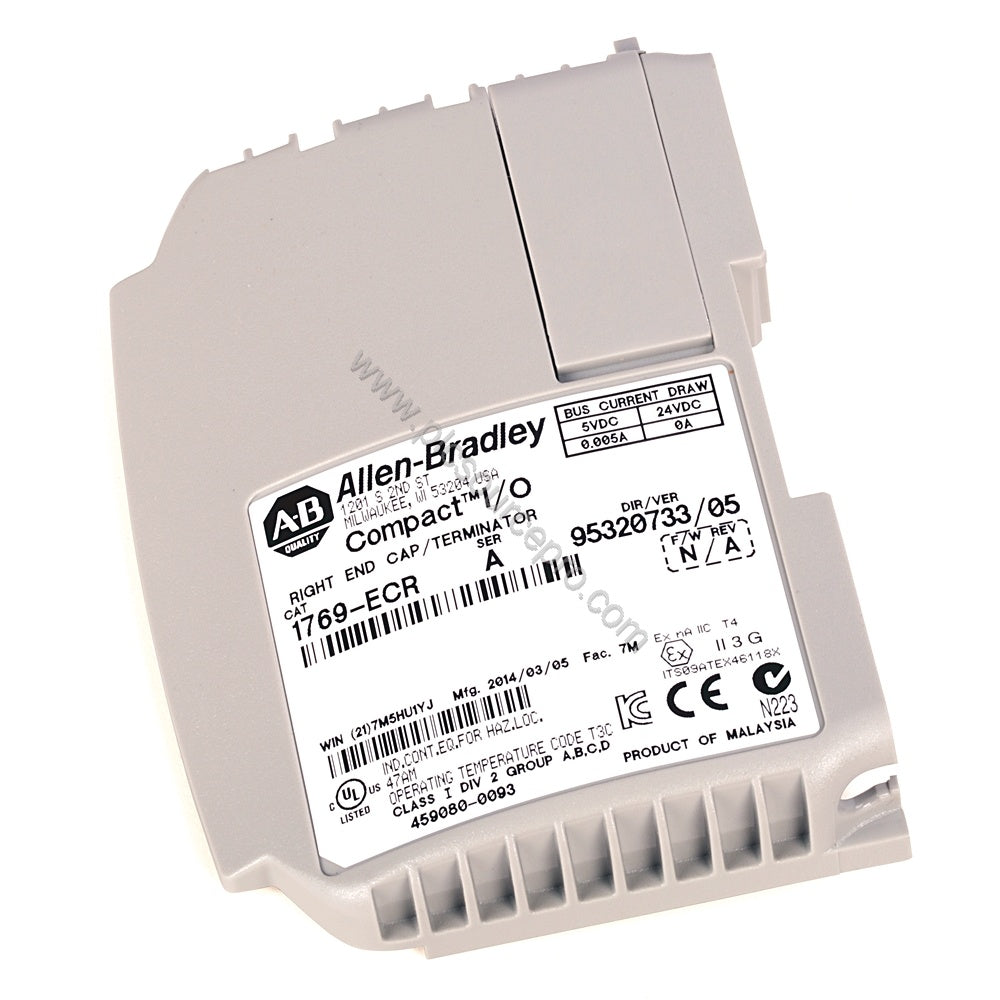

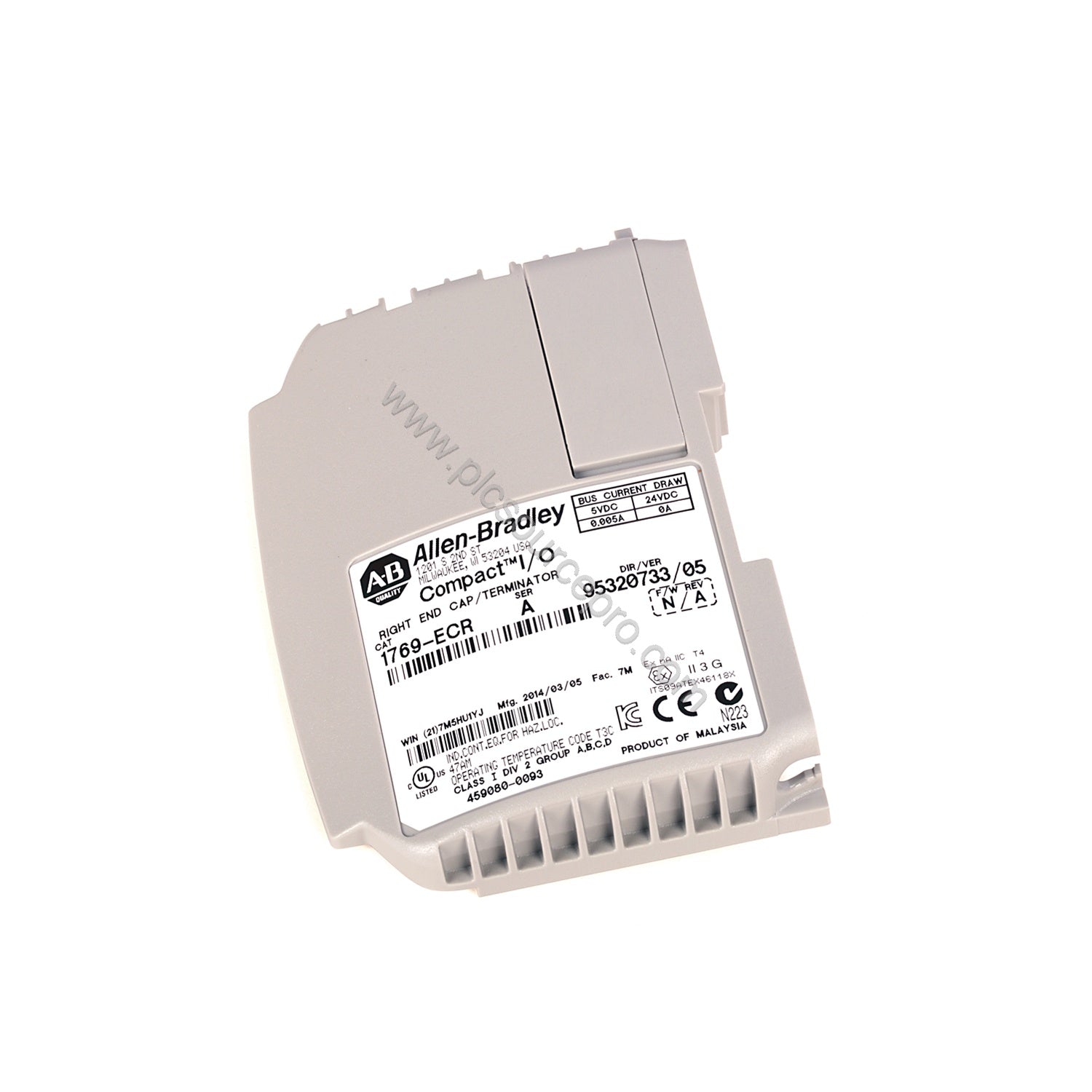

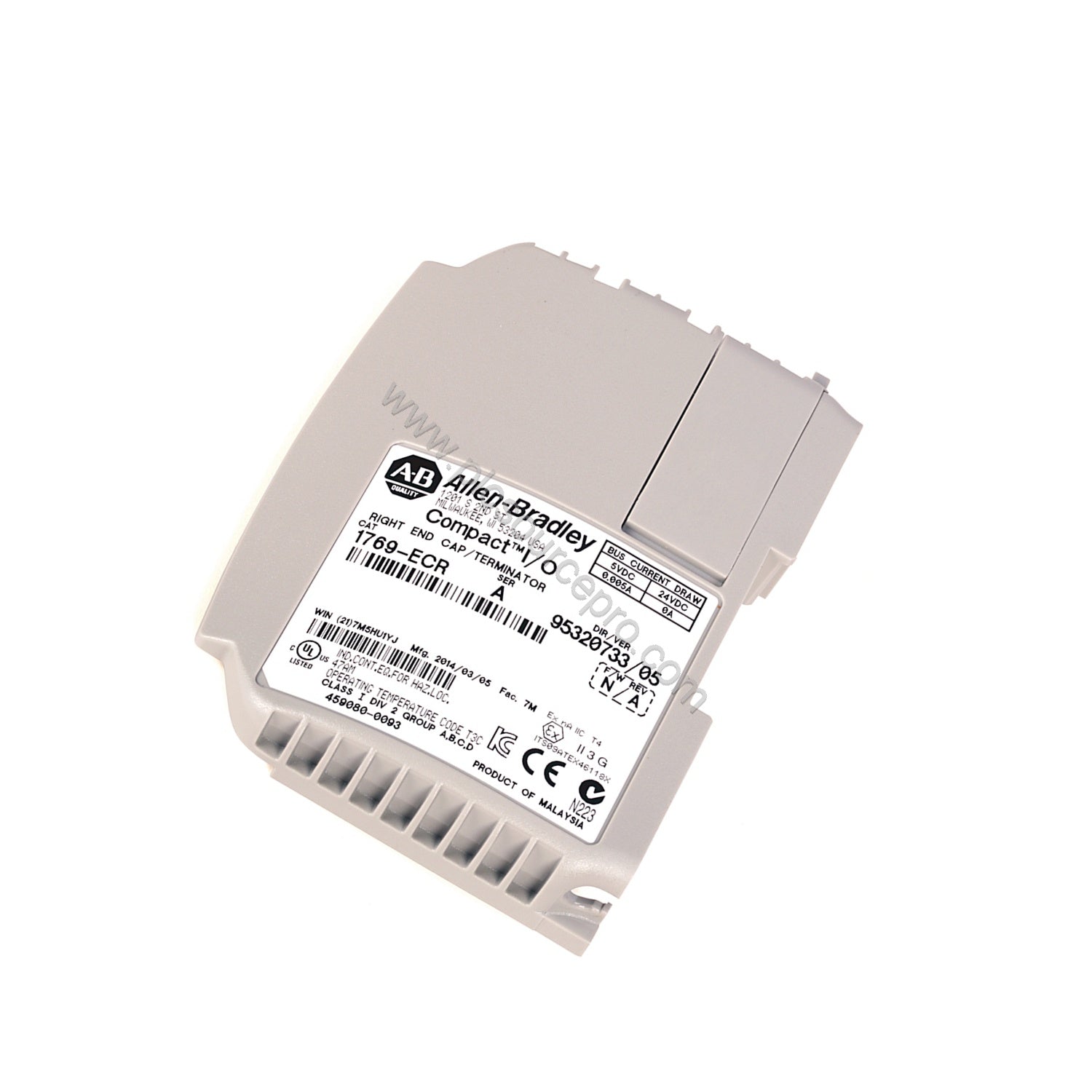

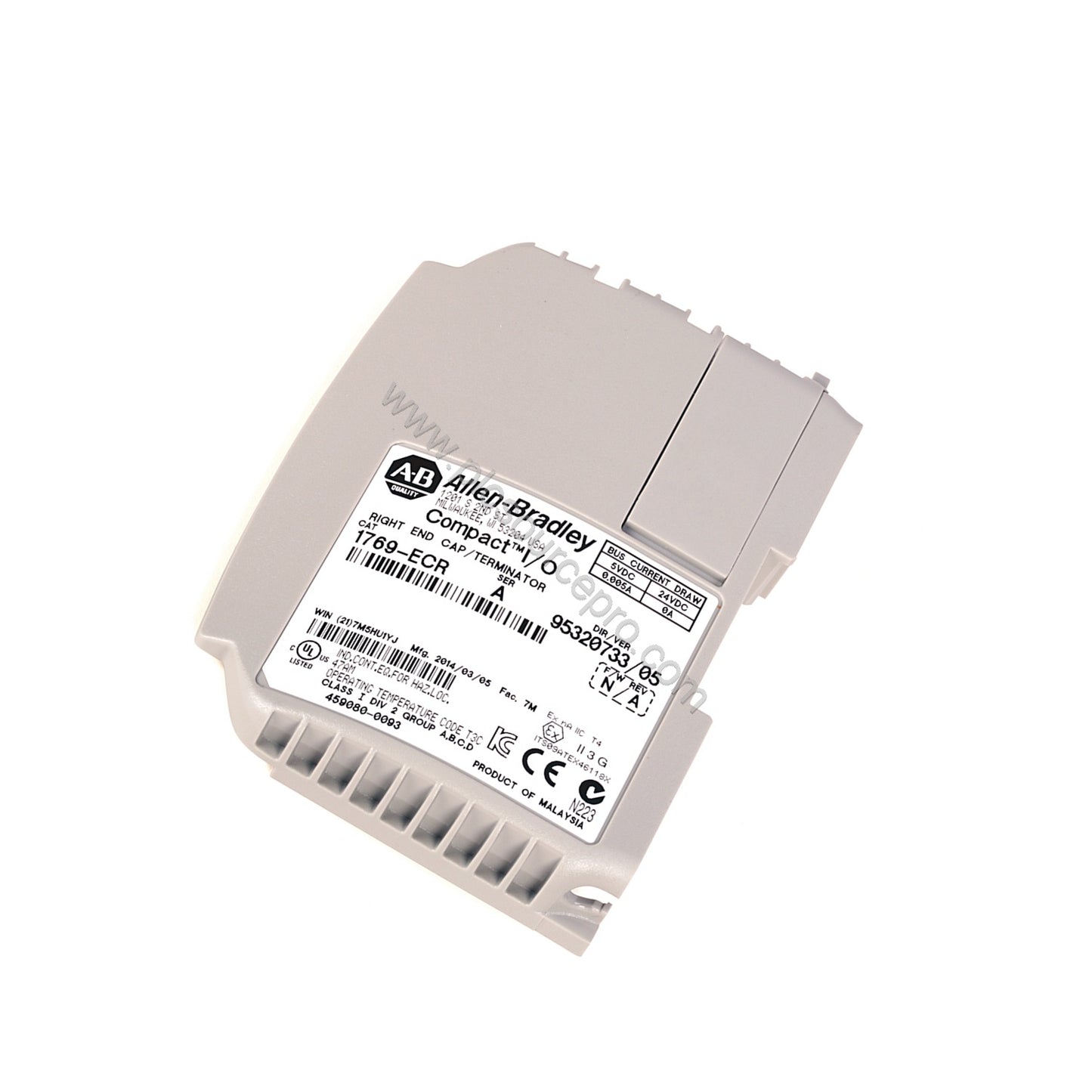

The Allen-Bradley 1769-ECR is a Right End Cap (ECR) module designed for the CompactLogix controller series. This 1769-ECR functions as a bus terminator, terminating the FlexBus circuitry and signaling the end of a CompactLogix assembly. It is a necessary component to qualify the CompactLogix configuration, ensuring reliable communication between modules.
Installation & Setup Guidance
Installing the Allen-Bradley 1769-ECR requires careful alignment. First, lift the bus lever from its engaged position. Then, align the 1769-ECR with the guide slots on the last CompactLogix module and gently push it until fully seated. Engage the bus lever to connect the 1769-ECR and close the FlexBus. If resistance is felt during lever engagement, inspect alignment. Note that the 1769-ECR must only be installed or removed when power is removed from the system to avoid controller errors.
Compatibility & Integration
The Allen-Bradley 1769-ECR is compatible with all CompactLogix systems that use the 1769 bus architecture. It works with Series A and B modules, and is required to complete the physical and electrical bus. Ensure your system has an available slot at the right end of the module assembly. The 1769-ECR does not require additional configuration; it automatically terminates the bus when installed.
Selection Guide & Purchasing Advice
When ordering the Allen-Bradley 1769-ECR, verify that your system is a CompactLogix platform and that the end cap is needed for your specific module count. The 1769-ECR is a standard accessory for any CompactLogix system expansion or replacement. For reliable sourcing, contact UBEST Automation, your trusted supplier of industrial automation spares. We recommend confirming the product model and compatibility before purchase. For detailed specifications not listed here, please contact our sales team.
