Product Introduction

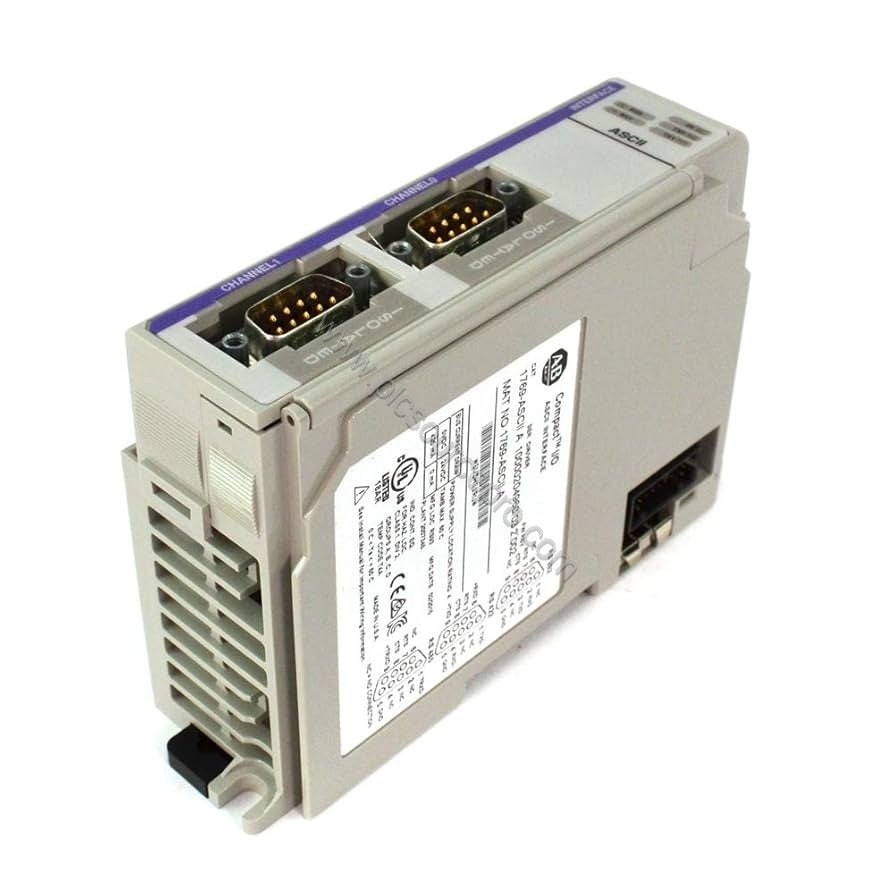

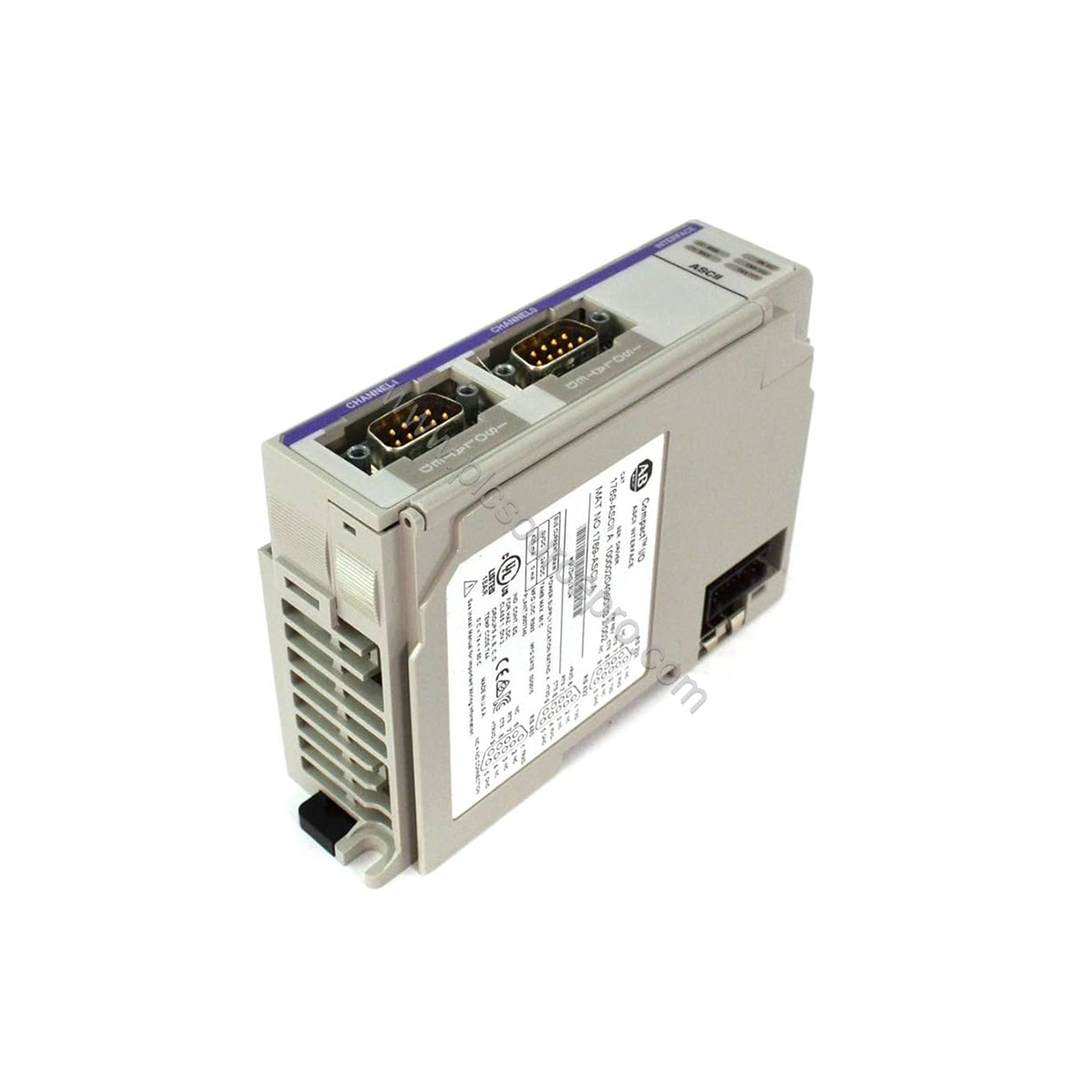

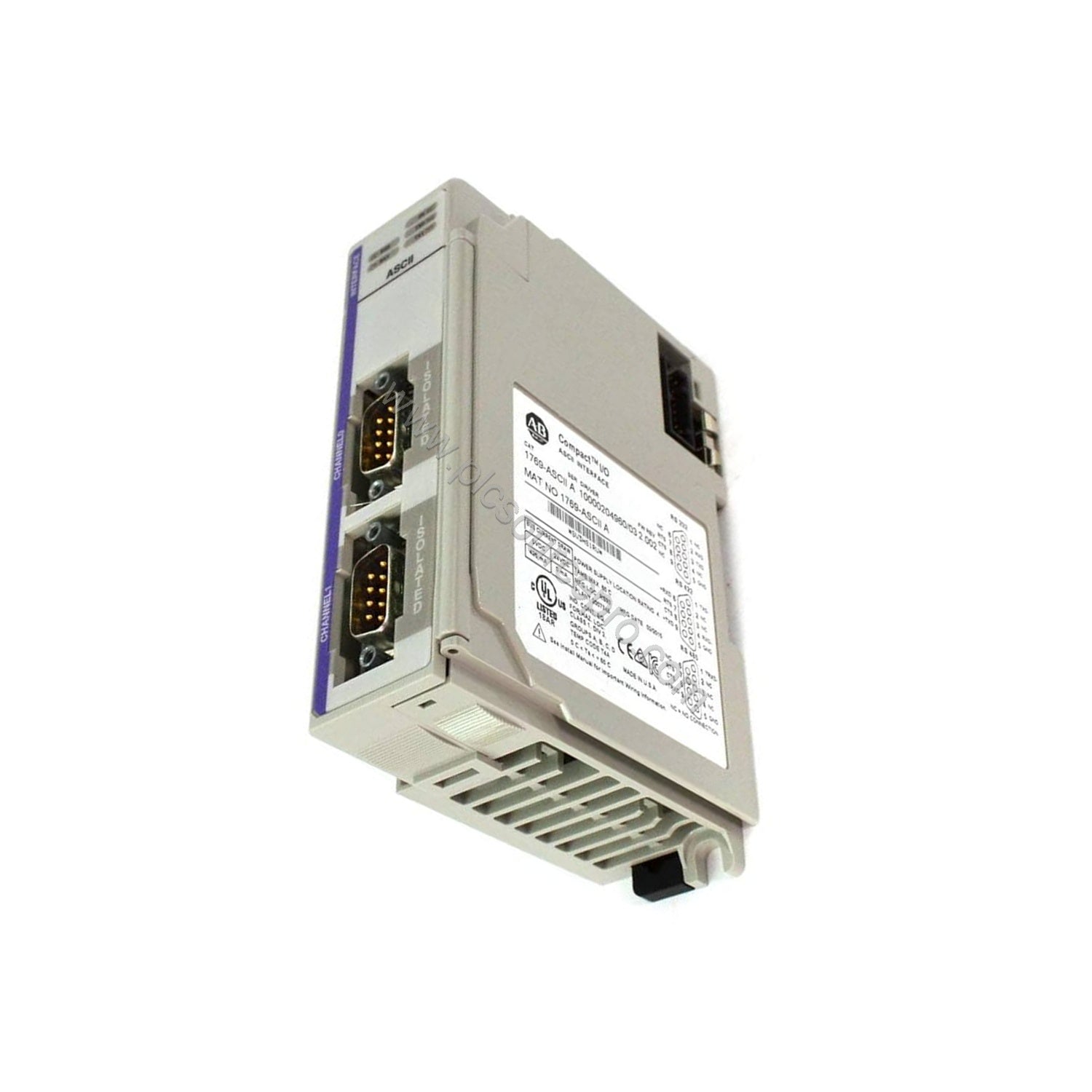

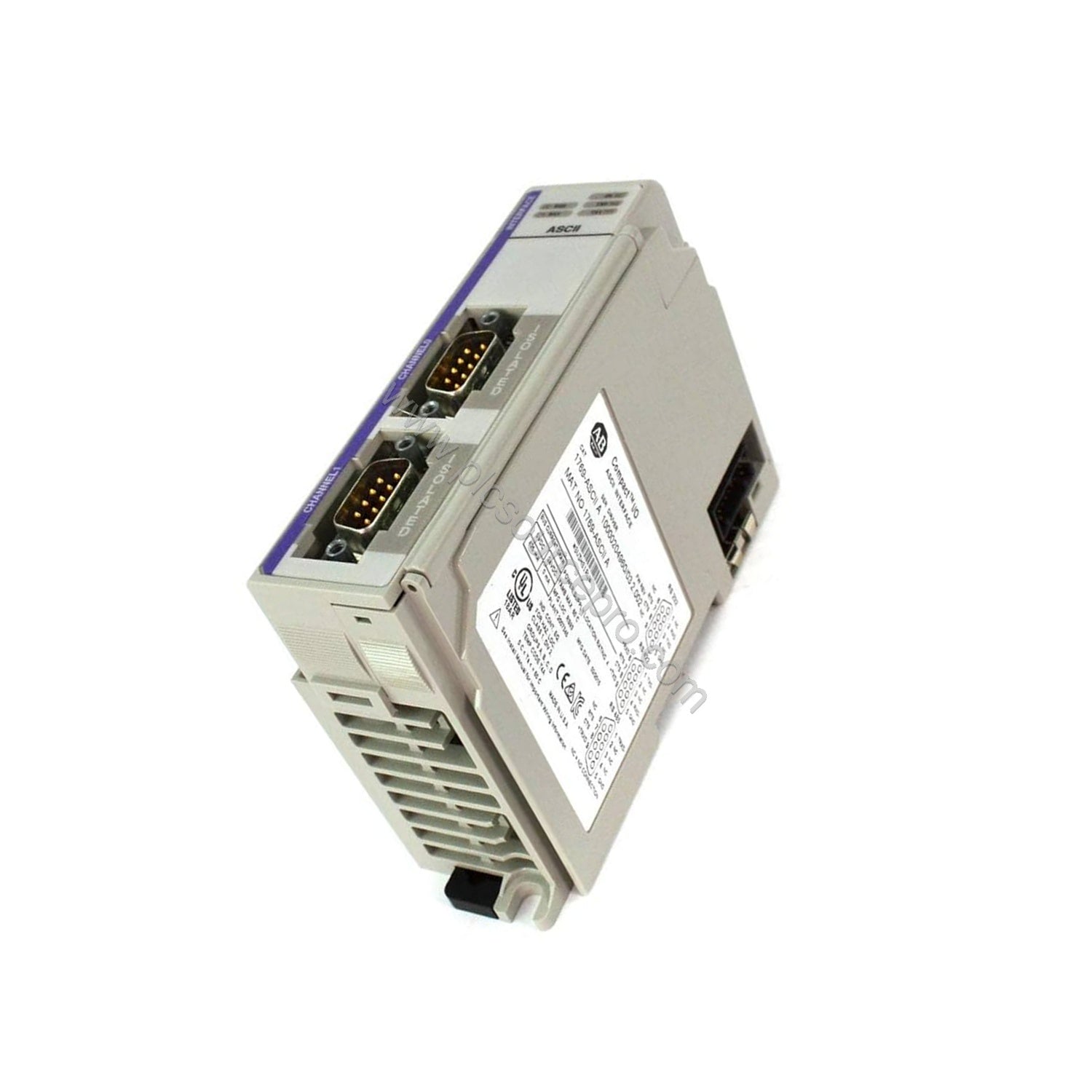

The Allen-Bradley 1769-ASCII is a specialty module designed for ASCII communication. This module provides two individually configured ports for exchanging data via ASCII protocol. It is compatible with the 1769 CompactLogix and MicroLogix 1500 controllers, making it a versatile addition to factory automation systems.
Industry Applications
The Allen-Bradley 1769-ASCII module is commonly used to connect barcode readers, RFID scanners, and other ASCII-compatible devices. In manufacturing and logistics, it enables seamless data collection and device integration, improving overall operational efficiency.
Installation & Setup Guidance
Mount the 1769-ASCII module on a DIN rail or panel using the provided chassis mount. For CompactLogix systems, install it within four modules of the power supply to maintain proper power distance. Connect the serial ports using Belden 8761 shielded cable for reliable RS-232, RS-422, or RS-485 communication.
Compatibility & Integration
The Allen-Bradley 1769-ASCII module integrates directly with CompactLogix controllers and MicroLogix 1500 base units via the backplane. No external power supply is required, simplifying installation. Each of the two ASCII ports can operate independently at different baud rates and settings.
Selection Guide & Purchasing Advice
When purchasing the 1769-ASCII, verify that your system supports the module series (A or B). Ensure your controller firmware is up to date for optimal performance. Contact UBEST Automation for expert assistance and competitive pricing on genuine Allen-Bradley parts.
