Product Introduction

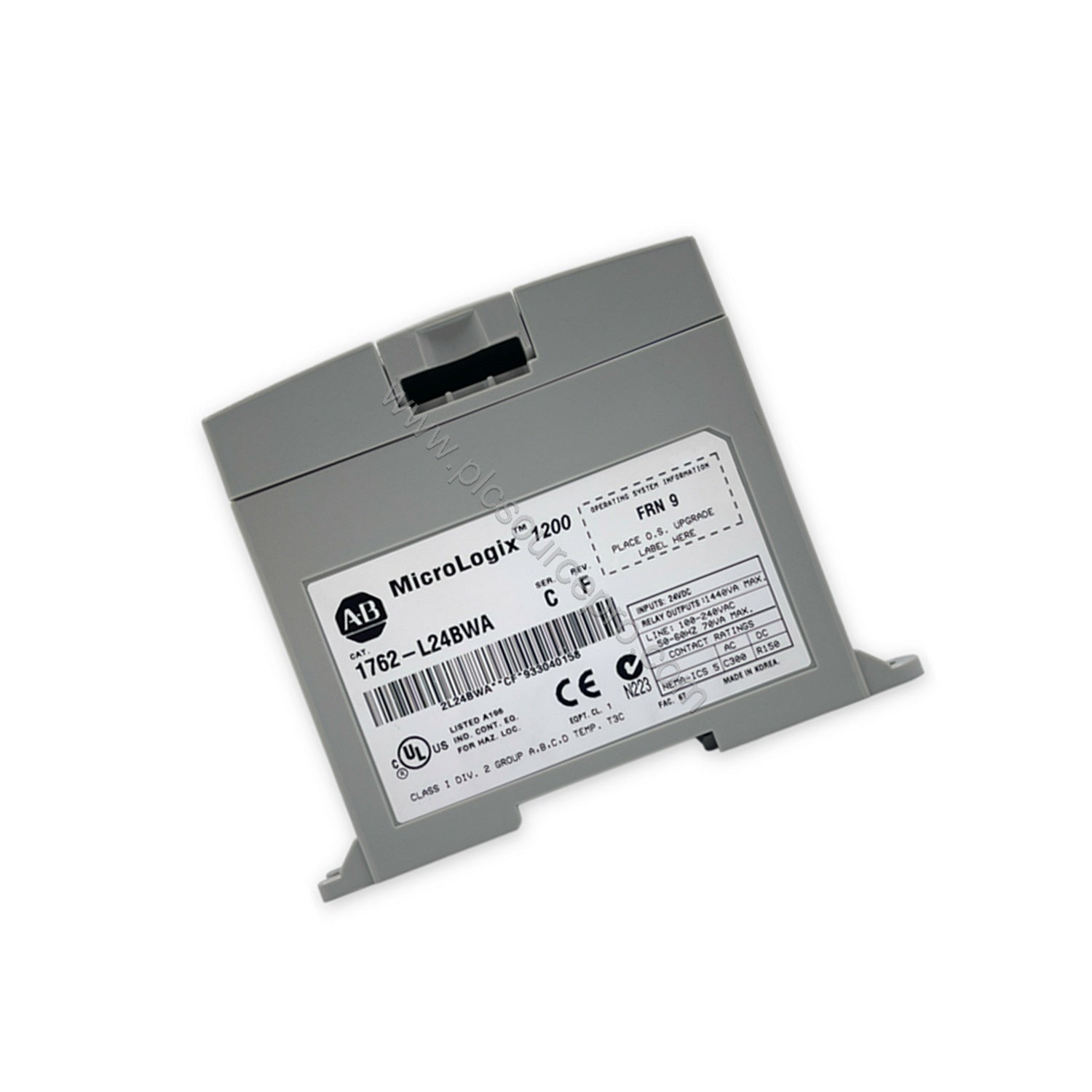

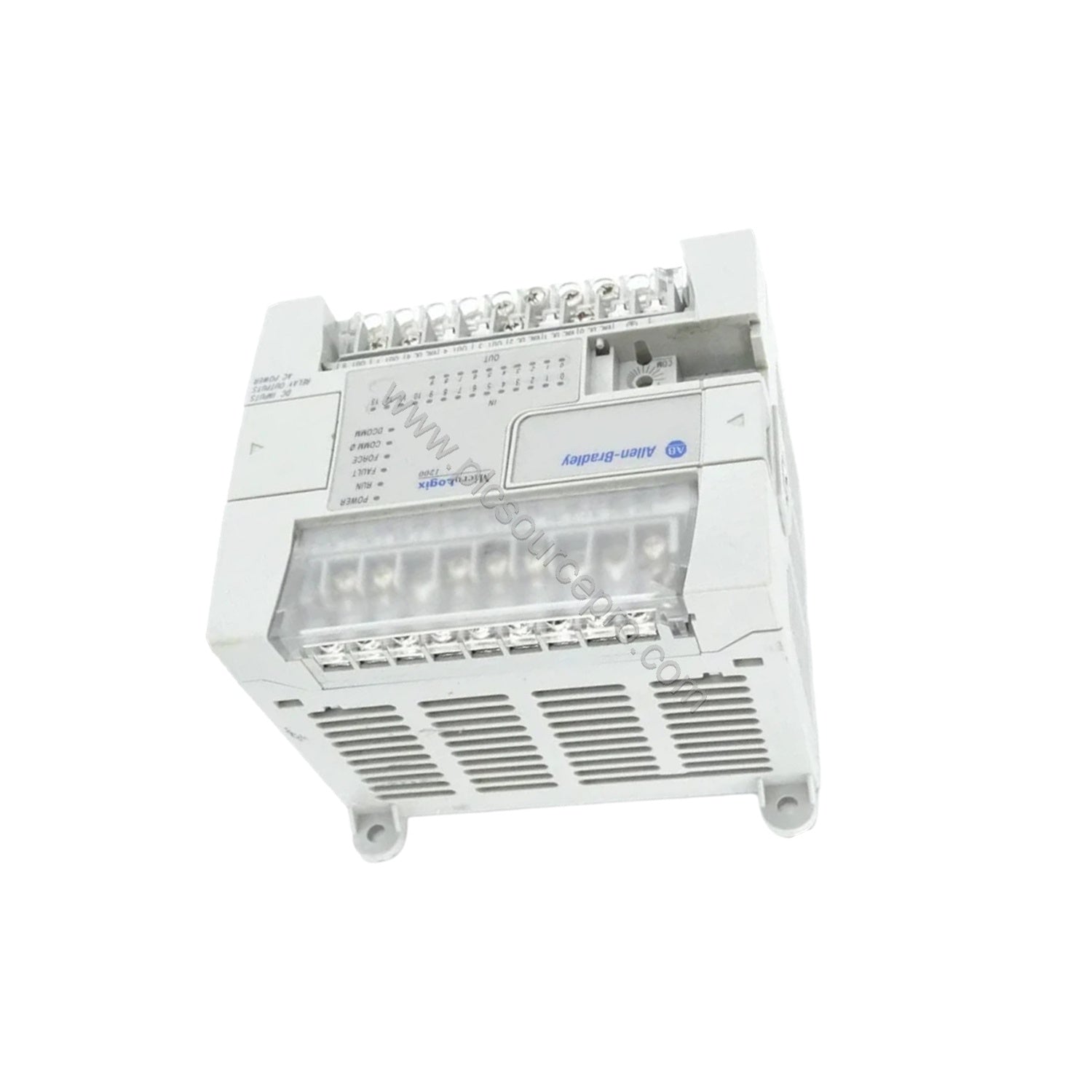

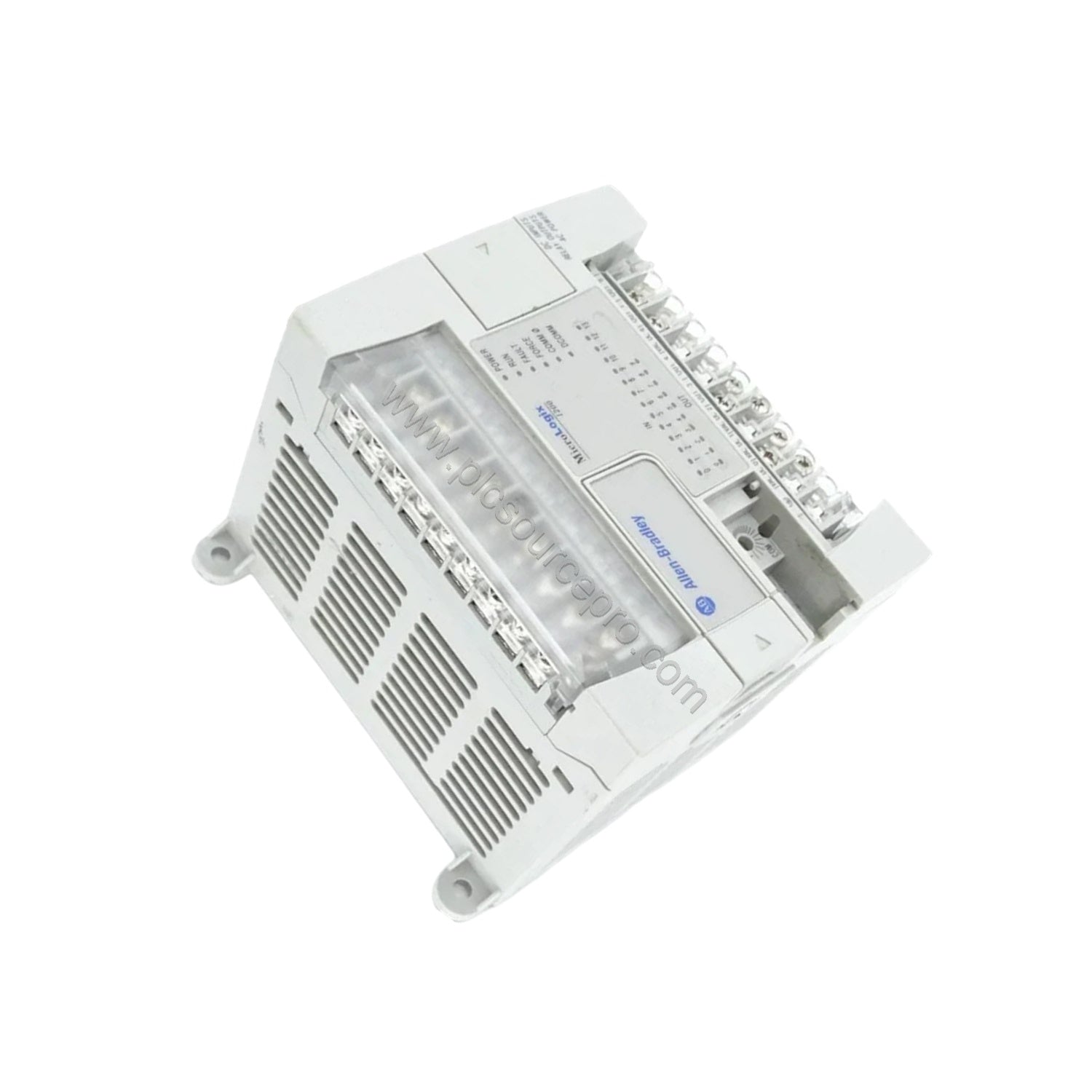

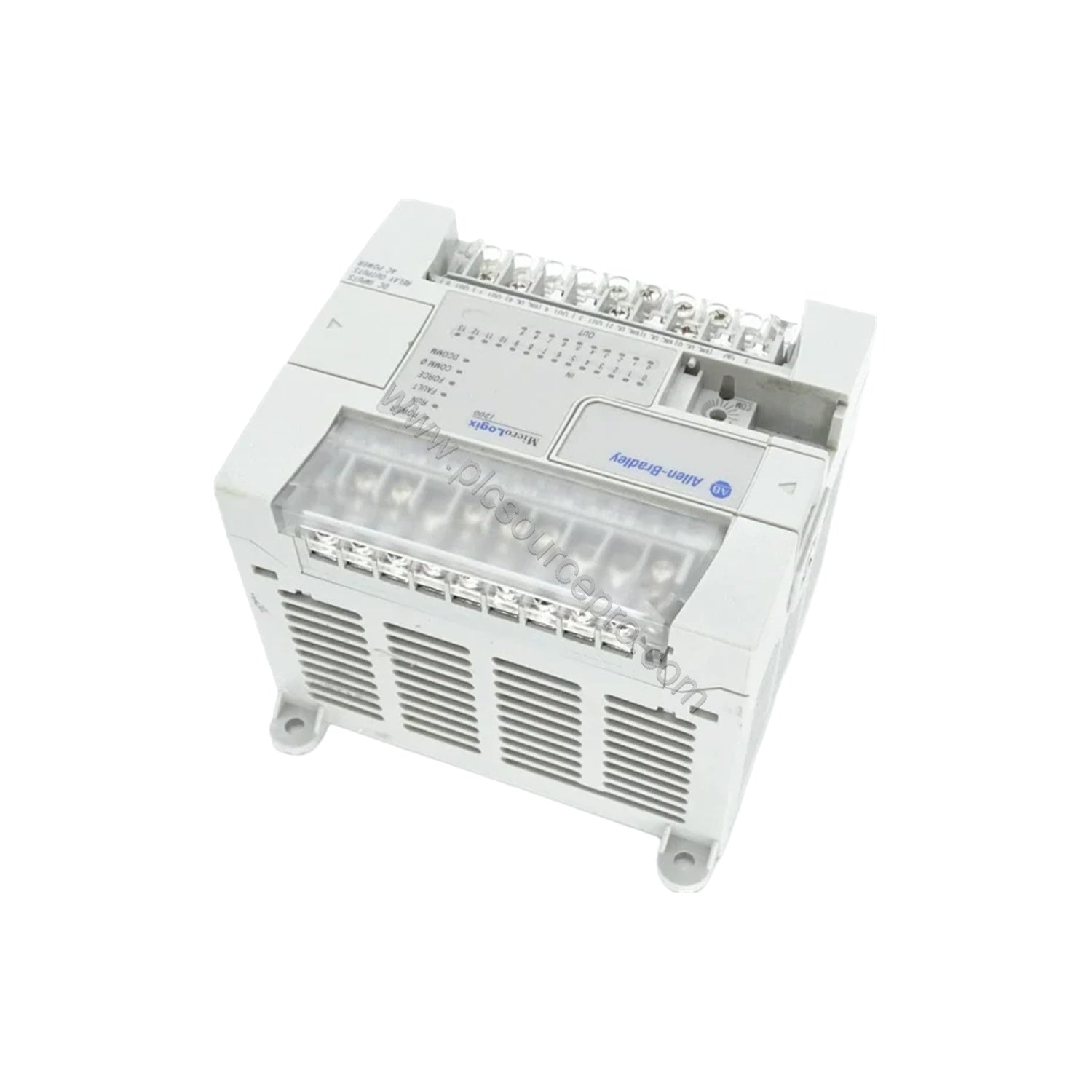

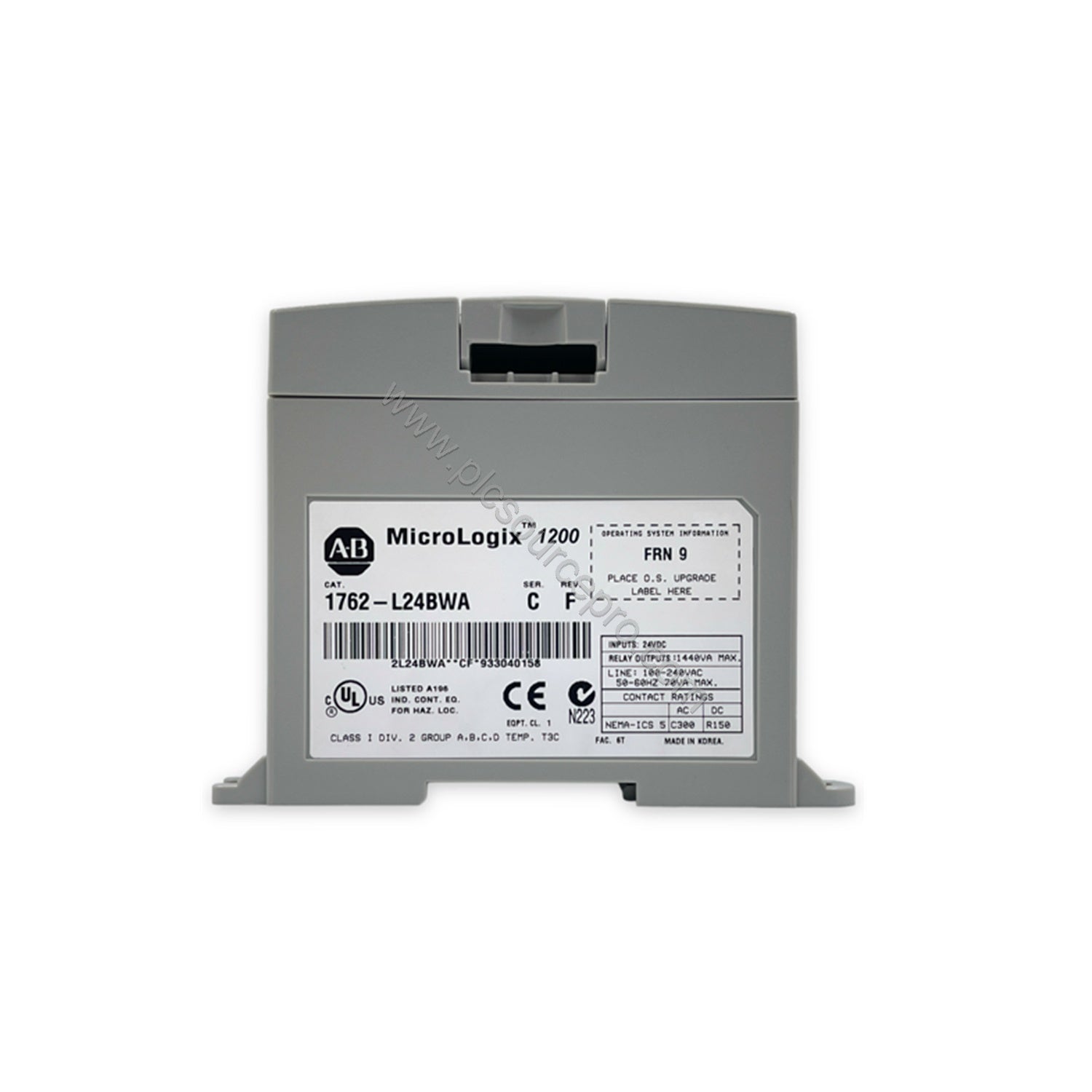

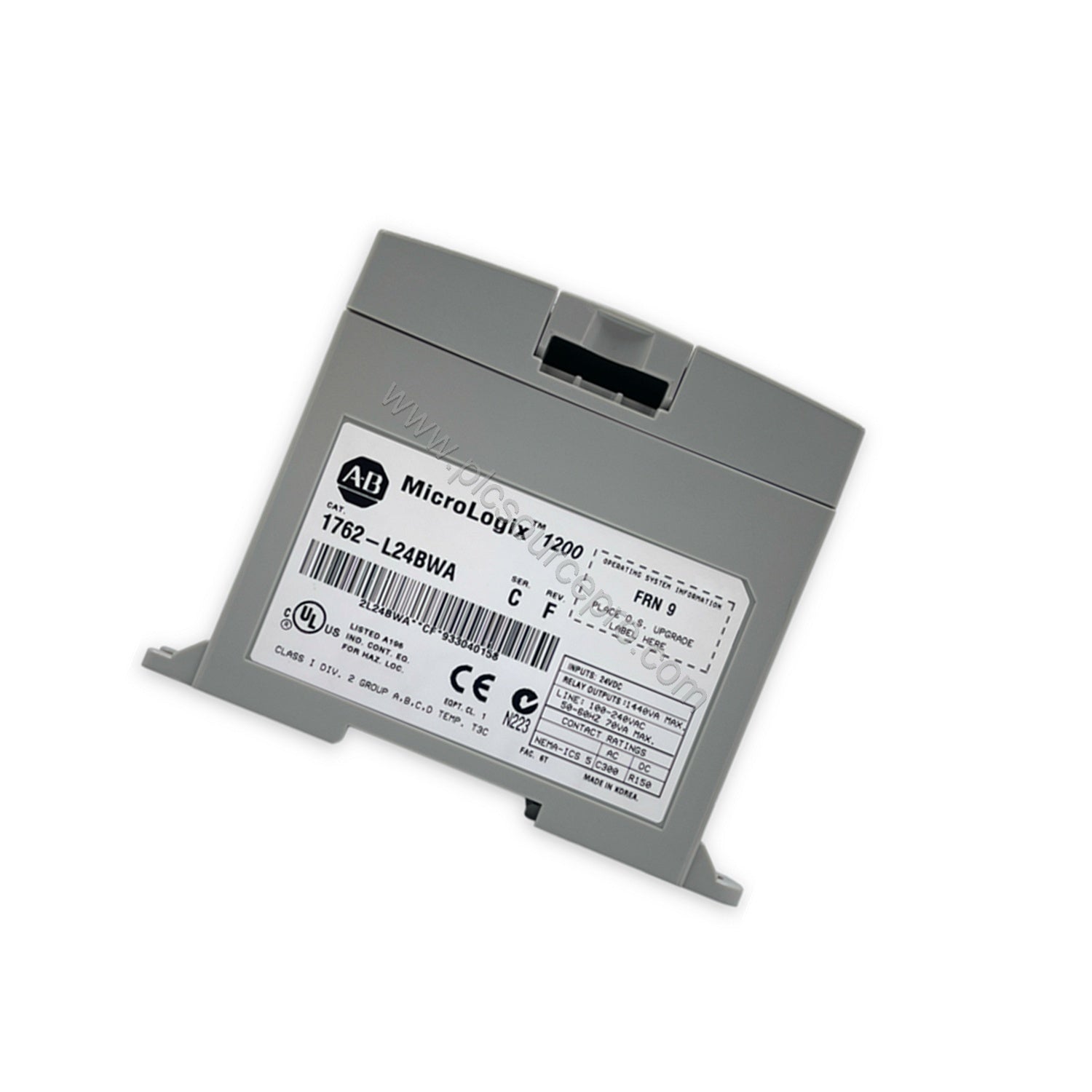

When industrial control systems demand reliable and cost-effective automation, the Allen-Bradley 1762-L24BWA provides a compact solution with long-lasting relay outputs. This MicroLogix 1200 unit integrates power supply, I/O, and communication in one enclosure, reducing wiring and panel space. With 14 digital inputs rated at 24 Volts DC and 10 relay outputs, it handles small to medium applications efficiently.
Technical Specifications
The Allen-Bradley 1762-L24BWA is built to exacting standards. Below are its key parameters:
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Input Power |
120 to 240 Volts AC |
| Inputs |
10 rated at 24 Volts DC + 4 fast inputs at 24 Volts DC |
| Outputs |
10 Relay |
| Input Circuit Type |
24 Volts DC Sink/Source |
| Output Circuit Type |
Relay |
| Relay Contact Rating |
24-125VDC; 120-240VAC |
| Mechanical Cycles |
20,000,000 |
| Dimensions (H x W x D) |
90 mm x 110 mm x 87 mm |
| Shipping Weight |
2 pounds |
| Ambient Operating Temp |
0 to 55 °C |
| Heat Dissipation |
15.7 W |
| Power Supply Inrush Current |
120V AC: 25A for 8 ms; 240V AC: 40A for 4 ms |
Installation & Setup
Mount the Allen-Bradley 1762-L24BWA on a DIN rail or directly to a panel using the provided slots. Before installing any expansion module, disconnect power to prevent electrical arcing and contact wear. The controller supports mounting in enclosures with limited space due to its compact footprint. Ensure ambient temperature stays between 0 and 55 °C for optimal performance.
Compatibility & Integration
The 1762-L24BWA features an 8-pin mini DIN RS232 port supporting DH485, DF1, Modbus Master/Slave, and ASCII protocols. This allows integration with HMIs, SCADA systems, and other intelligent devices. Use an external converter like the 1761-NET-AIC for network expansion. The controller also accepts expansion I/O modules to extend its native capabilities.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 1762-L24BWA, verify your application voltage (120-240 VAC) and I/O count. This module is ideal for small automation tasks requiring mixed input types and relay outputs. For reliable sourcing, trust UBEST Automation (available at ubest101.myshopify.com) for genuine parts and fast delivery.
