Product Introduction

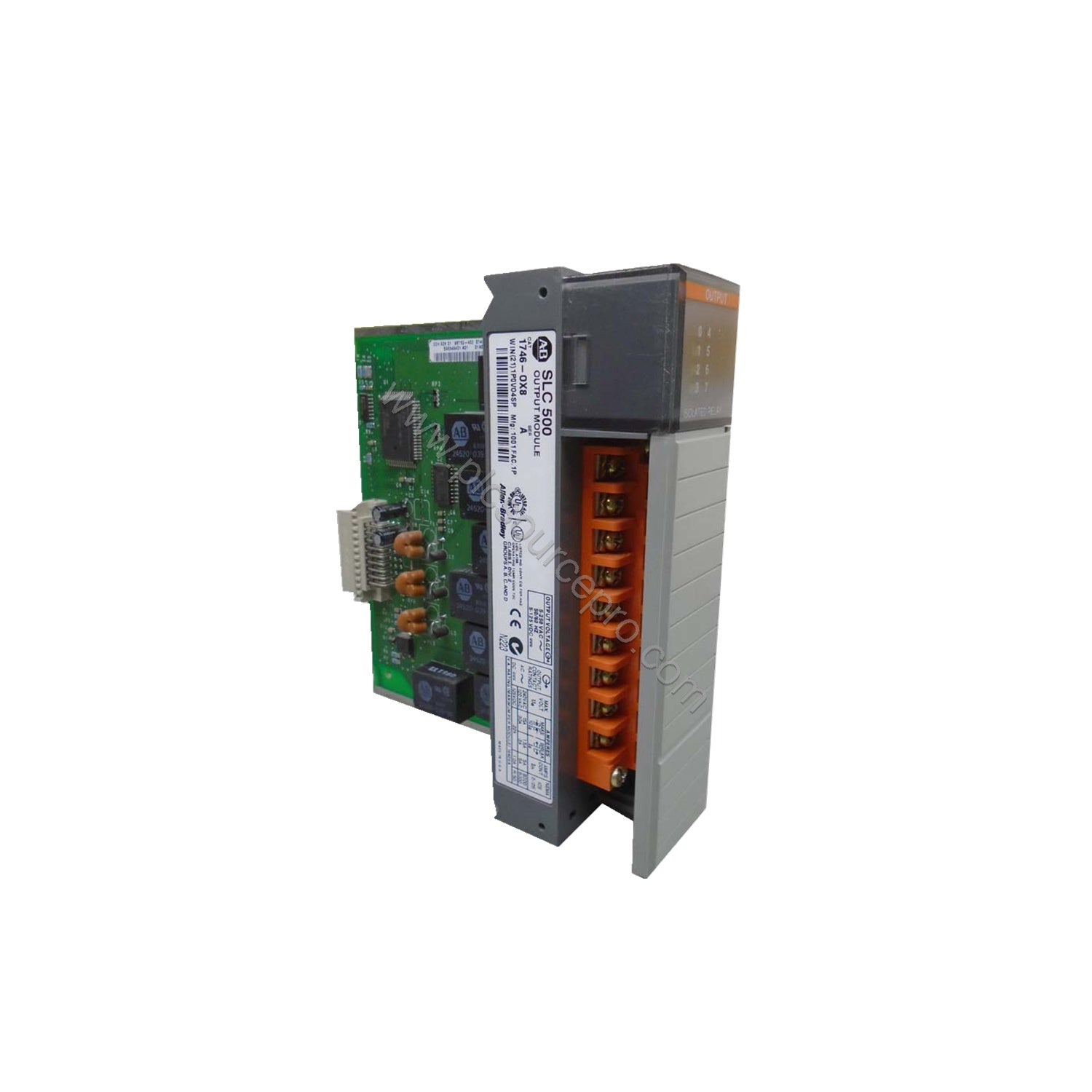

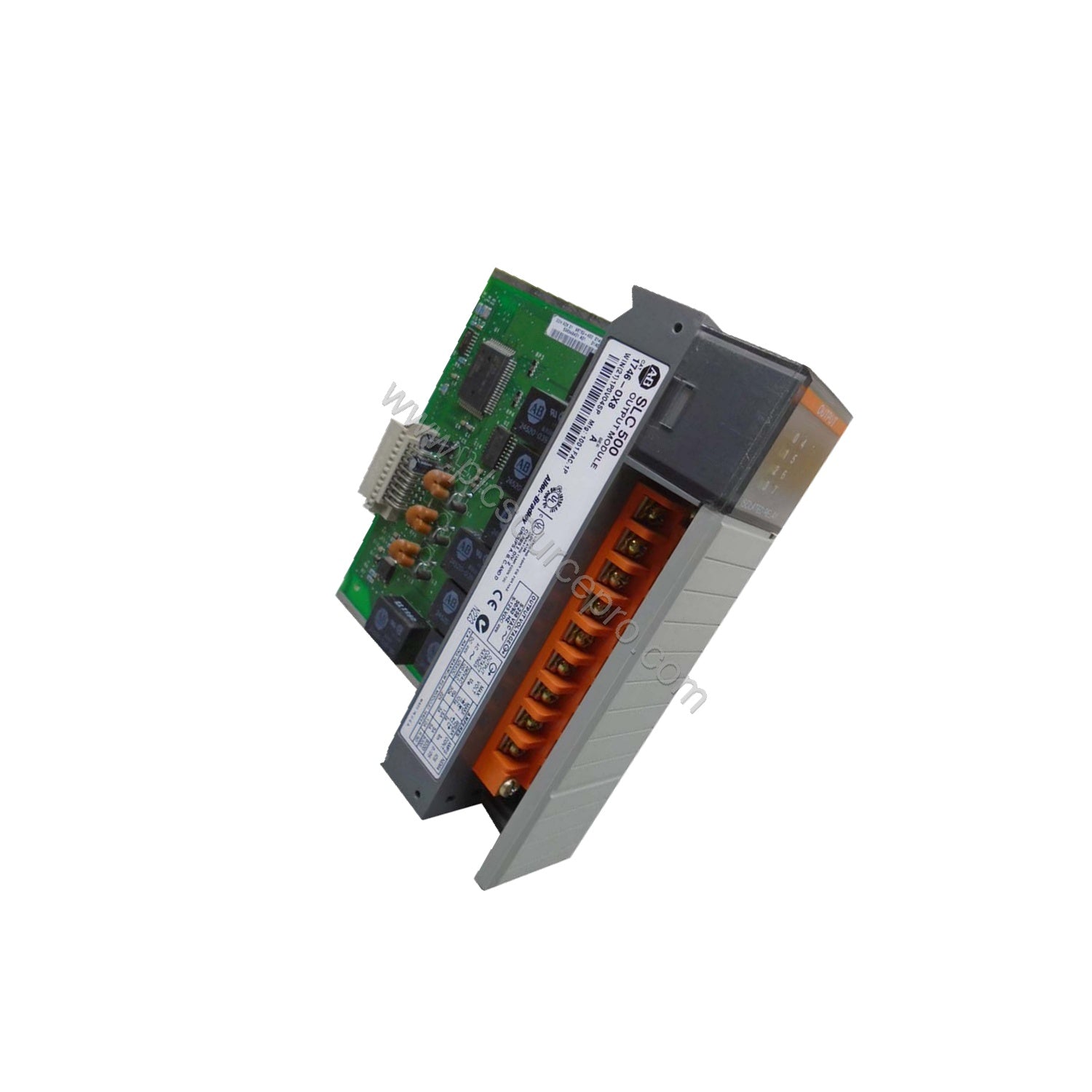

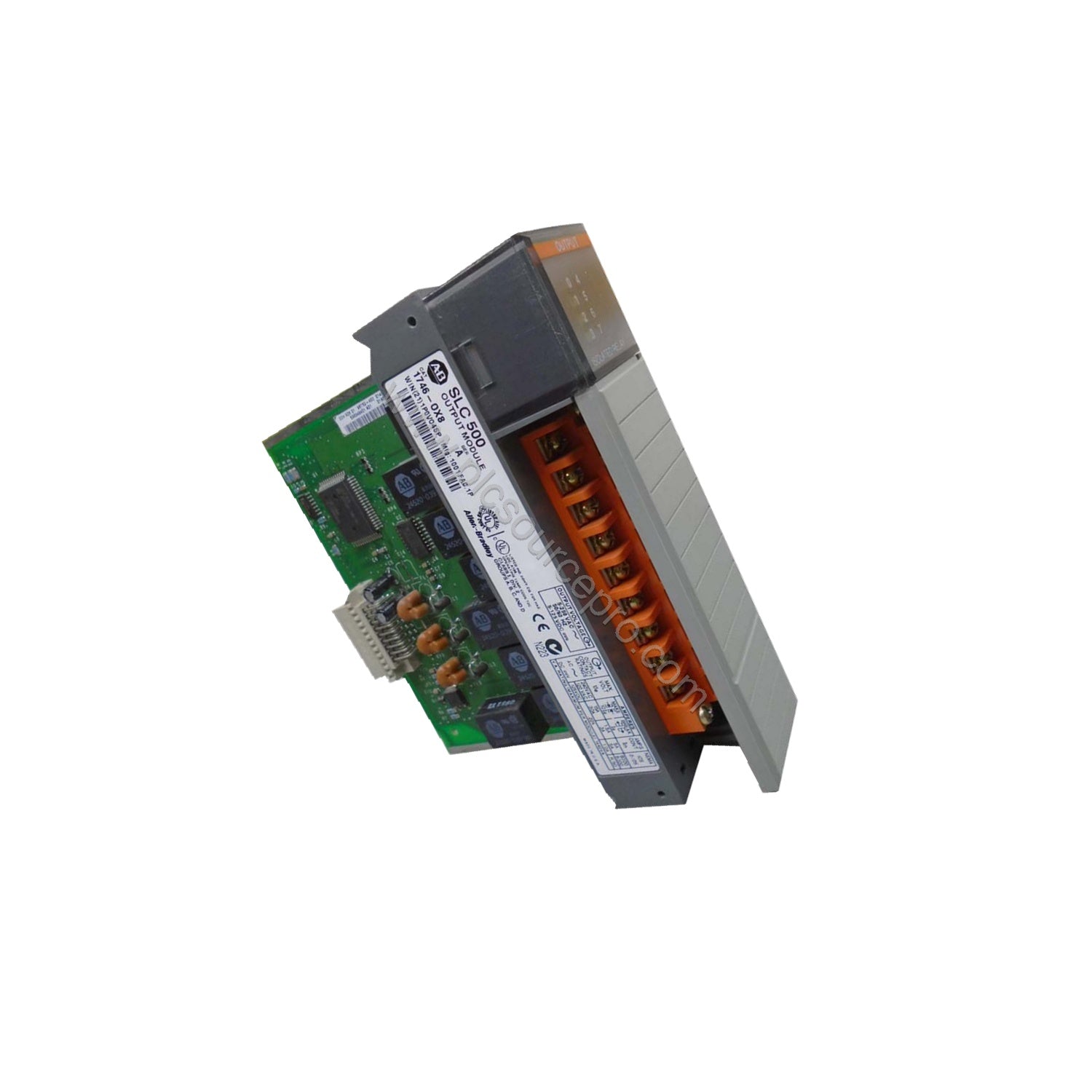

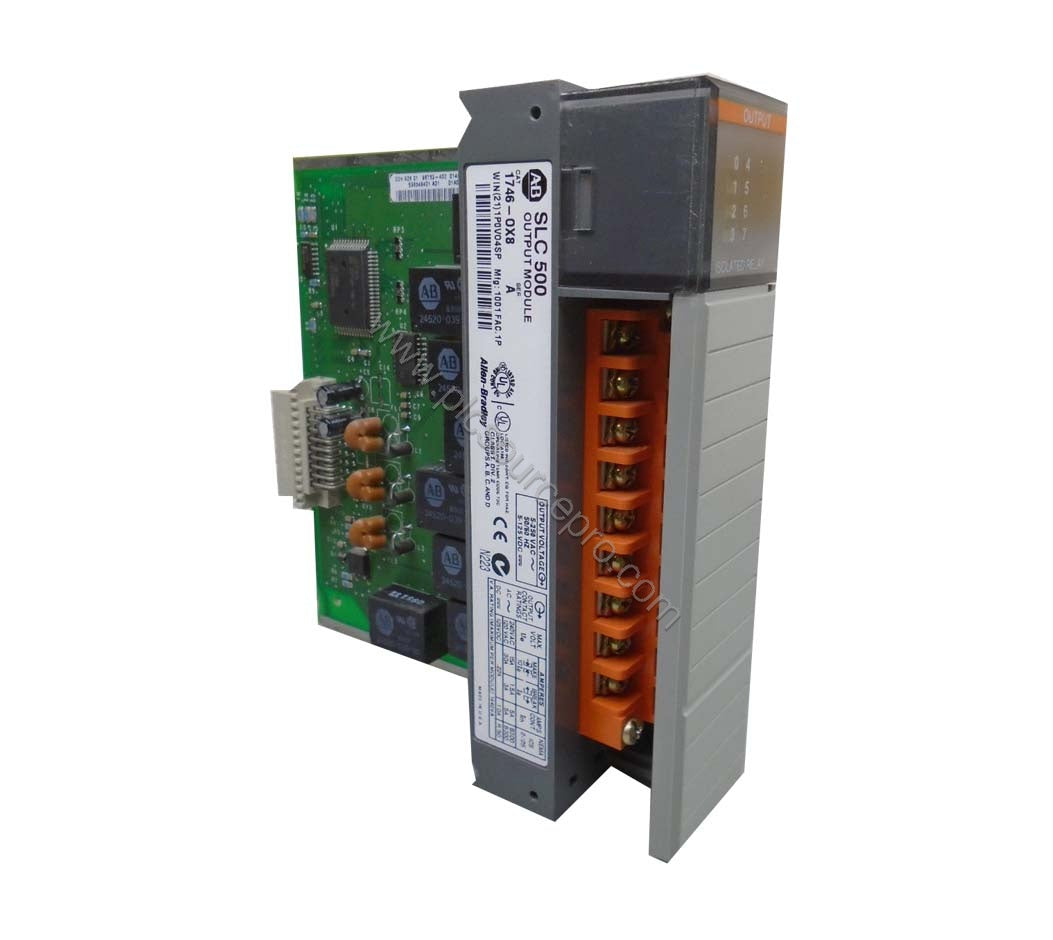

The Allen-Bradley 1746-OX8 is a Digital Contact Output Module designed for the SLC 500 programmable controller family. This module provides eight normally open relay contact outputs, each individually isolated for high-current switching applications. As a key component in industrial automation, the 1746-OX8 handles demanding loads with robust construction and proven reliability.
Industry Applications
Factory Automation: The 1746-OX8 controls motors, solenoids, and valves in manufacturing lines, providing isolated switching that protects sensitive control logic.
Process Control: In chemical or water treatment plants, the module actuates pumps and actuators where isolation and high inrush current handling are critical.
Material Handling: Conveyor systems and sorting equipment benefit from the module’s ability to switch multiple high-current loads without interference between channels.
Installation & Setup Guidance
Mount the Allen-Bradley 1746-OX8 module in any SLC 500 chassis slot. Ensure power is completely removed from the chassis before insertion or removal. The module requires no field wiring; connect outputs via the terminal block. Follow standard safety practices for relay circuits, including proper fuse protection per load specifications.
Maintenance & Reliability
Periodically inspect the 1746-OX8 for signs of wear on relay contacts, especially in high-cycle applications. Clean the module and chassis with a dry, low-pressure air stream to remove dust. The module operates reliably in ambient temperatures from 0 to 60°C, but avoid condensing humidity. Regular checks of backplane connectivity can prevent intermittent faults.
Selection Guide & Purchasing Advice
Before purchasing, verify that your SLC 500 system has an available slot and compatible backplane power capacity. The 1746-OX8 is a direct replacement for earlier output modules. For system integration assistance, contact UBEST Automation (visit ubest101) with your configuration details to ensure correct compatibility.
All products sourced by UBEST Automation are genuine and tested for functionality.
