Product Introduction

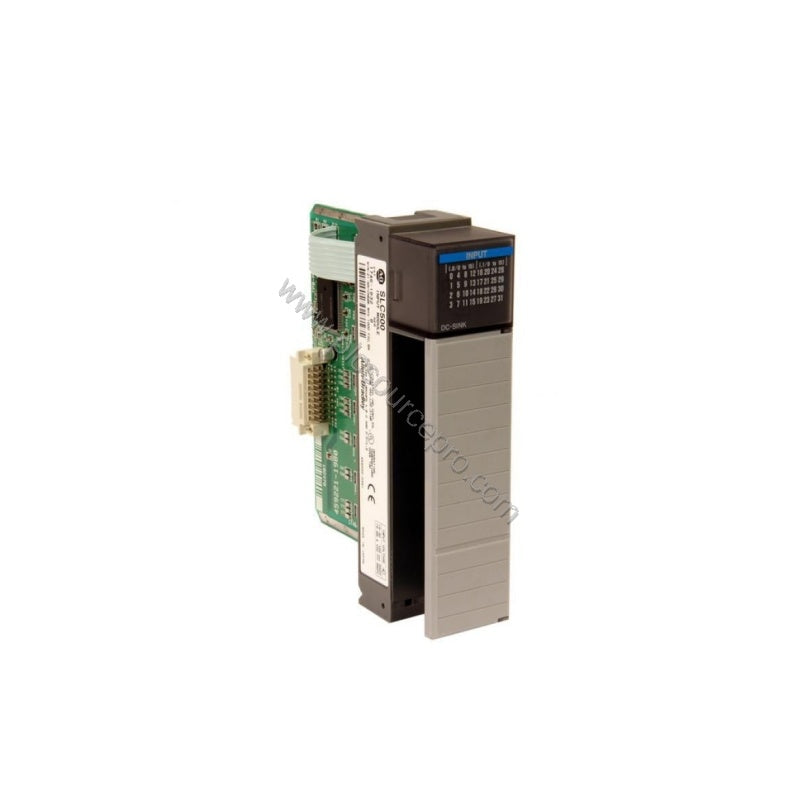

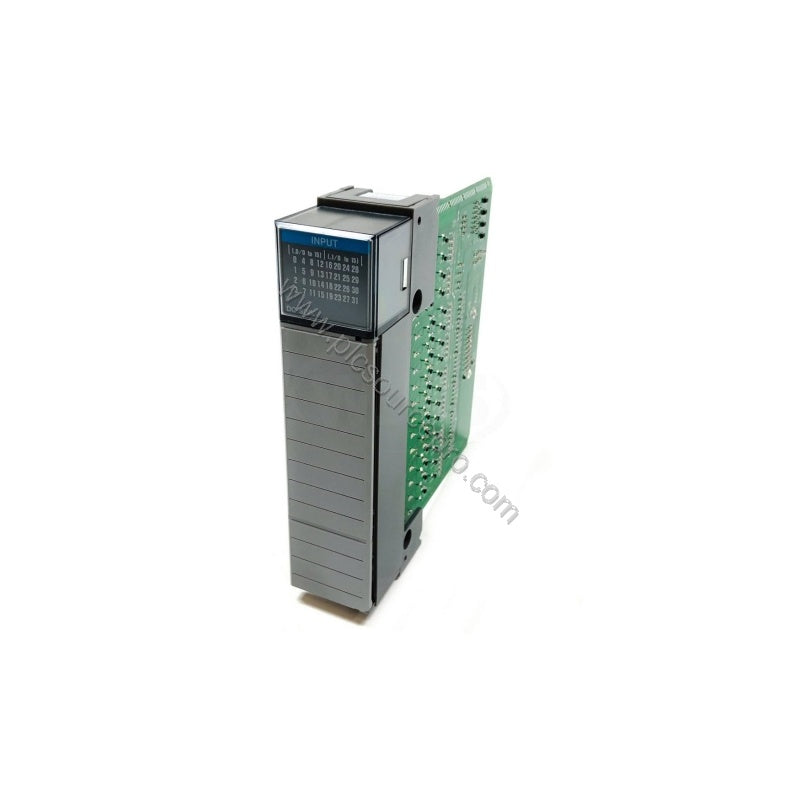

When your existing SLC 500 input modules begin to fail or you need to expand your system, the Allen-Bradley 1746-IB32 offers a reliable replacement solution. Part of the Rockwell Automation SLC 500 series, this Digital DC Input Module provides 32 sinking input channels operating at 24VDC. Designed for general-purpose DC inputs, it interfaces seamlessly with switches, sensors, and auxiliary contacts.
Technical Specifications
-
Input Voltage: 24VDC nominal, with operating range 15-30VDC at 50°C and 15-26.4VDC at 60°C
-
Number of Inputs: 32 (sink type)
-
Signal Delay: 3 ms (both ON to OFF and OFF to ON)
-
Backplane Current: 0.05 A at 5VDC
-
Power Dissipation: 0.20 Watts per channel, 6.65 Watts per module
-
Off-State Current: 1.5 mA maximum
-
Isolation: 1500V AC for 60 seconds between backplane and I/O
Industry Applications
The Allen-Bradley 1746-IB32 excels in manufacturing lines, material handling, and process control where reliable digital input sensing is critical. Its 32-channel density reduces the number of modules needed, simplifying wiring in cabinets. For example, in an automotive assembly line, this module can monitor up to 32 proximity sensors simultaneously, ensuring fast response to part presence.
Installation & Setup Guidance
Install the Allen-Bradley 1746-IB32 into any available slot of a 1746 chassis except slot 1 (reserved for the controller). Always power down the chassis before insertion, as this module does not support RIUP. Use compatible I/O connection cables (1746-HT or 1746-HCA) for wiring. The removable terminal block simplifies maintenance — you can pre-wire and swap modules without rewiring.
Maintenance & Reliability
To maximize uptime, periodically inspect the terminal block connections and clean the module face. The 1746-IB32 operates reliably from 0 to 60°C and withstands vibration up to 1G at 5-200 Hz. Its 30G shock rating ensures robustness in harsh environments. Replacing an older module with the Allen-Bradley 1746-IB32 reduces downtime and ensures compatibility with existing SLC 500 systems.
Replacement & Upgrade Guide
If you are upgrading from a lower-density input module or replacing a failed 1746-IB16, the Allen-Bradley 1746-IB32 provides a direct drop-in replacement with higher channel count. Verify your SLC 500 processor compatibility and backplane current capacity (0.05 A at 5VDC). For a seamless upgrade, order this module from UBEST Automation — your trusted supplier of industrial automation spares. Visit ubest101 for more details.
