Product Introduction

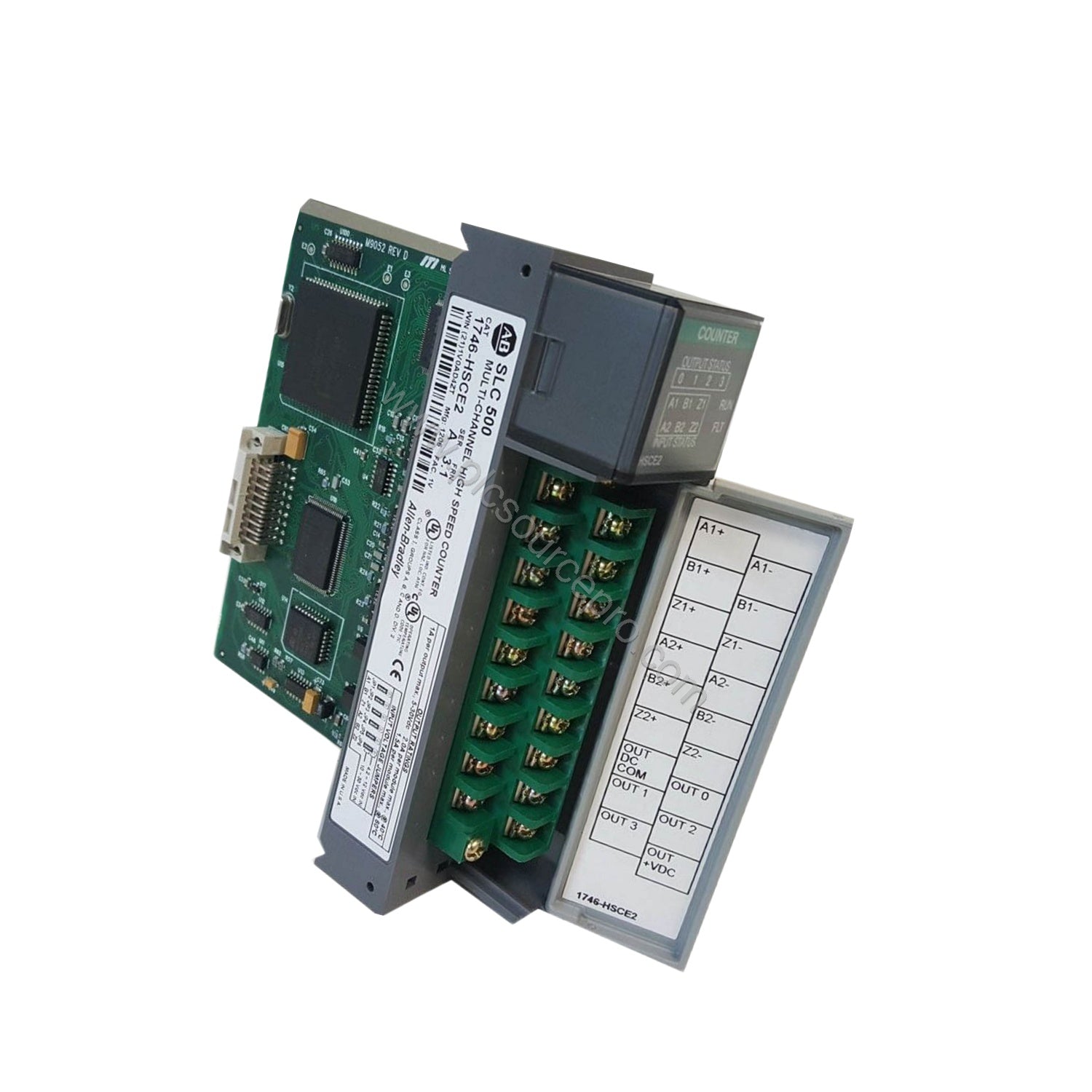

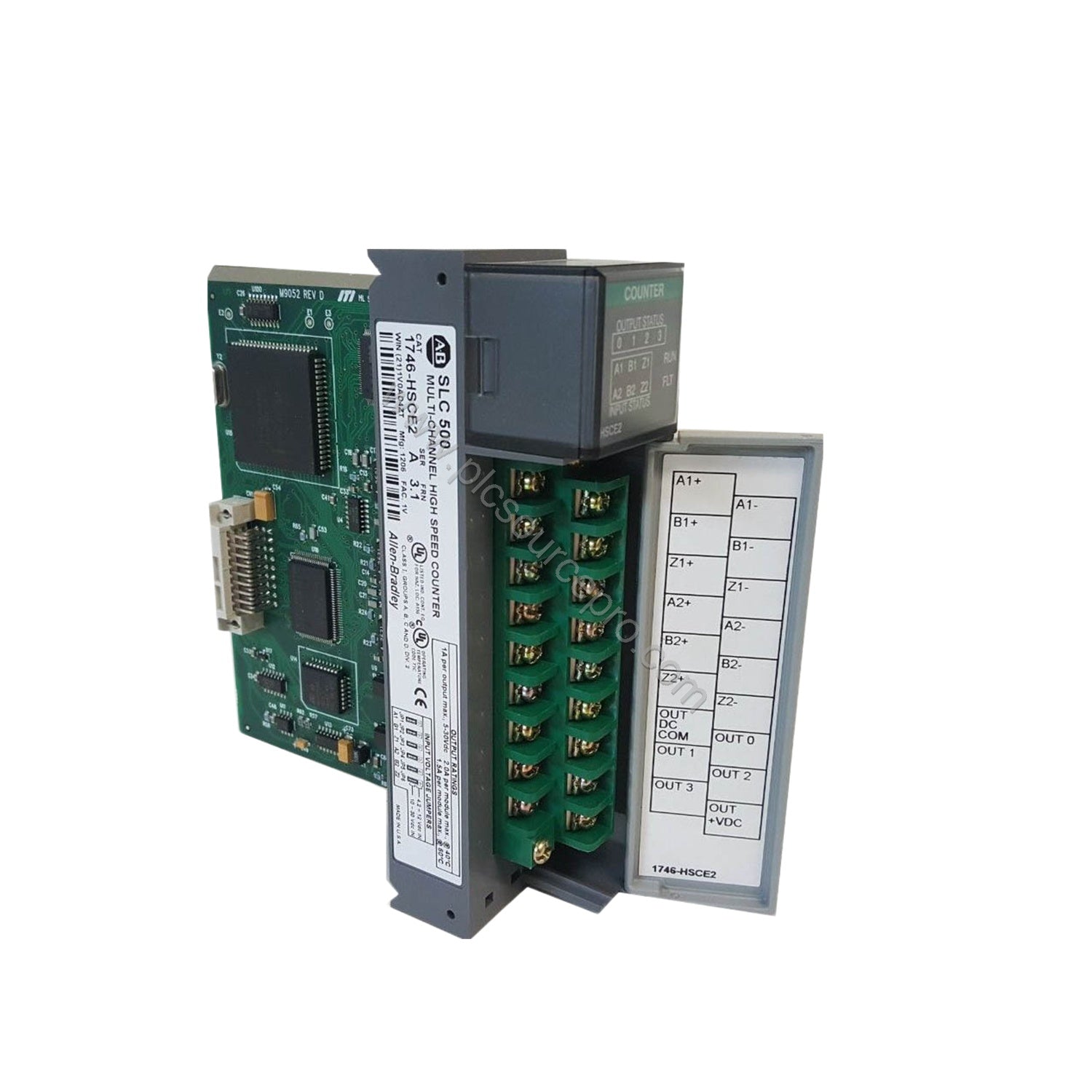

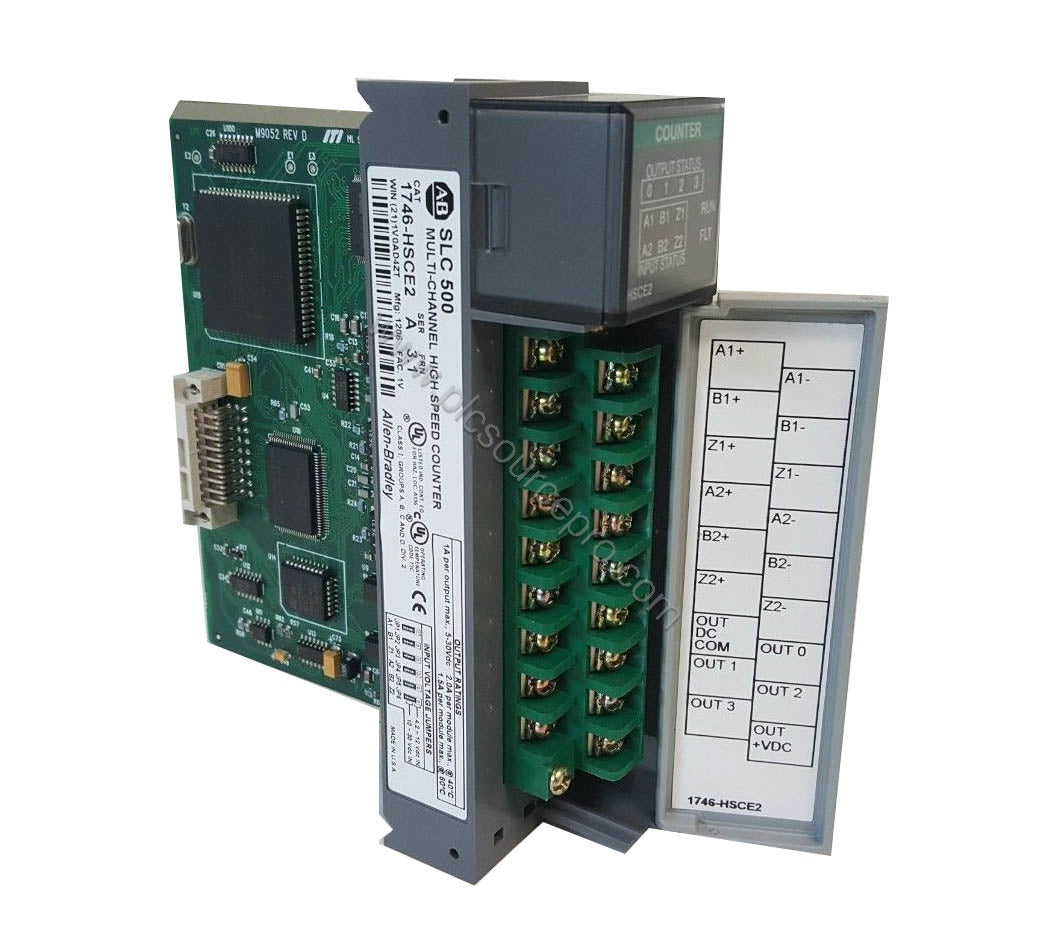

When high-frequency counting and precise position monitoring are critical in industrial automation, the Allen-Bradley 1746-HSCE2 provides a reliable solution. Part of the SLC 500 series, this multi-channel high-speed input module counts in both directions and handles up to 1 MHz input frequency. Its intelligent design processes signals independently to reduce CPU load, making it ideal for demanding applications like conveyor speed monitoring or encoder feedback.
Technical Specifications Breakdown
The 1746-HSCE2 offers six differential inputs (A1, B1, Z1, A2, B2, Z2) with a voltage range of 4.2–12 VDC and 10–30 VDC, supporting both 5 V and 24 V nominal supplies. Key parameters include:
-
Minimum pulse width: 475 ns
-
Minimum phase separation: 200 ns
-
Maximum input frequency: 1 MHz
-
Backplane current (5 V): 250 mA
-
Update time: 1.5 ms
The module features eight outputs—four virtual and four real—with a sourcing output voltage of 5–30 VDC. Its thermal cut-out protection prevents damage from overloads or short circuits by shutting down channels if temperature exceeds limits.
Industry Applications
The 1746-HSCE2 excels in applications that demand fast, accurate counting and position tracking. Use it for:
-
Packaging lines: Count packages with single-ended or quadrature encoders, leveraging the 1 MHz input frequency for high-speed production.
-
Machine tool monitoring: Monitor spindle speed and linear position with differential inputs to maintain precision.
-
Material handling: Track conveyor belt motion using two quadrature counters, with the Z input storing or resetting counter data for accurate positioning.
Installation & Setup Guidance
Install the 1746-HSCE2 in any SLC 500 chassis slot. Use the 1746-RT25G I/O connection cable to link inputs and outputs. For low-frequency signals, avoid false pulses by routing input cables away from noise sources and using shielded twisted-pair wiring. The module automatically detects pulse direction and supports up to four single-ended or two quadrature counters. Configure counting modes (linear or ring) via the SLC 500 processor.
Maintenance & Troubleshooting
Routine inspection of the 1746-HSCE2 ensures long-term reliability. Check for:
-
Thermal cut-out activation: If the module shuts down unexpectedly, allow it to cool; verify load currents remain below the maximum 1.0 A per output channel.
-
Noise issues: Low-frequency signals may pick up high-frequency noise. Use ferrite beads or additional filtering on input lines.
-
Output overload: Ensure total output current per module does not exceed 2.0 A at 40°C or 1.5 A at 60°C. The thermal overload protection resets automatically after cooling.
For persistent problems, verify backplane isolation (1000 V tested) and that the module is securely seated in the chassis.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 1746-HSCE2, confirm compatibility with your SLC 500 CPU and required input count. The module supports up to four pulse counters or two quadrature counters with 24-bit resolution (±8,388,607 counts). UBEST Automation stocks genuine 1746-HSCE2 modules with verified specifications, offering reliable support for your automation needs.
