Product Introduction

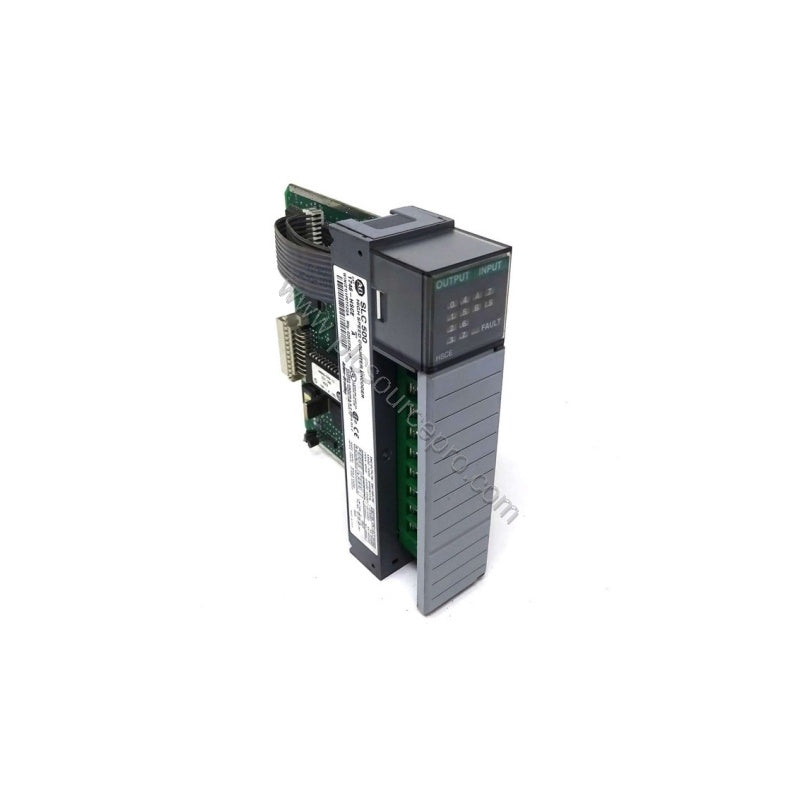

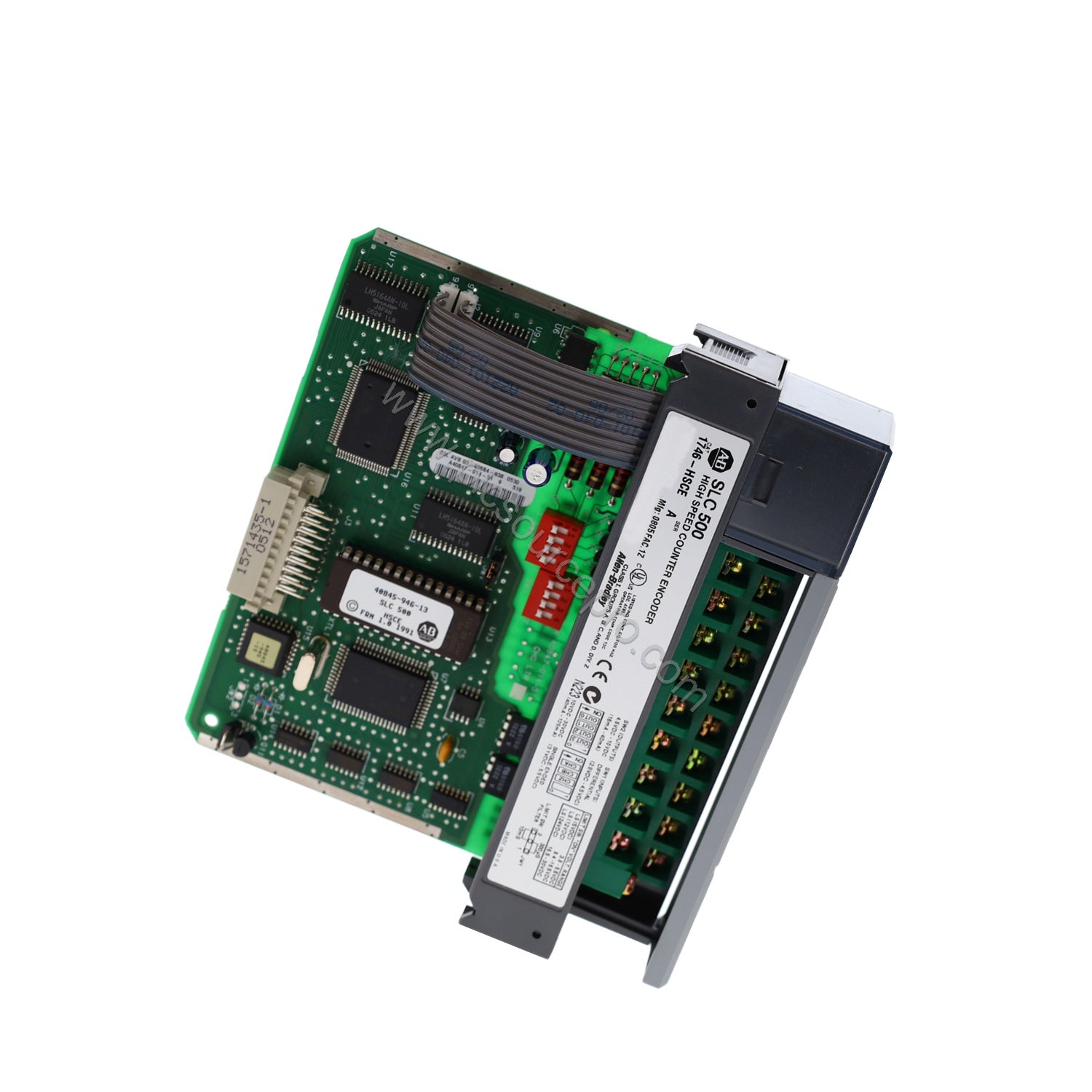

The Allen-Bradley 1746-HSCE High-Speed Counter module is a critical component for precise counting in SLC 500 PLC systems. It handles bidirectional counting using inputs A, B, and Z, supporting 5VDC differential or 0-5VDC single-ended signals. This module addresses common failure points such as missed pulses due to noise by accepting a minimum pulse width of 10 µs and pulse separation of 4.5 µs, ensuring reliable operation even in industrial environments.
Technical Specifications Breakdown
Key specs from the Allen-Bradley 1746-HSCE include:
- Backplane current: 320 mA at 5V, 0 mA at 24V
- Maximum cable length: 305 m (1000 ft) using Belden 9503
- One counting channel with max input frequency 50 kHz (Sequencer mode) or 32.767 kHz (Range Rate)
- Four open-collector outputs with on-state current up to 125 mA at 30V DC
- Operating temperature 0°C to 60°C, storage -40°C to 85°C
- Update time 4.8 ms, step response 100 ms in / 2.5 ms out
These specifications ensure accurate counting even in high-speed applications, reducing the risk of missed events.
Industry Applications
The Allen-Bradley 1746-HSCE is ideal for factory automation tasks like motion detection, totalizing, and flow monitoring. In a packaging line, it can count products at high speed, with its 50 kHz input frequency handling fast-moving items. Its differential inputs reject noise, a common failure mode in electrically noisy environments.
Installation & Setup Guidance
Install the Allen-Bradley 1746-HSCE in any SLC 500 chassis slot. Use Belden 9503 cable for long runs up to 305 m. Wire inputs A, B, Z for differential or single-ended as needed. Configure the module via software for Range, Rate, or Sequencer modes. Ensure proper grounding and NEMA enclosure to avoid electromagnetic interference.
Maintenance & Reliability
Regularly inspect cable connections and check for loose terminals on the Allen-Bradley 1746-HSCE. Monitor LED indicators for CPU fault or error codes. The module's rugged design with 1500V isolation and wide temperature range enhances reliability. Keep the module in a clean, dry environment to extend service life.
Troubleshooting & Common Issues
Common problems with the Allen-Bradley 1746-HSCE include missed counts due to pulse width shorter than 10 µs or pulse separation less than 4.5 µs. Ensure input signals meet these minimums. Noise on cables can cause false counts; use shielded twisted-pair cable (Belden 9503) and separate from high-power wires. If outputs fail, check the on-state current limits (16 mA at 4.5V up to 125 mA at 30V). The limit switch input has voltage ranges; verify compatibility.
For purchases, choose UBEST Automation for genuine Allen-Bradley 1746-HSCE modules.
