Product Overview

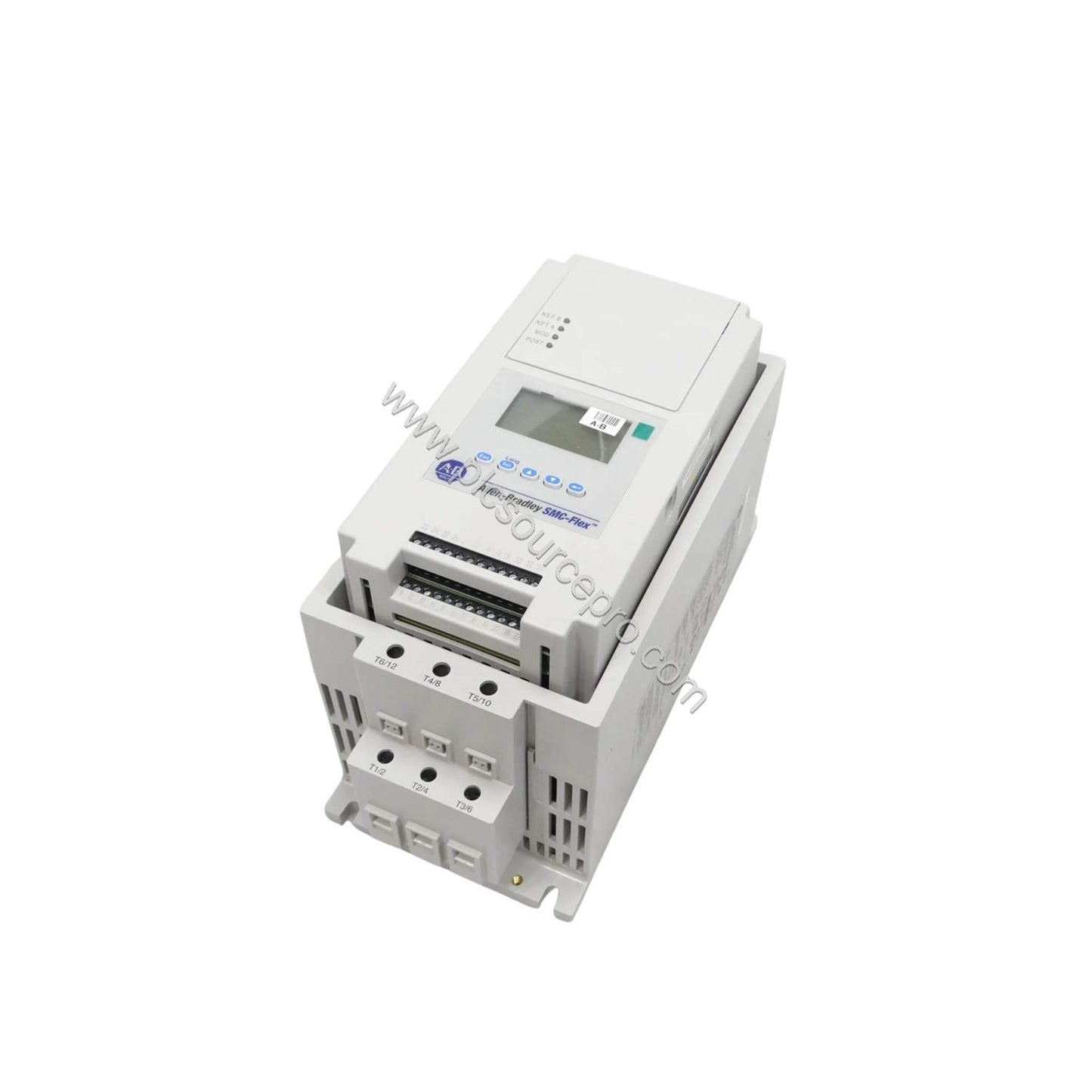

The Allen-Bradley 150-F5NCD is a solid-state smart motor controller from the SMC-Flex product line, designed for reliable soft starting and soft stopping of three-phase induction motors. This controller supports input line voltages from 200 to 575V AC at 50 or 60 Hz, making it versatile for global installations. With a controller rating of 5 A and 3 Hp at 460V AC, the 150-F5NCD suits light-to-medium duty applications that require controlled acceleration and deceleration.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F5NCD |
| Weight |
15.00 lbs (6.80 kg) |
| Bulletin Number |
Solid State Controller |
| Enclosure Type |
Open |
| Controller Rating |
5 A, 3 Hp @ 460V AC |
| Input Line Voltage |
200-575V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
500/575V AC |
Key Features & Benefits
-
Multiple Operating Modes: The 150-F5NCD supports full voltage start, current limit start, soft start, soft stop, preset slow speed, dual ramp, and linear speed acceleration, giving you flexible control over motor behavior.
-
Advanced Protection: Built-in fault diagnostics displayed on an LCD screen, along with status LEDs, alert operators to issues immediately. The controller also stops the motor automatically to prevent damage.
-
PTC Input for Overheat Detection: Inputs 23 and 24 are reserved for a PTC thermistor embedded in motor windings, providing direct over-temperature protection.
-
User-Friendly Interface: A keypad and programmable auxiliary contacts simplify setup and integration.
-
Compact Open Design: The open enclosure allows for flexible mounting inside a suitable cabinet, provided adequate cooling is maintained.
Industry Applications
The 150-F5NCD is ideal for applications that require controlled motor starting to reduce mechanical stress and electrical surges. Common uses include:
-
Conveyor Systems: Soft starting prevents product spillage and reduces wear on gearboxes and belts.
-
Pumps and Fans: Gradual acceleration minimizes water hammer and duct pressure spikes, extending equipment life.
-
Compressors: Current limit start reduces inrush current, protecting both the motor and the power distribution network.
Installation & Setup Guidance
Because the 150-F5NCD has an open enclosure, install it inside a properly cooled electrical cabinet. Ensure the ambient temperature inside the enclosure does not exceed 50°C. Mount the controller on a flat, vibration-free surface and follow the manufacturer's wiring diagrams. Connect the control voltage (100-240V AC) to the designated terminals, and wire the three-phase line voltage (200-575V AC) to the input side. For PTC motor protection, connect the thermistor leads to inputs 23 and 24. After wiring, configure the operating modes and parameters via the front keypad and LCD screen.
Maintenance & Reliability
Regular inspection of the 150-F5NCD helps maintain reliable operation. Check all power and control wiring for tightness and signs of overheating. Clean the enclosure vents and ensure cooling fans (if any) are unobstructed. Periodically test the fault diagnostics by simulating an overcurrent or over-temperature condition, verifying that the LCD and LEDs display correctly. Since the controller automatically stops the motor on fault, this prevents costly downtime and equipment damage, enhancing your return on investment.
Buying Guide
Before purchasing, verify that your motor's full-load current does not exceed 5 A and that your line voltage is within the 200-575V AC range. Confirm that the control voltage available matches the 100-240V AC requirement. The open enclosure means you must provide a suitable cabinet. For genuine Allen-Bradley 150-F5NCD controllers and fast, reliable service, choose PLC Source PRO as your supplier.
