Product Overview

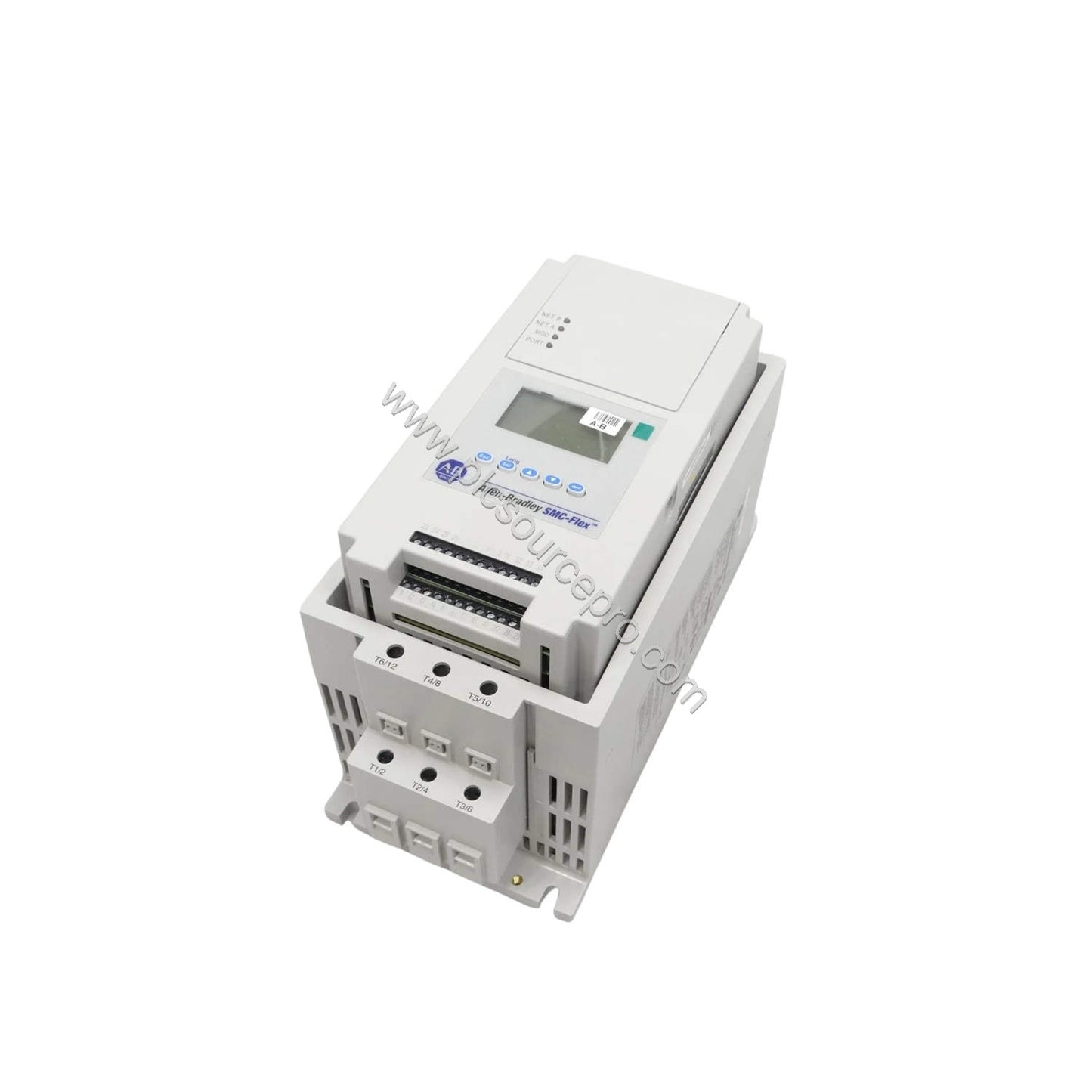

The Allen-Bradley 150-F5NBD is a solid-state controller from the SMC-Flex product line, engineered for reliable starting and stopping of three-phase induction motors. This industrial automation module delivers microprocessor-controlled starting for standard squirrel-cage induction or wye-delta motors, making it a versatile choice for demanding applications.
With an open enclosure and a controller rating of 5 A, 3 Hp @ 460V AC, the 150-F5NBD handles line-connected motors with precision. Its input line voltage range of 200-460V AC, 3-phase, 50 and 60 Hz ensures compatibility across global installations.
Key Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F5NBD |
| Weight |
12.00 lbs (5.44 kg) |
| Bulletin Number |
Solid State Controller |
| Enclosure Type |
Open |
| Controller Rating |
5 A, 3 Hp @ 460V AC |
| Input Line Voltage |
200-460V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
200-460V AC |
Applications
The 150-F5NBD excels in applications requiring smooth motor acceleration and deceleration. Typical uses include:
-
Pump control: The start and stop pump control feature reduces surges during centrifugal pump operation, extending pump life.
-
Braking operations: With SMB Smart Motor Braking, Accu-Stop, and Slow Speed with Braking, the controller provides precise stopping for high-inertia loads.
-
Delta-connected motors: Supports rated voltages of 400/415/460V AC, making it suitable for international motor configurations.
These features make the 150-F5NBD a dependable choice for industries such as water treatment, HVAC, and material handling.
Installation & Setup Guidance
When installing the 150-F5NBD, ensure the enclosure is mounted in a clean, dry location with adequate ventilation. Verify that the input line voltage matches the motor and controller ratings before energizing. The line and load terminals are provided as standard, simplifying wiring. Use the keypad system to program the controller parameters according to your motor specifications.
For delta-connected motors, confirm the voltage configuration (400/415/460V AC) and set the controller accordingly. Always follow local electrical codes and manufacturer guidelines for safe installation.
Maintenance & Reliability
Regular inspection of the 150-F5NBD ensures long-term reliability. Check for loose connections, signs of overheating, and accumulation of dust or debris. The built-in electronic motor overload protection helps prevent damage, while optional protective features like voltage unbalance, under voltage, under load, and stall/jam protection add extra layers of security.
Periodically test the controller's protective functions to confirm they operate correctly. Keeping the unit clean and properly ventilated reduces the risk of thermal stress and extends service life.
Compatibility & Integration
The 150-F5NBD features DPI communication capability, allowing integration with control systems that support this protocol. Its LCD display provides real-time metering and status information, simplifying diagnostics. The controller is designed to work with standard three-phase squirrel-cage induction motors and wye-delta motors, offering broad compatibility across industrial setups.
Selection Guide & Purchasing Advice
Before purchasing, verify that the controller rating (5 A, 3 Hp @ 460V AC) matches your motor's full-load current and horsepower. Confirm the input line voltage (200-460V AC, 3-phase) is compatible with your facility's power supply. Consider the enclosure type—open enclosures require installation in a suitable cabinet or panel to protect against environmental contaminants.
For genuine Allen-Bradley 150-F5NBD units and expert support, PLC Source PRO offers reliable sourcing and fast delivery. Ensure you order the correct part number to avoid downtime.
