Product Overview

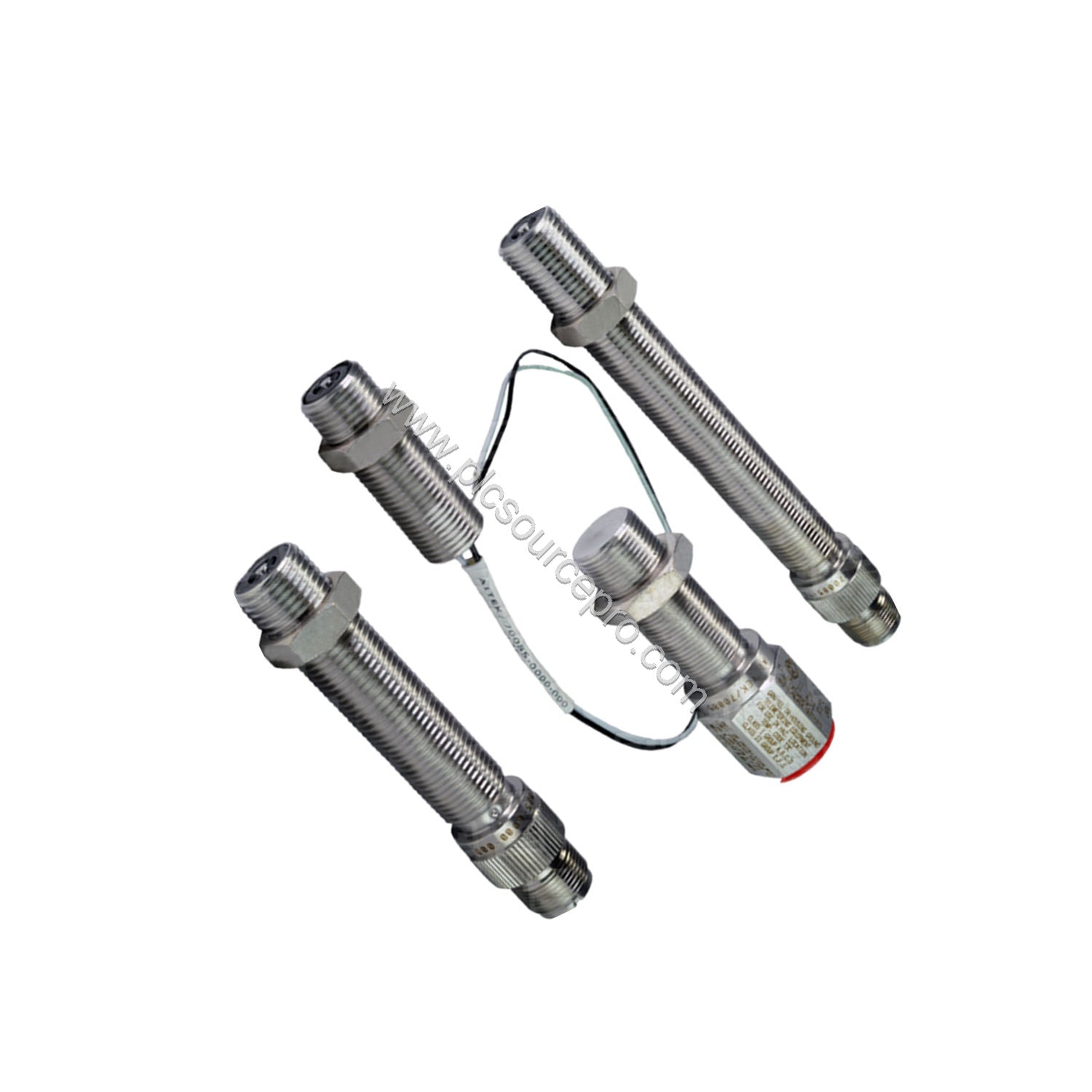

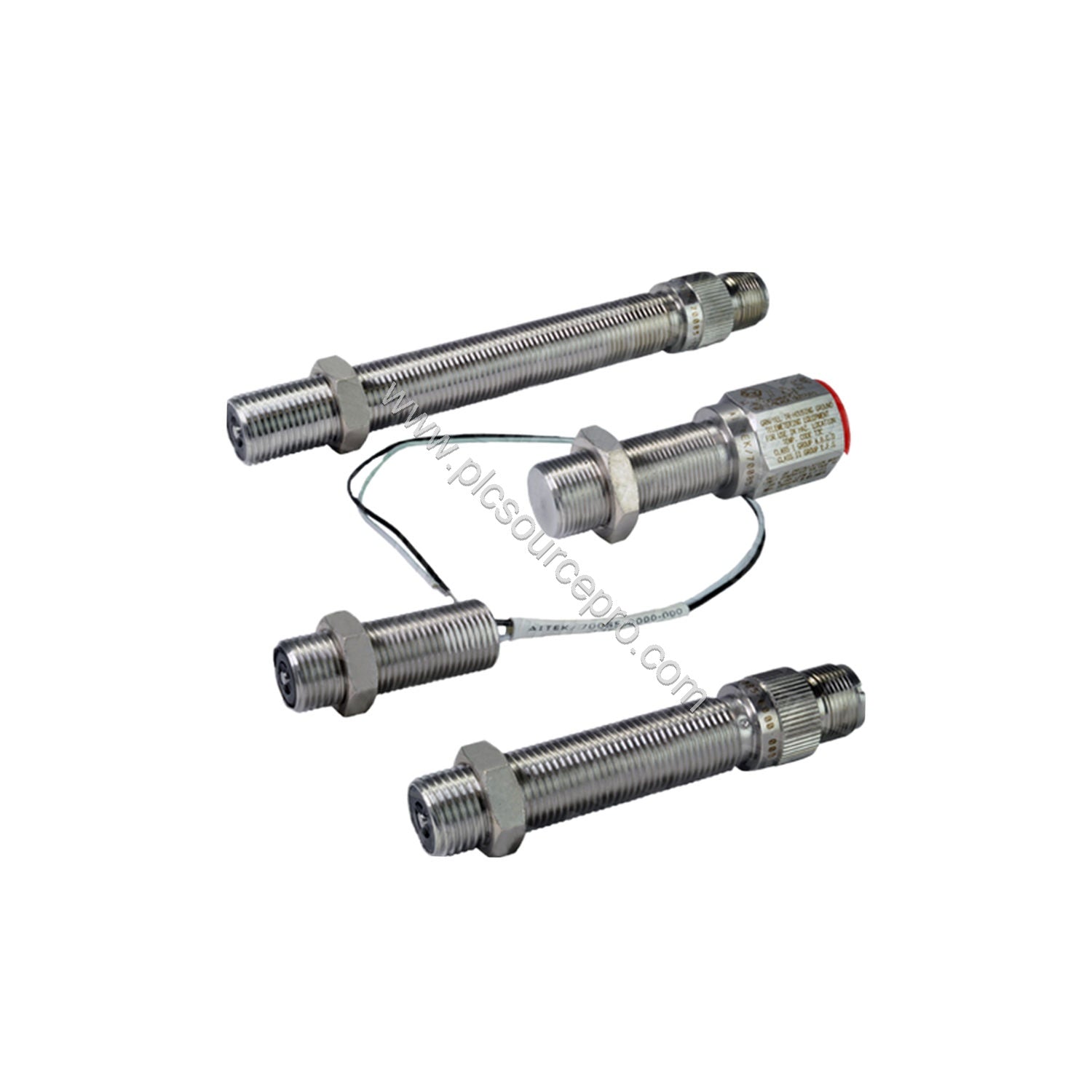

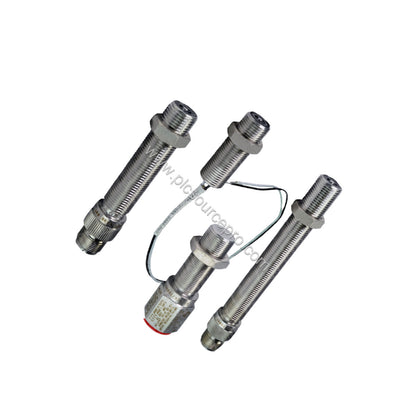

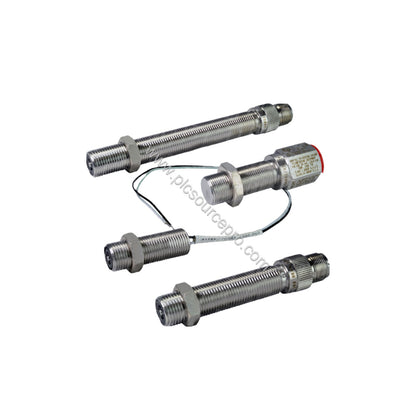

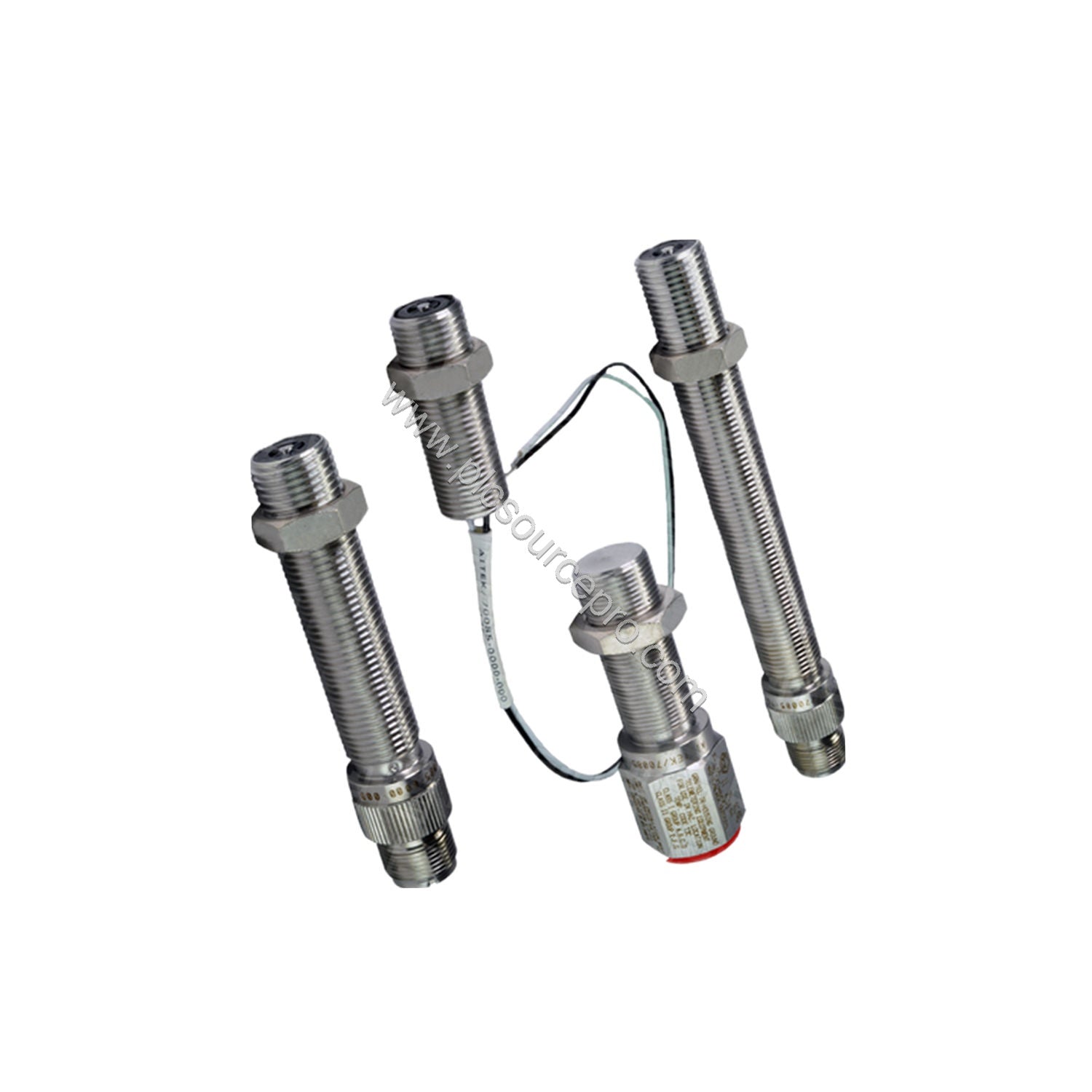

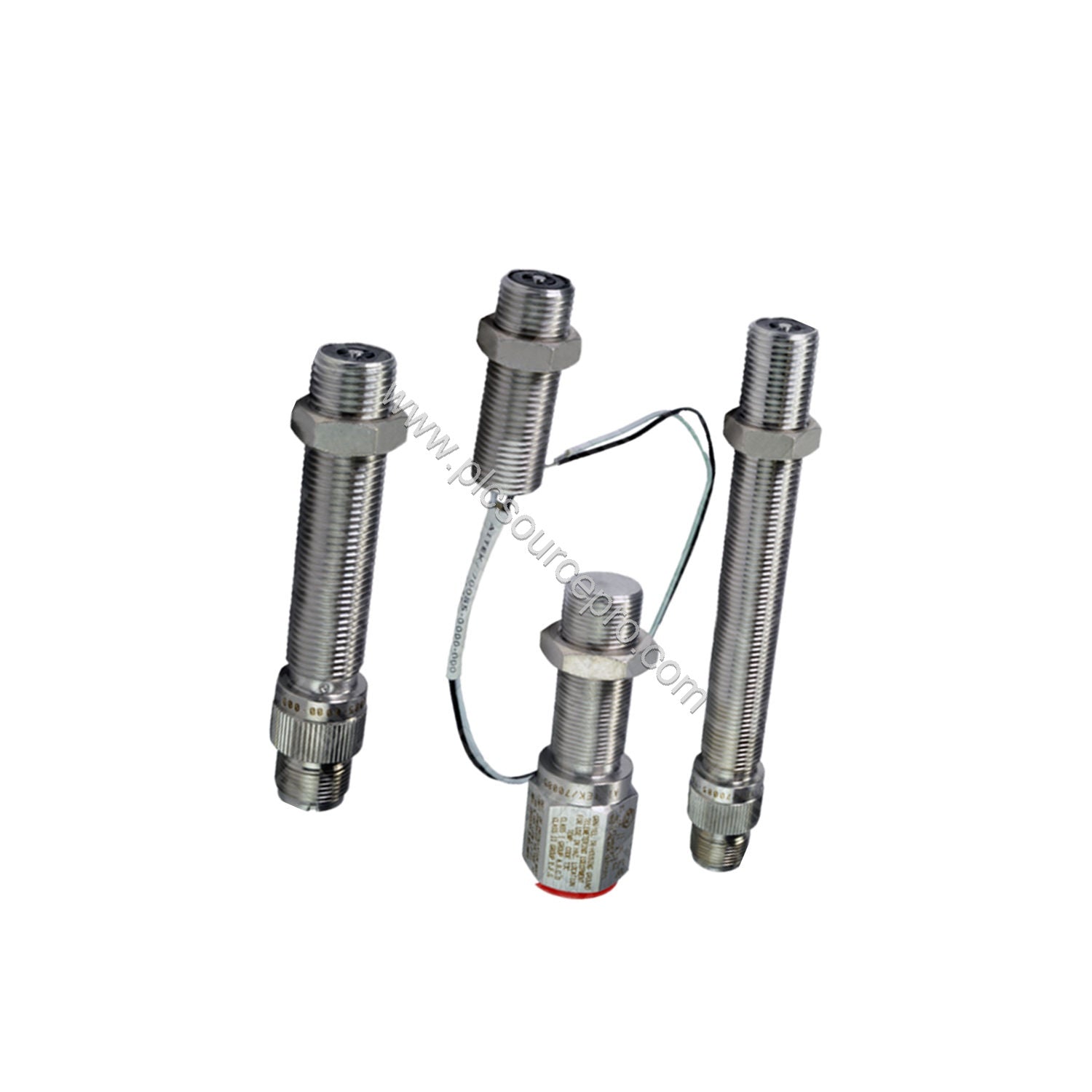

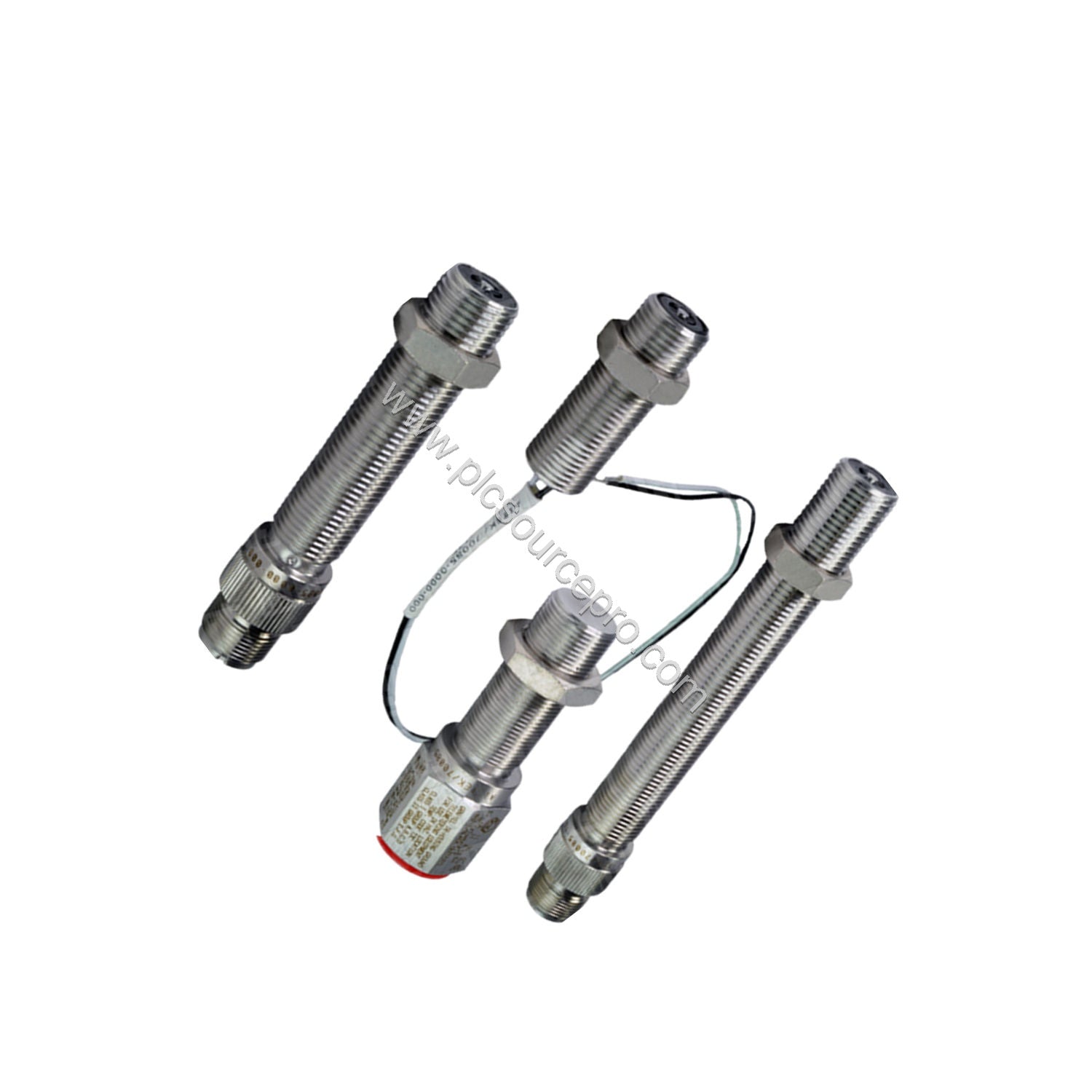

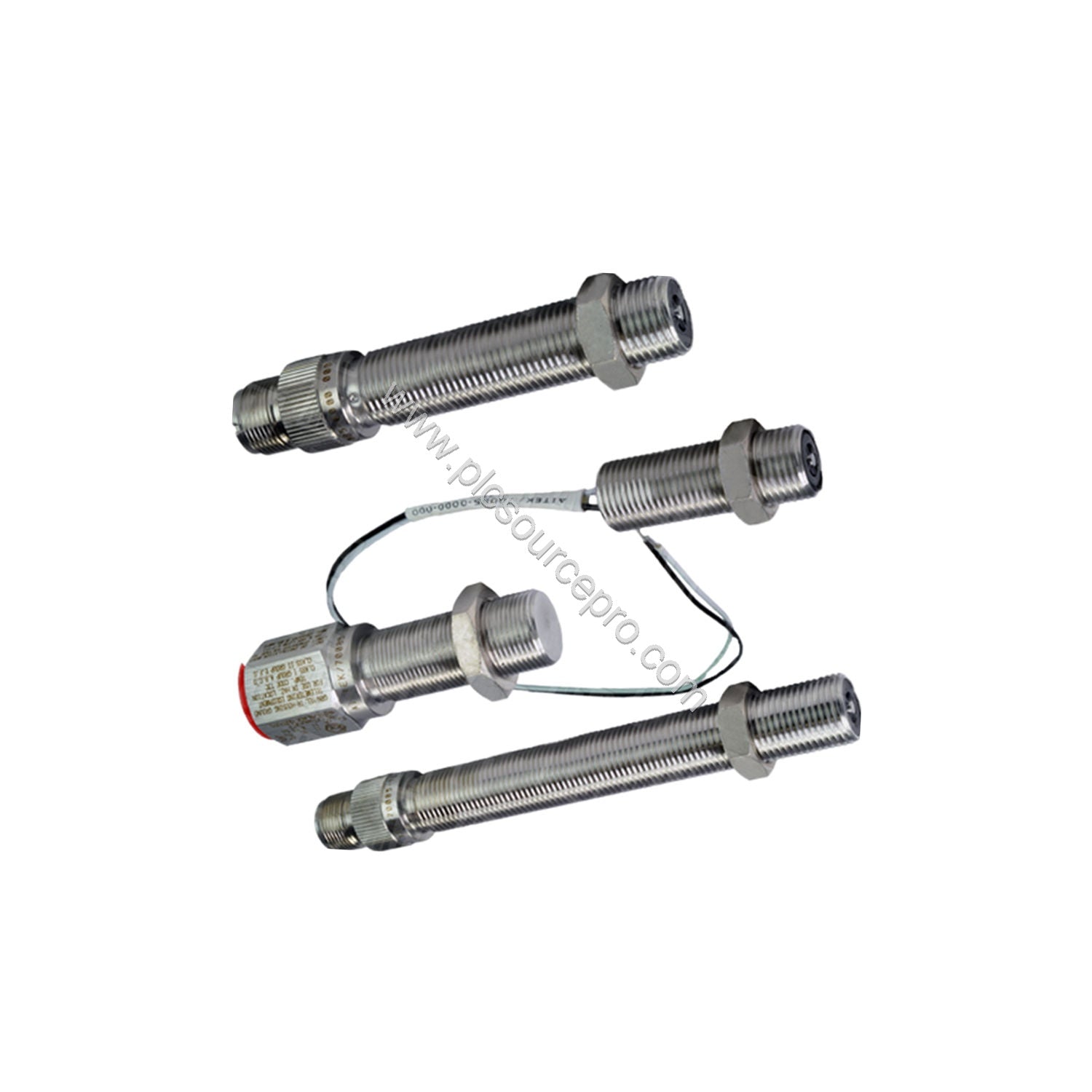

With a 10-meter cable length and a wide temperature range of -65 to 95°C, the AI-TEK 70085-3030-214 Speed Sensor delivers reliable performance in demanding industrial environments. This Industrial Automation Module is designed to precisely measure rotational speed in applications such as conveyors, motors, and turbines. The AI-TEK 70085-3030-214 features a 5/8-18 thread size and a 1/2 NPT conduit thread for secure installation.
Key Technical Specifications
| Parameter |
Value |
| Thread Size |
5/8-18 |
| Output Guarantee Voltage (P-P) |
9.4 V |
| Termination |
Cable |
| Thread Length (in) |
6 |
| Sensor Length (in) |
7.25 |
| Agency Approval |
None |
| Temperature Rating (°C) |
-65 to 95 |
| Cable Length (m) |
10 |
| Conduit Thread |
1/2 NPT |
Real-World Applications
The AI-TEK 70085-3030-214 Speed Sensor is ideal for monitoring shaft speed in conveyor systems, ensuring consistent material flow and preventing belt slippage. In motor speed measurement, the 9.4V output provides a clear signal for PLC inputs, enabling precise control. For turbine applications, the wide temperature rating of -65 to 95°C allows operation in extreme environments, reducing the need for additional thermal protection. By choosing the AI-TEK 70085-3030-214, you invest in long-term reliability and lower maintenance costs.
Installation Guidelines
Mount the AI-TEK 70085-3030-214 using its 5/8-18 thread, ensuring proper alignment with the target gear or shaft. Use the 1/2 NPT conduit thread for cable entry, and route the 10-meter cable to avoid sharp bends or abrasion. Securely terminate the cable to the control system, verifying the output voltage matches the 9.4V specification. For optimal performance, maintain a consistent air gap as recommended in the product manual.
Maintenance and Reliability
Regularly inspect the cable and connections of the AI-TEK 70085-3030-214 for signs of wear or corrosion. The sensor's robust construction withstands temperature extremes from -65 to 95°C, but verify that the environment does not exceed these limits. Simple periodic checks help avoid unexpected downtime and extend sensor life. The long cable length of 10 meters reduces the need for intermediate junction boxes, simplifying installation and reducing potential failure points.
Purchasing Advice
Before purchasing, confirm that the thread size (5/8-18) and conduit thread (1/2 NPT) match your mounting requirements. PLC Source PRO stocks genuine AI-TEK 70085-3030-214 Speed Sensors, ensuring compatibility and quality for your industrial automation needs. Contact PLC Source PRO for assistance with bulk orders or technical questions.
