Product Introduction

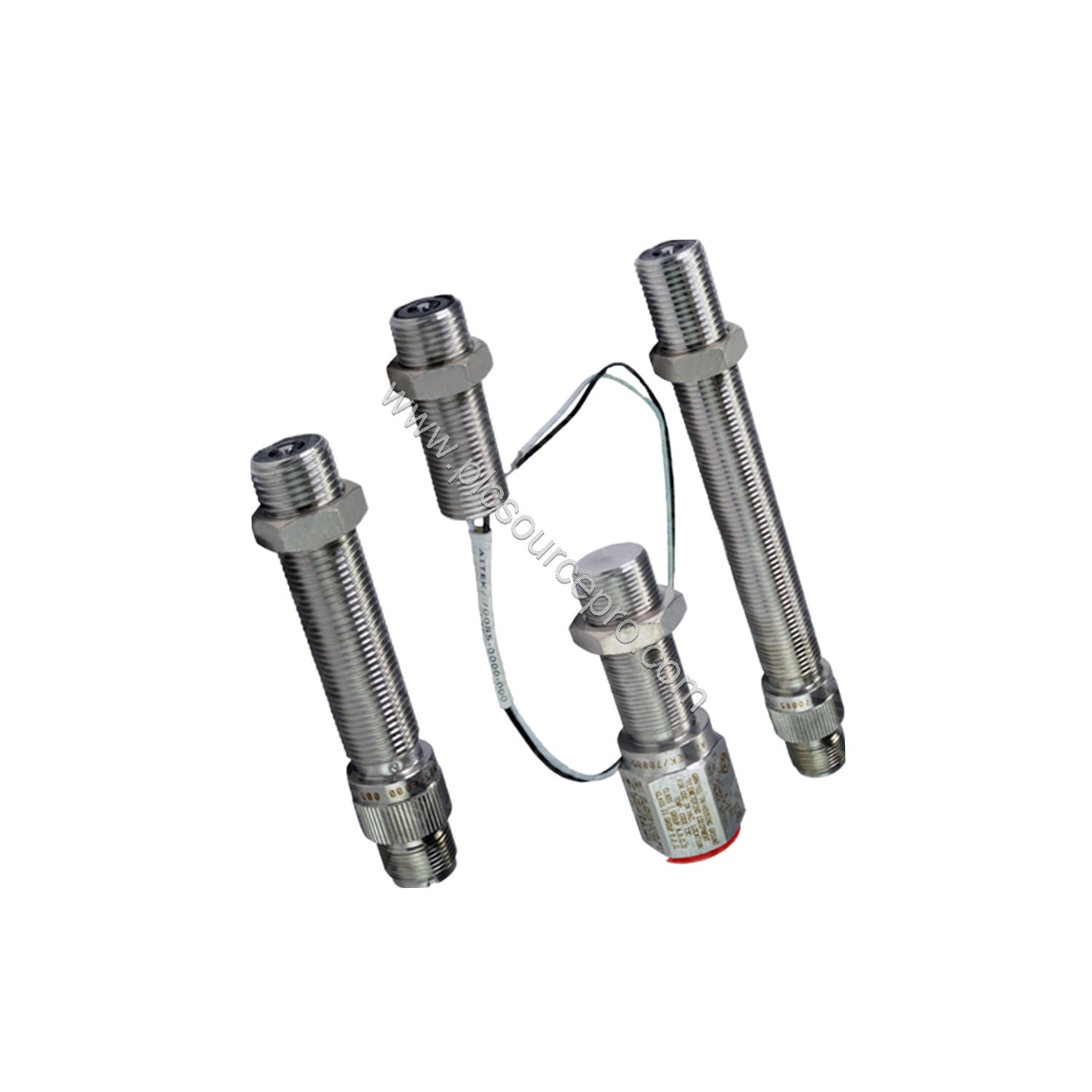

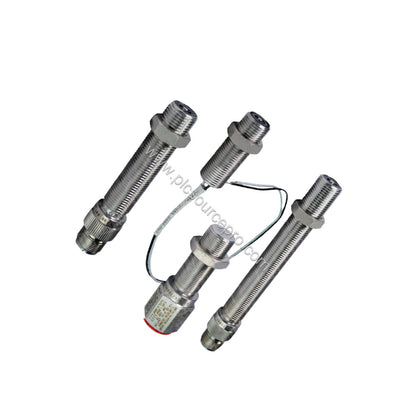

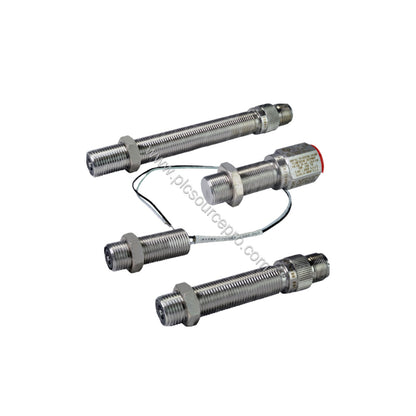

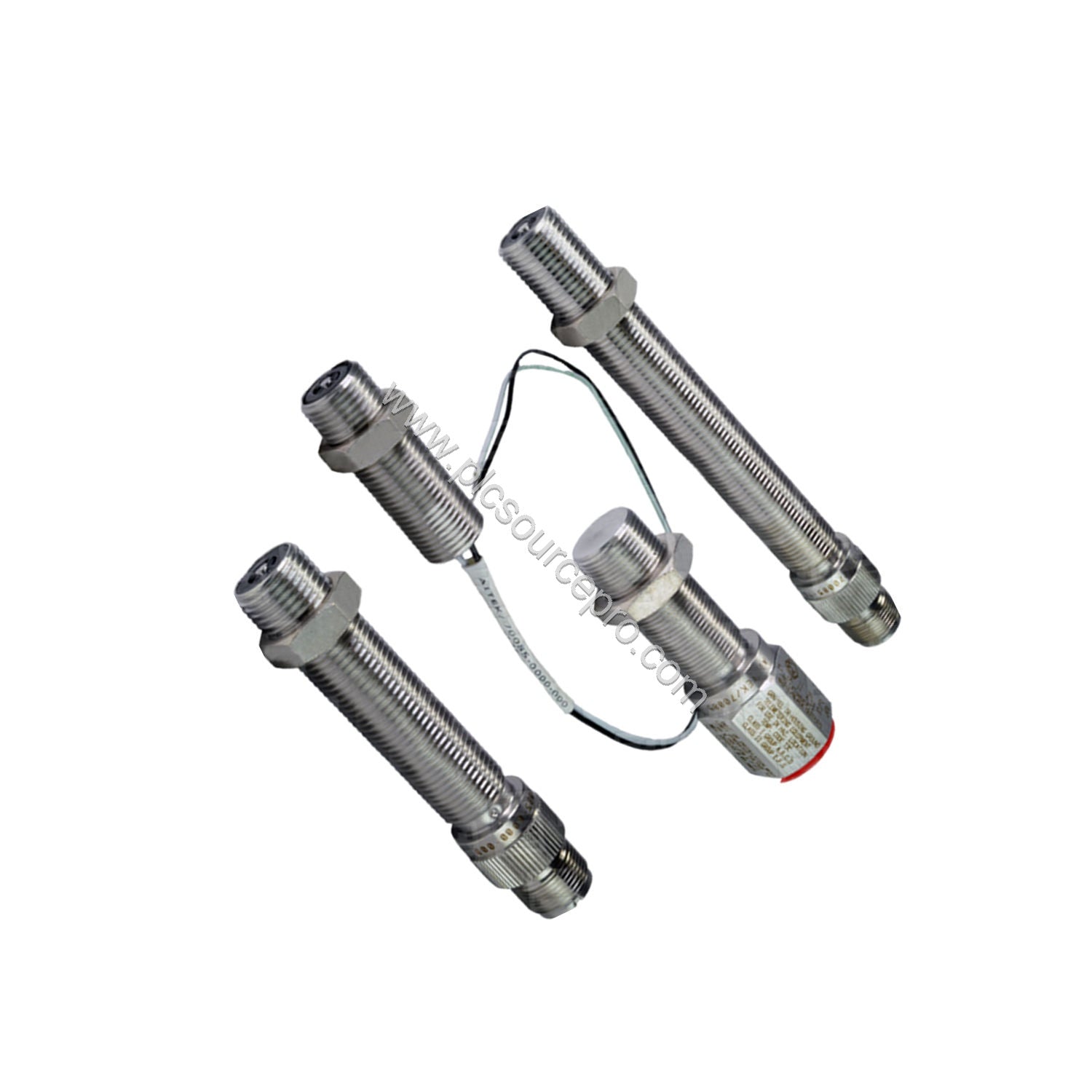

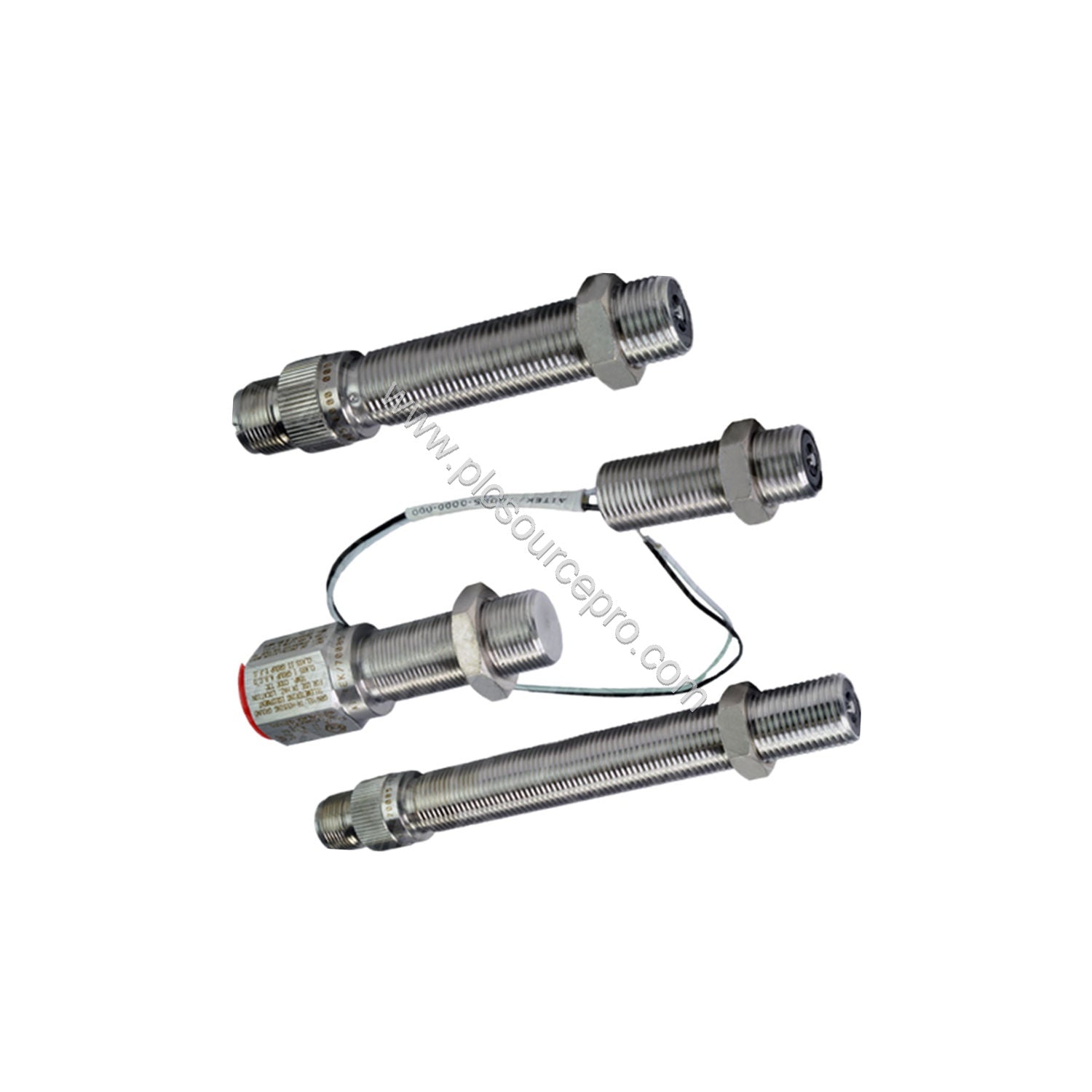

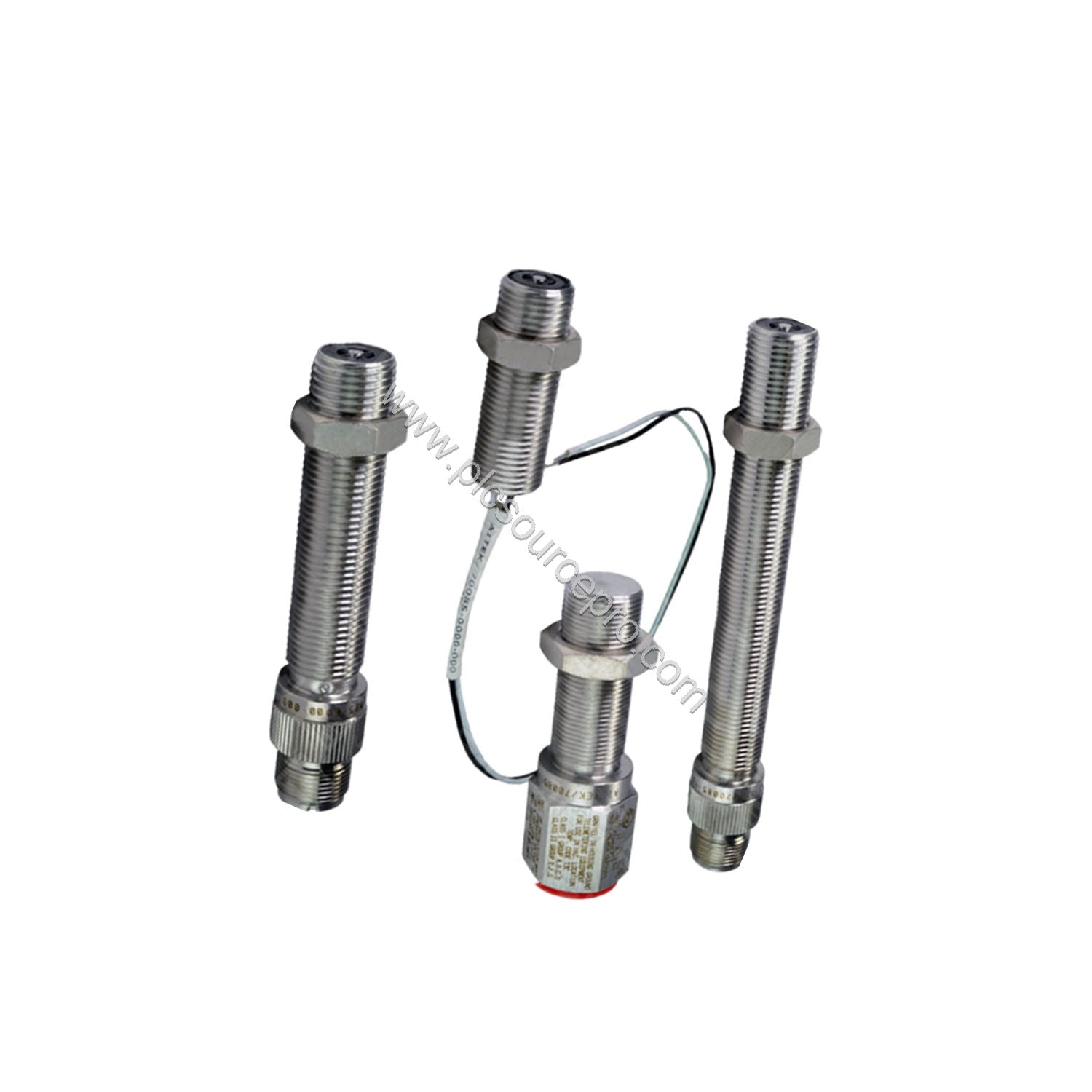

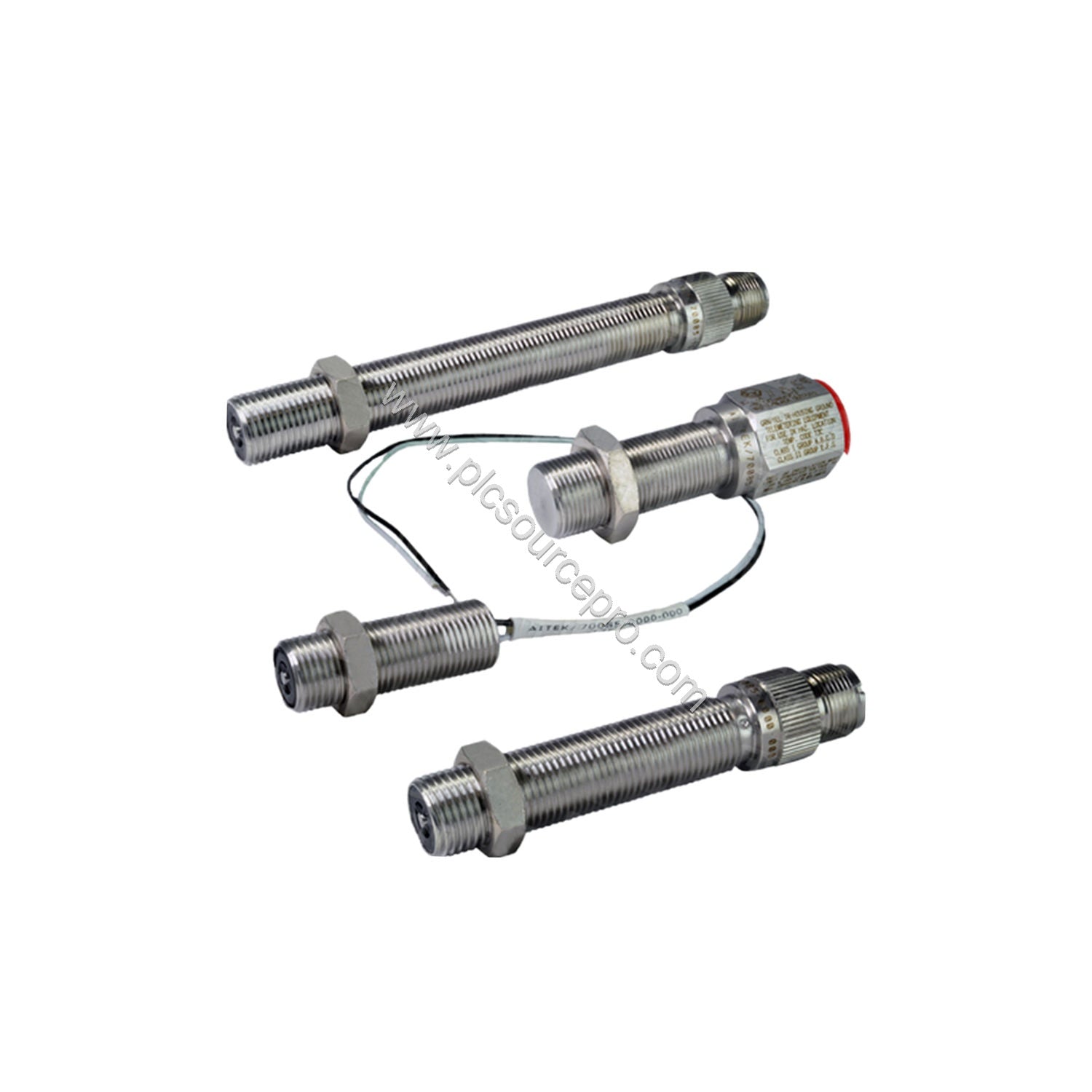

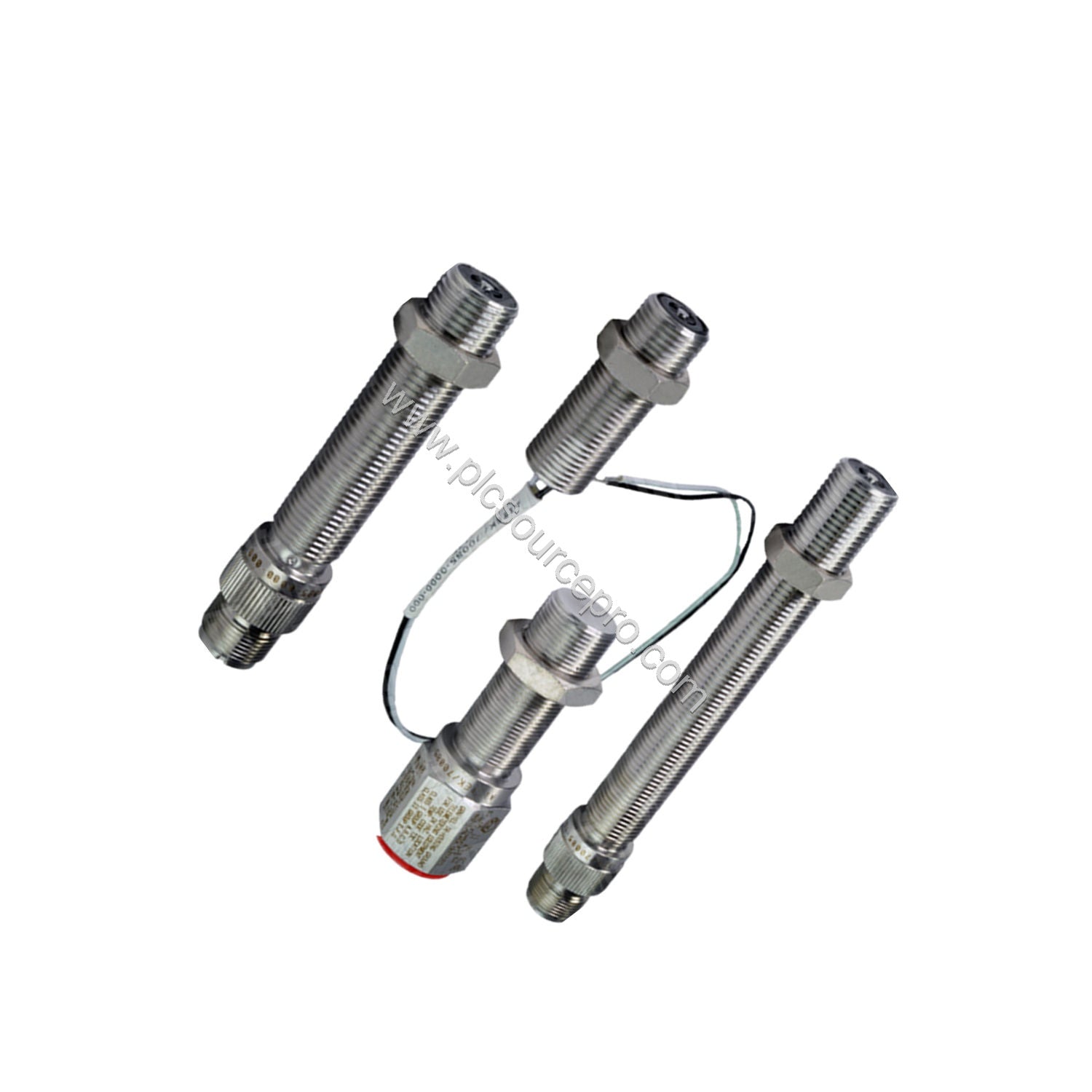

Industrial speed sensors face challenges like signal dropout due to extreme temperatures or mechanical wear. The AI-TEK 70085-3030-212 Speed Sensor Industrial Automation Module is engineered to deliver reliable performance under such conditions. With a wide temperature rating of -65 to 95 degrees Celsius and a robust output guarantee voltage of 13.4 V P-P, this sensor ensures consistent signal integrity.
Technical Specifications Breakdown
The AI-TEK 70085-3030-212 offers critical specifications for demanding applications:
-
Thread Size: 5/8-18 – ensures secure mounting in standard ports.
-
Output Guarantee Voltage (P-P): 13.4 V – strong signal amplitude for long-distance transmission.
-
Termination: Cable – flexible installation with 10-meter cable length.
-
Thread Length: 2.75 inches and Sensor Length: 4 inches – compact design for tight spaces.
-
Temperature Rating: -65 to 95°C – suitable for extreme environments.
-
Conduit Thread: 1/2 NPT – facilitates standard conduit connections.
Industry Applications
The AI-TEK 70085-3030-212 excels in applications where temperature extremes and vibration are common. For example, in gas turbine monitoring, the -65°C low end ensures cold-start reliability, while the 95°C high end withstands engine heat. Similarly, in industrial fans and pumps, the robust signal output minimizes noise interference, reducing false trips.
Installation & Setup Guidance
When installing the AI-TEK 70085-3030-212, ensure the 5/8-18 thread is properly engaged to avoid cross-threading. Use the 1/2 NPT conduit thread for cable routing to protect against moisture. The 10-meter cable length allows flexible placement; avoid sharp bends that could damage the cable. For sensors with cable termination, verify polarity during connection.
Troubleshooting & Common Issues
Common speed sensor issues include signal loss due to air gap or target misalignment. The AI-TEK 70085-3030-212's strong 13.4V P-P output helps maintain signal over longer distances, but ensure the target material is ferrous and properly sized. If output seems low, check the cable for damage – the 10-meter cable should be intact. Also, verify temperature does not exceed 95°C or fall below -65°C.
Selection Guide & Purchasing Advice
Before purchasing the AI-TEK 70085-3030-212, confirm your system's thread compatibility – it requires a 5/8-18 port and a 1/2 NPT conduit. This model is a direct replacement for many legacy speed sensors with similar mechanical and electrical specs. For reliable sourcing, trust ubest101 – a verified supplier of industrial automation spares. This sensor is available now for immediate delivery.
