Product Introduction

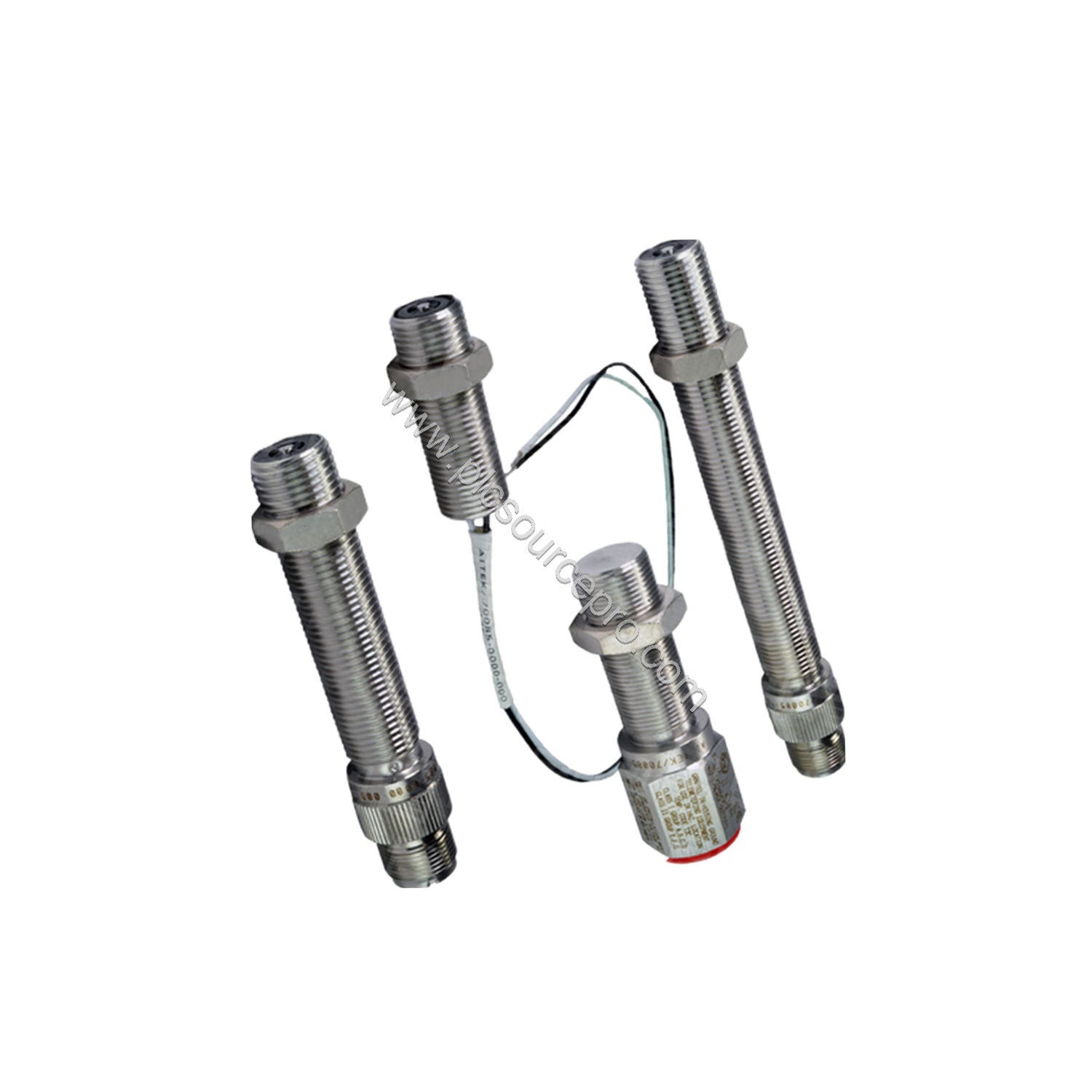

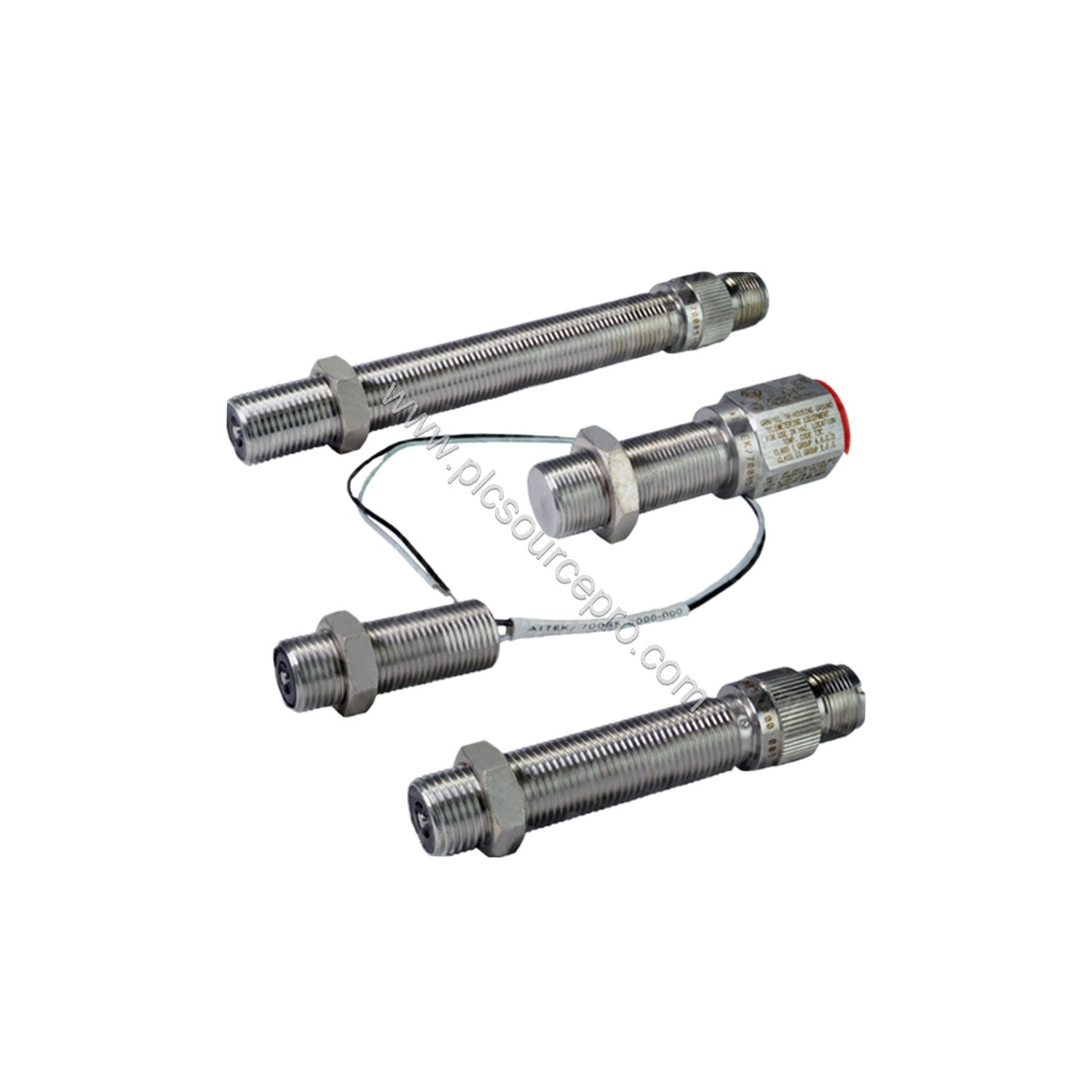

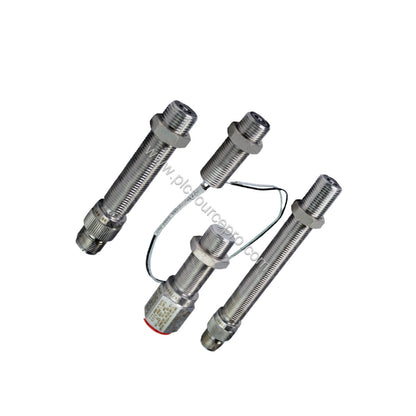

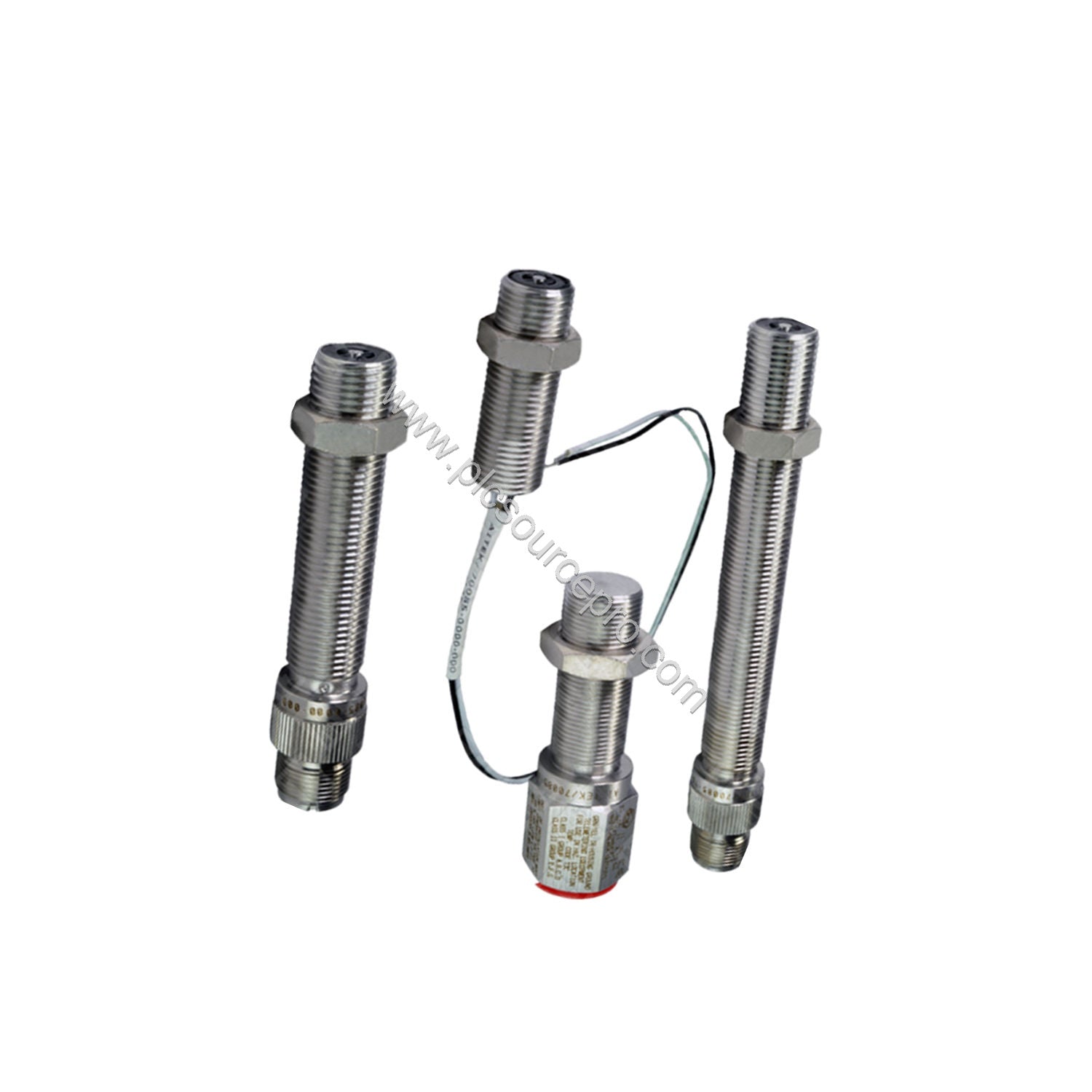

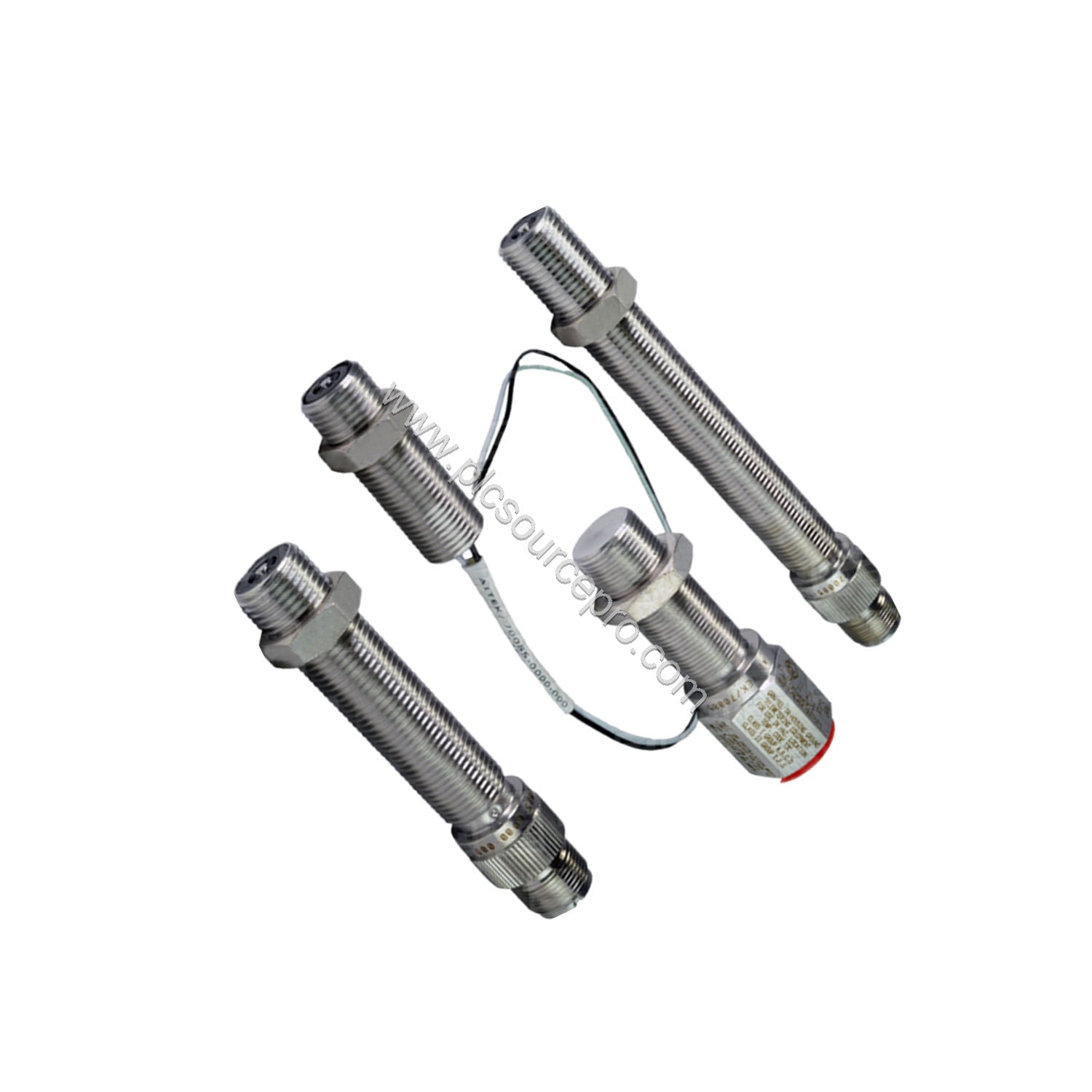

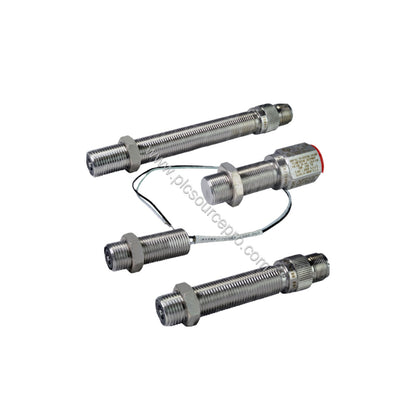

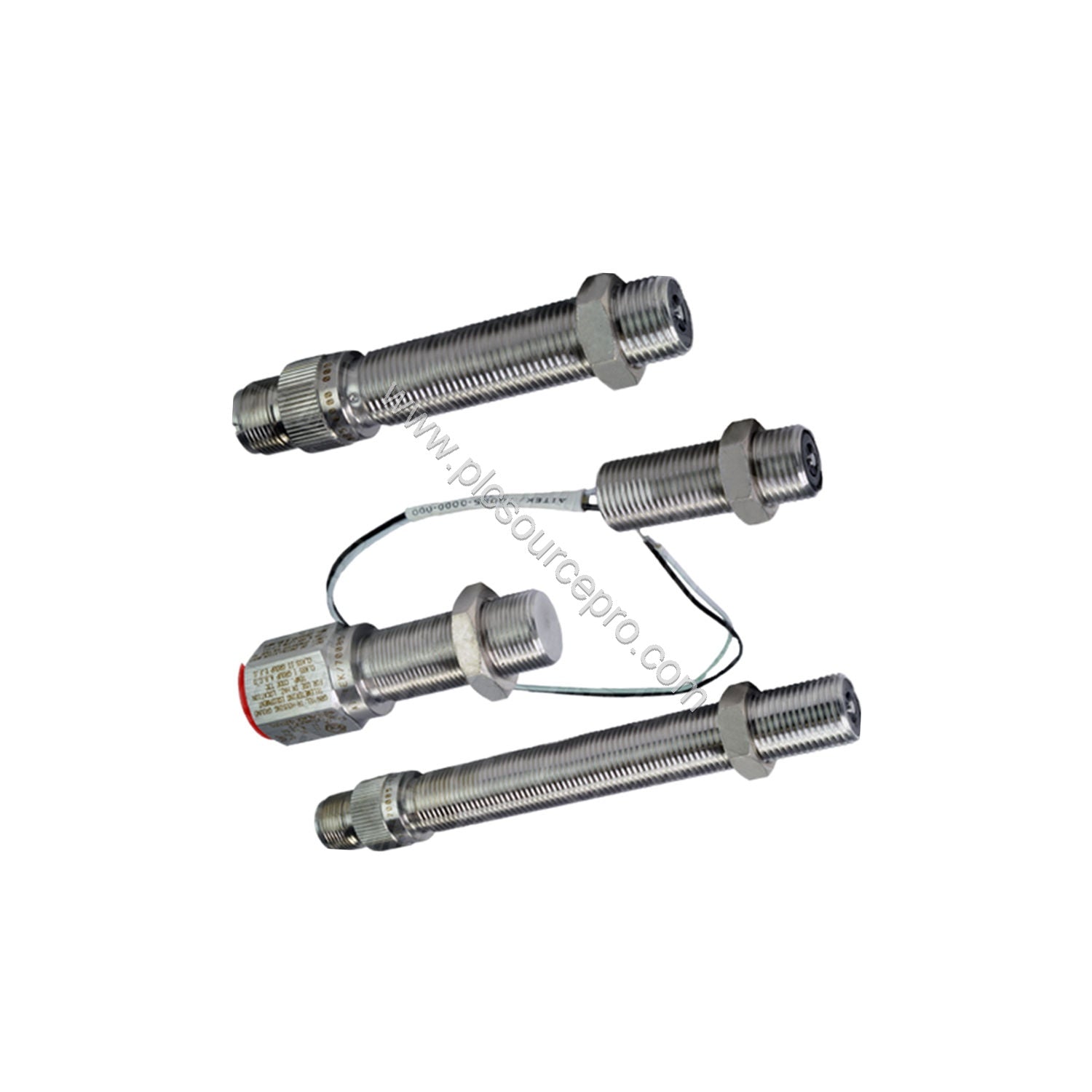

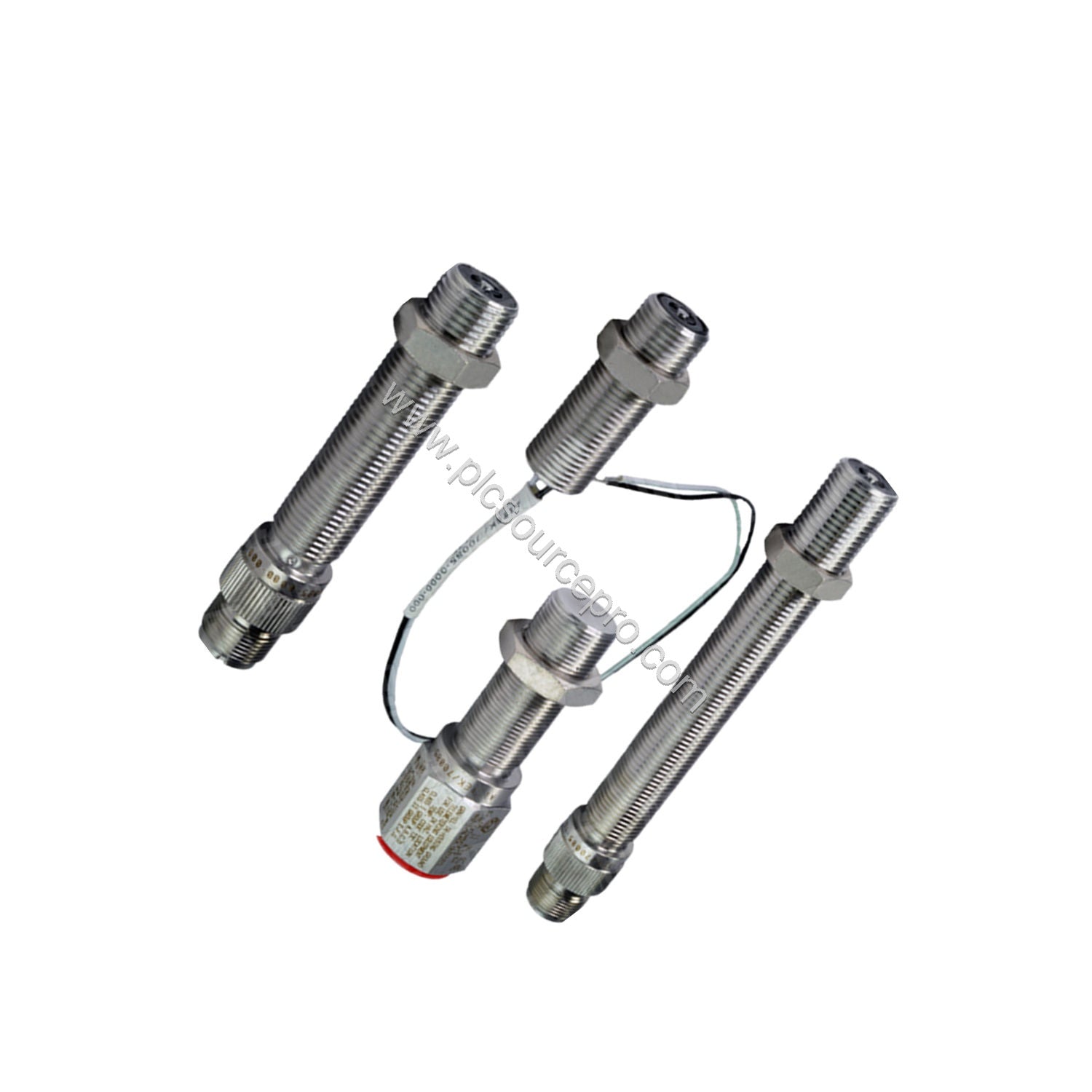

In harsh industrial environments, accurate speed sensing is critical for machine protection. The AI-TEK 70085-3030-114 Speed Sensor delivers reliable performance under extreme conditions, preventing common failure modes like signal loss or thermal degradation. Designed for demanding applications, this sensor ensures consistent output for process control systems.
| Specification |
Value |
| Thread Size |
5/8-18 |
| Output Guarantee Voltage (P-P) |
13.4 V |
| Termination |
Cable |
| Thread Length (in) |
6 |
| Sensor Length (in) |
7.25 |
| Agency Approval |
None |
| Temperature Rating (°C) |
-65 to 95 |
| Cable Length (m) |
3 |
| Conduit Thread |
1/2 NPT |
Technical Specifications Breakdown
Understanding key specs helps avoid installation failures. The AI-TEK 70085-3030-114 features a 5/8-18 thread for secure mounting, reducing vibration-induced loosening. Its 13.4V peak-to-peak output guarantees a strong signal even in noisy electrical environments. The wide temperature range of -65 to 95°C ensures operation in extreme cold or heat, preventing thermal-related shutdowns. The 3m cable with 1/2 NPT conduit thread simplifies routing and protects against moisture ingress.
Real-World Applications
This sensor excels in turbine speed monitoring, where temperature extremes and vibration are common. In conveyor systems, it provides reliable feedback for variable frequency drives. For pump protection, the AI-TEK 70085-3030-114 detects underspeed conditions to prevent cavitation damage. Its robust design minimizes false alarms and maintenance calls.
Installation & Setup Guidance
To ensure long-term reliability, mount the AI-TEK 70085-3030-114 with appropriate torque (consult manufacturer guidelines). Use a 5/8-18 threaded hole and tighten to avoid cross-threading. Route the 3m cable away from high-EMI sources. For conduit connections, use the 1/2 NPT thread and seal with approved compound to prevent moisture entry. Verify target material and gap per sensor specifications.
Maintenance & Reliability
Periodic inspection of the cable and mounting threads prevents unexpected downtime. Check for abrasion or cuts in the jacket, especially in areas with constant motion. The AI-TEK 70085-3030-114 requires no routine calibration, but verify output voltage annually with an oscilloscope. In high-vibration applications, apply thread-locking compound to the mounting threads.
Selection Guide & Purchasing Advice
Before purchasing, confirm your system requirements: thread size (5/8-18), cable length (3m), and temperature range. This sensor is ideal for retrofitting older installations with similar specs. For reliable supply, ubest101 offers genuine AI-TEK 70085-3030-114 units with prompt shipping. Verify compatibility with your PLC or tachometer input.
