Product Introduction

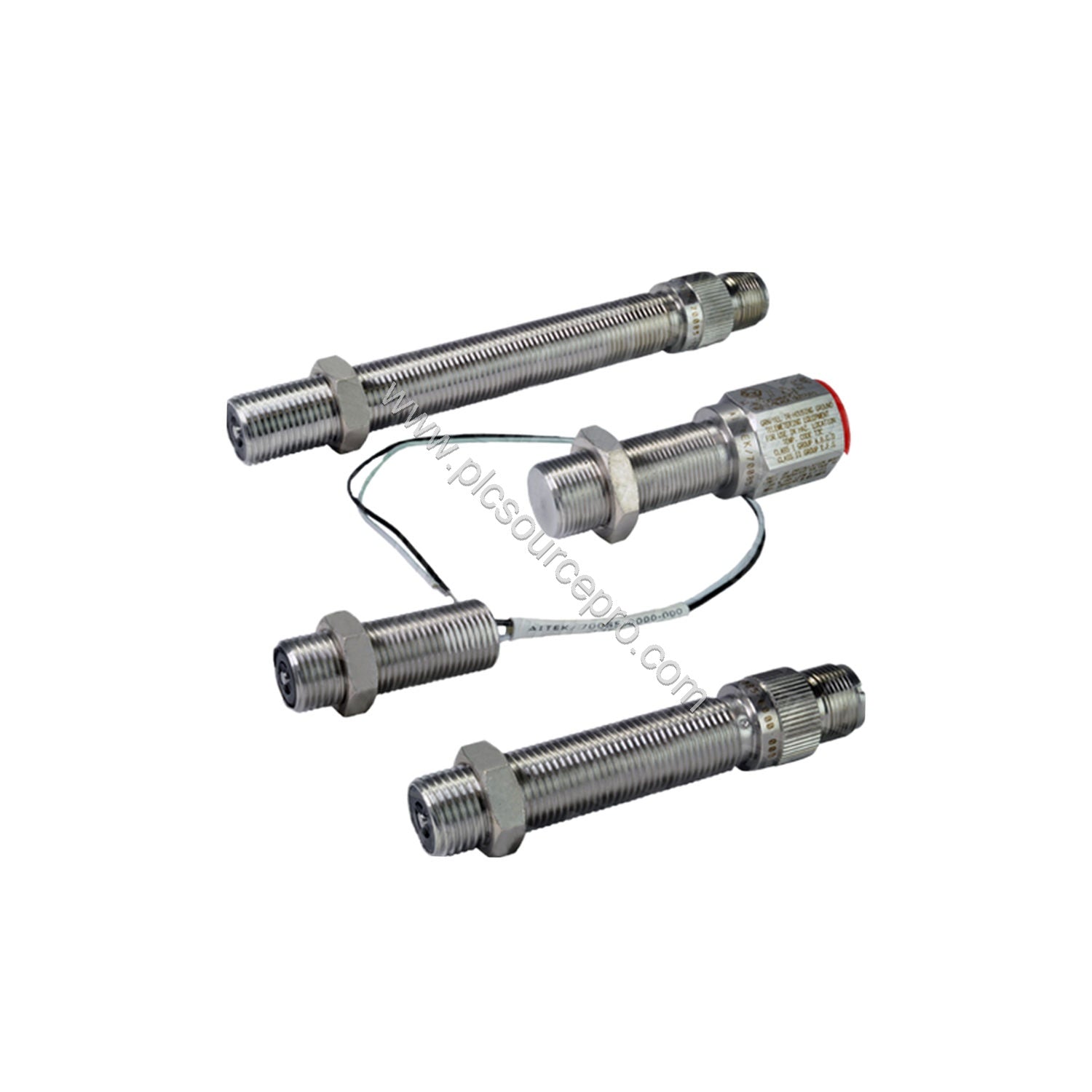

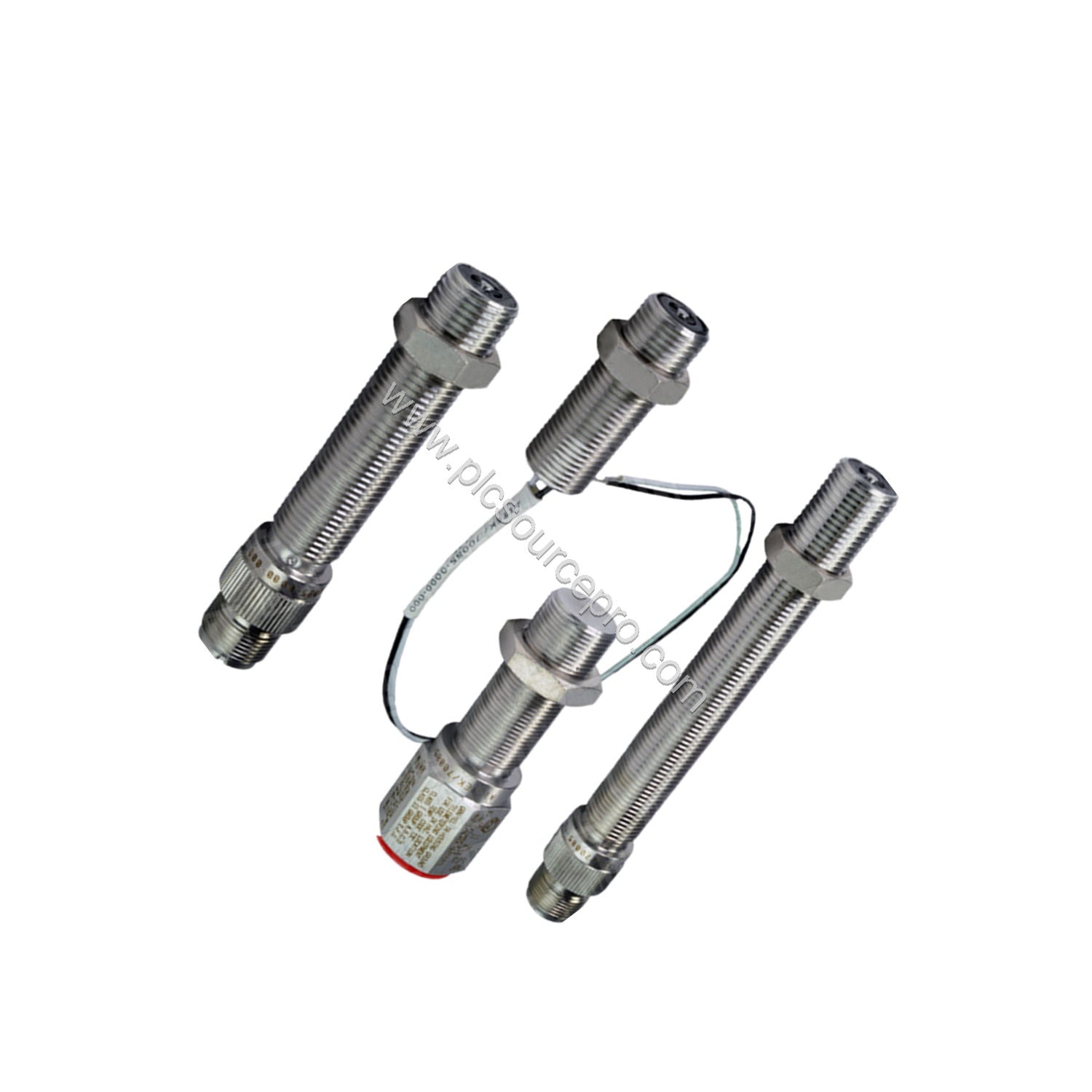

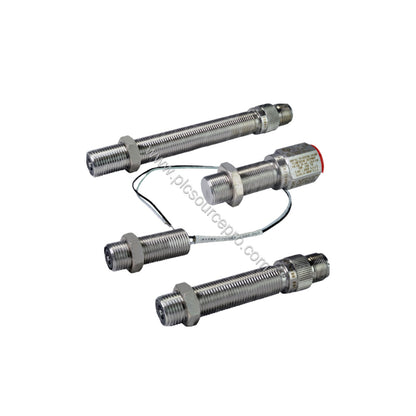

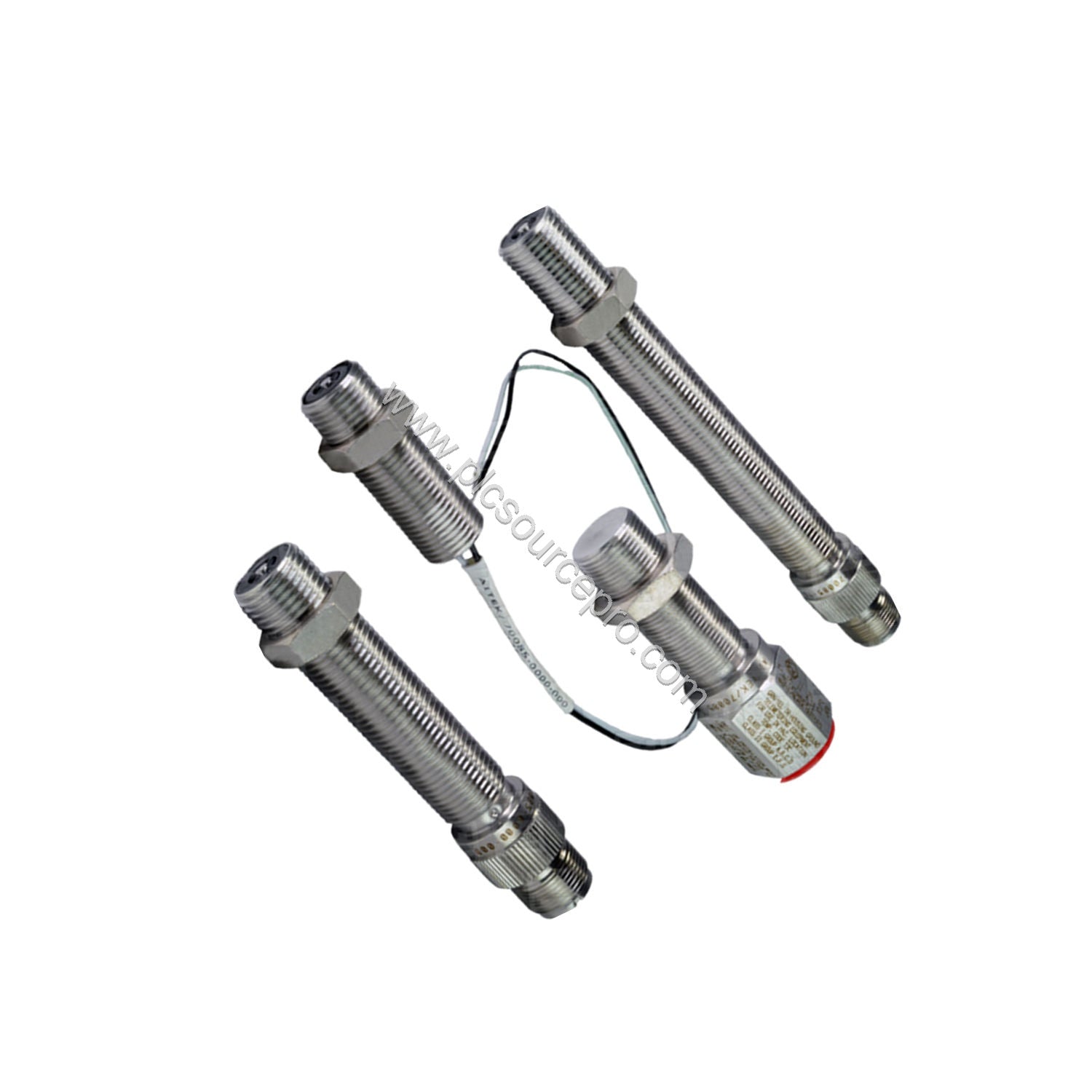

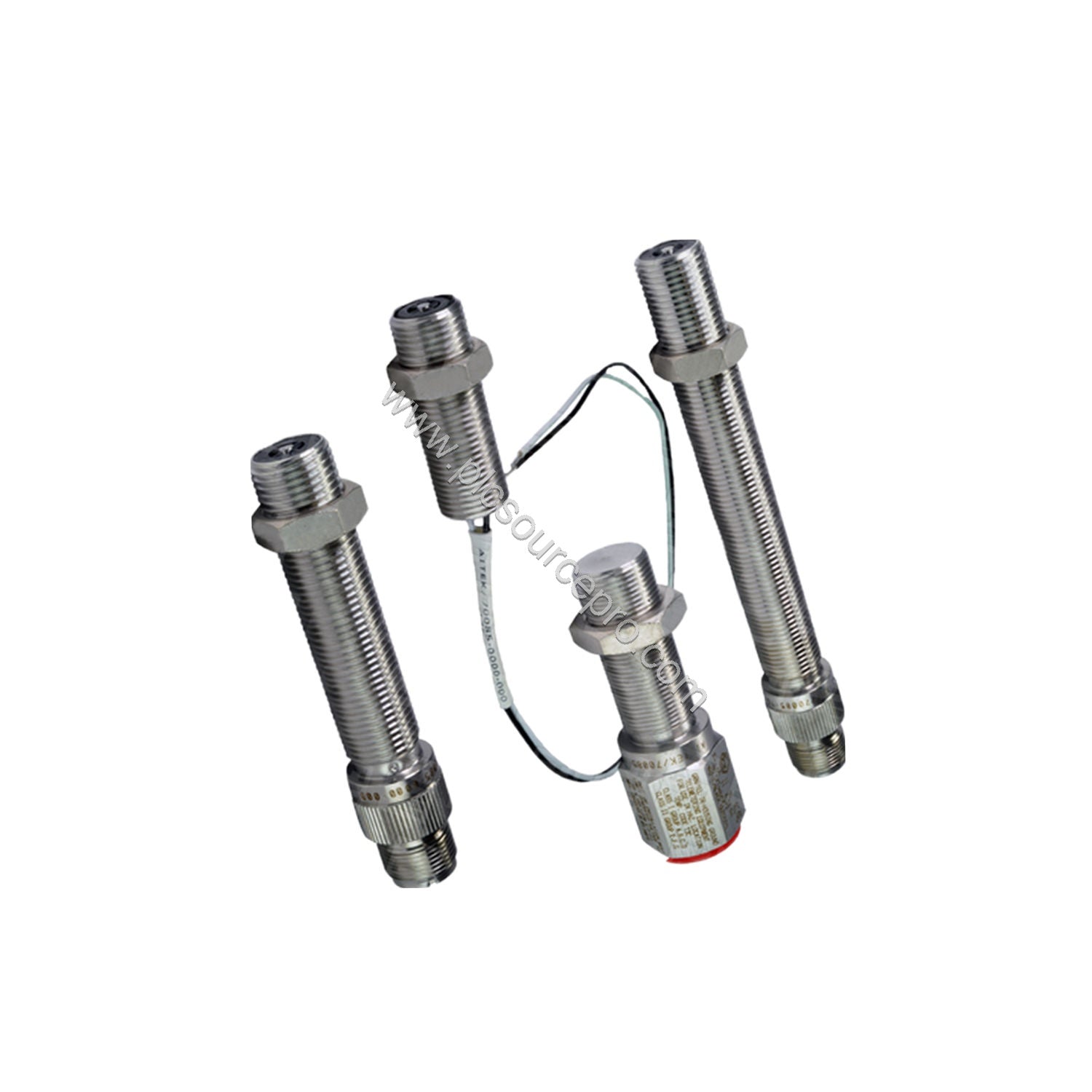

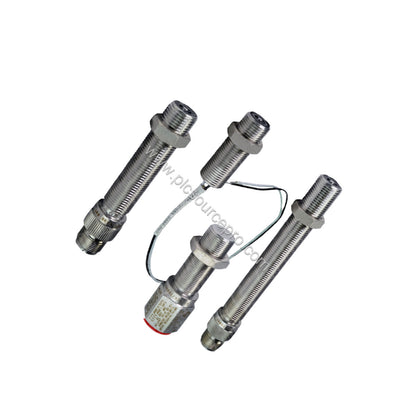

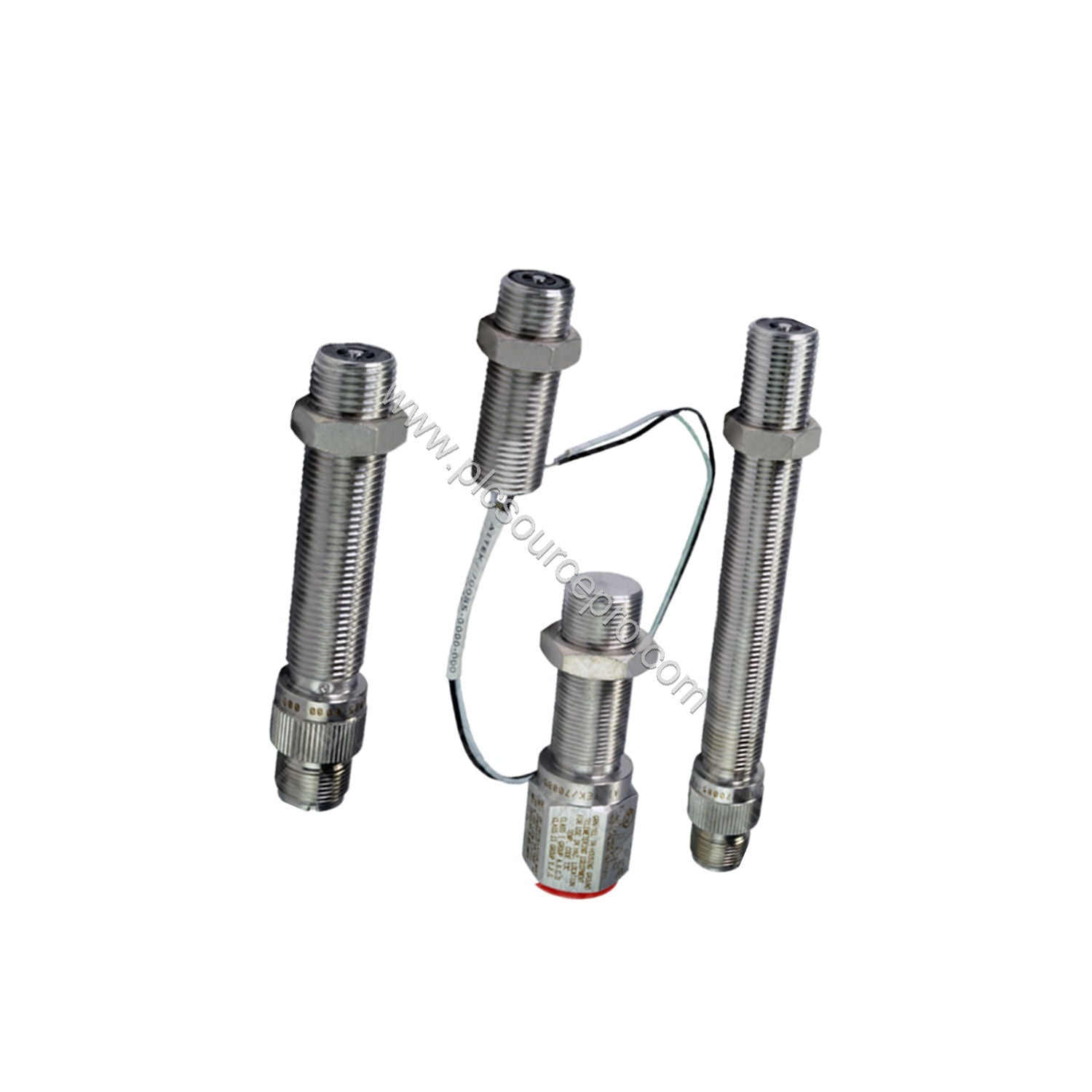

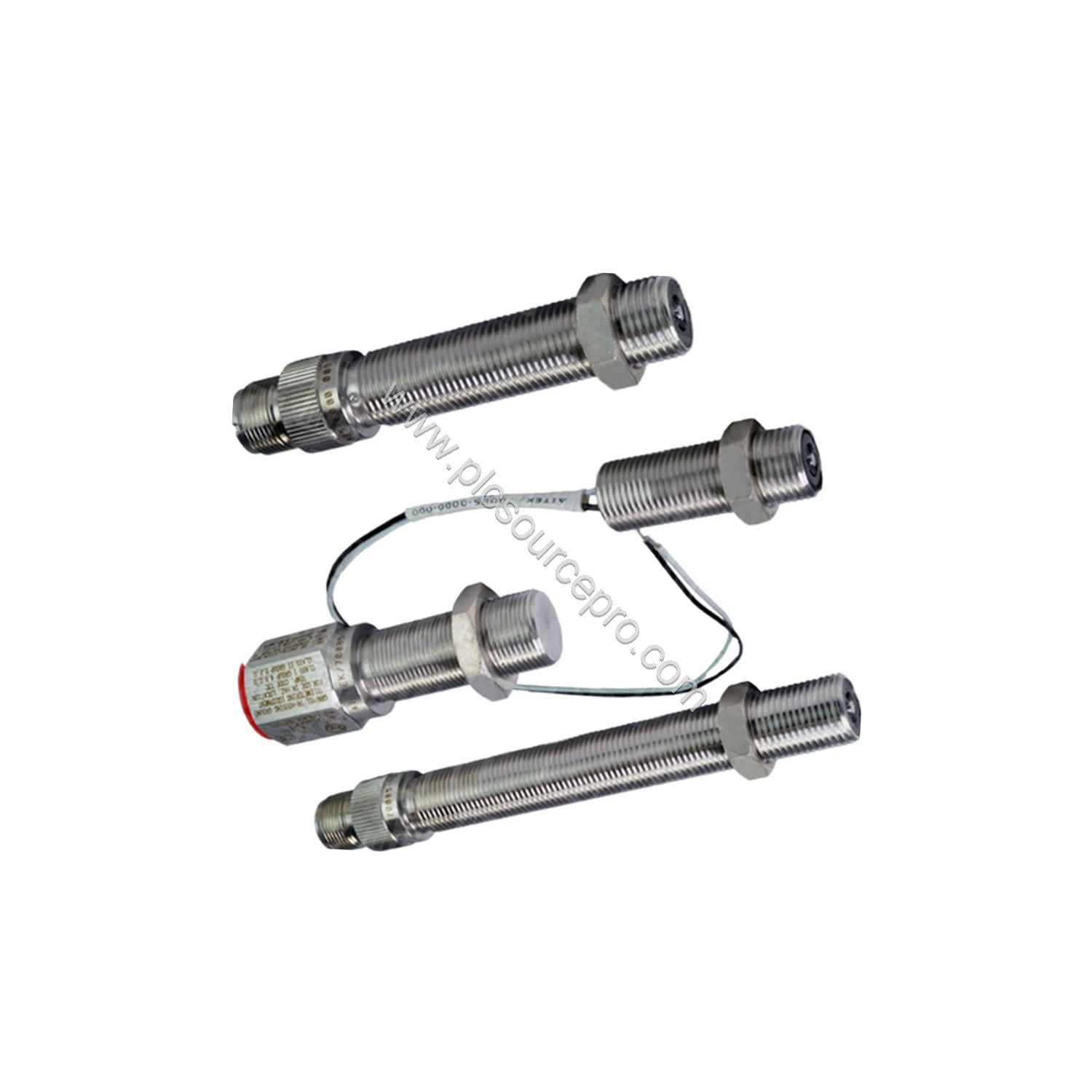

When speed sensor failures cause unplanned downtime in rotating machinery, the AI-TEK 70085-3030-111 provides a dependable solution. This Industrial Automation Module is a rugged speed sensor designed for precise rotational speed measurement in demanding industrial environments. Its robust construction and wide temperature tolerance make it suitable for applications where reliability is critical. The AI-TEK 70085-3030-111 ensures consistent performance, reducing the risk of signal loss or premature failure.
Technical Specifications Breakdown
The AI-TEK 70085-3030-111 Speed Sensor is built with key parameters that define its application suitability. Below is a breakdown of the most critical specifications:
| Specification |
Value |
Practical Significance |
| Thread Size |
5/8-18 |
Standard mounting thread for compatibility with many industrial brackets and housings. |
| Output Guarantee Voltage (P-P) |
13.4 V |
Ensures strong signal amplitude for reliable detection by control systems, even with electrical noise present. |
| Temperature Rating |
-65 to 95°C |
Operates in extreme cold and moderate heat, ideal for outdoor or process environments. |
| Cable Length |
3 m |
Flexible installation reach without need for extension cables, reducing connection points. |
| Conduit Thread |
1/2 NPT |
Allows secure cable entry via standard conduit, protecting wiring from moisture and mechanical damage. |
These specifications make the AI-TEK 70085-3030-111 a reliable choice for speed monitoring in pumps, fans, compressors, and conveyor systems.
Installation & Setup Guidance
Proper installation of the AI-TEK 70085-3030-111 ensures accurate speed readings and long service life. Begin by selecting a mounting location that provides a clear line of sight to the target gear or shaft. Use a 5/8-18 threaded hole or adapter. Tighten the sensor to the recommended torque (refer to manufacturer guidelines) to avoid thread damage. Connect the cable to the control system using the 1/2 NPT conduit for environmental sealing. Ensure the cable is routed away from high-voltage lines to avoid electrical interference. The sensor gap should be adjusted per the target geometry—typically 0.5 to 1.5 mm for ferrous targets.
Maintenance & Reliability
The AI-TEK 70085-3030-111 requires minimal maintenance due to its sealed design. However, periodic inspection of the cable and connector is recommended to detect wear or corrosion, especially in humid or abrasive environments. Check the mounting tightness every six months to avoid vibration loosening. The wide temperature rating (-65 to 95°C) reduces thermal stress on internal components, contributing to extended service intervals. By following a simple inspection routine, you can maximize the sensor's lifespan and avoid unexpected failures that cause costly downtime.
Troubleshooting & Common Issues
Common issues with speed sensors include weak signal, intermittent output, or complete failure. For the AI-TEK 70085-3030-111, verify the output voltage using an oscilloscope; the guaranteed peak-to-peak voltage of 13.4 V should be present when the target moves at rated speed. If the signal is low, check the sensor gap and target material (ferrous only). No output may indicate a broken cable or internal damage—test continuity. Electrical noise can be mitigated by ensuring the conduit ground is properly connected. The sensor's robust design minimizes these issues, but regular checks ensure reliability.
Selection Guide & Purchasing Advice
When selecting the AI-TEK 70085-3030-111, verify that your application requires a 5/8-18 mounting thread and a 3m cable length. This sensor has no agency approvals, so it is best suited for general industrial environments where certifications are not mandatory. For support or bulk orders, contact ubest101—a trusted supplier of industrial automation spares. Always confirm compatibility with your control system input requirements (e.g., voltage threshold) before purchasing.
