Product Introduction

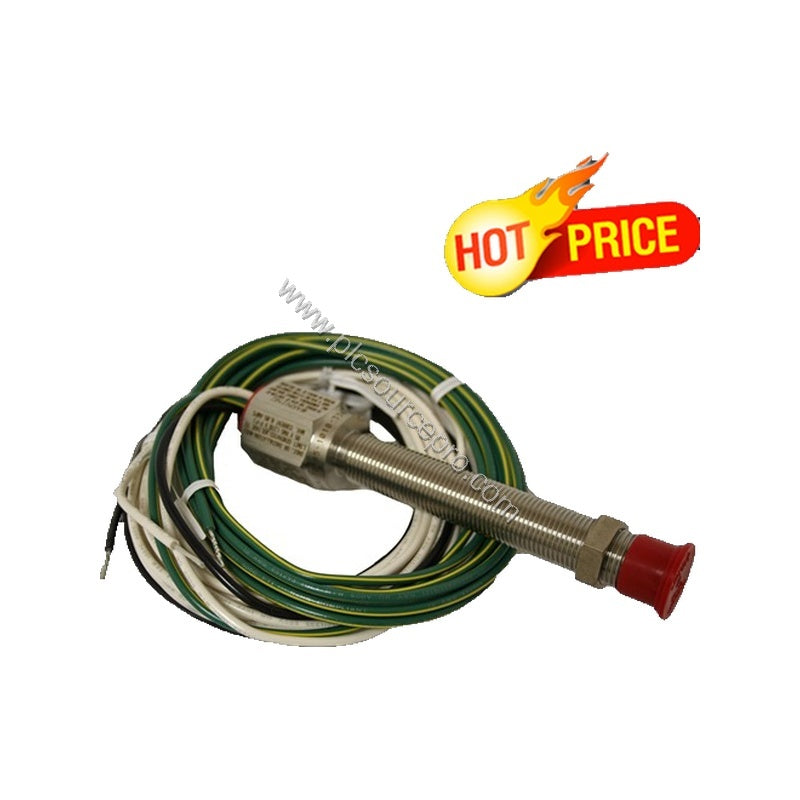

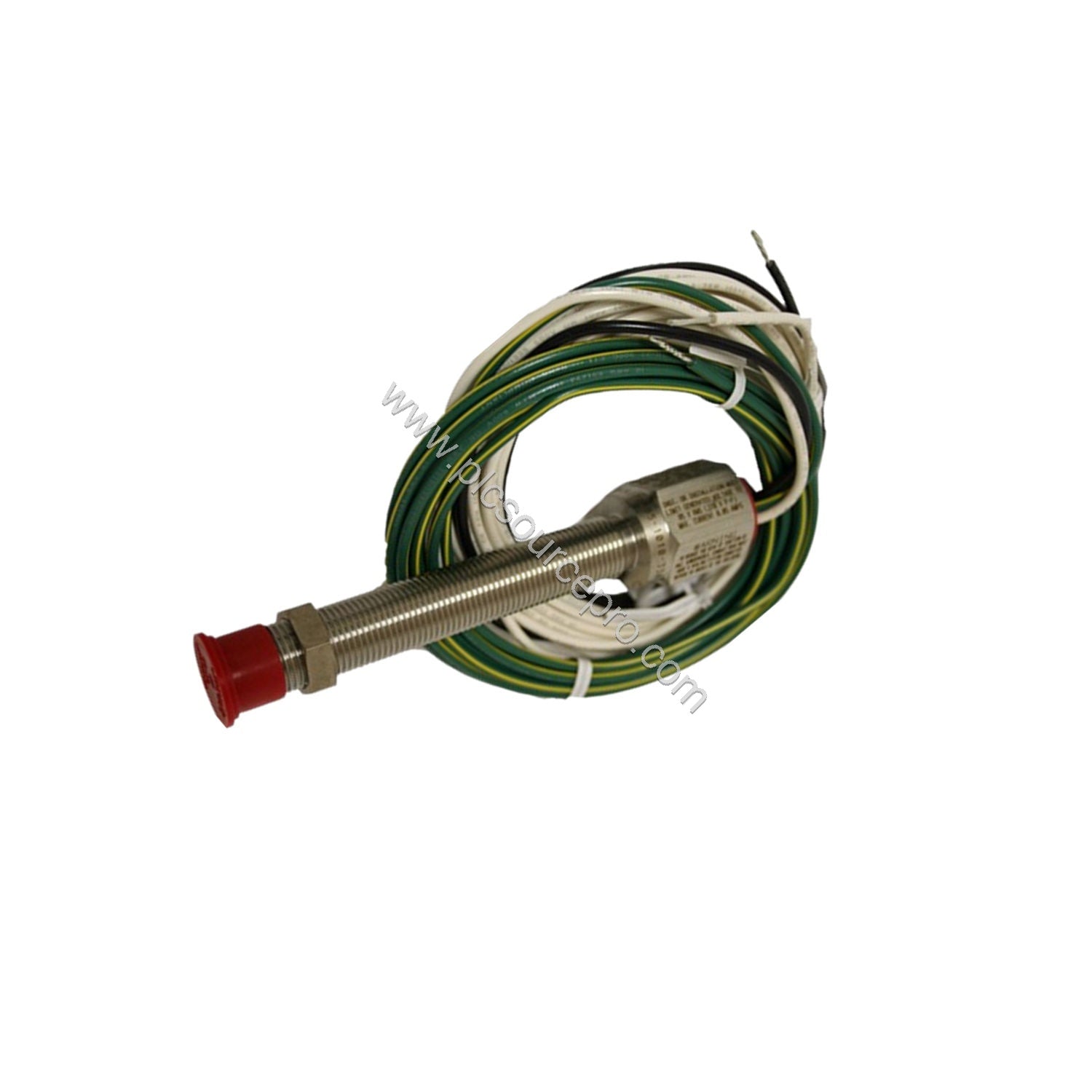

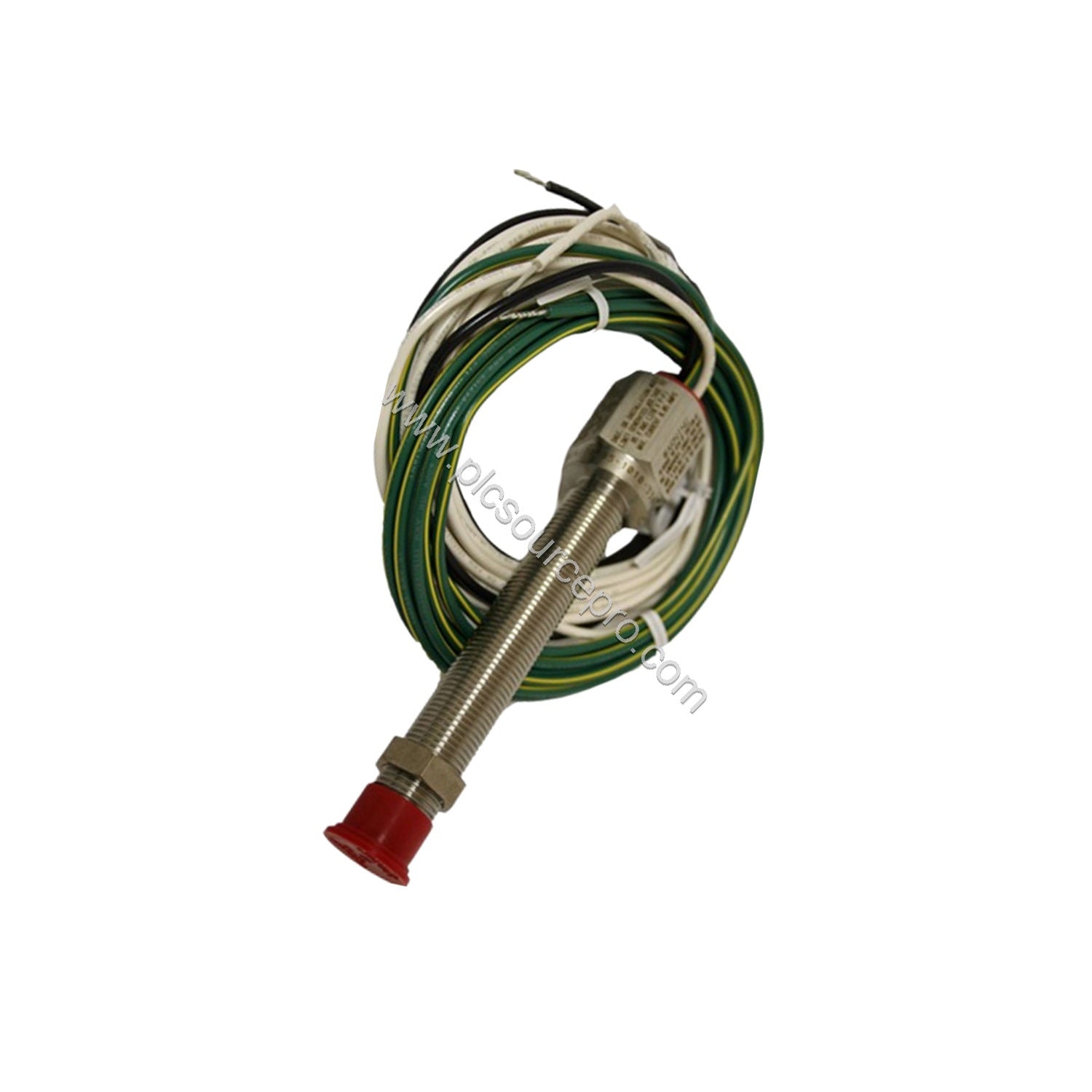

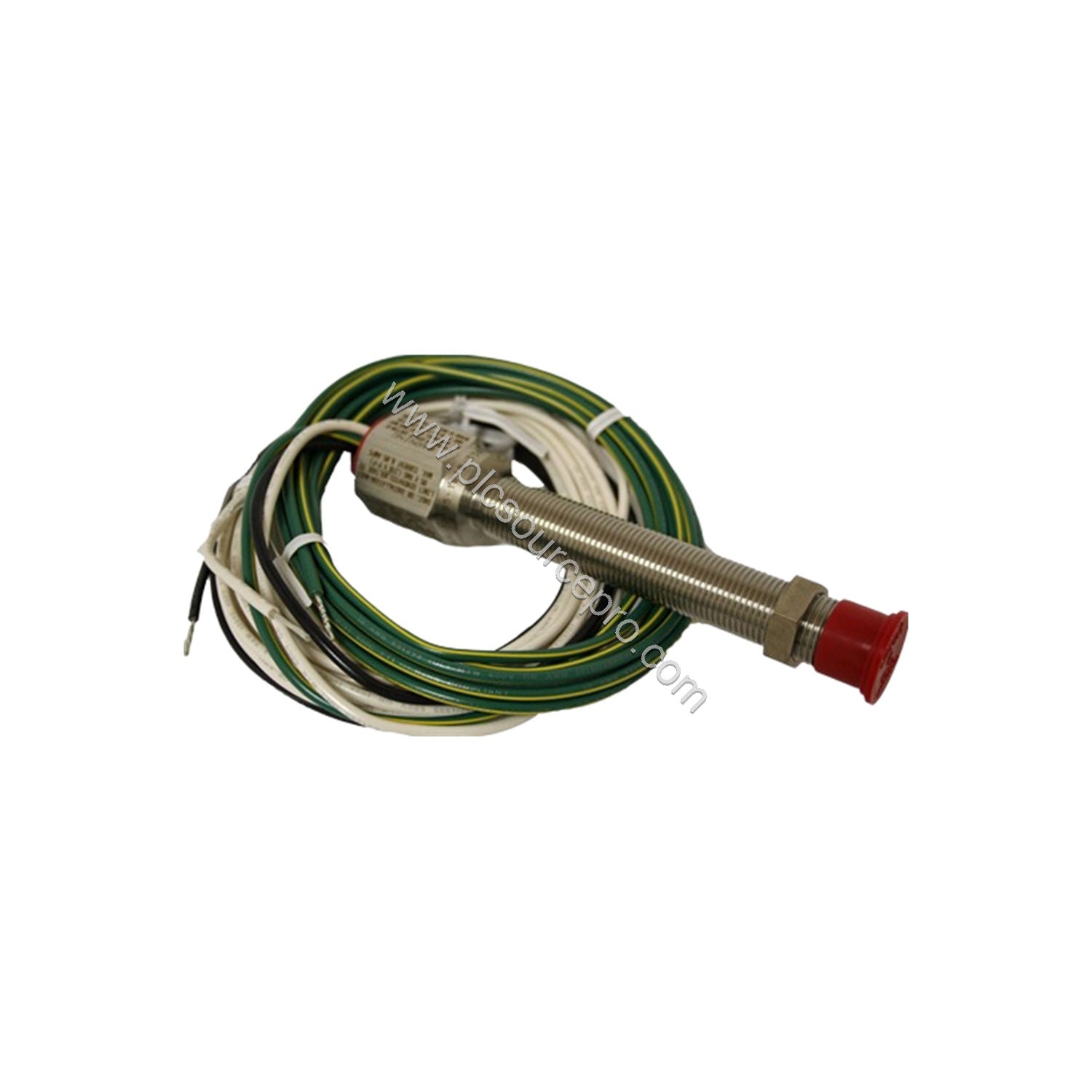

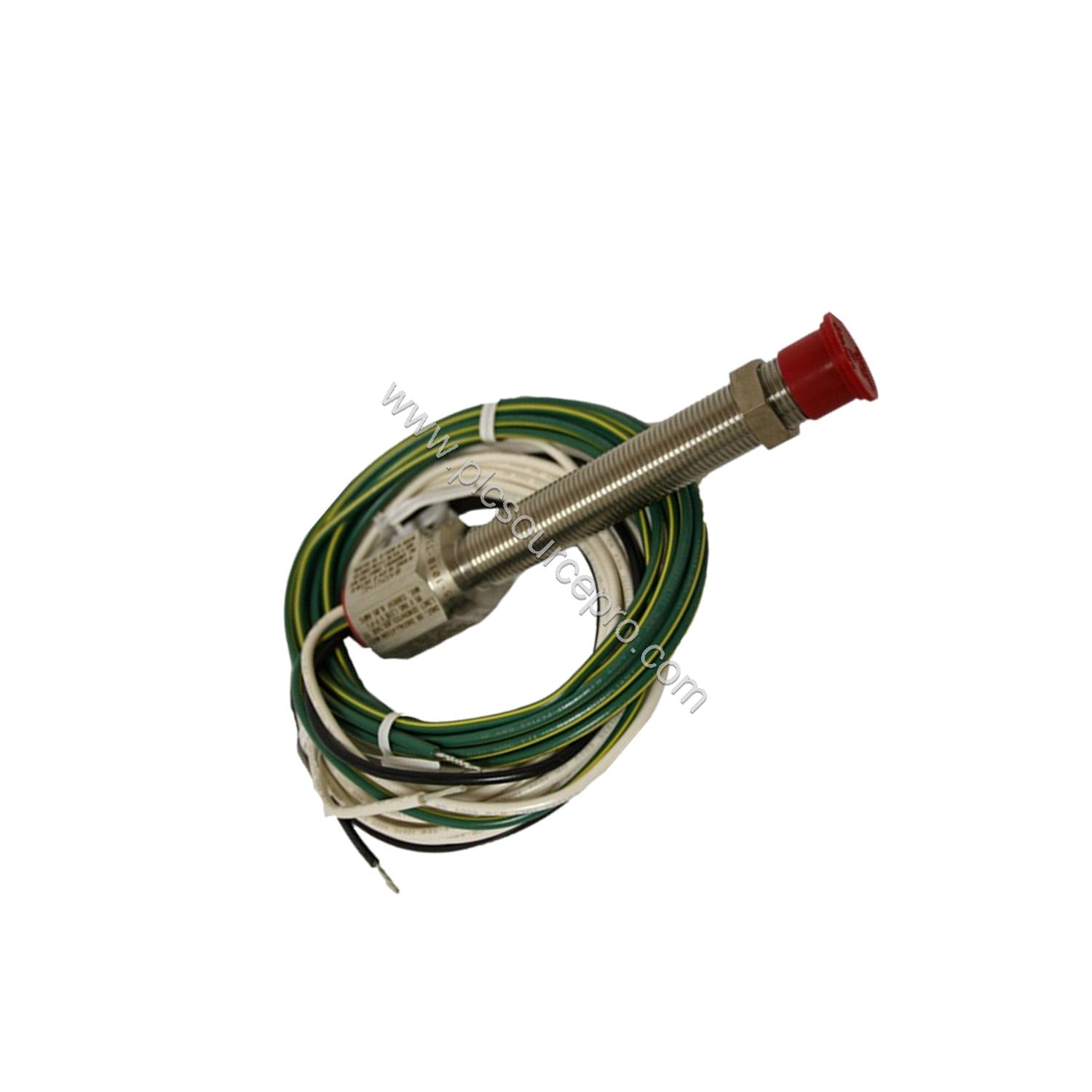

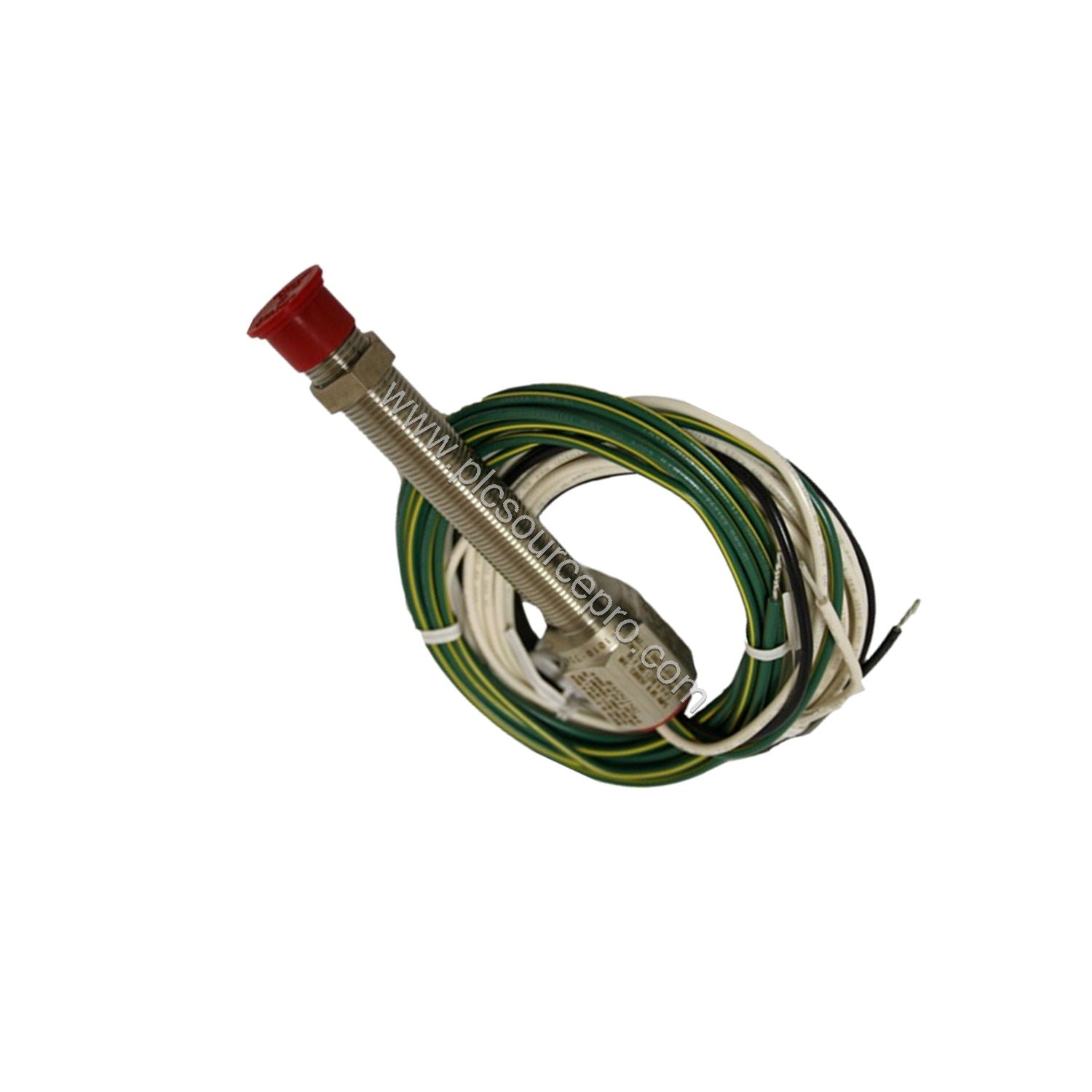

When your existing speed sensors begin to fail or lack the precision needed for demanding industrial applications, the AI-TEK 70085-1010-424 speed sensor provides a reliable upgrade path. Designed for straightforward replacement, this sensor delivers consistent performance with key specifications tailored for harsh environments. As part of your Industrial Automation Module lineup, the AI-TEK 70085-1010-424 ensures accurate speed measurement for critical rotating machinery.
Technical Specifications
| Parameter |
Value |
| Thread Size |
5/8-18 |
| Output Guarantee Voltage (P-P) |
4.9 V |
| Termination |
Connector |
| Thread Length (in) |
4.493 |
| Sensor Length (in) |
5.618 |
| Output Voltage (Standard) |
63 V (P-P) |
| Output Voltage (Guarantee Point) |
4.9V (P-P) |
| DC Resistance |
250 ohms max. |
| Typical Inductance |
63 mH ref. |
| Output Polarity |
Pin ‘B’ positive |
| Operating Temperature |
-55 to +107° C |
| Net Weight |
5 oz. max. |
Application Scenarios
The AI-TEK 70085-1010-424 speed sensor excels in applications where reliable speed feedback is essential. Common use cases include monitoring turbine rotation, conveyor belt speed, and motor shaft RPM in industrial automation systems. With a standard output voltage of 63 V (P-P) and a guarantee point of 4.9 V (P-P), this sensor provides strong signal integrity even in electrically noisy environments. The wide operating temperature range from -55 to +107° C makes it suitable for outdoor or high-heat industrial settings.
Installation & Setup Guidance
Replacing an older sensor with the AI-TEK 70085-1010-424 is straightforward. The 5/8-18 threaded body allows direct mounting into standard sensor ports. Ensure the thread length of 4.493 inches matches the mounting hole depth to avoid interference. The connector termination simplifies wiring: connect pin ‘B’ for positive output as per polarity specification. For accurate readings, align the sensor tip within the recommended gap from the target gear or shaft.
Selection Guide & Purchasing Advice
Before purchasing the AI-TEK 70085-1010-424, verify your system’s compatibility with the thread size and output voltage requirements. This model is a drop-in replacement for many existing speed sensors in industrial machinery. For reliable sourcing, PLC Source PRO (ubest101) stocks this part as a genuine AI-TEK unit. Ensure you confirm the sensor length of 5.618 inches and net weight of 5 oz. max. to fit your mechanical constraints. For any additional specifications, contact our team directly.
