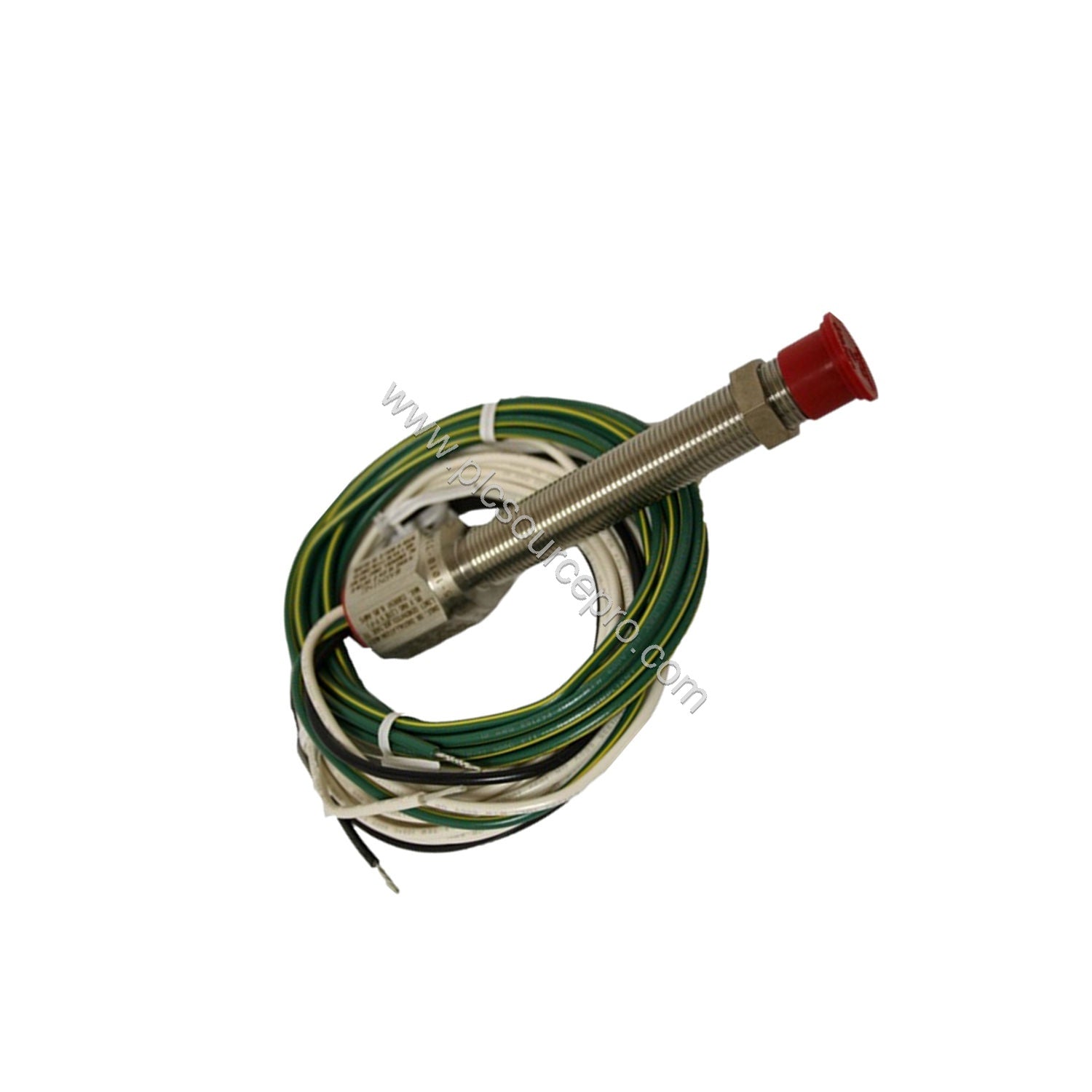

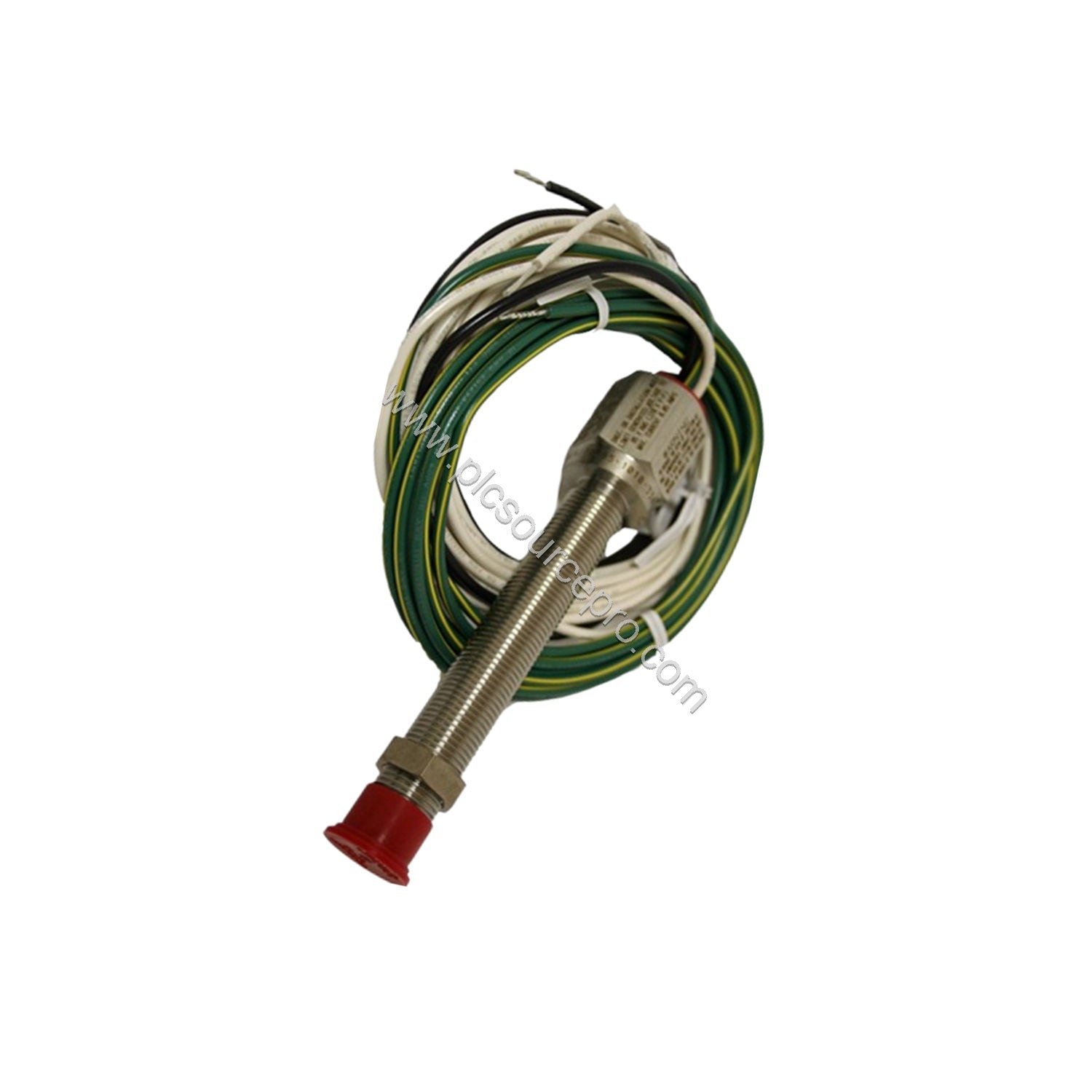

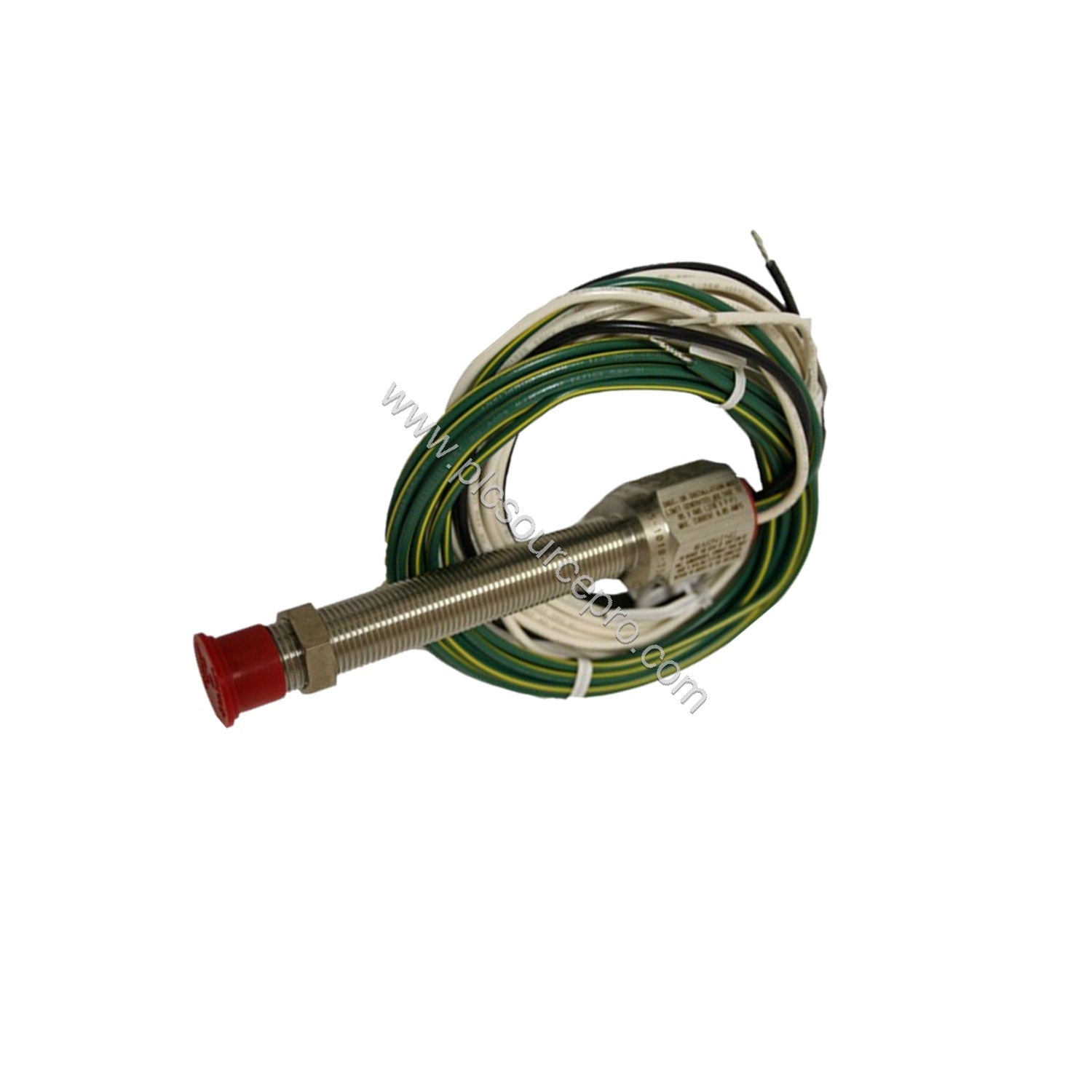

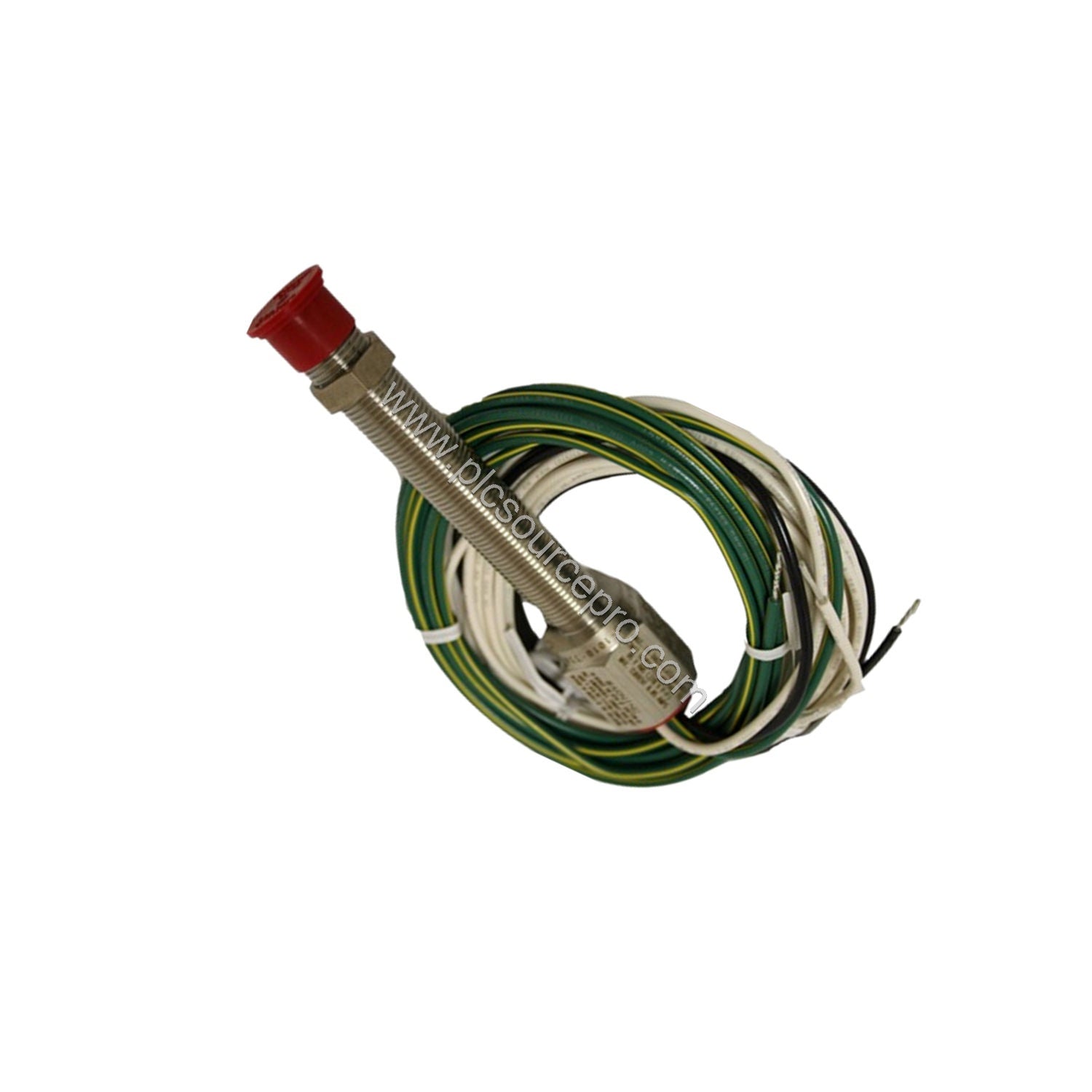

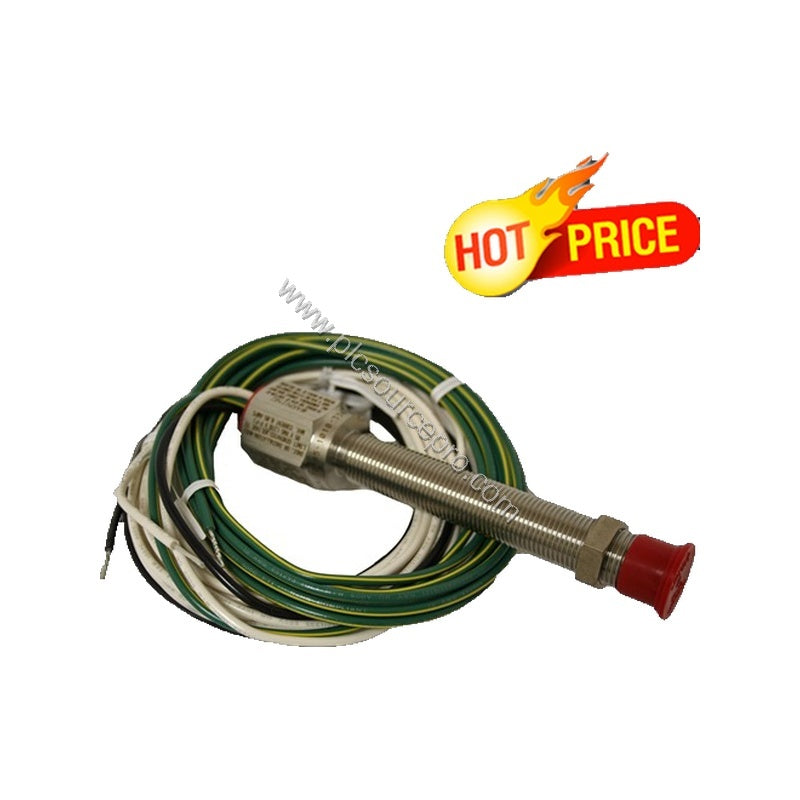

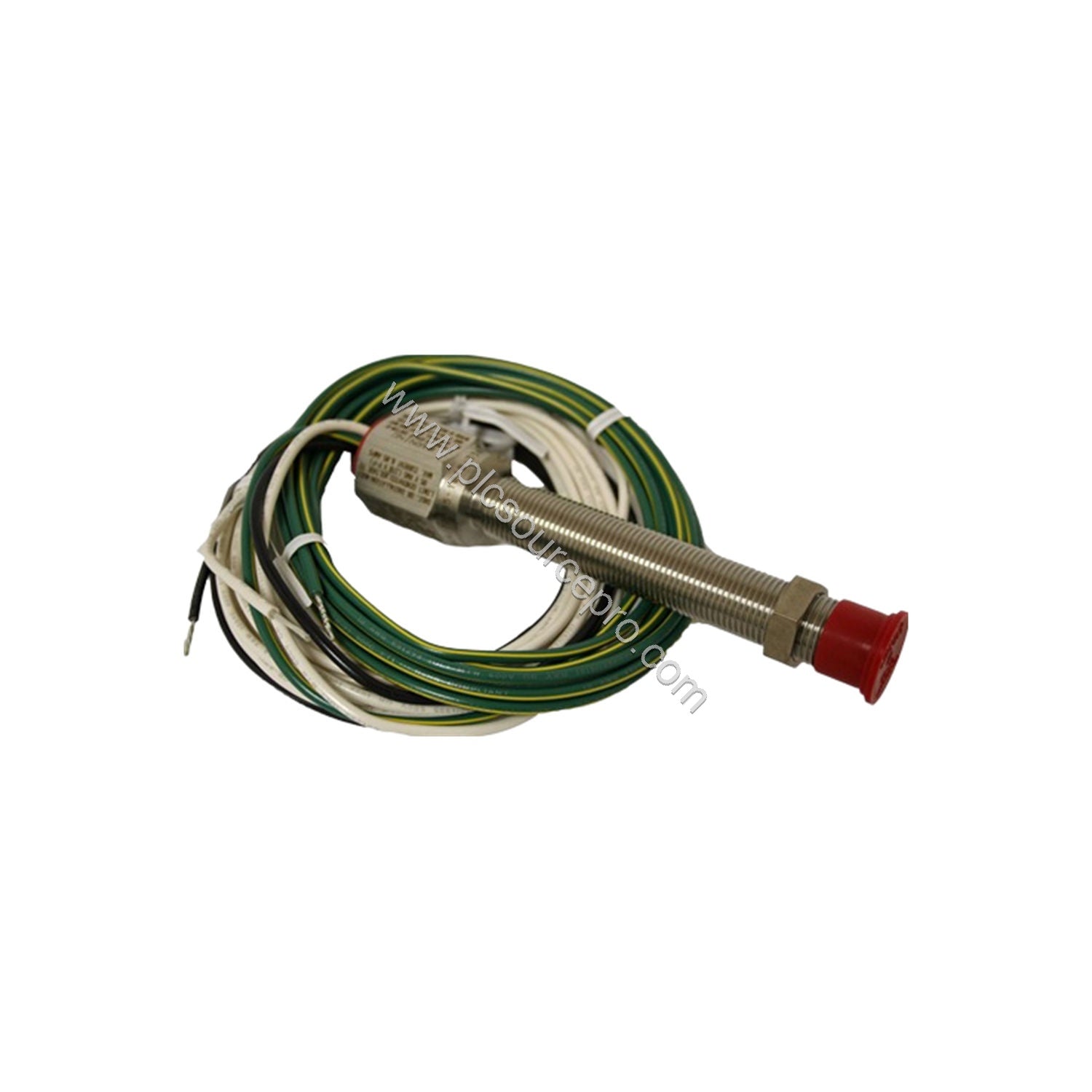

Product Overview
The AI-TEK 70085-1010-355 Speed Sensor delivers consistent, accurate speed readings for demanding industrial environments. Engineered for long-term reliability, this sensor reduces downtime and maintenance costs—a smart investment for precision monitoring applications.
Technical Specifications
| Parameter |
Value |
| Model |
AI-TEK 70085-1010-355 |
| Thread Size |
3/8-24 |
| Output Guarantee Voltage (P-P) |
3.6 V |
| Termination |
Wires |
| Thread Length |
0.812 in |
| Sensor Length |
1.252 in |
| Agency Approval |
None |
| Temp Rating |
-55 to 107°C |
| Output Voltage (Standard) |
55 V (P-P) |
| Typical Inductance |
125 mH ref. |
| Output Polarity |
White lead positive |
| Operating Temperature |
-55 to +107°C |
| Lead Length (-086) |
18 in (45.7 cm) |
| Cable Length (-355) |
40 in (101.6 cm) |
| Net Weight |
2 oz max. |
| Output Voltage (Guarantee Point) |
4.2 V (P-P) |
| DC Resistance |
960 ohms max. |
Industry Applications
The AI-TEK 70085-1010-355 Speed Sensor is ideal for turbine speed monitoring, conveyor belt control, and pump speed feedback. Its high 55 V P-P output ensures reliable signal transmission even in electrically noisy industrial environments, extending sensor life and reducing replacement costs.
Installation & Setup
Mount the sensor using the 3/8-24 thread into a compatible port. Ensure the 1.252-inch sensor length and 0.812-inch thread length allow proper insertion. Connect the white lead for positive output and black lead for ground. The 40-inch cable provides flexibility for placement.
Selection Guide
When selecting a replacement speed sensor, verify thread size, cable length, and output type. The AI-TEK 70085-1010-355 offers both standard 55 V P-P and guaranteed 4.2 V P-P outputs. For bulk orders or technical support, contact PLC Source PRO (PLC Source PRO) for competitive pricing and fast delivery.
