Product Introduction

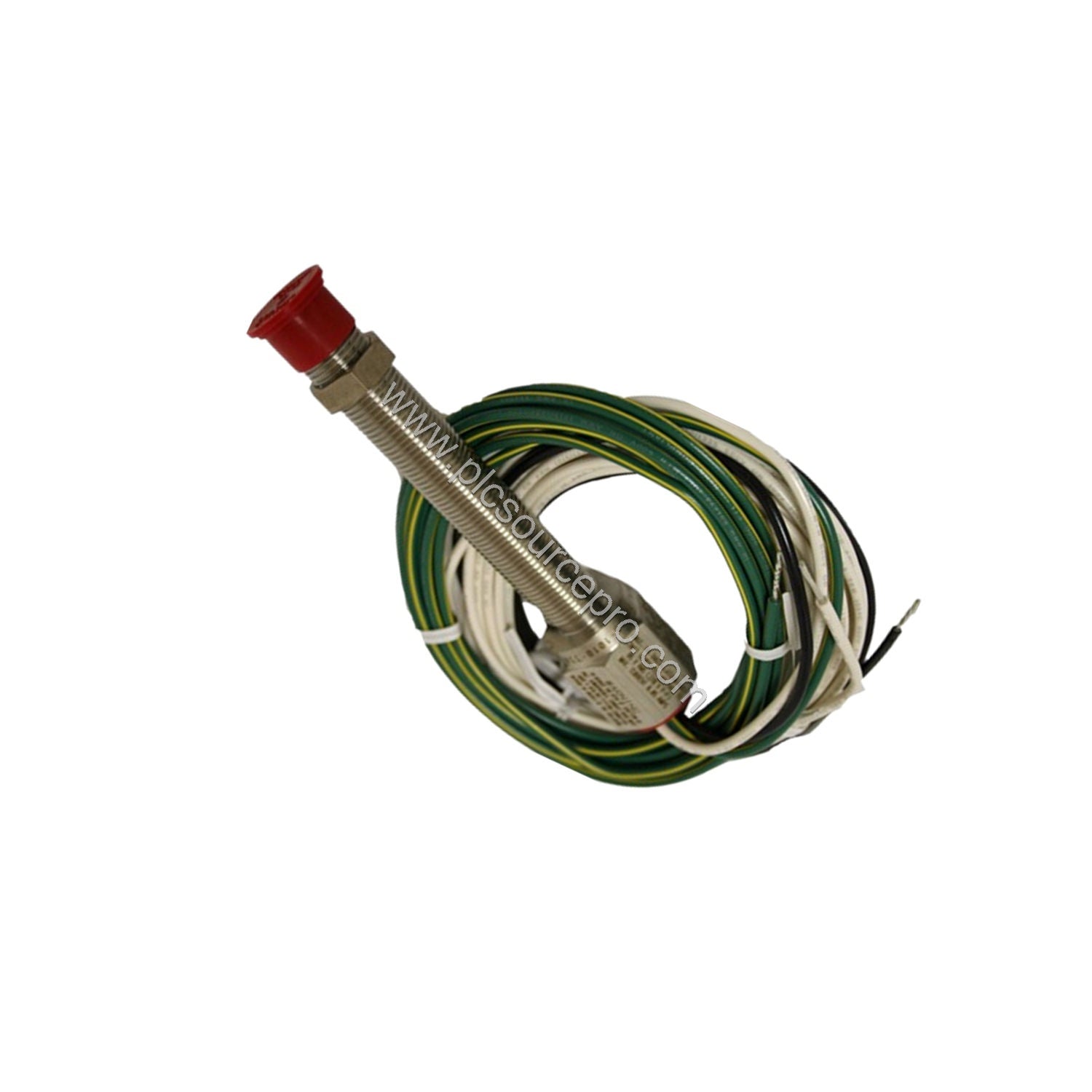

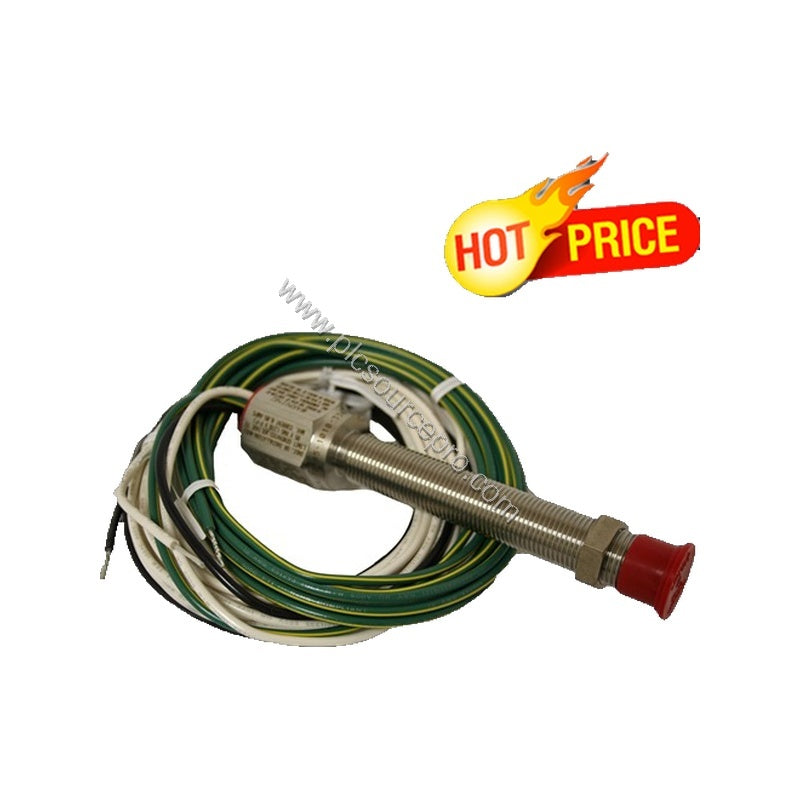

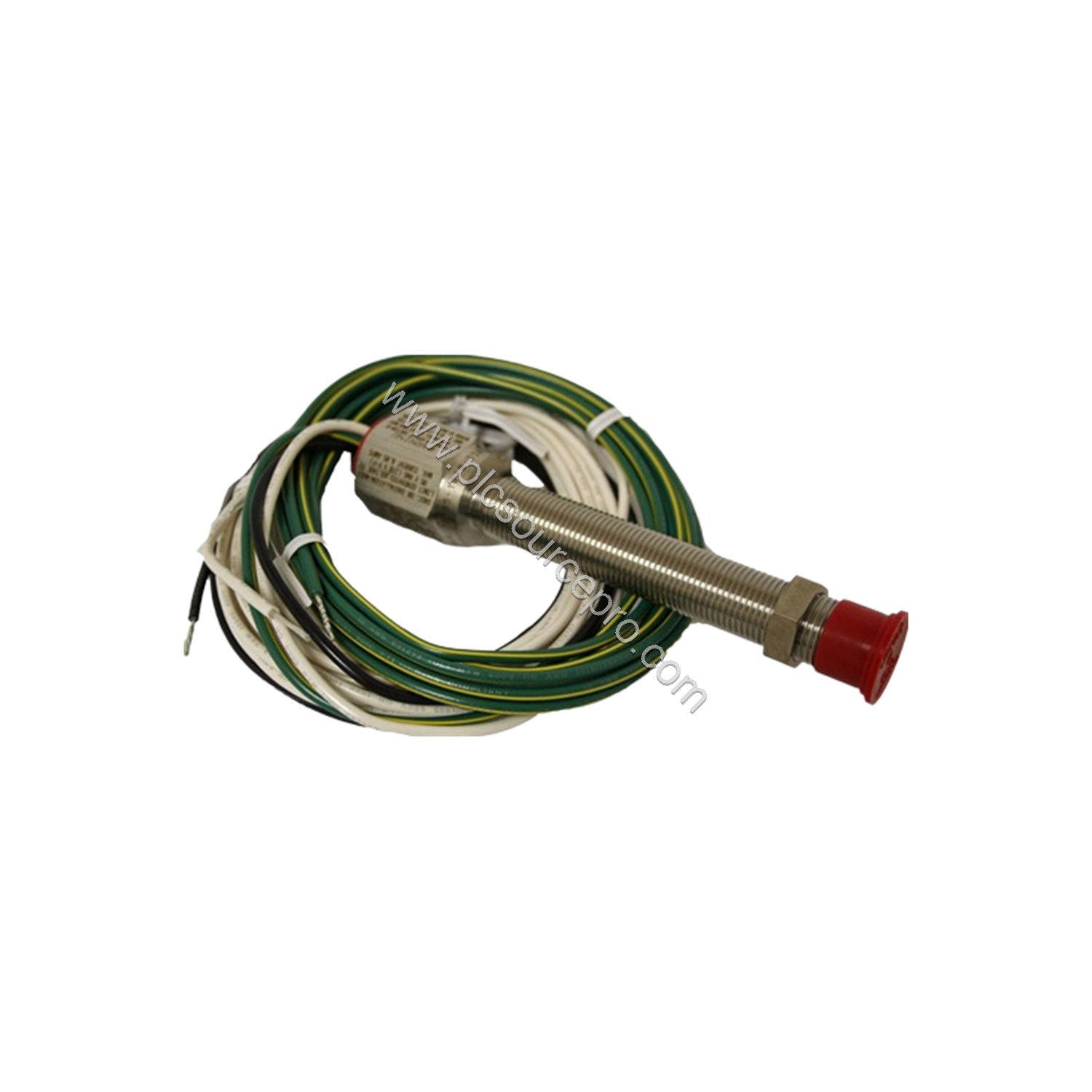

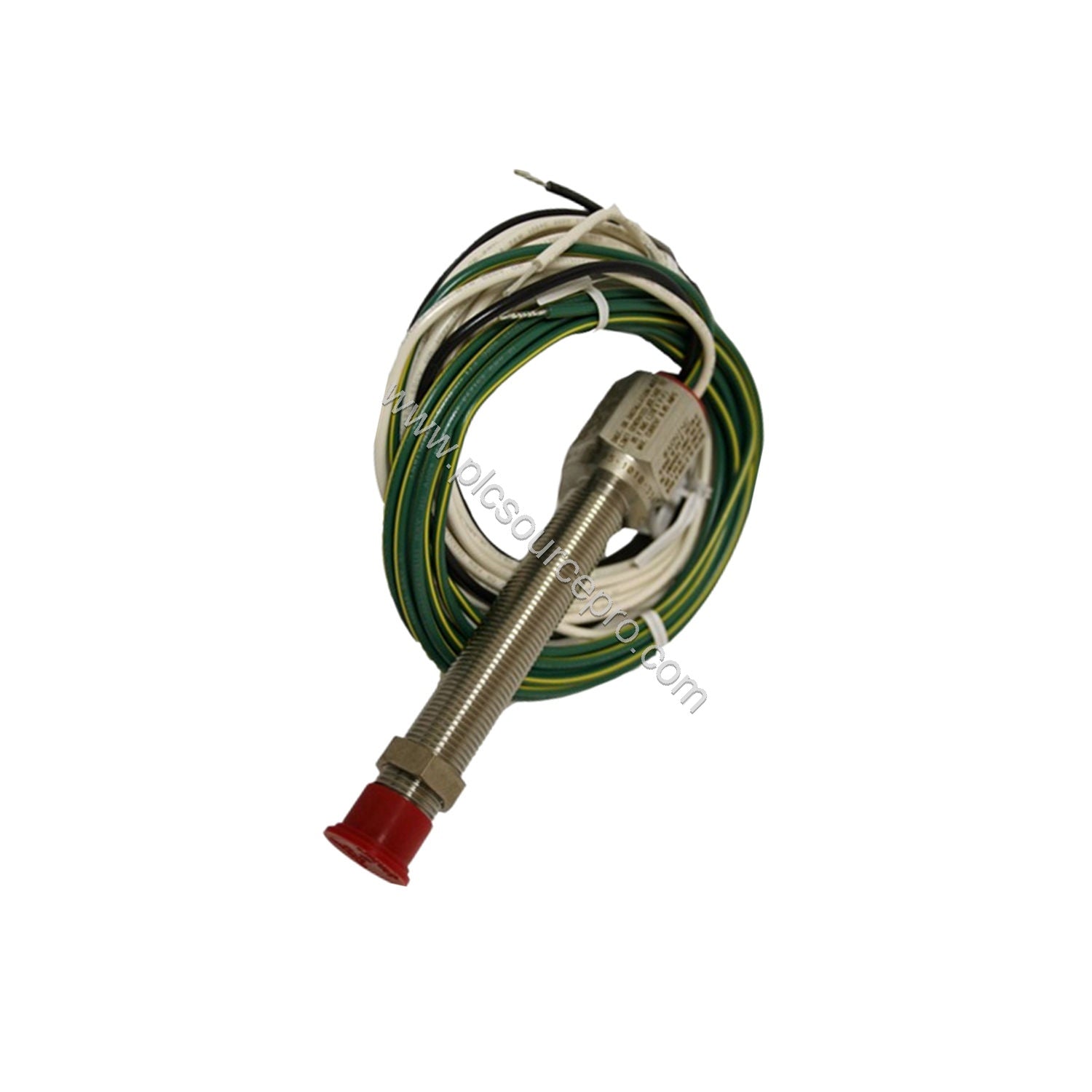

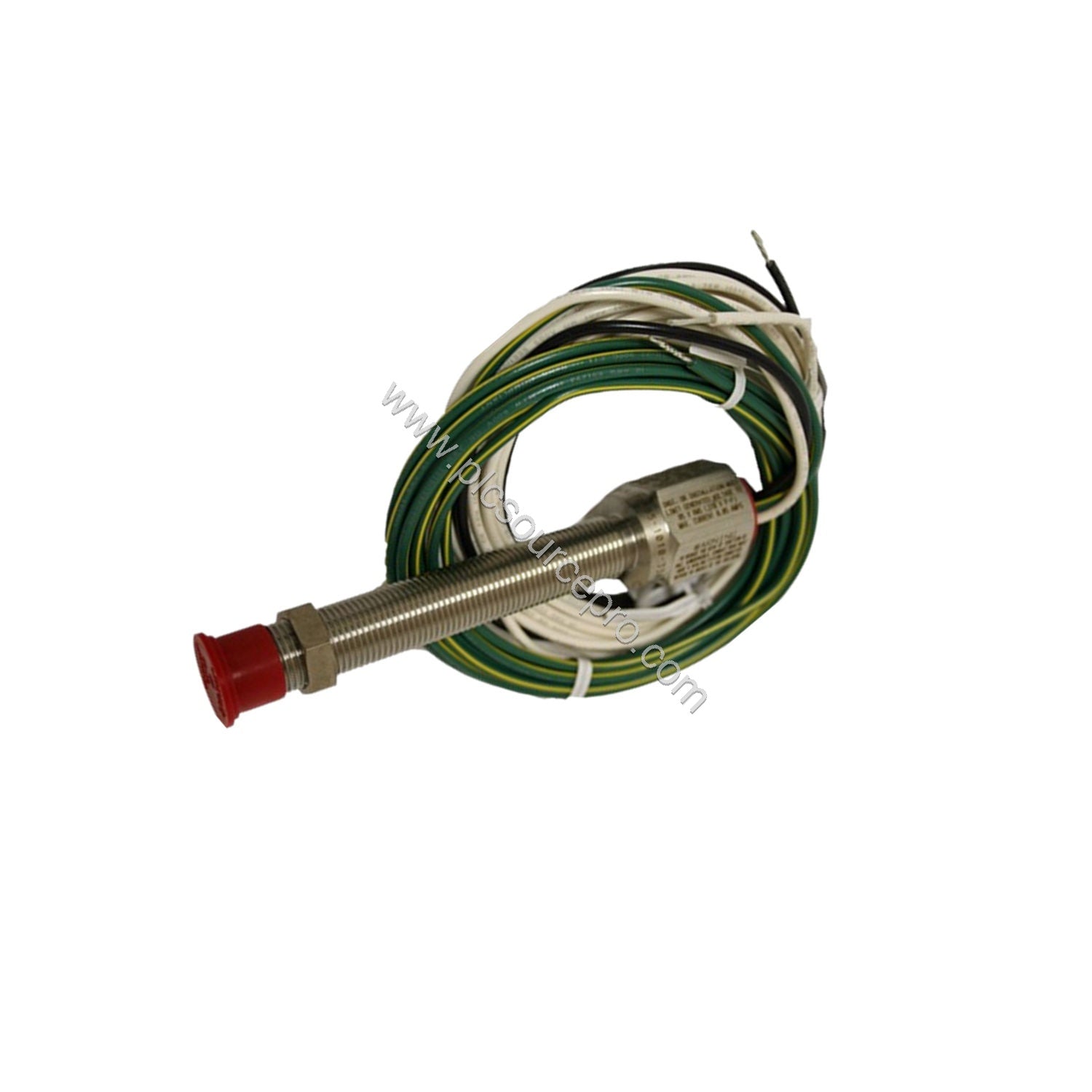

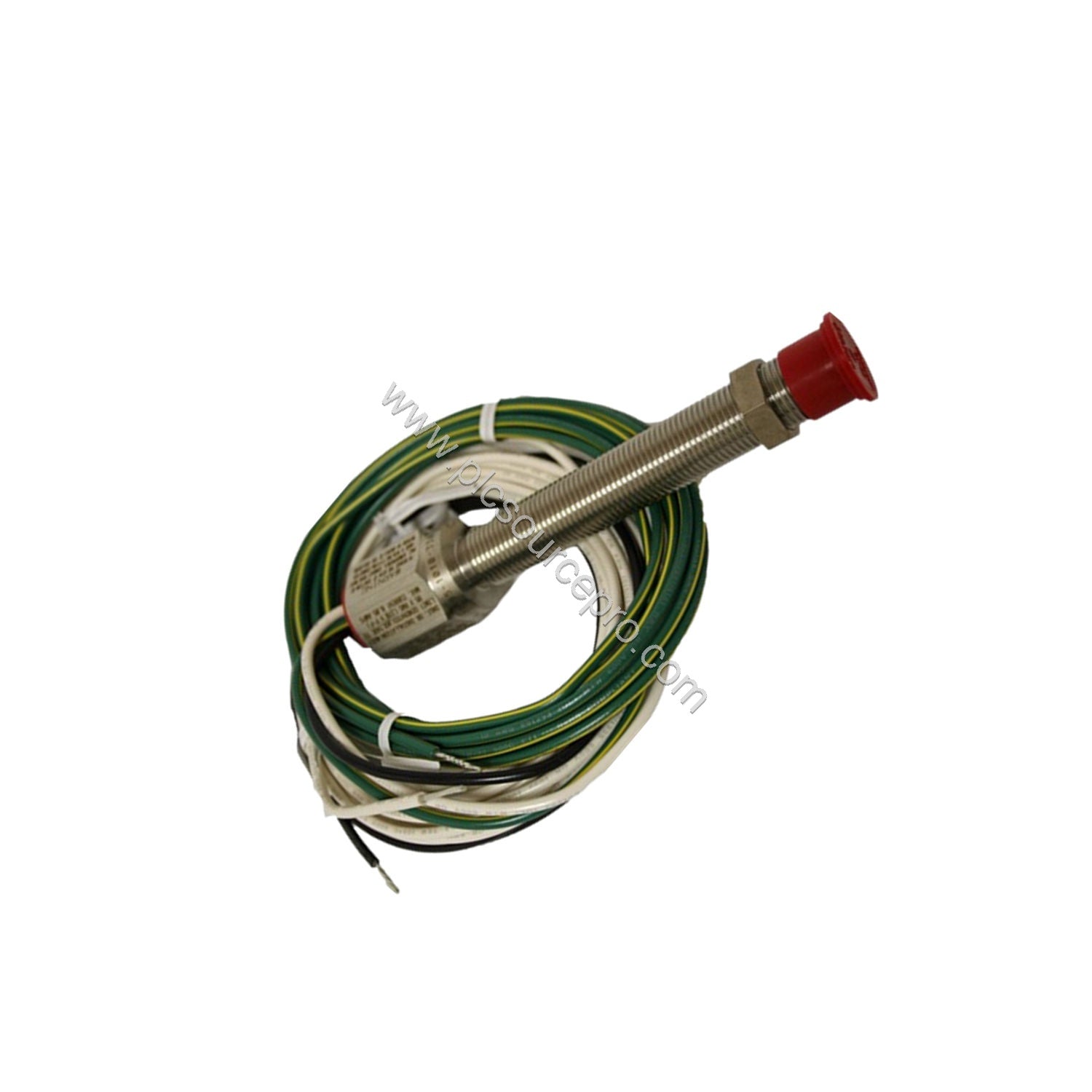

When a speed sensor fails due to environmental stress or signal degradation, the AI-TEK 70085-1010-314 provides a robust solution. This industrial automation module is a passive magnetic speed sensor designed for precise rotational speed measurement in harsh conditions. With its rugged construction and reliable output, the AI-TEK 70085-1010-314 ensures consistent performance even in temperature extremes from -30 to +85°C.
Technical Specifications
The AI-TEK 70085-1010-314 offers key specifications that ensure accuracy and durability. Below is a breakdown of critical parameters:
-
Output Voltage (Standard): 55 V (P-P) – Provides a strong signal for long cable runs.
-
Output Voltage (Guarantee Point): 4.2 V (P-P) – Ensures reliable detection at the minimum threshold.
-
DC Resistance: 960 ohms max – Indicates coil integrity for consistent performance.
-
Typical Inductance: 125 mH ref – Essential for matching with input circuits.
-
Operating Temperature: -30 to +85°C – Suitable for extreme industrial environments.
-
Termination: Cable with 10 ft (3.05m) length – Allows flexible mounting.
-
Net Weight: 3 oz. max – Lightweight for easy installation.
These parameters make the AI-TEK 70085-1010-314 a reliable choice for critical speed monitoring applications.
Industry Applications
The AI-TEK 70085-1010-314 excels in applications where reliable speed sensing is critical. Common use cases include:
-
Motor Speed Monitoring: In conveyor systems and pumps, the sensor provides accurate RPM feedback to PLCs and drives, preventing overspeed or underspeed conditions.
-
Turbine Overspeed Protection: With its high output voltage, the AI-TEK 70085-1010-314 delivers a clear signal even at high rotational speeds, supporting safety shutdown systems.
-
Process Control: In mixing and blending equipment, the sensor ensures precise speed control for consistent product quality.
In each scenario, the robust design of the AI-TEK 70085-1010-314 minimizes signal loss and false readings, reducing downtime.
Installation Guide
Proper installation of the AI-TEK 70085-1010-314 ensures optimal performance. Follow these guidelines:
-
Mounting: Use the .375 no thd thread size. Ensure the sensor is aligned perpendicular to the target gear or shaft. The 1.375 inch thread length allows for adjustable gap settings.
-
Wiring: The output polarity is white lead positive. Connect the cable (10 ft length) to a compatible input module. Maintain proper shielding to avoid electrical noise.
-
Gap Adjustment: Set the air gap between the sensor tip and the target to the manufacturer’s recommended distance (typically 0.010 to 0.040 inches for passive sensors).
Following these steps ensures reliable signal generation and long service life.
Selection Guide & Purchasing Advice
When selecting the AI-TEK 70085-1010-314, verify that your system requires a passive magnetic speed sensor with the above specifications. Consider the cable length (10 ft) and the operating temperature range. For applications needing different cable lengths, consult with supplier. PLC Source PRO (available at ubest101.myshopify.com) stocks this exact model and can provide compatibility information. Ensure that the input impedance of your PLC or counter module matches the sensor's 960 ohm DC resistance for best signal transfer.
