Product Introduction

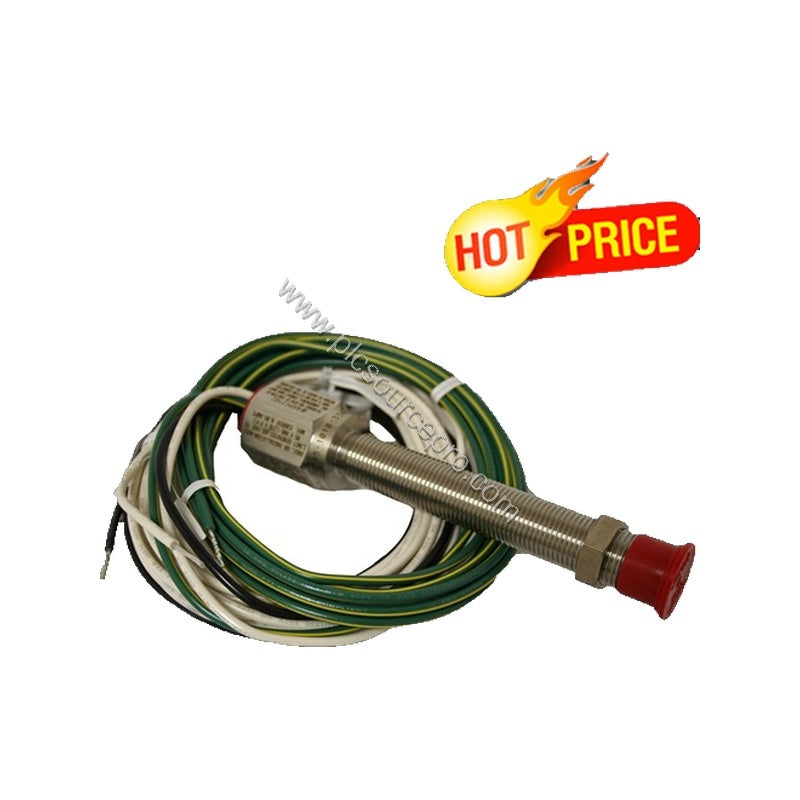

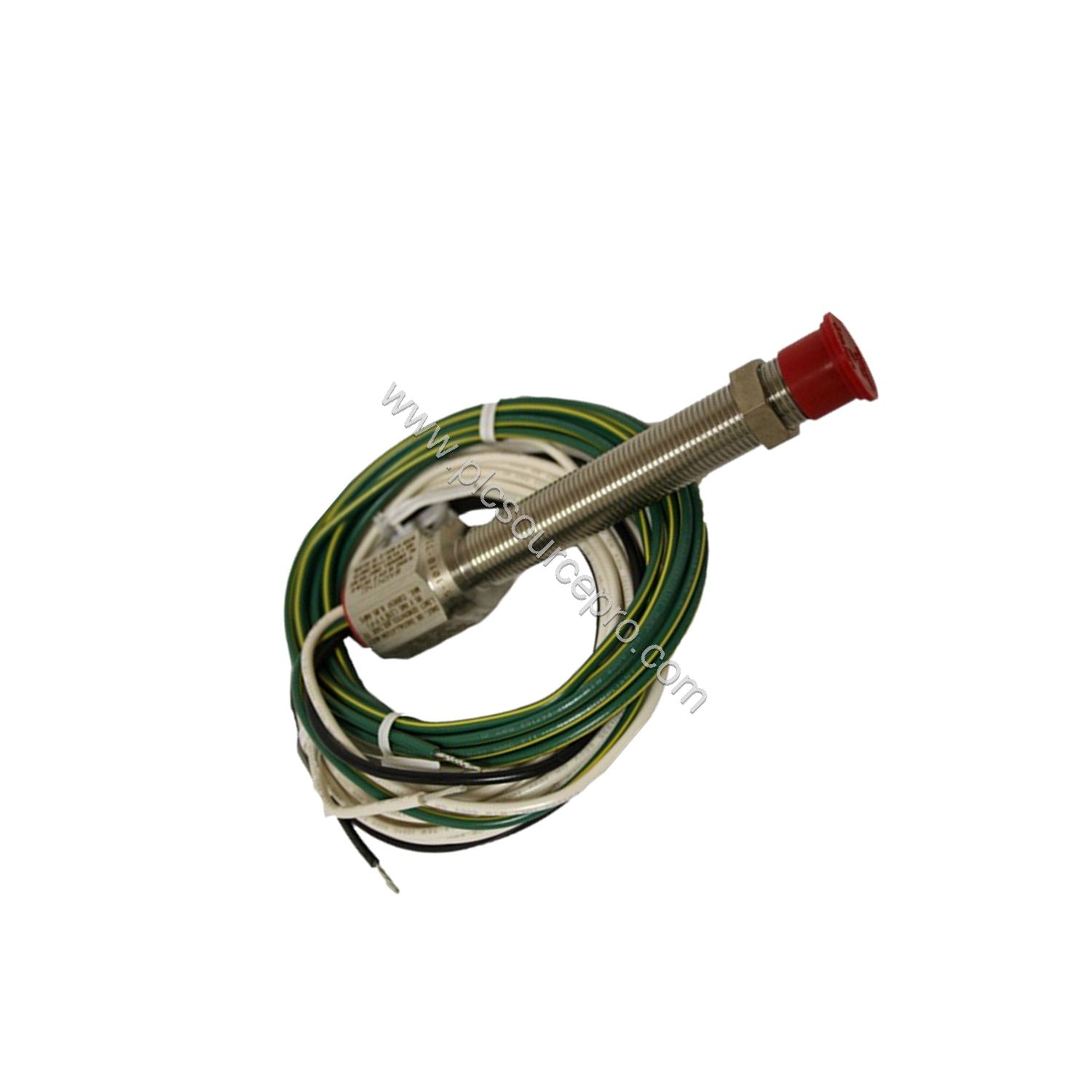

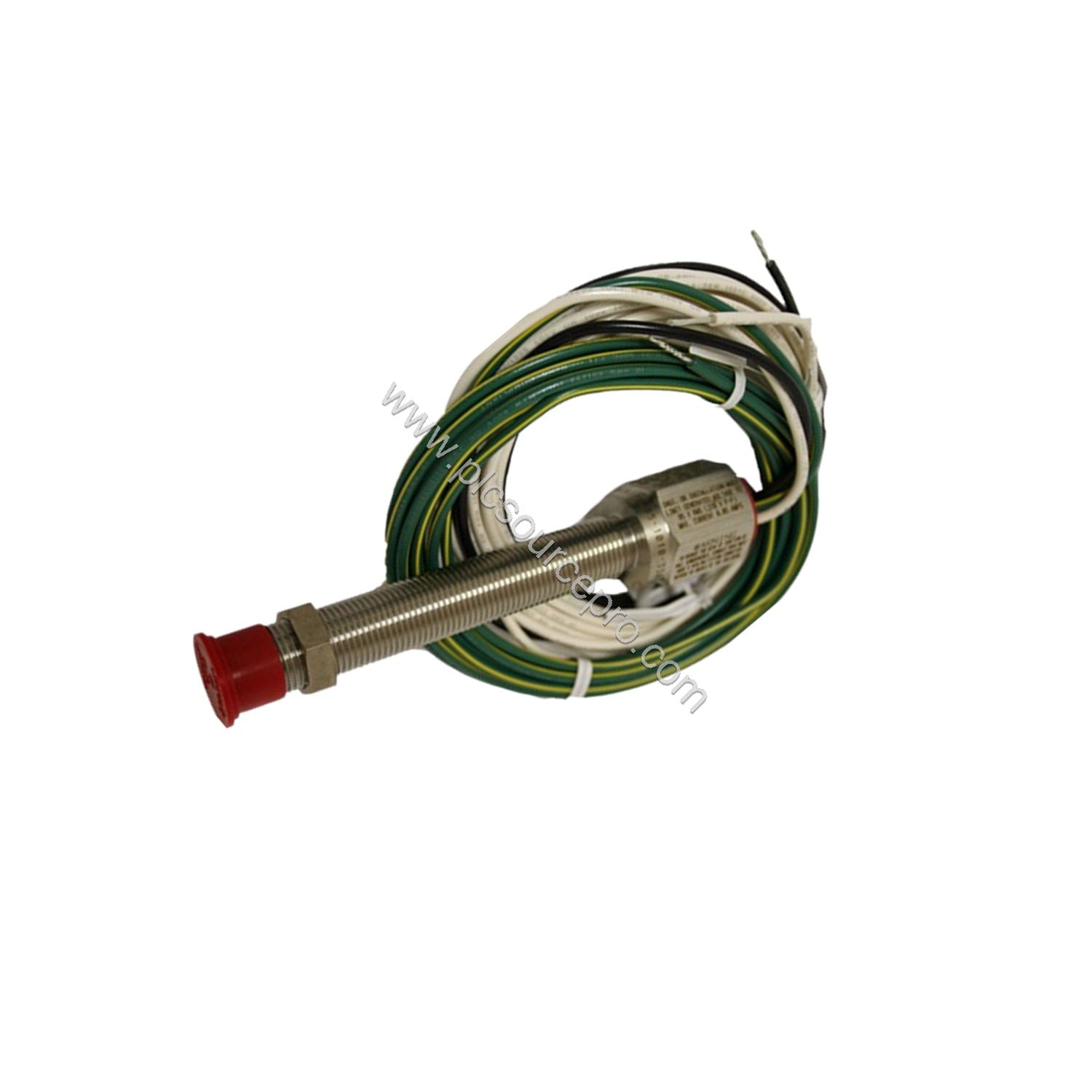

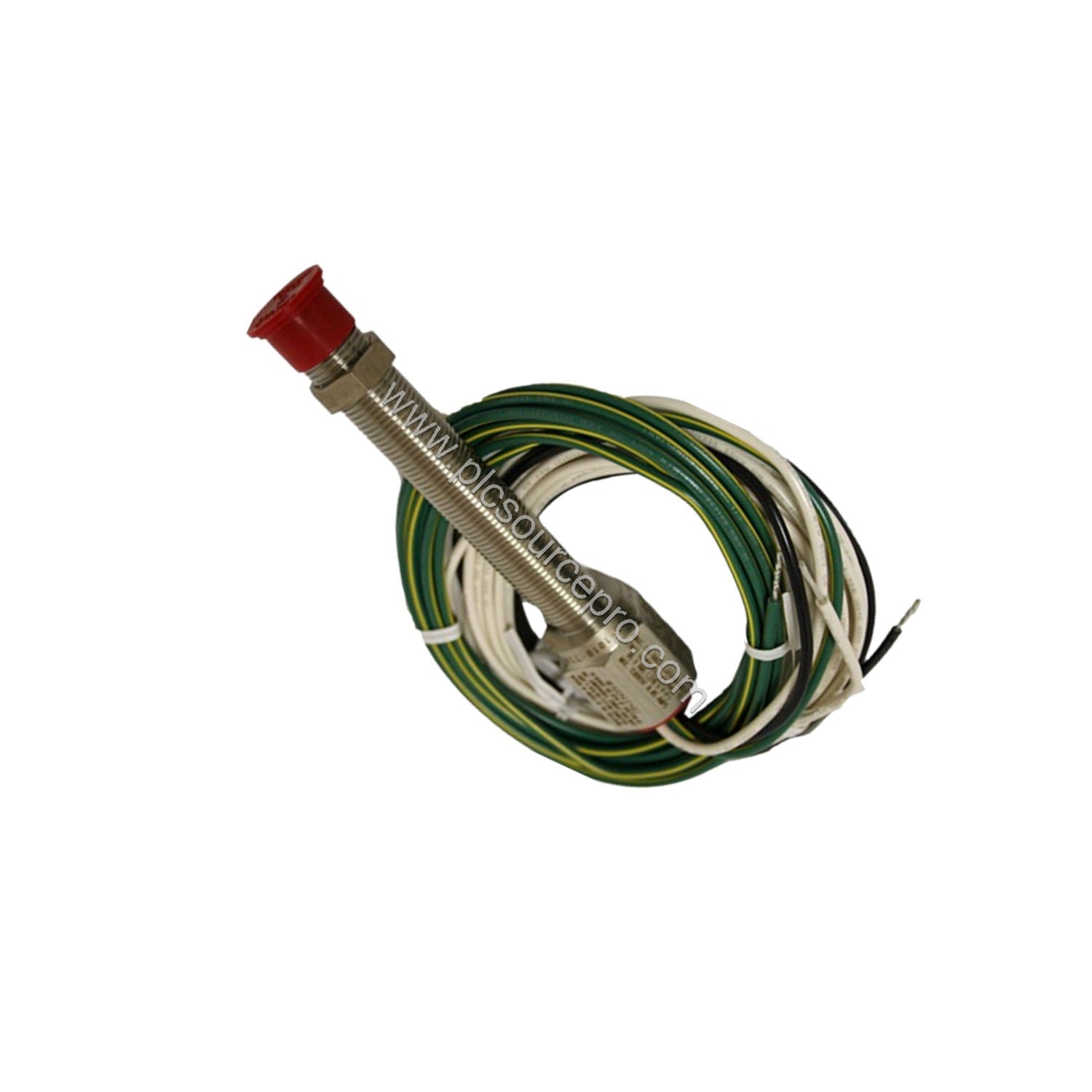

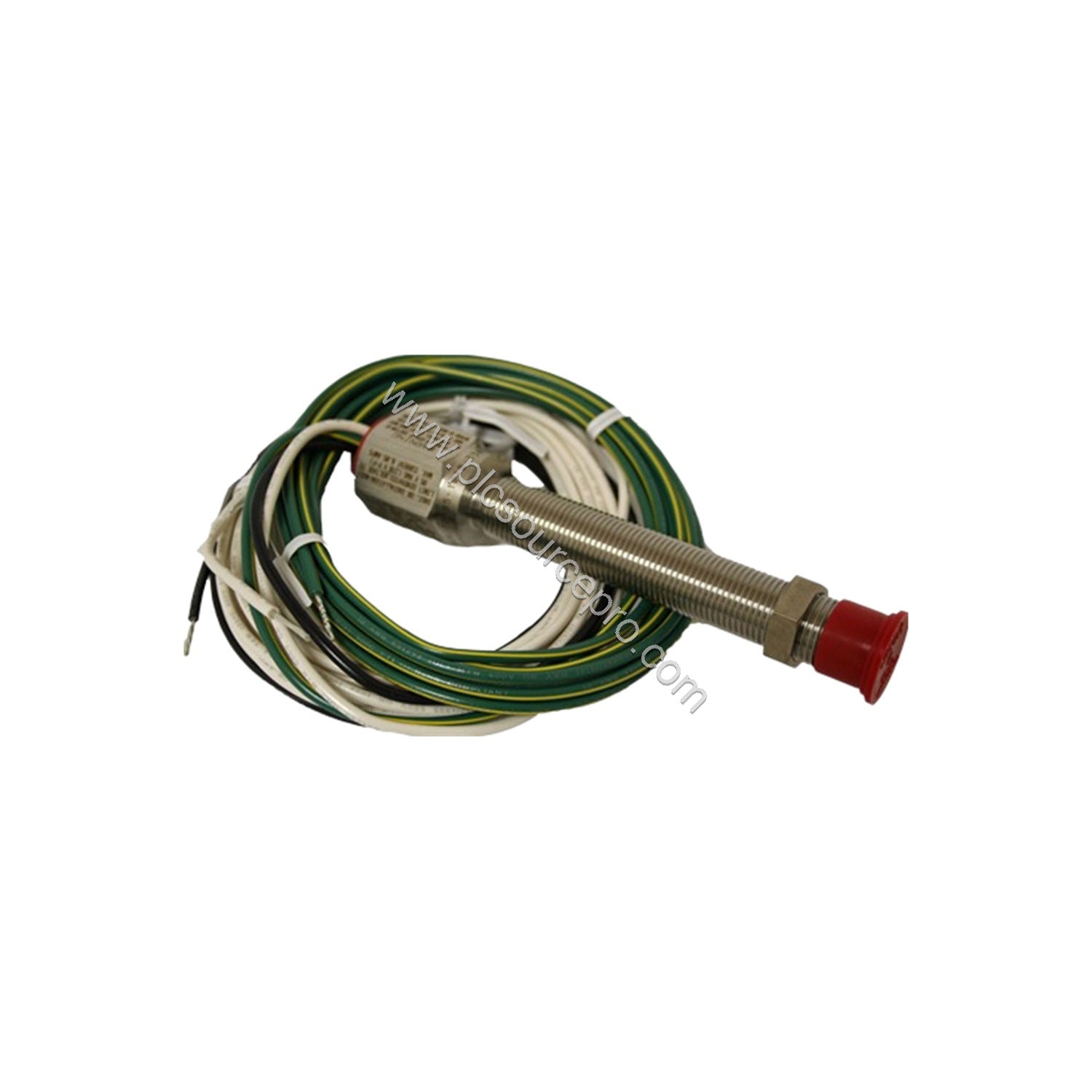

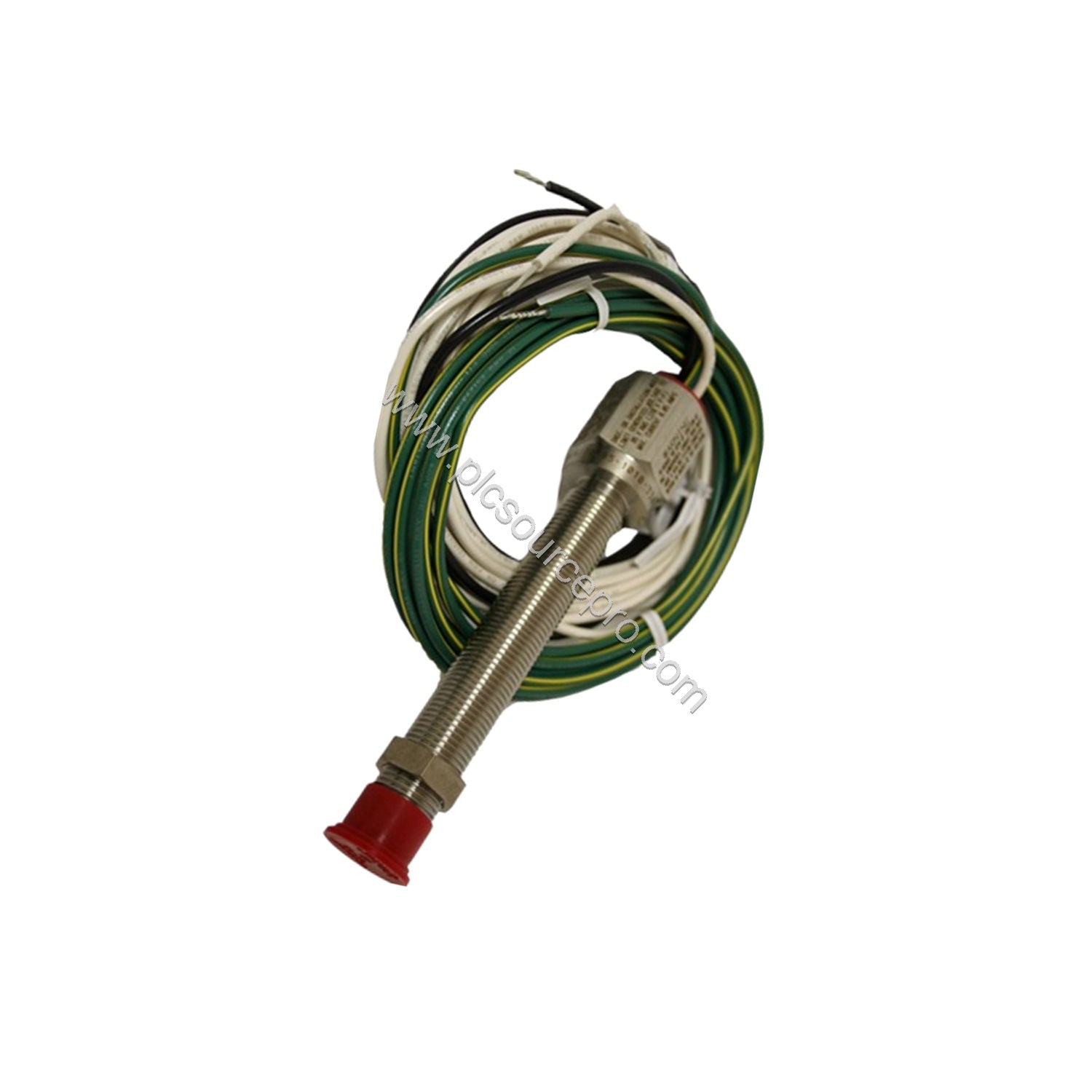

The AI-TEK 70085-1010-220 is a robust speed sensor designed for industrial automation applications. This 70085-1010-220 model delivers reliable performance in harsh environments, making it a popular choice for replacement and upgrades in legacy systems. With a standard output voltage of 40 V (P-P) and a guaranteed output of 12.8 V (P-P), the AI-TEK 70085-1010-220 ensures consistent signal transmission for precise speed monitoring.
Technical Specifications
The AI-TEK 70085-1010-220 offers the following key parameters:
-
Output Voltage (Standard): 40 V (P-P)
-
Guaranteed Output Voltage: 12.8 V (P-P)
-
Thread: 5/8 - 18 UNF
-
Thread Length: 2.937 inches
-
Sensor Length: 2.937 inches
-
DC Resistance: 130 ohms max
-
Operating Temperature: -55 to +107°C
-
Termination: Wires
-
Shipping Weight: 2.1 kg
All measurements are from the product database. No other specifications are inferred.
Industry Applications
The AI-TEK 70085-1010-220 is commonly used in turbine speed monitoring, conveyor systems, and engine RPM measurement. Its wide temperature range (-55 to 107°C) and robust 5/8-18 UNF thread make it suitable for direct replacement in demanding applications.
Installation & Setup Guidance
Mount the AI-TEK 70085-1010-220 using the 5/8-18 UNF thread into a compatible mounting hole. Ensure the sensor tip is positioned within the recommended gap from the target gear or shaft. Wire termination is via flying leads; connect to a suitable input module that accepts 40 V (P-P) signals. Verify polarity and grounding per system requirements.
Buying Guide & Selection Advice
Before purchasing the AI-TEK 70085-1010-220, confirm the thread size (5/8-18 UNF) and overall length (3.06 inches) match your application. This sensor is a direct replacement for many older AI-TEK models. For reliable sourcing, visit ubest101 (the store behind PLC Source PRO) to ensure genuine parts.
