Product Overview

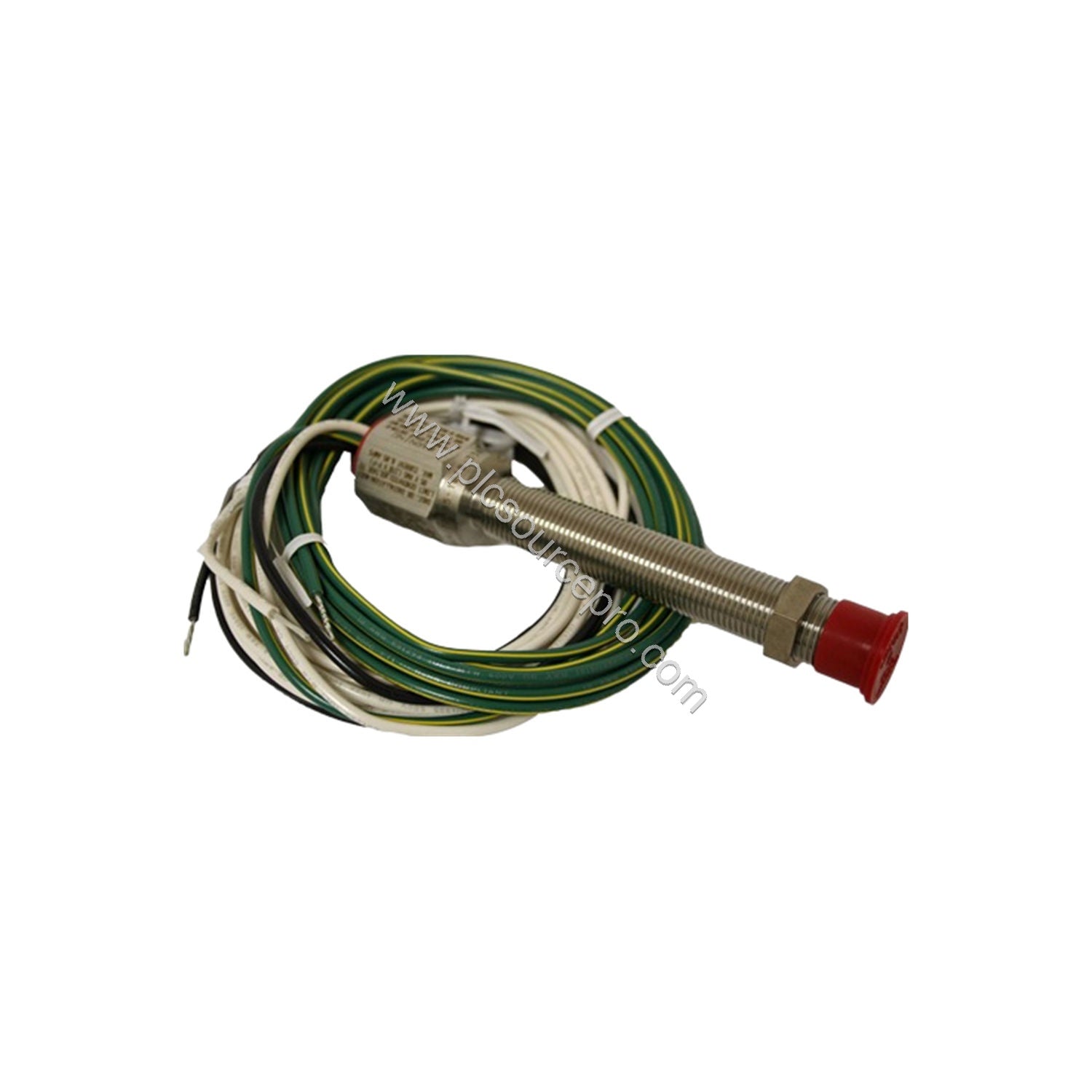

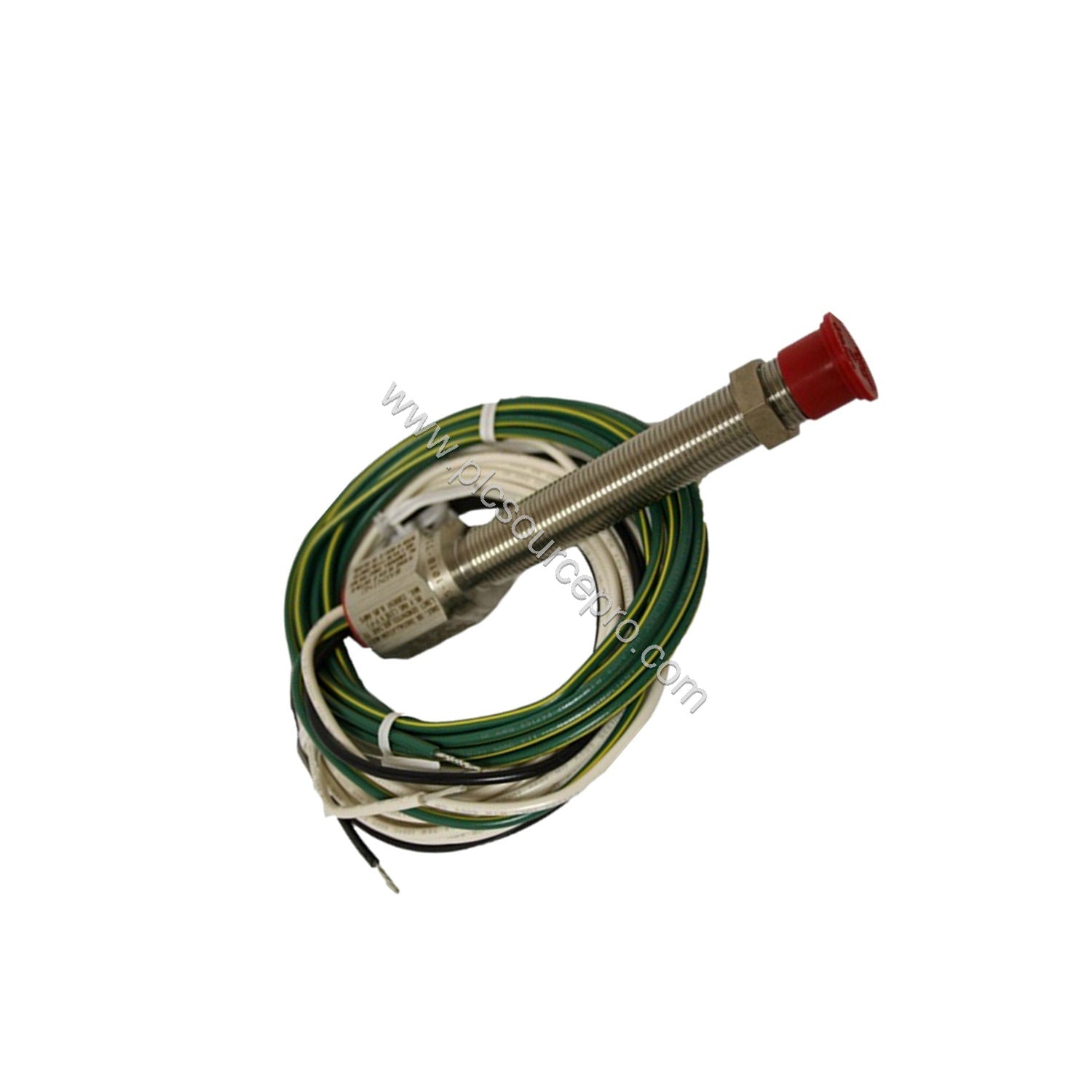

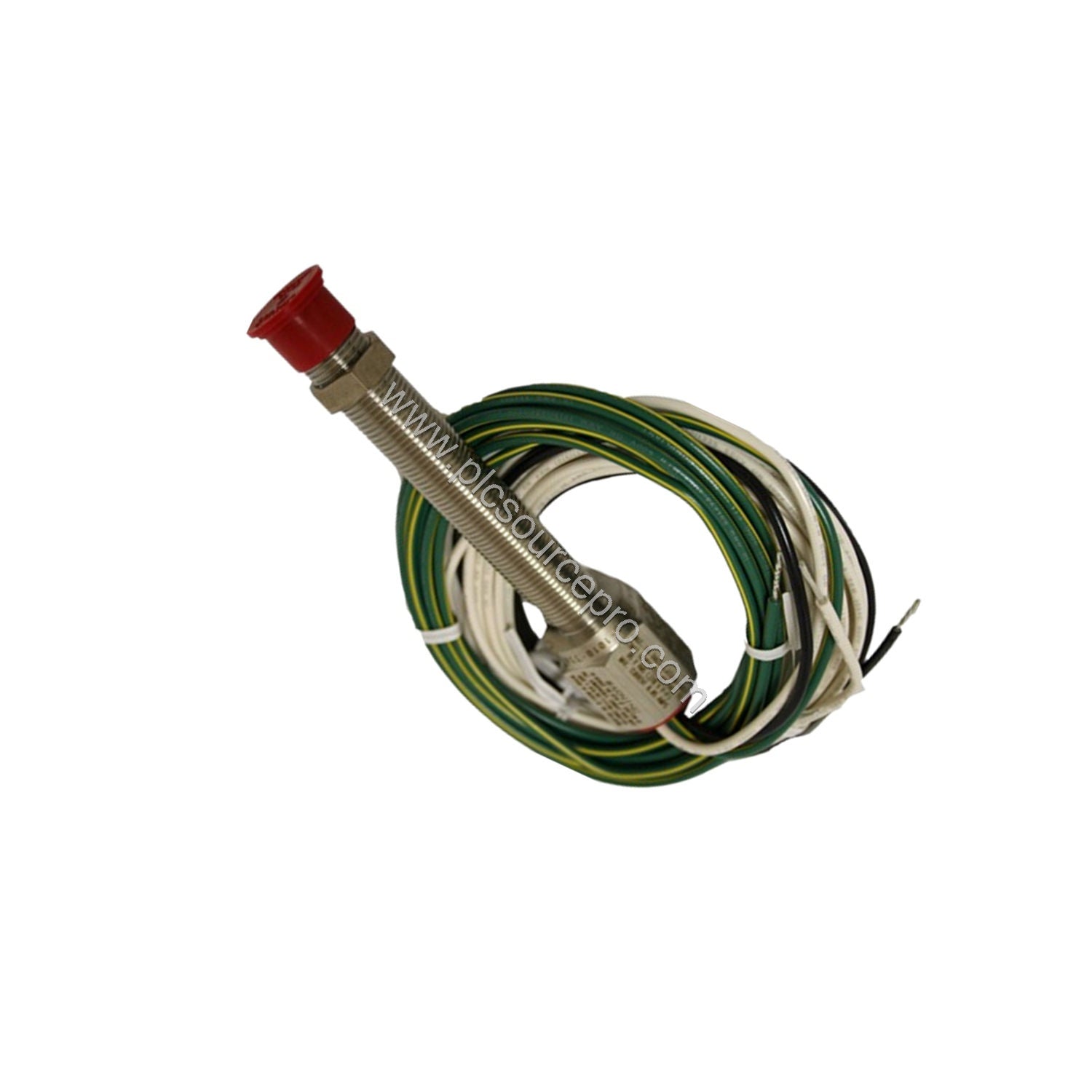

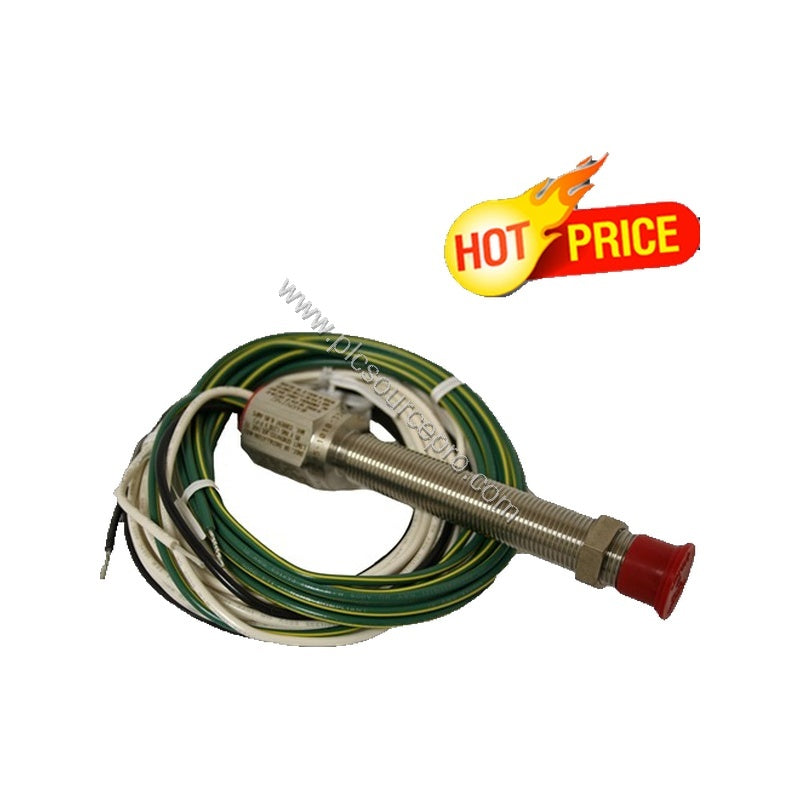

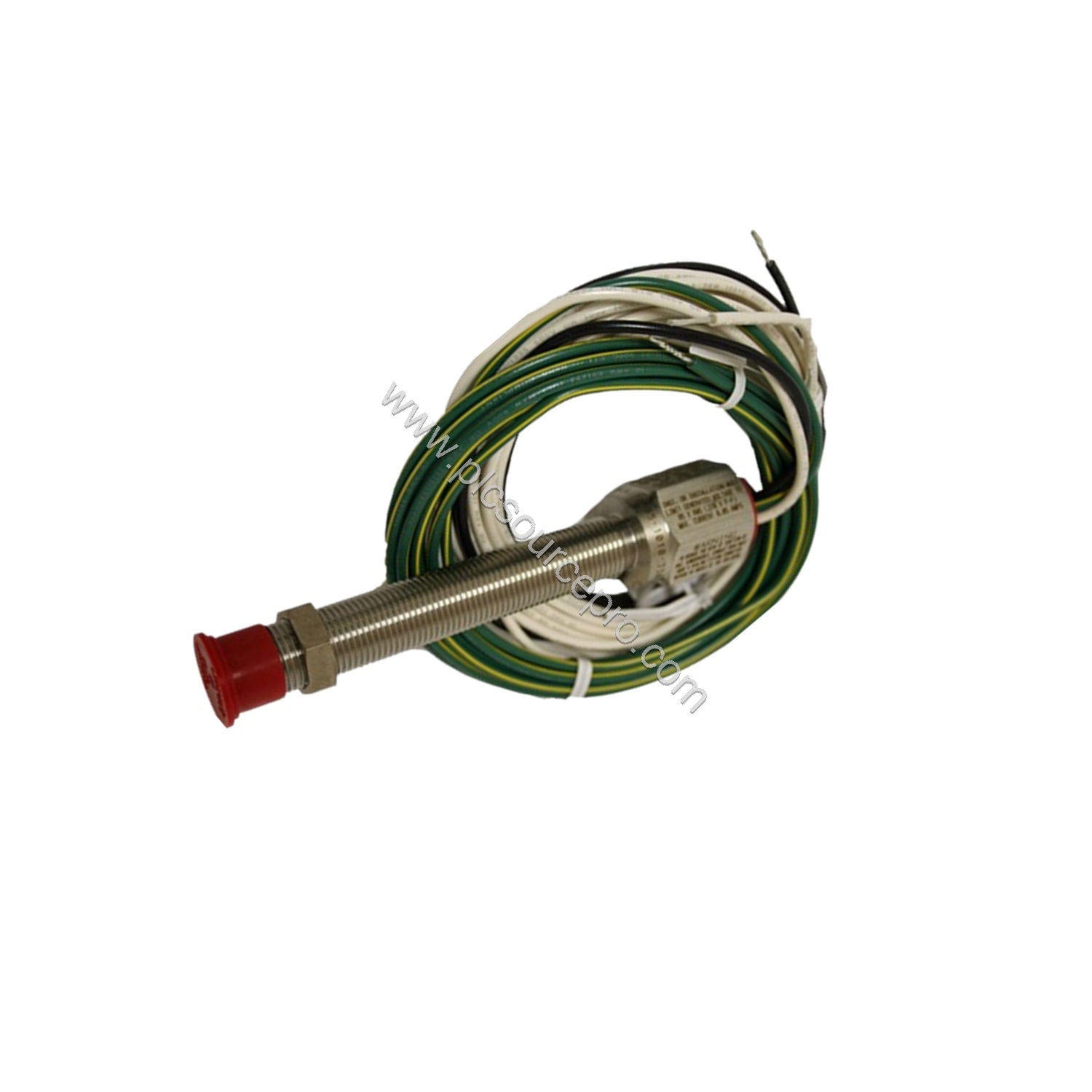

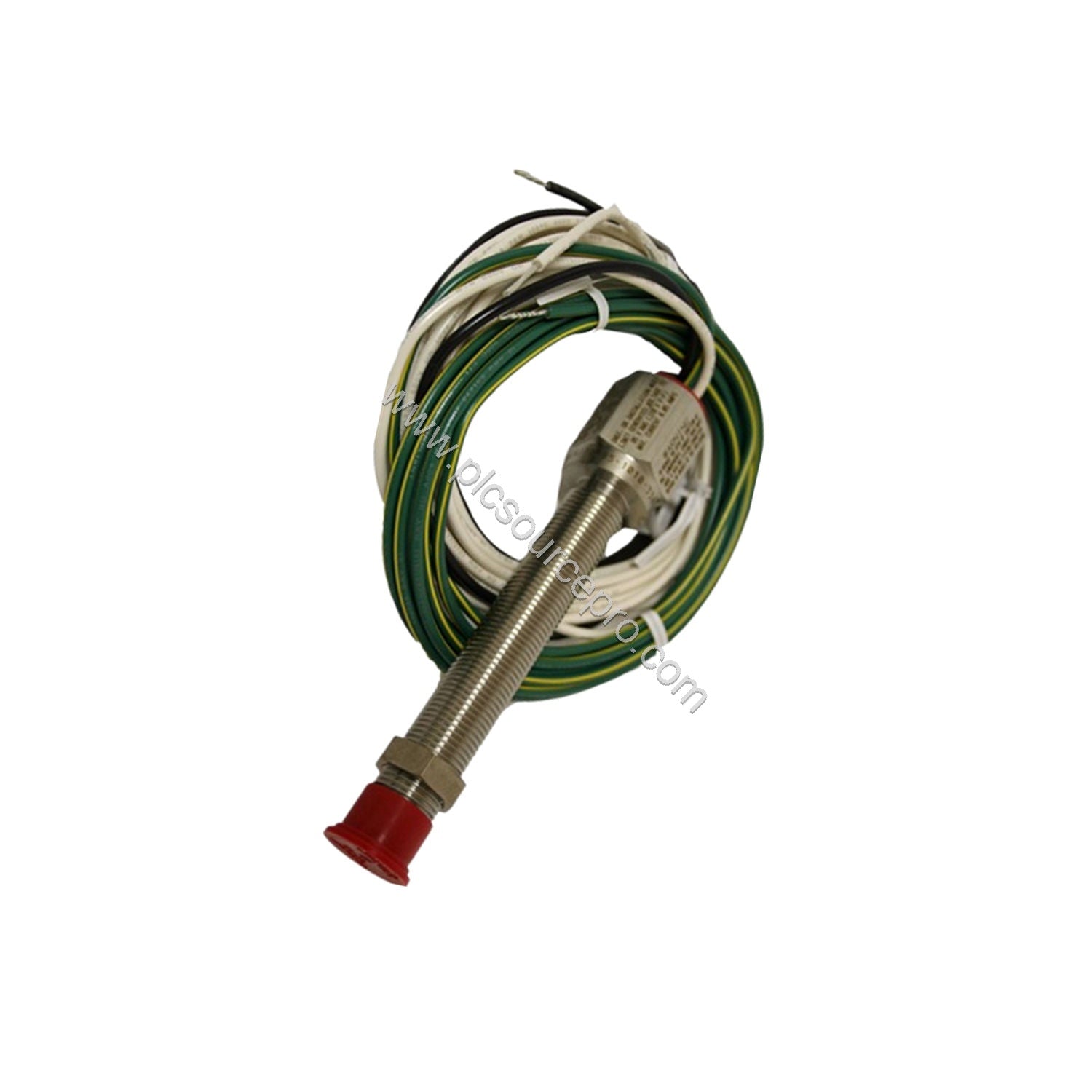

The AI-TEK 70085-1010-182 Speed Sensor is a robust industrial automation module designed for precise rotational speed monitoring in extreme conditions. This sensor delivers consistent 6 V (P-P) standard output and guarantees a minimum of 0.3 V (P-P) at the defined guarantee point. With a thread size of 10-32 and a compact length of 0.5 inches, it integrates easily into tight spaces. The AI-TEK 70085-1010-182 operates reliably from -73 to +150°C, making it suitable for high-temperature applications such as turbine monitoring and engine control.
Technical Specifications
| Parameter |
Value |
| Thread Size |
10-32 |
| Thread Length (in) |
0.5 |
| Sensor Length (in) |
0.5 |
| Output * Guarantee Voltage (P-P) |
0.3 |
| Output Voltage (Standard) |
6 V (P-P) |
| Output Voltage (Guarantee Point) |
0.3 V (P-P) |
| Termination |
Wires |
| Output Polarity |
White lead positive |
| Typical Inductance |
2 mH, ref. |
| DC Resistance |
50 ohms max. |
| Lead Length |
18 in (45.7 cm) |
| Net Weight |
1 oz. max. |
| Operating Temperature |
-73 to +150°C |
| Temp Rating (deg C) |
-73 to 232 |
| Agency Approval |
None |
Industry Applications
The AI-TEK 70085-1010-182 excels in preventing failure scenarios common in high-vibration and extreme-temperature environments. Its wide operating temperature range and robust output ensure accurate speed sensing even near jet engines or industrial furnaces. Typical applications include gas turbine speed monitoring, conveyor belt tachometry, and pump shaft rotation detection. The sensor's 0.5-inch thread length allows flush mounting in confined housings, reducing signal interference.
Installation and Setup
Mount the AI-TEK 70085-1010-182 using the 10-32 thread into a matching hole. Ensure the sensor face is within the recommended air gap to guarantee the minimum output voltage of 0.3 V (P-P). Connect the white lead to the positive signal input and the other wire to ground. Use shielded cable for extended runs to minimize electrical noise. No special tools are required; hand-tightening is usually sufficient.
Selection Guide
Before purchasing the AI-TEK 70085-1010-182, verify that the thread size and sensor length match your mounting requirements. This sensor is a direct replacement for many existing speed probes. For bulk orders or application support, contact ubest101. Our inventory ensures quick delivery for critical spares.
