Product Introduction

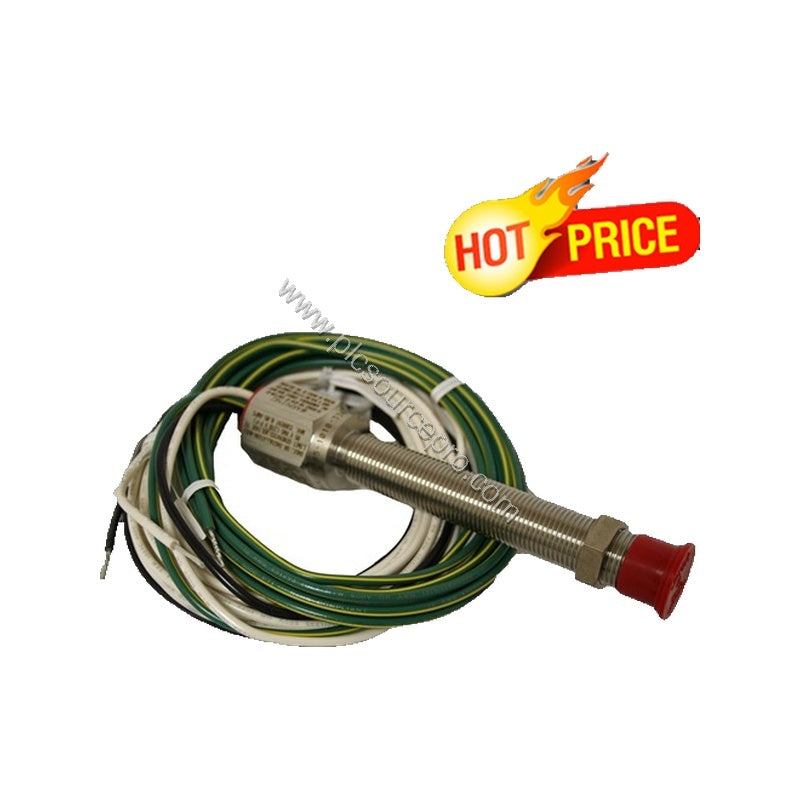

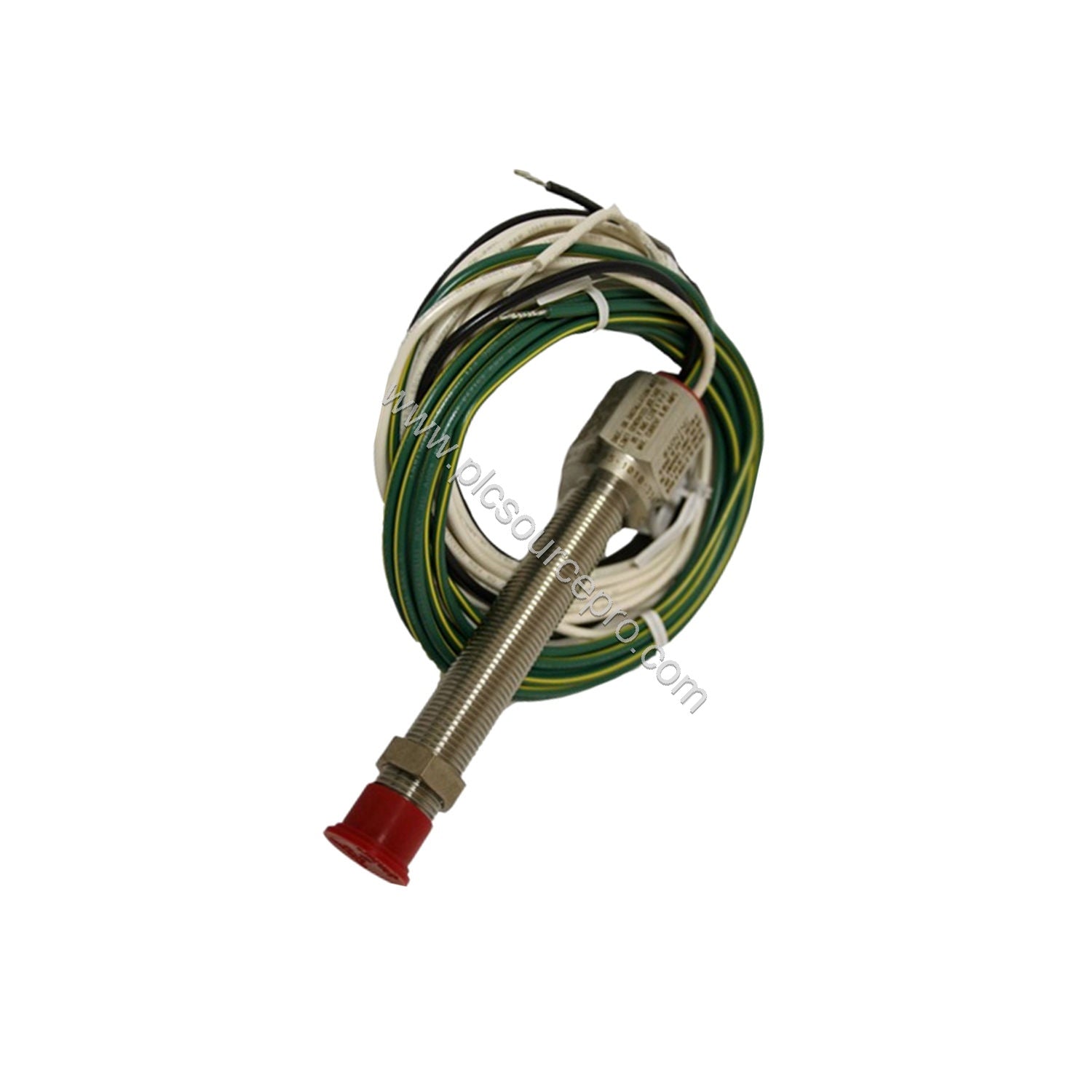

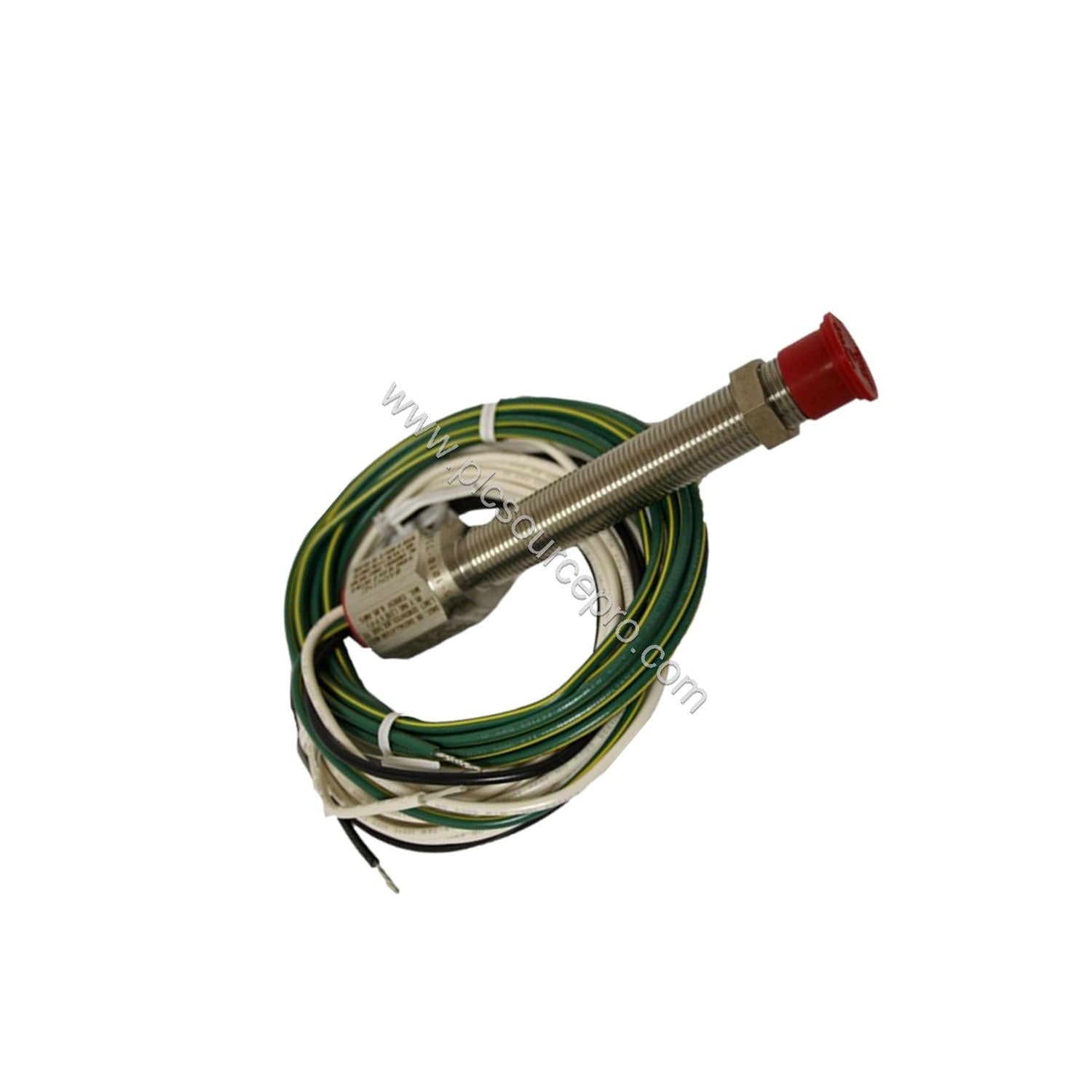

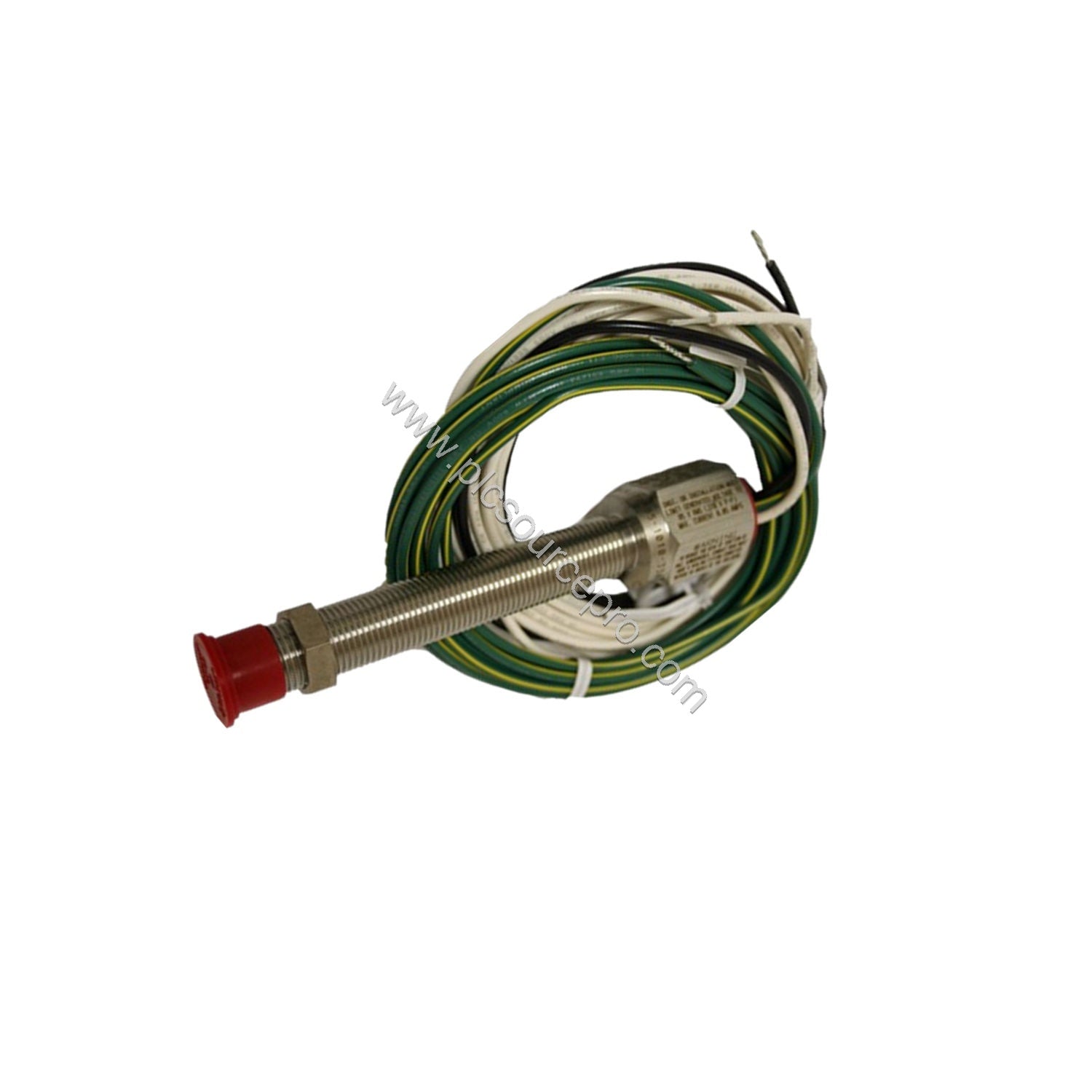

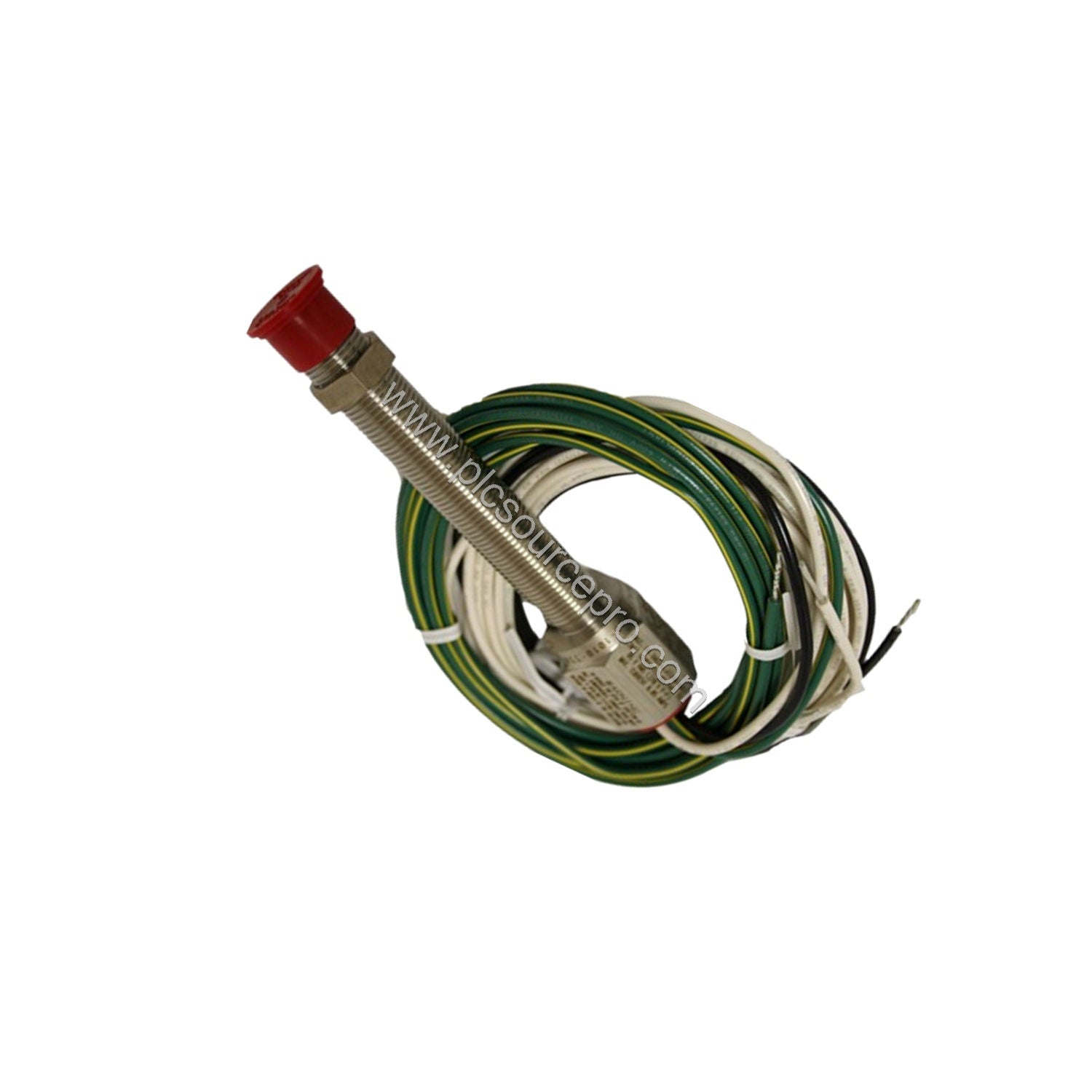

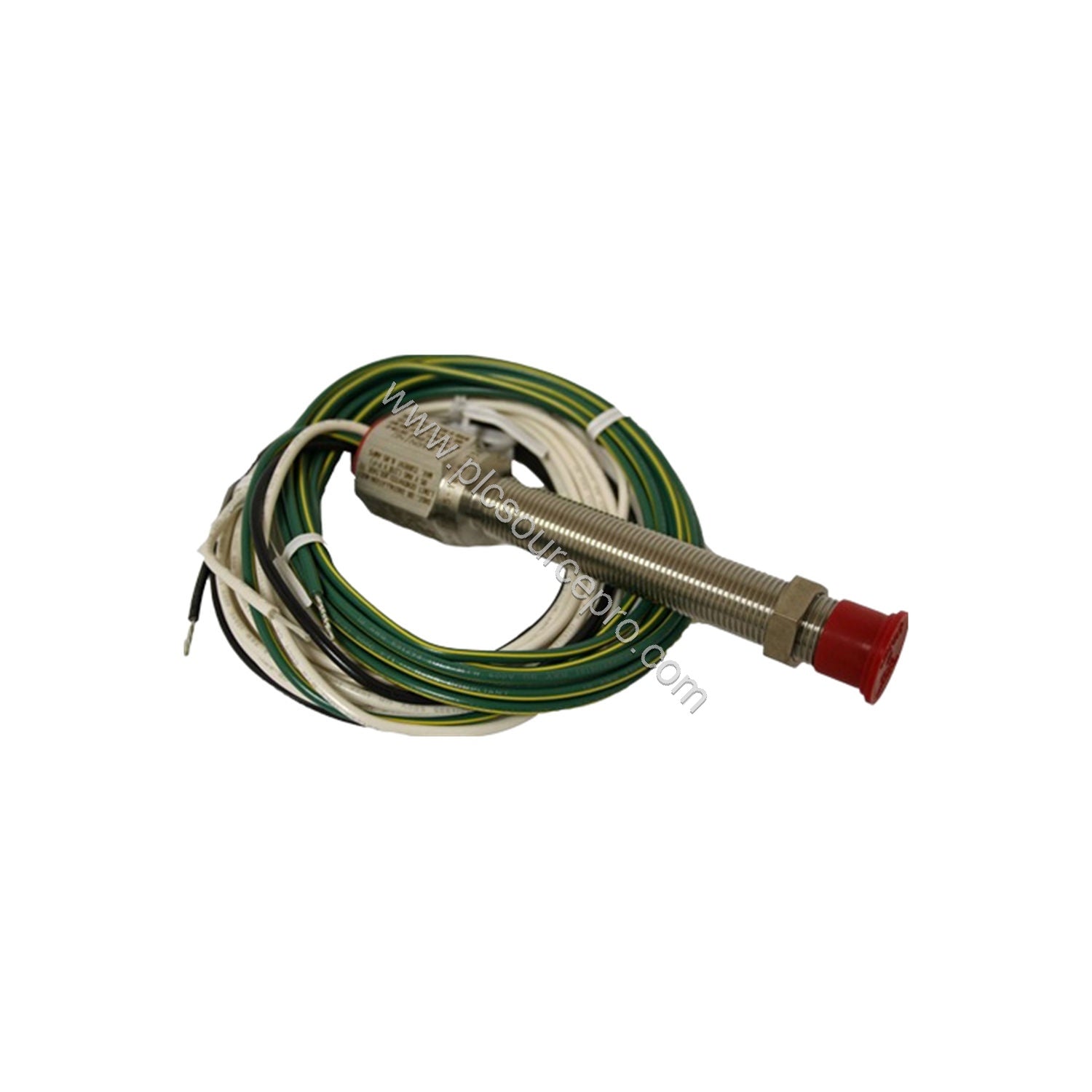

The AI-TEK 70085-1010-137 Industrial Automation Module is a high-precision speed sensor designed for demanding industrial environments. This AI-TEK 70085-1010-137 speed sensor delivers reliable rotational speed measurement, ensuring optimal machine performance and minimizing unexpected downtime. With its robust construction and wide operating temperature range of -55 to 107°C, it suits applications where reliability directly impacts operational costs.
Technical Specifications
Key parameters of the AI-TEK 70085-1010-137 include:
-
Thread Size: 5/8-18
-
Output Voltage (Standard): 40 V P-P
-
Output Voltage (Guarantee Point): 3.4 V P-P
-
DC Resistance: 130 ohms max.
-
Typical Inductance: 33 mH ref.
-
Operating Temperature: -55 to +107°C
-
Lead Length: 24 in (60.9 cm)
-
Net Weight: 3 oz. max.
These specs ensure the AI-TEK 70085-1010-137 provides consistent performance in harsh conditions, contributing to lower total cost of ownership.
Industry Applications
The AI-TEK 70085-1010-137 Industrial Automation Module excels in applications such as:
-
Conveyor Systems: Monitor motor speed to prevent belt slippage and reduce maintenance costs.
-
Pump Speed Monitoring: Ensure pumps operate at optimal speeds, minimizing wear and energy consumption.
-
Turbine Overspeed Protection: Provide accurate speed feedback for safety systems, reducing risk of catastrophic failure.
In each scenario, the AI-TEK 70085-1010-137’s reliable output and wide temperature range help achieve higher uptime and better ROI.
Installation Guide
Mount the AI-TEK 70085-1010-137 using its 5/8-18 thread. Ensure the sensor tip is positioned within 0.005 to 0.030 inches of the target gear or shaft. Connect wires per polarity: white lead positive. Use the 24-inch lead length to route to a junction box. Verify output voltage reaches at least 3.4 V P-P at the guarantee point for proper operation.
Selection Guide
When ordering the AI-TEK 70085-1010-137, verify compatibility with your system's voltage and mounting requirements. For large orders or technical support, contact PLC Source PRO. As a trusted supplier, ubest101 offers this exact AI-TEK 70085-1010-137 speed sensor with fast shipping and quality assurance.
