Product Introduction

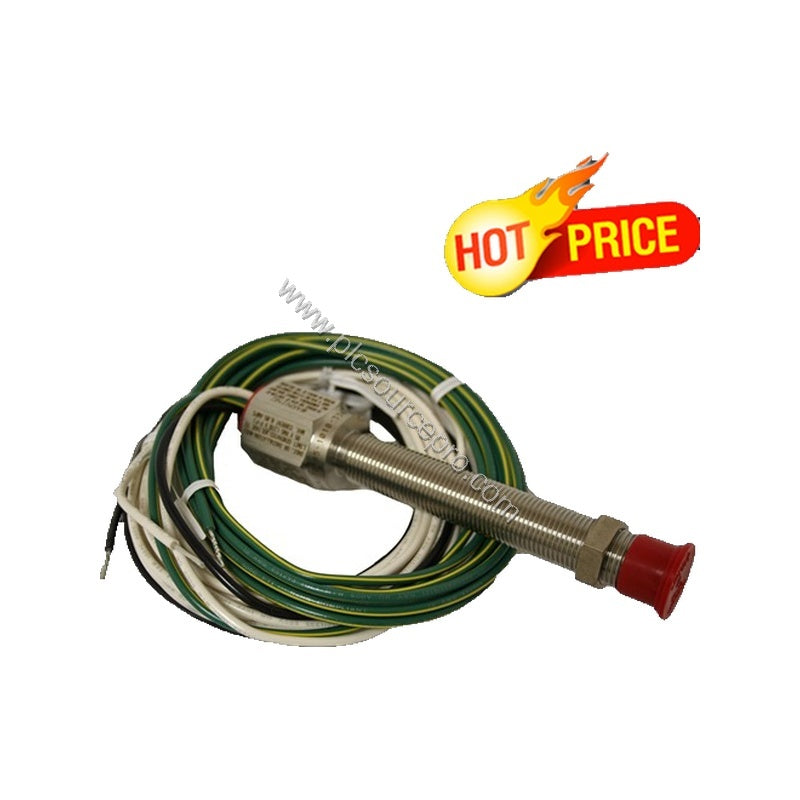

The AI-TEK 70085-1010-003 is a precision speed sensor designed for industrial automation applications. This AI-TEK 70085-1010-003 module provides accurate rotational speed measurement in harsh environments, making it an ideal replacement or upgrade for existing speed sensing systems. With a robust design and proven performance, the 70085-1010-003 ensures reliable operation in demanding conditions.
Technical Specifications
The following table outlines the key parameters of the AI-TEK 70085-1010-003 speed sensor:
| Parameter |
Value |
| Length |
2.625 inches |
| Output Voltage (Standard) |
40 V (P-P) |
| Thread |
5/8 - 18 UNF |
| DC Resistance |
130 ohms max. |
| Operating Temperature |
-55 to +107 °C |
| Shipping Weight |
2.1 kg |
| Thread Size |
5/8-18 |
| Output Guarantee Voltage (P-P) |
3.4 V |
| Termination |
Connector |
| Thread Length (in) |
2.625 |
| Sensor Length (in) |
3.75 |
| Agency Approval |
None |
| Temp Rating (deg C) |
-55 to 107 |
| Output Polarity |
Pin ‘B’ positive |
These specifications make the AI-TEK 70085-1010-003 suitable for direct replacement in systems requiring a 5/8-18 UNF threaded sensor with high output voltage and wide temperature tolerance.
Industry Applications
The AI-TEK 70085-1010-003 is well-suited for various industrial automation environments. It can be used for speed monitoring in conveyors, pumps, and motors where precise rotational feedback is critical. The sensor’s 5/8-18 thread and connector termination simplify integration into existing mounting assemblies. Its wide operating temperature range from -55 to +107 °C makes it a reliable choice for extreme cold or hot conditions.
Installation & Setup Guidance

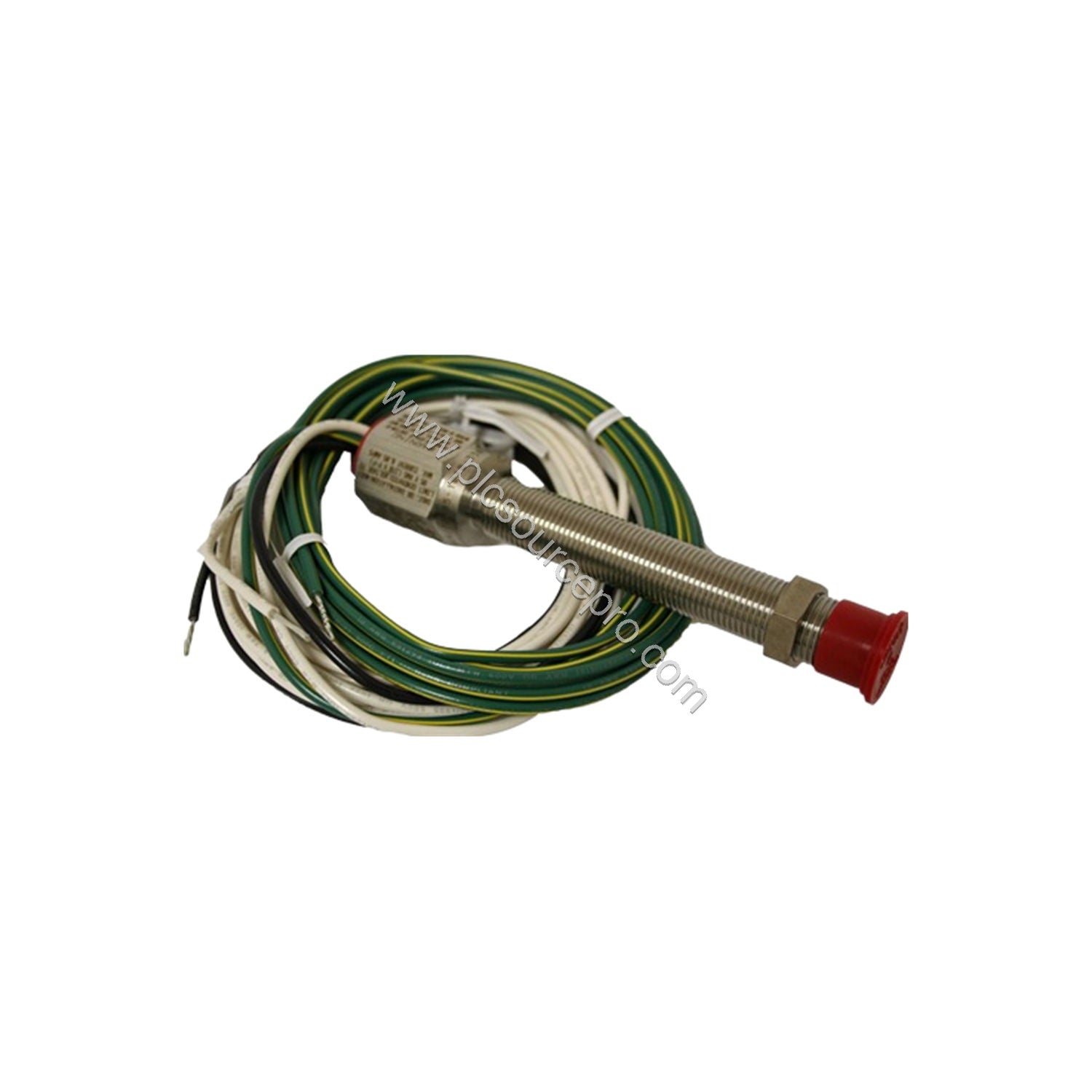

When installing the AI-TEK 70085-1010-003, ensure the sensor is mounted securely using the 5/8-18 UNF thread. The thread length of 2.625 inches should match the mounting depth to avoid mechanical interference. Use the connector termination for wiring, respecting output polarity: Pin ‘B’ is positive. Verify the gap between the sensor tip and the target is within the recommended range for optimal signal strength. Always test the output voltage after installation to confirm proper operation.
Maintenance & Reliability
Routine inspection of the AI-TEK 70085-1010-003 is minimal due to its solid-state design. Check the connector for corrosion and ensure the thread remains clean. The sensor’s DC resistance should stay within 130 ohms max; any significant increase may indicate degradation. The robust temperature rating reduces risk in thermal cycling environments. By following simple maintenance steps, the 70085-1010-003 delivers long service life and reduces unplanned downtime.
Selection Guide & Purchasing Advice
Before purchasing the AI-TEK 70085-1010-003, verify the thread size (5/8-18 UNF) and sensor length (3.75 inches) fit your application. Ensure the output voltage requirement matches your control system’s input range (40 V P-P standard). For a reliable supply of this sensor, consider PLC Source PRO at ubest101. We offer genuine parts with transparent specifications. Always confirm compatibility with your existing mounting hardware to avoid installation delays.
