Introduction to the AI-TEK 70085-1010-002

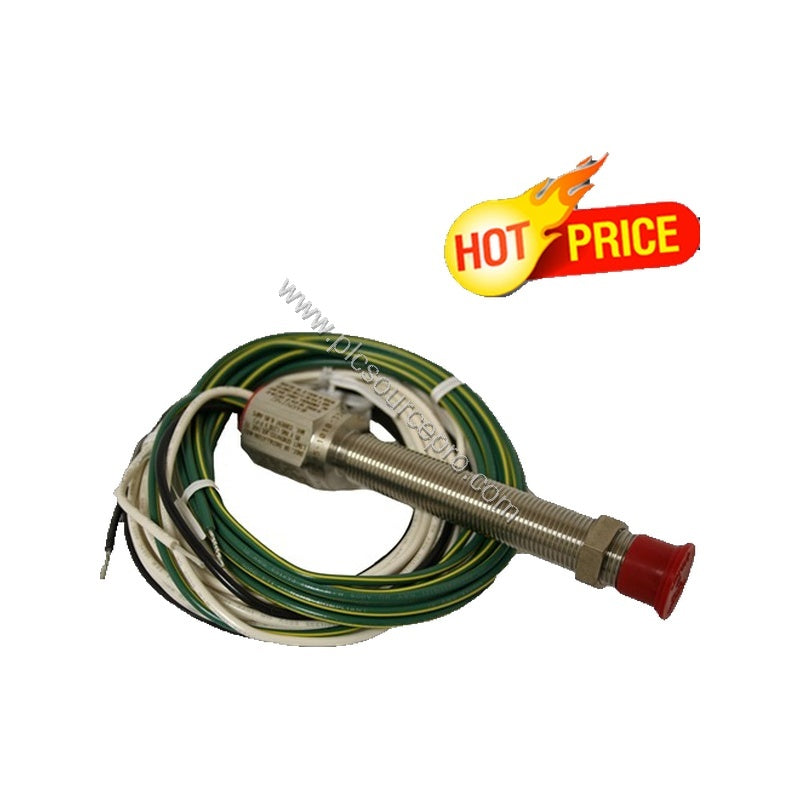

The AI-TEK 70085-1010-002 Industrial Automation Module is a robust speed sensor engineered for critical rotational speed monitoring. With a standard output voltage of 150 V P-P and a guaranteed point of 12.9 V P-P, this sensor ensures reliable signal transmission even in electrically noisy environments. Designed to withstand extreme temperatures from -55°C to +107°C, the 70085-1010-002 reduces the risk of failure in harsh industrial settings.
Technical Specifications Breakdown
The 70085-1010-002 offers a combination of high output and durable construction. Key parameters include:
-
Standard Output Voltage: 150 V (P-P)
-
Guarantee Point Output Voltage: 12.9 V (P-P)
-
DC Resistance: 1500 ohms max
-
Typical Inductance: 360 mH ref
-
Output Polarity: Pin 'B' positive
-
Operating Temperature: -55 to +107°C
-
Net Weight: 5 oz max
-
Thread Size: 5/8-18
-

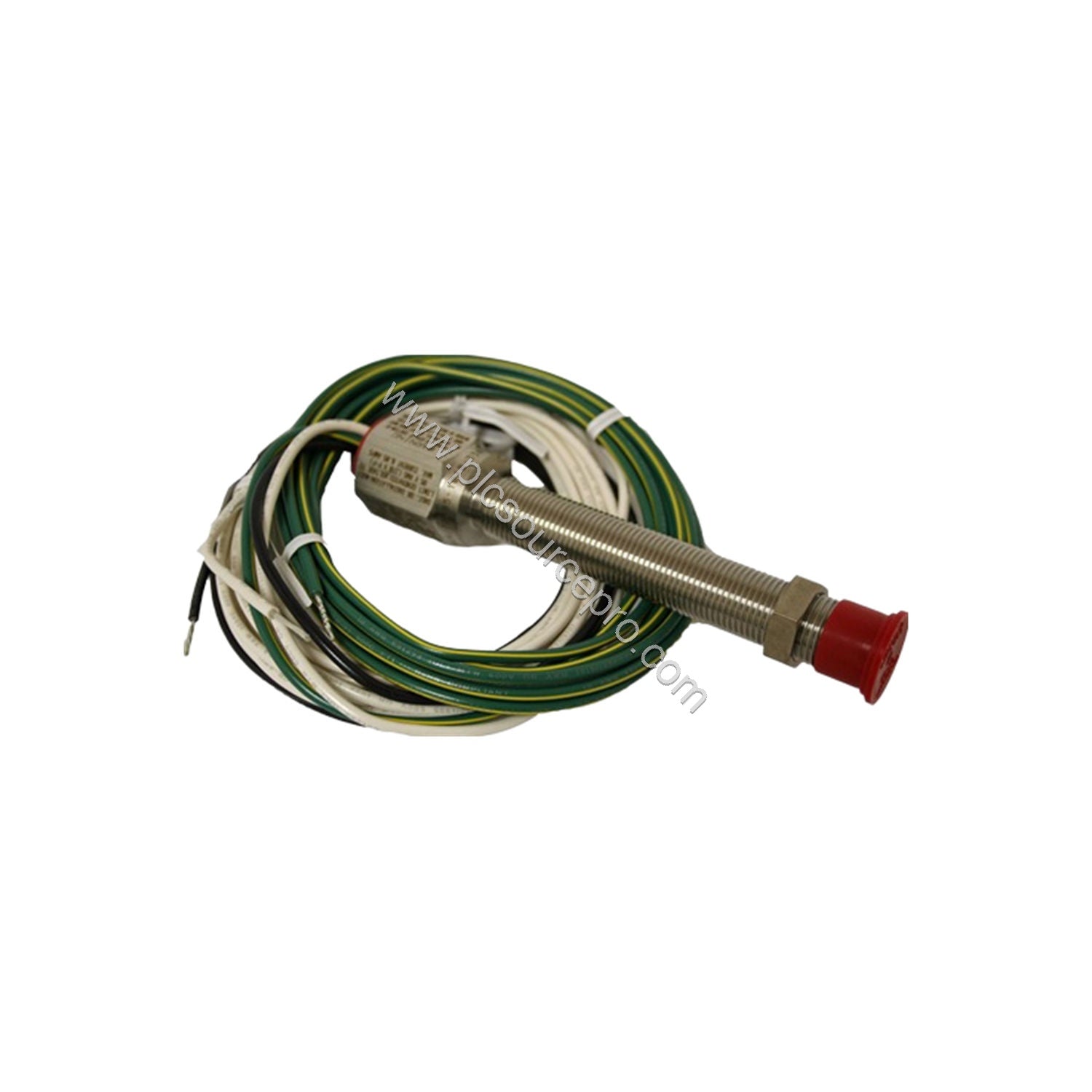

Termination: Connector
-
Thread Length: 1.125 inches
-
Sensor Length: 2.25 inches
-
Agency Approval: None
These specifications make the 70085-1010-002 a reliable choice for continuous operation.
Industry Applications
This AI-TEK 70085-1010-002 module excels in applications where sensor failure leads to costly downtime. In power generation turbines, the high output voltage ensures accurate speed feedback even with long cable runs. In oil and gas compressors, the wide temperature range allows deployment in both hot and cold environments. The sensor's robust design also suits heavy machinery in mining and manufacturing.
Installation & Setup Guidance
Proper installation of the 70085-1010-002 is straightforward. The 5/8-18 thread size requires a matching mounting hole. Ensure the connector termination is clean and securely mated. The sensor should be positioned within the recommended gap (typically 0.020" to 0.060" for magnetic pickups). Avoid overtightening to prevent damage. The output polarity (Pin 'B' positive) must be observed when connecting to monitoring systems.
Maintenance & Reliability
To maximize the life of your AI-TEK 70085-1010-002, perform periodic inspections. Check for physical damage, loose connections, and contamination buildup. The sensor's sealed construction minimizes environmental ingress, but regular cleaning is advised in dusty conditions. Given its wide temperature tolerance, thermal cycling stress is reduced, extending service intervals. Proactive replacement based on operational hours can prevent unexpected failures.
Selection Guide & Purchasing Advice
Before ordering the 70085-1010-002, verify your system's required thread size and sensor length. Confirm the output voltage range matches your input module specifications. For applications needing agency approval, note that this sensor carries no UL/CE marks. For reliable sourcing, consider PLC Source PRO as your trusted supplier.
