Product Introduction

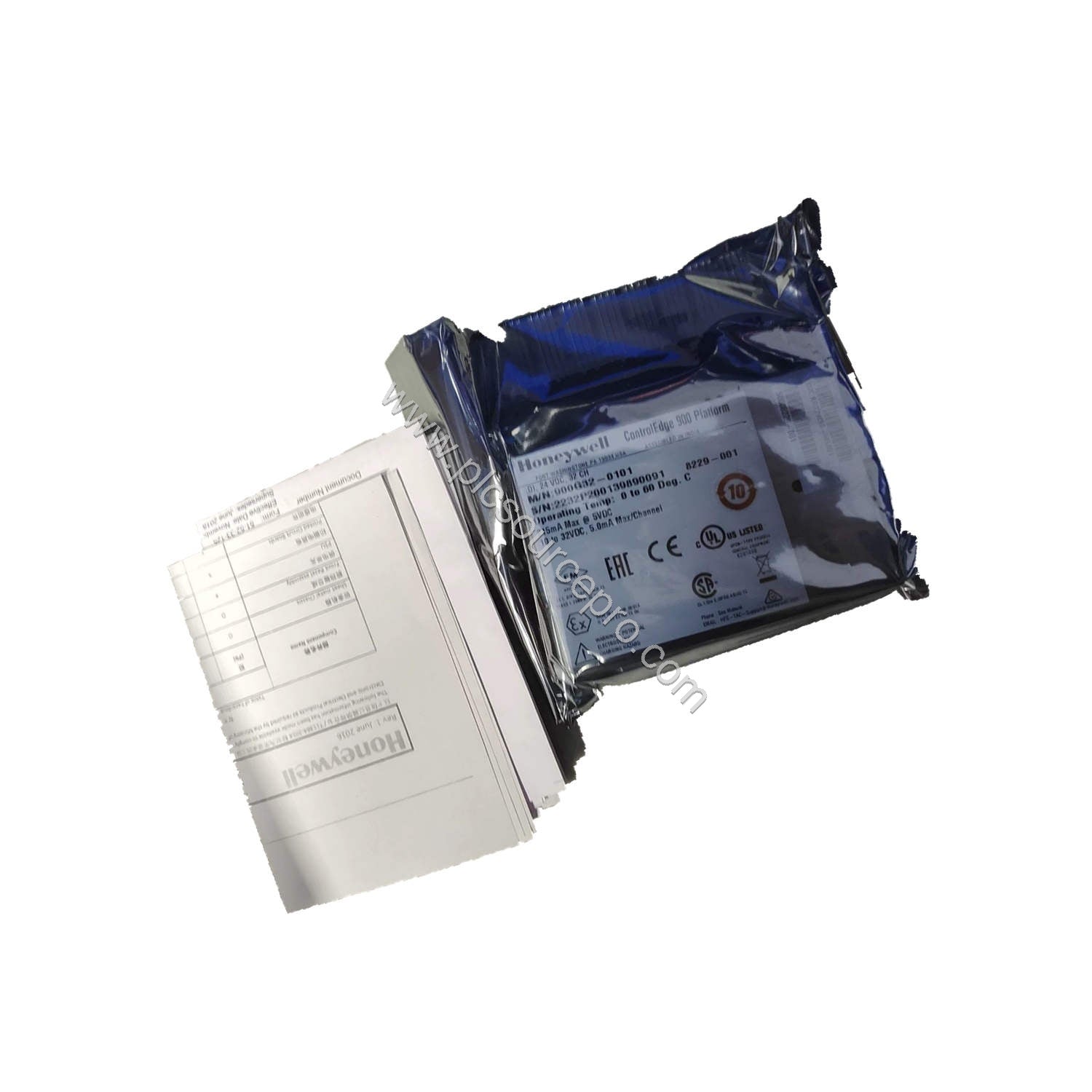

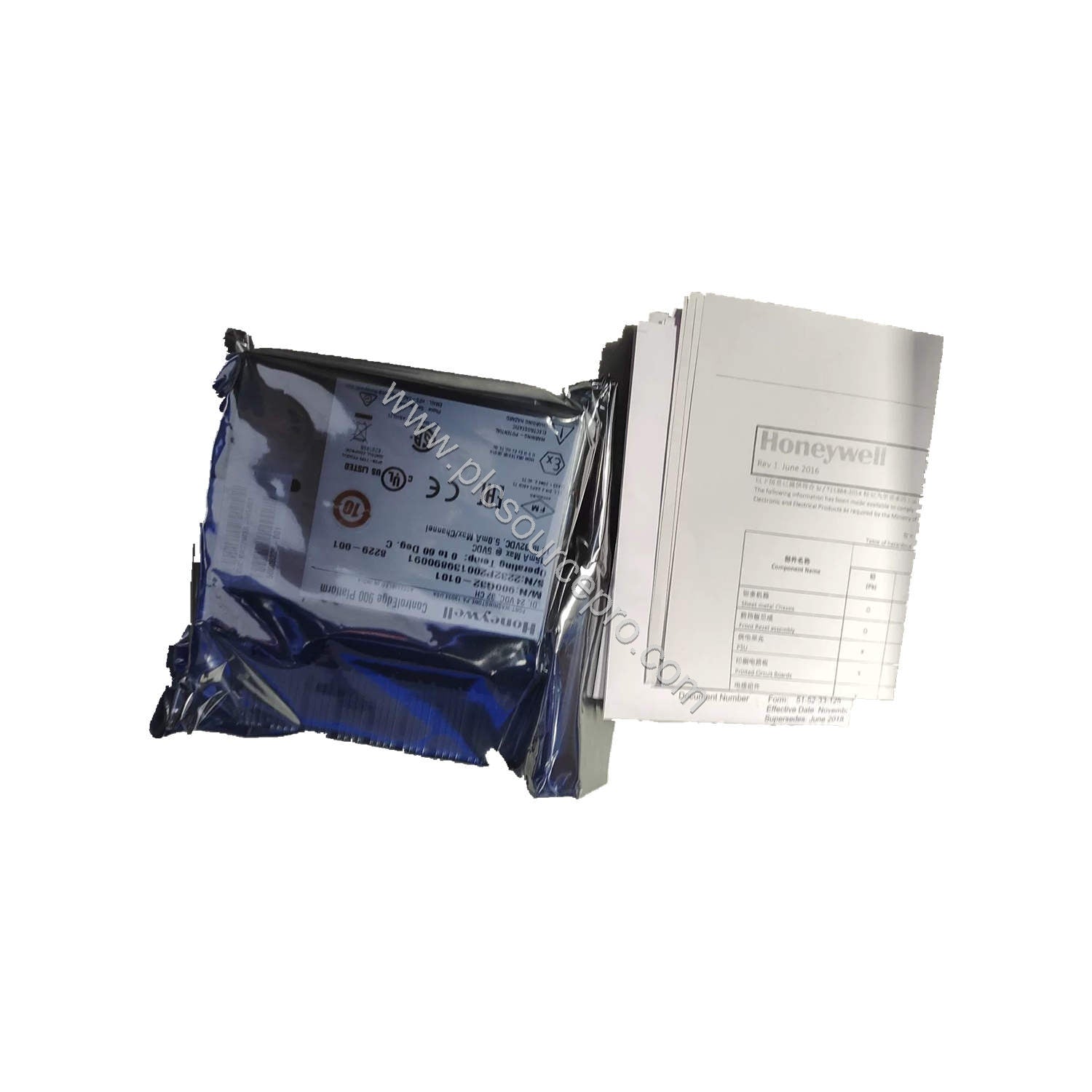

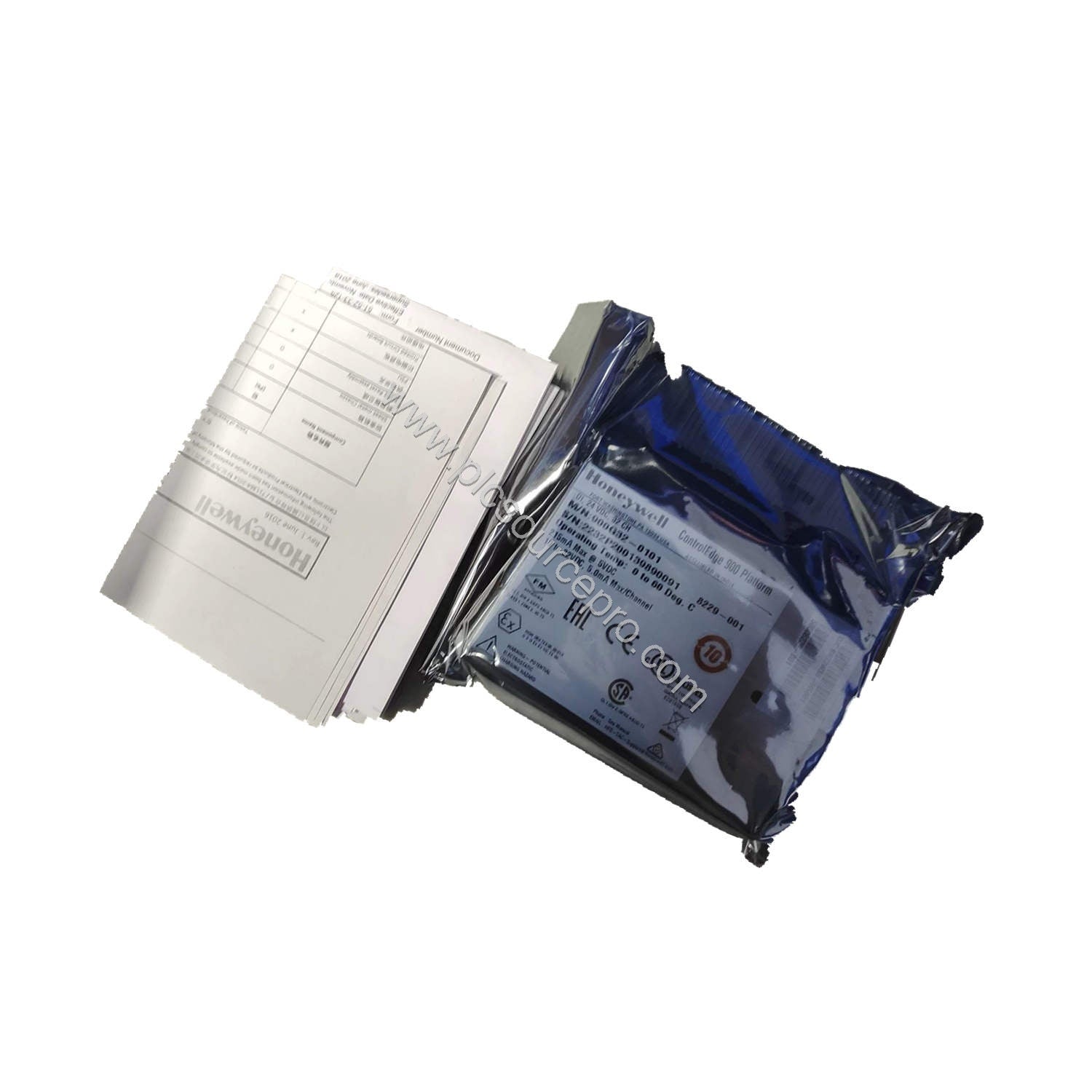

The Honeywell 900G04-0101 Digital Input Module provides sixteen individually isolated inputs, powered externally, for robust signal acquisition in industrial environments. Designed for both AC and DC applications, the 900G04-0101 accepts input voltages from 80 VAC to 264 VAC or 80 VDC to 125 VDC, making it versatile across global installations. A green LED state indicator per channel confirms input status, while blinking green and red LEDs indicate module scanning and diagnostics.
Technical Specifications Breakdown
Key parameters of the Honeywell 900G04-0101 include:
-
Inputs per Module: 16 channels with individual isolation
-
AC Input Voltage: 80–264 VAC (peak 264 VAC, 47–63 Hz)
-
DC Input Voltage: 80–125 VDC (peak 150 VDC)
-
On Voltage Level: 75 VAC / 75 VDC
-
Off Voltage Level: 20 VAC / 30 VDC
-
Input Impedance: 48 kΩ nominal
-
Galvanic Isolation: Input to input and input to chassis (350 VAC max)
-
Response Times: Off→On max 6 ms + line cycles; On→Off max 6 ms + 2 line cycles
These specs ensure reliable detection even in electrically noisy environments, with fast response for time-critical processes.
Industry Applications
The 900G04-0101 excels in applications requiring robust input sensing across wide voltage ranges:
-
Motor control centers: Monitoring start/stop pushbuttons and limit switches from 120 VAC or 125 VDC circuits.
-
Process skids: Reading valve position feedback or pressure switch signals in HVAC and chemical dosing systems.
-
Material handling: Detecting conveyor belt obstruction sensors operating at 240 VAC.
Individual isolation prevents fault propagation, reducing downtime—a key benefit for failure-prone environments.
Installation & Setup Guidance
The Honeywell 900G04-0101 requires a Euro-style 36-terminal terminal block for wiring. Ensure external power is applied to each input circuit—no internal supply. Use twisted shielded cables for long runs to minimize noise. Mount the module securely in a suitable backplane or rack. Verify voltage levels meet the on/off thresholds: 75 V for on, below 20 VAC or 30 VDC for off. The LED indicators assist during commissioning—green per channel confirms input ON, blinking green indicates healthy scanning, red signals diagnostics.
Maintenance & Reliability
Routine inspection of the Honeywell 900G04-0101 should focus on terminal connections and environmental conditions. Check for loose wires, corrosion, or dust accumulation that may affect isolation (rated 350 VAC). The module’s solid-state design offers high reliability with no mechanical wear. However, verify the controller’s scan time and backplane transmission delays when evaluating system responsiveness. Proactive monitoring of the diagnostic red LED reduces unplanned downtime—key to maximizing ROI in critical processes.
Selection Guide & Purchasing Advice
Before purchasing the 900G04-0101, confirm your system’s input voltage range (AC 80–264 VAC or DC 80–125 VDC) and that you have a compatible backplane. The module requires a Euro-style terminal block (not included). For replacement or upgrade projects, the 900G04-0101 is a direct fit for many Honeywell DCS and PLC systems. UBEST Automation (ubest101) stocks this module ready for shipment. Ensure your controller’s logic settings account for the optional state inversion feature to match your wiring configuration.
