Product Introduction

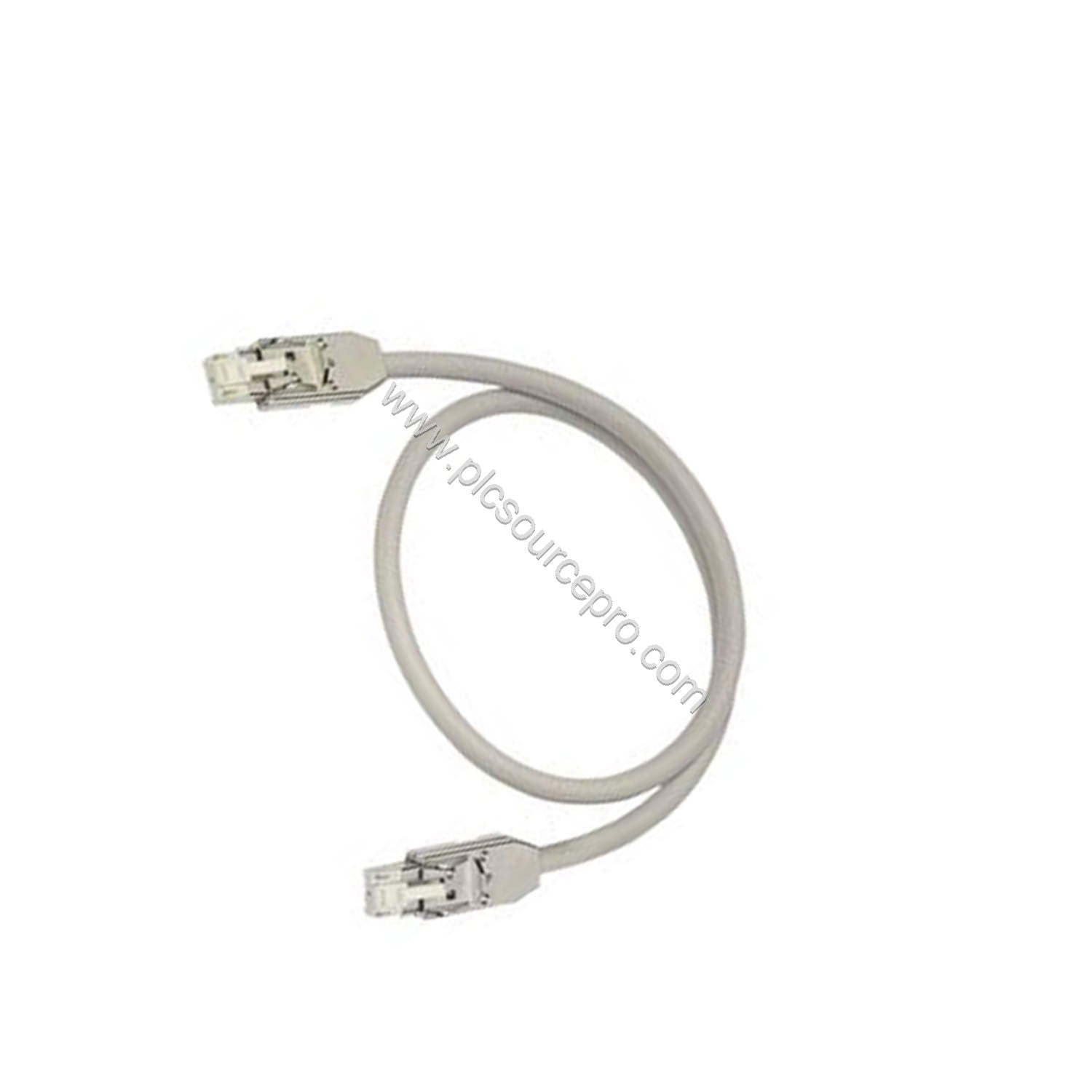

The Siemens 6SL3060-4AF00-0AA0 is a high-quality DRIVE-CLiQ cable designed for use with SINAMICS S120 drive systems in industrial automation environments. This 0.21-meter cable provides reliable communication between drive components, ensuring precise control for machine tool applications. Its IP20-rated connectors offer protection against solid objects larger than 12 mm, suitable for cabinet installations.
Technical Specifications Breakdown
| Specification |
Value |
| Product Type |
DRIVE-CLiQ Cable |
| Length |
0.21 m |
| Protection Rating |
IP20/IP20 |
| Net Weight |
0.023 kg |
| Color |
Grey |
| Compatible Systems |
SINAMICS S120 |
The Siemens 6SL3060-4AF00-0AA0 cable is pre-assembled with DRIVE-CLiQ connectors, providing a secure and straightforward connection. Its short 0.21-meter length makes it ideal for tight wiring spaces within control cabinets.
Industry Applications
This DRIVE-CLiQ cable is specifically designed for machine tool applications using SINAMICS S120 drives. Machine builders rely on the Siemens 6SL3060-4AF00-0AA0 for reliable communication between servo drives, motors, and control units. Common applications include CNC machines, milling centers, and precision manufacturing equipment where signal integrity is critical for positioning accuracy.
Installation & Setup Guidance
Installing the Siemens 6SL3060-4AF00-0AA0 is a simple plug-and-play process. The connectors are keyed to ensure correct orientation. Route the cable away from high-power wiring to avoid electromagnetic interference. Do not bend the cable tighter than the specified minimum bend radius to maintain signal quality.
Maintenance & Reliability
Proper cable maintenance extends the life of the Siemens 6SL3060-4AF00-0AA0. Inspect connectors periodically for dust or damage. Replace if any wear is visible. The IP20 rating means it is not suitable for wet environments. Store cables in a clean, dry area when not in use. Prevents signal degradation and system downtime.
Compatibility & Integration
The Siemens 6SL3060-4AF00-0AA0 is fully compatible with SINAMICS S120 drive modules. It connects to the DRIVE-CLiQ interface of components like Control Units, Motor Modules, and Sensor Modules. For other Siemens drives such as SINAMICS G120, use appropriate adapter cables. Verify the exact connector type and pinout before purchase.
Selection Guide & Purchasing Advice
When ordering the Siemens 6SL3060-4AF00-0AA0, confirm the required cable length and number of connectors. This 0.21-meter cable suits short distances between adjacent modules. For longer runs, choose the appropriate length variant. UBEST Automation offers this genuine Siemens cable with fast shipping. Check stock availability at ubest101 before placing large orders.
