Product Introduction

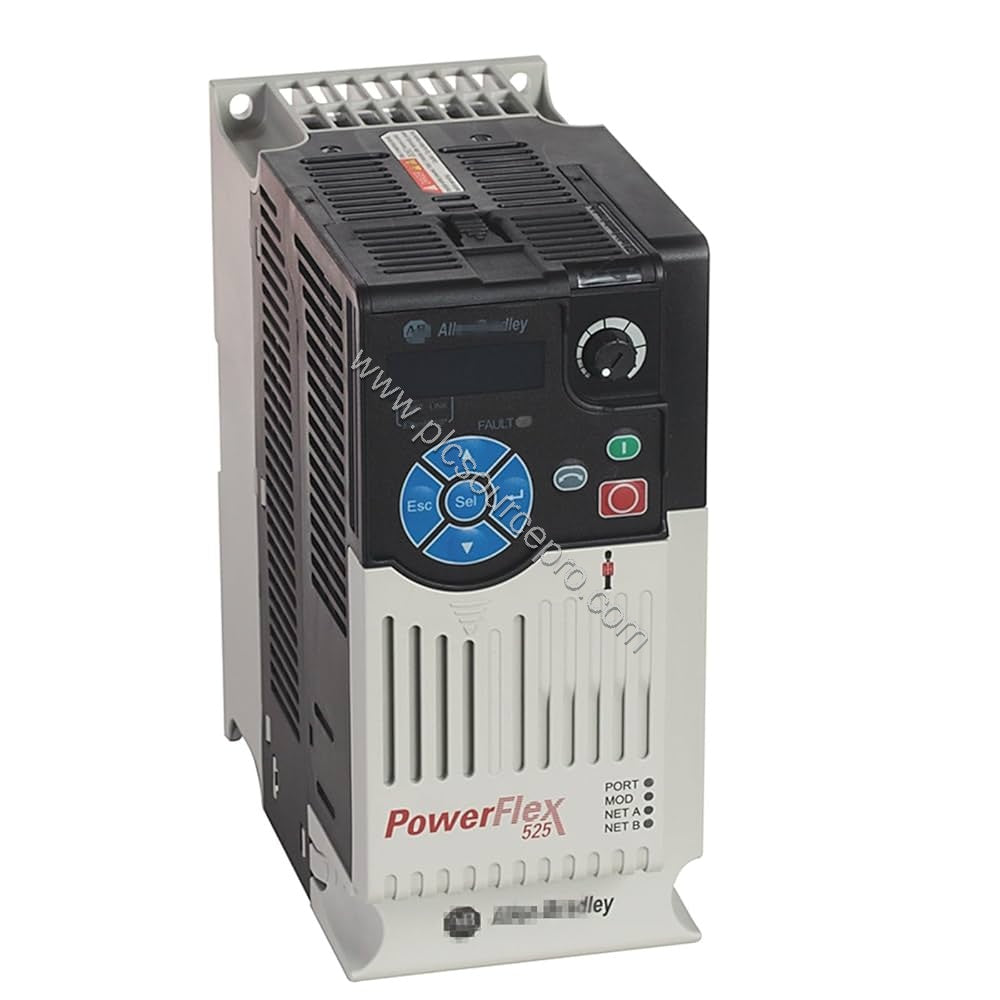

When industrial processes demand precise speed and torque control, the Allen-Bradley 25B-V6P0N104 PowerFlex 525 adjustable frequency AC drive delivers reliable performance. Part of the PowerFlex 525 family by Rockwell Automation, this drive is engineered for applications requiring modulation beyond simple on/off control. The Allen-Bradley 25B-V6P0N104 combines multiple control methods, integrated safety functions, and versatile communication options to address common failure modes like motor overheating, voltage fluctuations, and process instability.
Technical Specifications Breakdown
The Allen-Bradley 25B-V6P0N104 provides a robust set of specifications tailored for light industrial tasks. Key parameters include:
-
Output Power: 1.5 HP / 1.1 kW (Normal and Heavy Duty)
-
Output Current: 6.0 Amperes continuous
-
Input Voltage: 85-132 VAC, 3-Phase
-
Output Voltage: 0-230 VAC, 3-Phase
-
Frame Size: B (panel mount, IP20 / NEMA UL Open Type)
-
Control Methods: V/Hz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector, Permanent Magnet Motor Control
-
Embedded I/O: 7 discrete inputs, 1 N.O. and 1 N.C. relay output, 2 analog inputs (0-10 VDC/0-20 mA), 1 analog output (requires Series B hardware)
-
Integrated Safety: Safe-Torque Off (STO) functionality
-
Built-in Communication: Ethernet/IP and RS485
The 25B-V6P0N104 includes a built-in IGBT brake and standard HIM. It does not have an integrated EMC filter, making it suitable for installations where external filtering is preferred.
Application Scenarios & Failure Mode Prevention
The Allen-Bradley 25B-V6P0N104 is designed to prevent common VFD failures. Its Safe-Torque Off (STO) eliminates risks during maintenance by safely disabling motor torque. For applications like conveyor systems or fans, the sensorless vector control compensates for load variations, preventing motor stall or overheating. In printing or packaging lines, the closed-loop velocity control maintains consistent speed even with fluctuating line voltage—a typical cause of process defects. The built-in PID algorithm automatically adjusts analog control loops, reducing wear on mechanical components and extending system life.
Compatibility & Integration
The Allen-Bradley 25B-V6P0N104 integrates seamlessly with Rockwell Automation’s PACs via its embedded Ethernet/IP port. Compatible controllers include CompactLogix, GuardLogix, and ControlLogix. The drive also supports optional protocols like Profibus, Dual-Ethernet, and DeviceNet through the DSI port. This flexibility allows the 25B-V6P0N104 to fit into both new installations and legacy retrofit projects where communication upgrades are needed.
Troubleshooting & Common Issues
Common challenges with VFDs like input waveform distortion or overvoltage can be mitigated by the Allen-Bradley 25B-V6P0N104’s robust design. If the drive trips on overcurrent, check for motor insulation degradation or improper control method selection. The integrated IGBT brake handles rapid deceleration without causing DC bus overvoltage. For noise interference, ensure proper shielding on analog inputs. The point-stop feature stops the load at a consistent position without encoder feedback, useful for avoiding mechanical stress. Regular inspection of the IP20 enclosure’s cleanliness prevents overheating and ensures long service life.
For further assistance, consult the product literature or contact PLC Source PRO for technical support.
