Product Overview

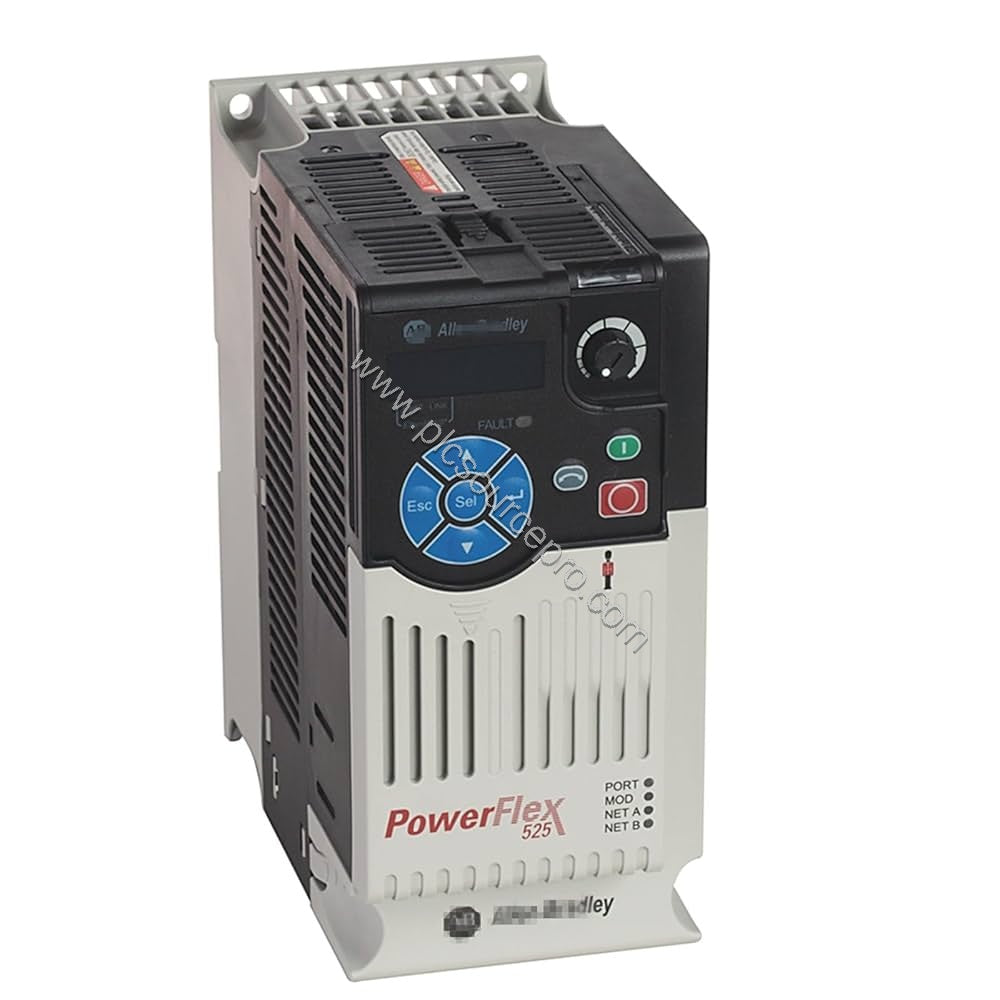

When optimizing motor control for energy efficiency and process reliability, the Allen-Bradley 25B-D017N114 adjustable frequency drive from the PowerFlex 525 series delivers precise speed modulation with embedded safety. Rated for 10 HP (7.5 kW) output at 17 A, this compact drive integrates EtherNet/IP and RS485 communication, enabling seamless data collection and remote configuration.
Technical Specifications
Key parameters of the Allen-Bradley 25B-D017N114 include:
-
Input Voltage: 323-528 VAC, 3-phase
-
Output Voltage: 0-460 VAC
-
Output Current: 17 A
-
Output Power: 7.5 kW / 10 HP (both normal and heavy duty)
-
Enclosure: IP20 / NEMA UL Type Open
-
Control Methods: V/Hz, Sensorless Vector Control, Closed Loop Velocity Vector, Permanent Magnet Motor control
-
Integrated Safety: Safe-Torque Off (STO)
-
Communication: EtherNet/IP, RS485
-
Mounting: Panel mount or DIN rail
-
Frame Size: Frame C
Industry Applications
In conveyor systems, the 25B-D017N114 provides energy-saving speed control that reduces mechanical wear and lowers power consumption. For pump and fan applications, its built-in PID and programmable parameters optimize flow while cutting electricity costs. The drive’s permanent magnet motor support also suits modern high-efficiency motors used in packaging and material handling.
Compatibility & Integration
The embedded EtherNet/IP port on the 25B-D017N114 simplifies connection to Allen‑Bradley controllers and HMIs, allowing real‑time monitoring and parameter adjustments. RS485 enables multi‑drop Modbus networks. The drive also accepts various communication option cards for backward compatibility, making it a flexible upgrade path for existing installations.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 25B-D017N114, verify your supply voltage and motor horsepower match the drive’s 10 HP rating. For installations requiring IP20 protection, ensure the enclosure prevents dust ingress. PLC Source PRO stocks this model with verified authenticity and fast shipping, supporting your maintenance and project needs.
