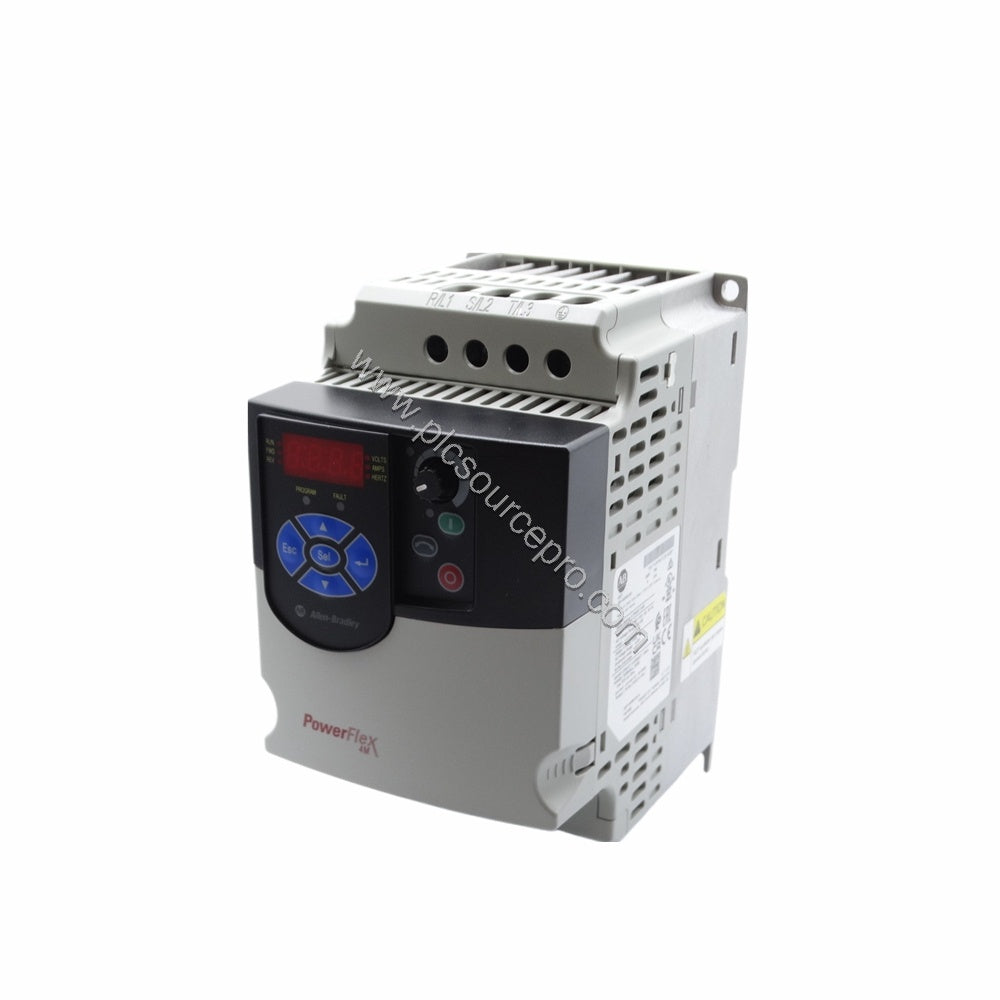

When industrial processes require precise motor control in a compact footprint, the Allen-Bradley 22F-V4P5N103 PowerFlex 4M Adjustable Frequency AC Drive delivers exceptional value. This drive provides 0.75 kW (1.0 HP) output at 4.5 Amps, handling single-phase input up to 120 VAC. Its space-saving design and advanced features reduce installation complexity and long-term operational costs.
Product Overview
The Allen-Bradley 22F-V4P5N103 is a cost-efficient micro drive from the PowerFlex 4M series. It operates with a single-phase input voltage range of 100–120 VAC (±10%) and delivers three-phase output from 0 to 230 VAC. With an IP20 open-type enclosure (B frame), this drive is built for panel mounting in clean environments. It includes a fixed keypad interface for local control and monitoring, and uses Volts per Hertz control for reliable speed regulation.
Key Technical Specifications
| Parameter |
Value |
| Output Power |
0.75 kW (1.0 HP) |
| Output Current |
4.5 A |
| Input Voltage (1-Phase) |
120 VAC (90–126 VAC range) |
| Input Current |
18.0 A (2.2 kVA) |
| Enclosure Type |
Open IP20 (NEMA/UL) |
| Input Phase |
One-Phase |
| Filter |
Without CE Compliant Filter |
| Frequency |
50/60 Hz |
| PWM Frequency |
Adjustable up to 10 kHz |
| Control Method |
Volts per Hertz |
| Speed Reference |
Isolated 0–10 VDC or 4–20 mA |
Real-World Applications
- Conveyor systems: The compact 22F-V4P5N103 easily fits into tight control cabinets, providing smooth acceleration and deceleration for material handling.
- Fan and pump control: With adjustable PWM frequency up to 10 kHz, the drive operates quietly while maintaining efficient speed regulation under varying loads.
- Packaging machinery: Its feed-through wiring design simplifies retrofitting, reducing downtime when upgrading older equipment.
Installation and Setup
Mount the Allen-Bradley 22F-V4P5N103 in an IP20-rated panel using the B frame dimensions. The drive features a DIP switch for selecting 24 VDC sink or source control logic. Use the removable MOV for operation on grounded or ungrounded distribution systems. The lay pre-charge circuit limits inrush current during power-up. For speed control, connect either an isolated 0–10 VDC signal or a 4–20 mA loop. Refer to manual 22F-UM001D-EN-E for detailed wiring diagrams and fault troubleshooting.
Reliability and Maintenance
The 22F-V4P5N103 offers excellent overload capacity and maintains torque across its speed range. Its adjustable PWM frequency reduces audible noise, making it suitable for noise-sensitive environments. The drive includes auto-reset and non-resettable fault detection; the integral keypad and LED indicators allow quick status checks. Regular inspection of cooling and electrical connections ensures long service life. The absence of an internal brake IGBT means external braking resistors may be required for high-inertia loads—plan accordingly.
Selection Guide
Before purchasing, verify that the input voltage matches your facility’s single-phase supply (100–120 VAC). Confirm the load requirements—the 22F-V4P5N103 delivers 0.75 kW and 4.5 A output. If CE compliance is mandatory, note that this unit ships without a CE compliant filter; an external filter may be needed. For a reliable source of genuine Allen-Bradley 22F-V4P5N103 drives and spares, trust PLC Source PRO as your industrial automation partner.
