Product Introduction

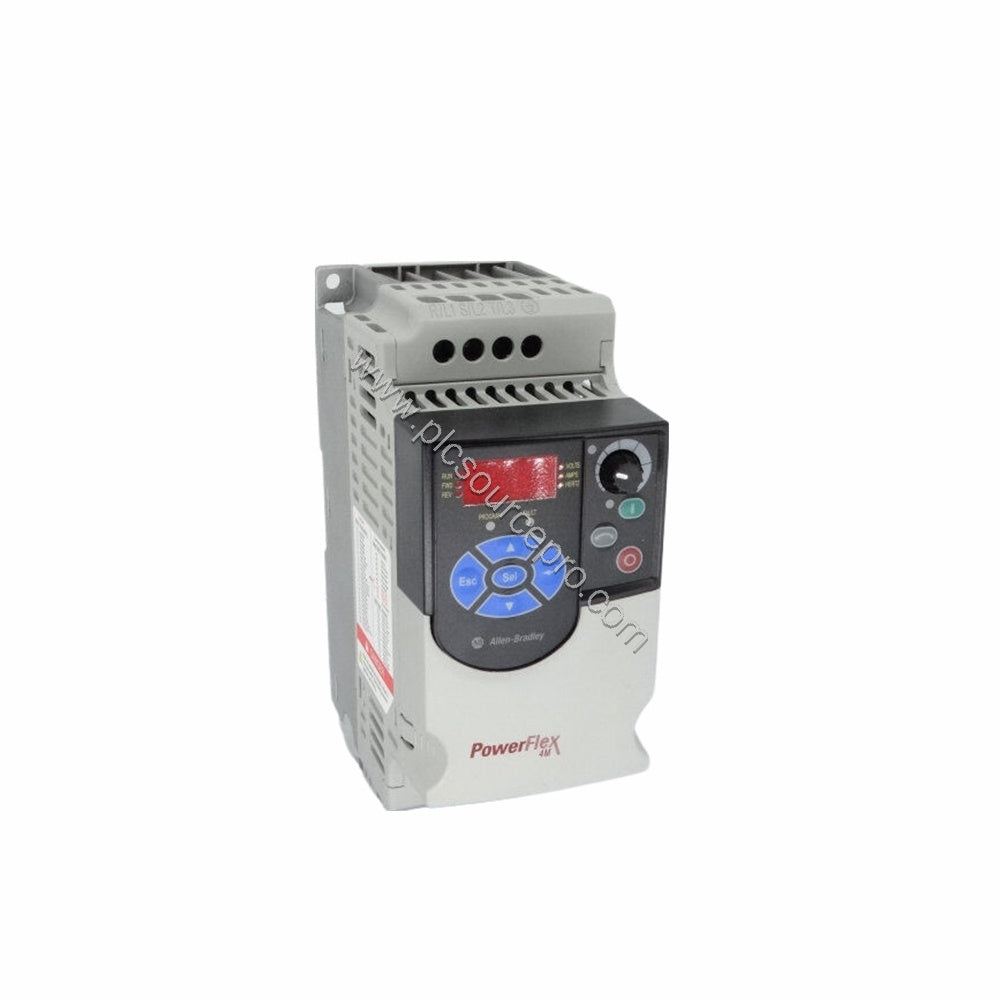

The Allen-Bradley 22F-V1P6N103 PowerFlex 4M adjustable frequency AC drive delivers compact and reliable motor control for industrial environments. It includes a built-in Human Interface Module (HIM) for local parameterization and fault diagnostics. The drive's protection circuitry monitors for overvoltage, undervoltage, motor stall, phase-to-ground faults, short circuits, overcurrent, and overload. This 22F-V1P6N103 unit operates from 100-120VAC single-phase input and provides 0-460VAC 3-phase output at 1.6 A and 0.2 kW (0.25 HP).
Technical Specifications Breakdown
Key specifications for the 22F-V1P6N103 are:
- Input: 100-120VAC, 1-Phase, 6.4 A
- Output: 0-460VAC, 3-Phase, 1.6 A
- Power: 0.2 kW (0.25 HP)
- Enclosure: IP20 / NEMA UL Open Type, Frame A, Panel Mount
- Control: Volts/Hertz
- Communication: Built-in RS485; optional BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, ControlNet
- I/O: 5 (7) sink/source discrete inputs, 1 Form C discrete output, 1 analog input (0-10VDC or 0-20mA)
- Overload: 150% for 60 seconds, 200% for 3 seconds
- Weight: 1.6 kg, Dimensions: 72 x 174 x 136 mm
These features make the 22F-V1P6N103 a robust choice for applications requiring precision speed control and fault resilience.
Industry Applications
Ideal for pump, fan, conveyor, and packaging machinery, the 22F-V1P6N103 provides programmable acceleration and deceleration. Its built-in diagnostics help minimize downtime by quickly identifying fault conditions like overheated heatsinks or phase faults. The drive's high efficiency (97.5%) contributes to energy savings in continuous operation.
Installation & Setup Guidance
Mount the drive on a 35 mm DIN rail in a panel. Ensure ambient temperature below 40°C for zero stacking. Control wiring length must not exceed 30 meters. External branch short circuit protection (fuses or circuit breakers) is required. Feed-through wiring simplifies installation.
Compatibility & Integration
The 22F-V1P6N103 integrates via its RS485 (DSI) port and supports optional protocols for network connectivity. For purchasing or support, contact PLC Source PRO. Ensure compatibility with your motor specifications and system requirements.
