Product Overview

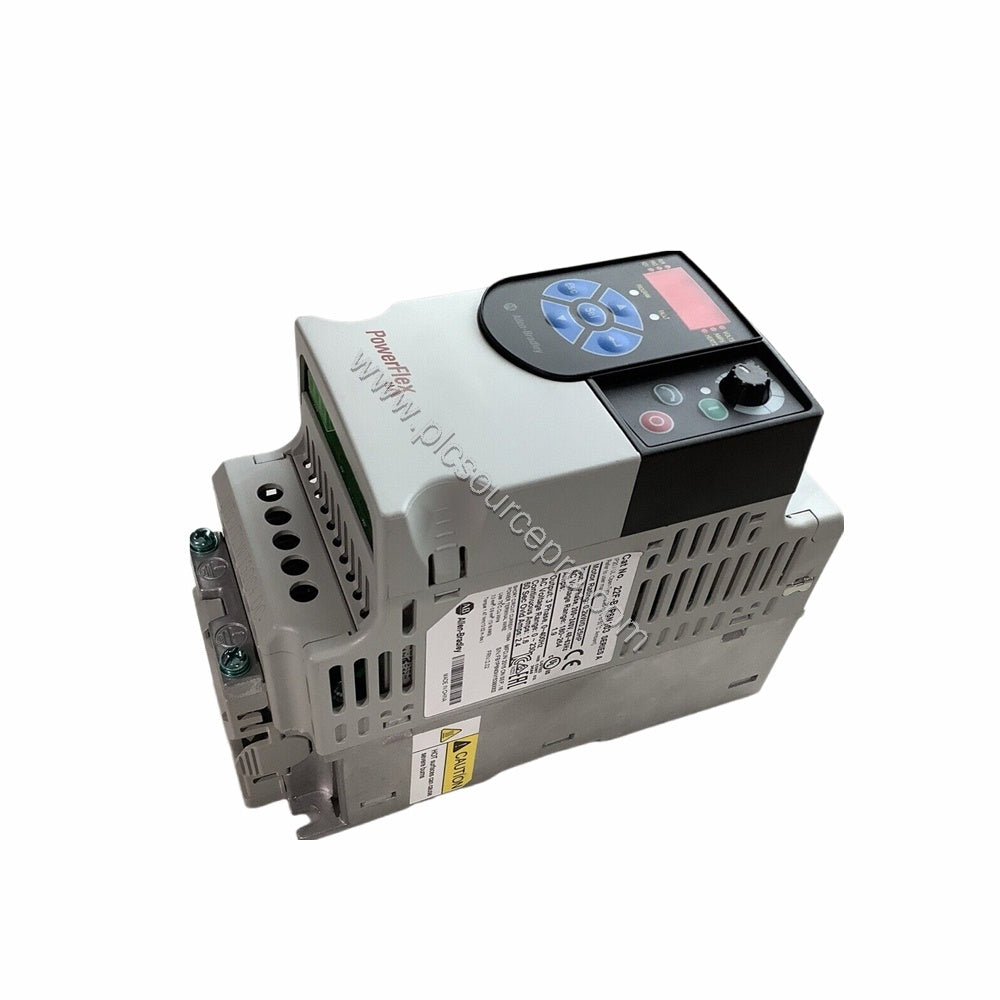

The Allen-Bradley 22F-D8P7N113 is a PowerFlex 4M series adjustable frequency drive designed for industrial automation. This Allen-Bradley 22F-D8P7N113 drive delivers 5 horsepower (3.7 kW) and handles 8.7 amps with a three-phase 480V AC input. Its enclosure is rated IP20 for basic dust and touch protection, and it includes an internal CE-compliant EMC filter to reduce electrical noise.
This 22F-D8P7N113 drive features an integral keypad with potentiometer and control keys, allowing immediate operation out of the box. The programming keys replicate standard PowerFlex logic, enabling the 22F-D8P7N113 to program other PowerFlex drives. A Basic Programming Group with 12 common parameters simplifies setup, and the RS-485 port connects to a PC for advanced configuration. The 22F-D8P7N113 also supports Bluetooth and DFI wireless communication.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22F-D8P7N113 |
| Product Line |
PowerFlex 4M |
| Amperage |
8.7 A |
| Wattage |
3.7 kW |
| Enclosure Type |
Open – IP20 |
| Input Power |
480 V AC, Three-Phase |
| Filter |
Internal CE Compliant Filter |
| Horsepower |
5 HP |
The Allen-Bradley 22F-D8P7N113 drive accepts a 3-phase input voltage range of 380–480 V AC (±10%) and provides a 0–460 V AC output with its internal filter. The drive uses Size B frame construction and a Volts per Hertz control strategy for reliable speed regulation even under heavy loads.
Applications
This 22F-D8P7N113 drive is well-suited for conveyor systems, pumps, fans, and other constant-torque applications. Its robust speed regulation and high torque at low speeds make it ideal for materials handling and packaging machinery. The built-in RS-485 port and wireless capability allow easy integration into distributed control architectures.
Installation and Setup
The Allen-Bradley 22F-D8P7N113 mounts in a standard panel with its Size B frame. For installation, ensure adequate ventilation around the IP20 enclosure. Use the DIP switch to select 24V DC sink or source control as needed. The removable MOV allows safe operation on ungrounded power systems. The onboard keypad provides quick access to the 12 common parameters via the Basic Programming Group.
Maintenance and Reliability
The 22F-D8P7N113 includes a precharge relay that limits inrush current during power-up, extending the life of internal components. The adjustable PWM frequency lets operators select quieter operation while maintaining efficiency. Regular inspection of the cooling fan and filter is recommended to ensure long service life. The removable MOV can be replaced if surge protection degrades.
Selection Guide
When selecting the Allen-Bradley 22F-D8P7N113, verify that your motor’s full-load amps match the 8.7 A rating and that your power supply meets the 480 V AC three-phase requirement. For assistance with sizing or compatibility, contact PLC Source PRO — your trusted source for industrial automation spares.
