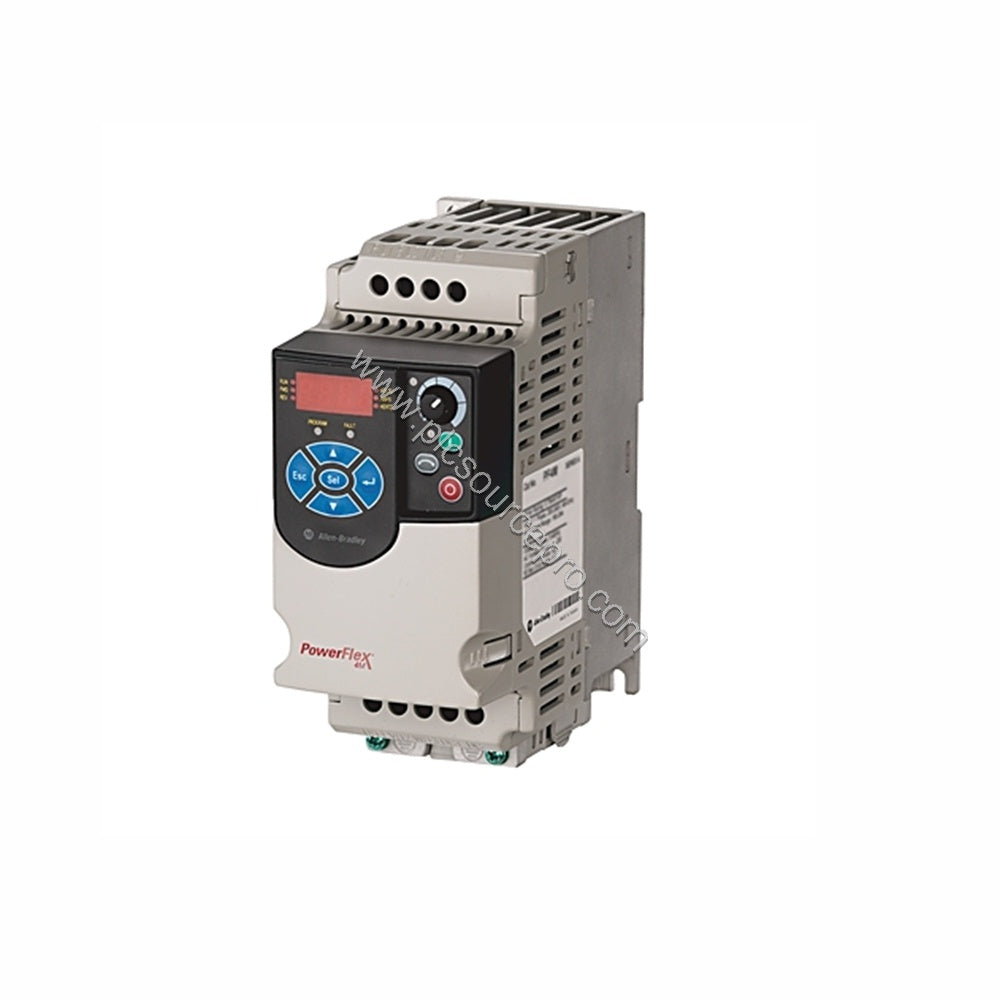

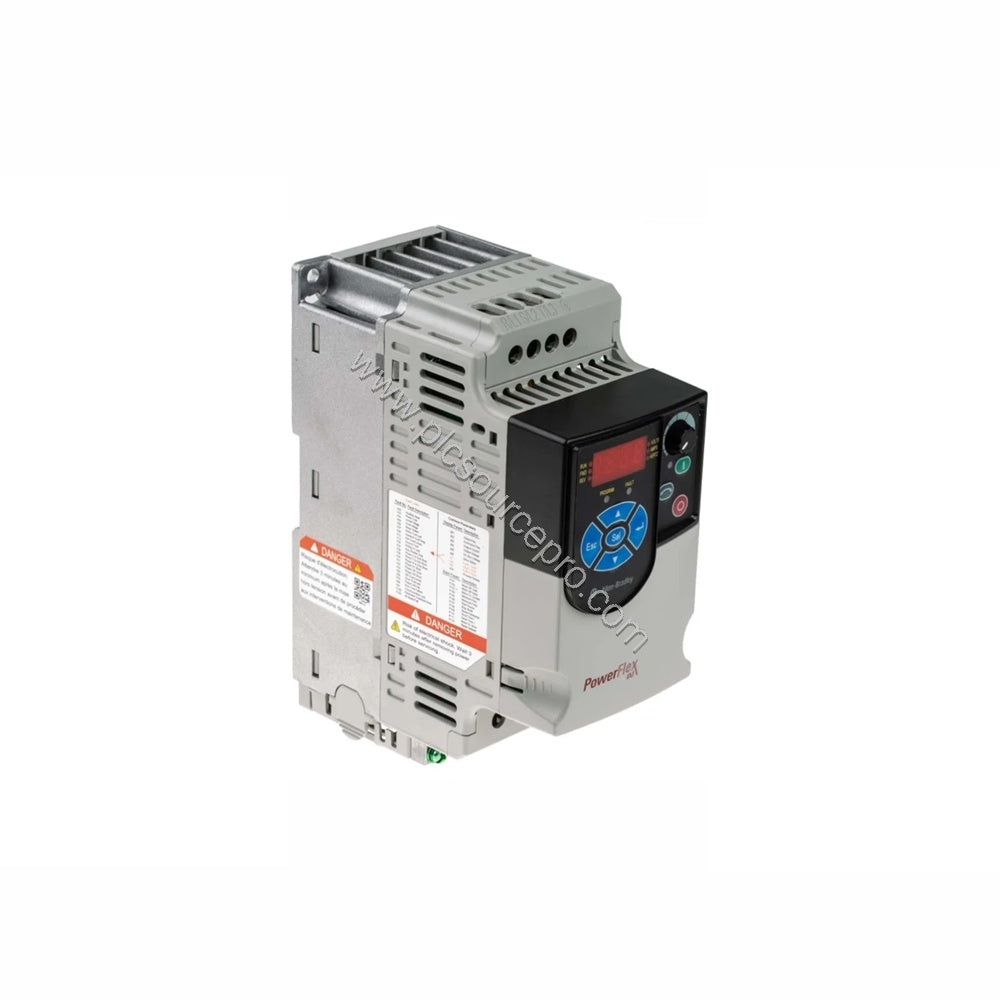

Product Overview
When replacing older, bulky drives in your control system, the Allen-Bradley 22F-D6P0N113 PowerFlex 4M Adjustable Frequency AC Drive offers a space-saving, easy-to-install solution. This 22F-D6P0N113 drive delivers 3.0 HP (2.2 kW) output and supports V/Hz control, making it ideal for upgrading legacy installations. Its compact Frame B design with IP20 enclosure fits directly on DIN rail or panel, reducing retrofit time and costs.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22F-D6P0N113 |
| Product Line |
PowerFlex 4M |
| Drive Category |
PowerFlex 4M Adjustable Frequency AC Drive |
| Input Voltage |
380-480 VAC, 3-Phase |
| Input Current |
6.2 A |
| Output Voltage |
0-460 VAC, 3-Phase |
| Output Current |
6.0 A |
| Output Power |
3.0 HP / 2.2 kW |
| Enclosure Type |
Open - IP20 / NEMA |
| EMC Filter |
Installed (Internal CE Compliant) |
| Braking |
Not installed |
| Interface Module |
Standard fixed keypad with LCD |
| Communication Ports |
RS485 |
| Control Method |
V/Hz Control |
| Discrete Inputs |
Five (5) 24 VDC |
| Analog Inputs |
Two (2) |
| Discrete Outputs |
Two (2) Form C relay |
| Frame Size |
B |
Industry Applications
The 22F-D6P0N113 drive excels in conveyor systems, packaging machinery, and material handling where precise speed control and compact form factor are critical. For instance, in a bottling line upgrade, this Allen-Bradley 22F-D6P0N113 drive provides smooth acceleration and deceleration, reducing mechanical stress and product damage. Its built-in EMC filter minimizes electrical noise, ensuring compliance with EN61800-3 in sensitive environments.
Compatibility and Integration
This 22F-D6P0N113 drive integrates seamlessly with Allen-Bradley controllers via the integral RS485 port supporting Modbus RTU and DSI protocols. It can be networked in a multi-drop configuration with other DSI-enabled devices. Use an external DSI communication kit to add protocols like DeviceNet or EtherNet/IP for advanced system integration.
Selection Guide
Before purchasing the 22F-D6P0N113, verify your input voltage (380-480 VAC, 3-Phase), required HP, and enclosure type (IP20). The drive supports zero-stacking at 40°C ambient. For reliable supply, choose PLC Source PRO for genuine Allen-Bradley components.
