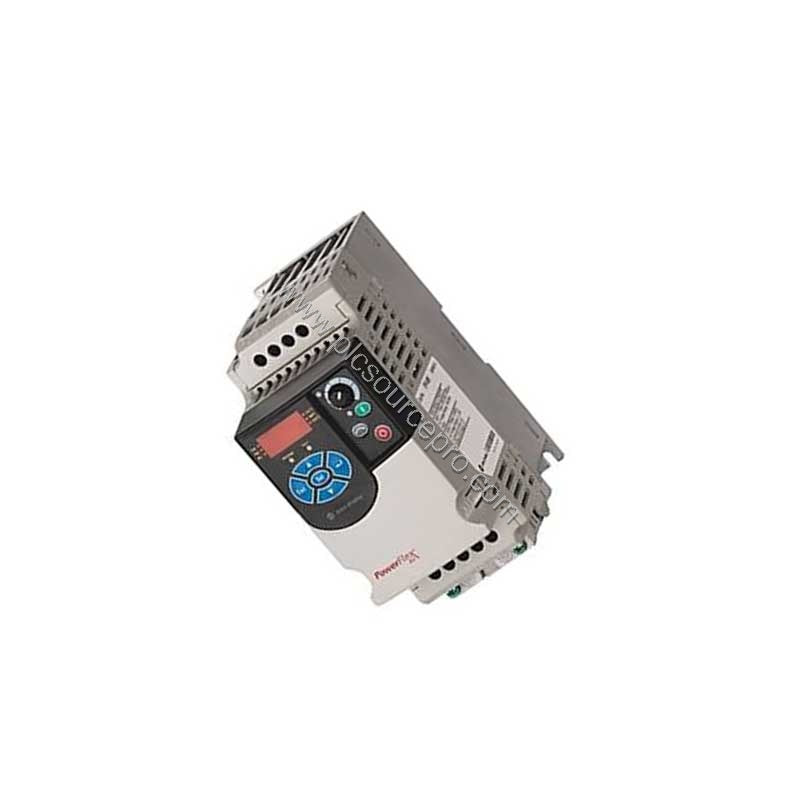

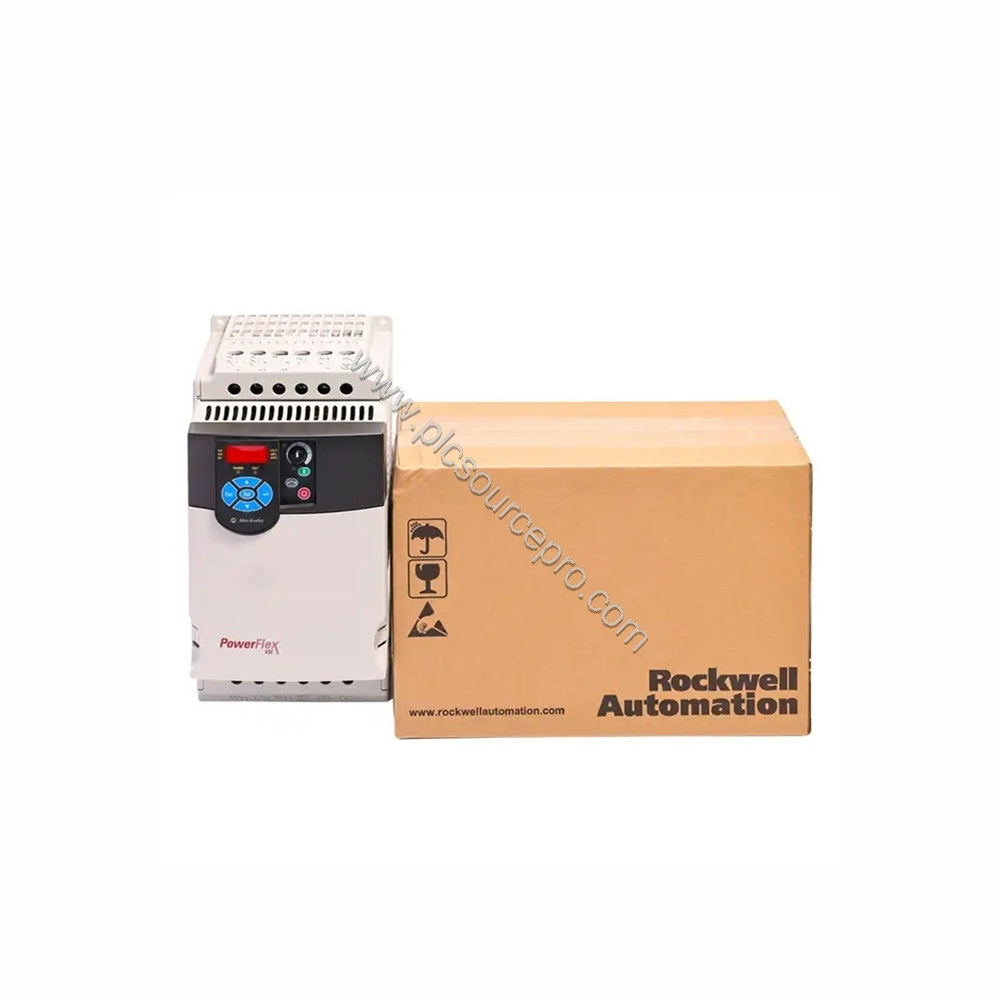

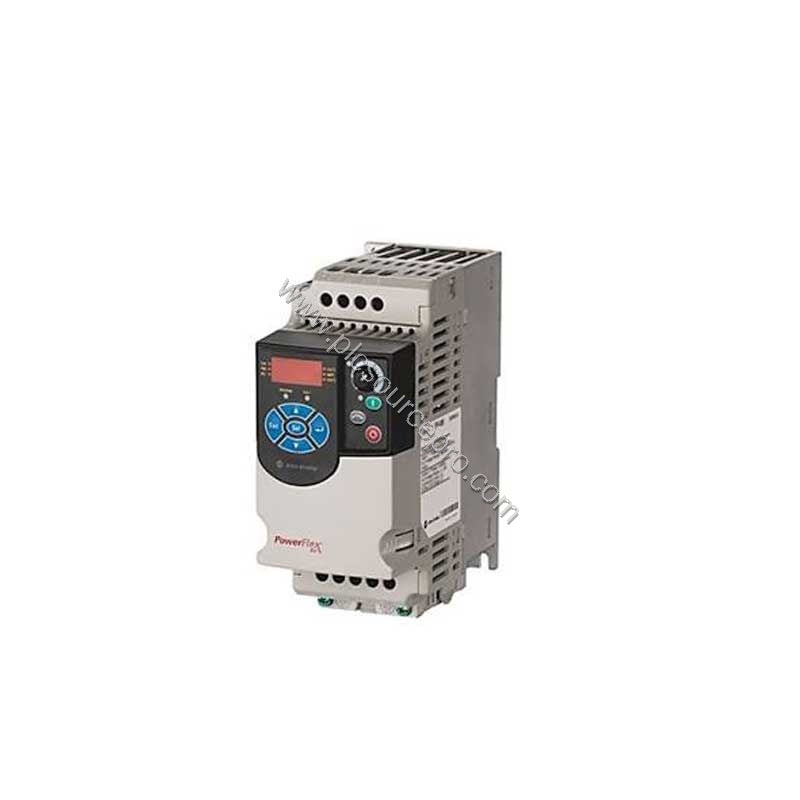

Product Introduction
Replacing older AC drives with the Allen-Bradley 22F-D024N104 PowerFlex 4M drive improves system efficiency and reliability. This compact adjustable frequency drive delivers precise motor speed control for a wide range of industrial applications. As part of the PowerFlex 4M series, the Allen-Bradley 22F-D024N104 offers a robust design with an input voltage range of 380-480VAC, 3-phase, and provides an output voltage of 0-460VAC, 3-phase. With a rated output current of 6.0 A and output power of 2.2 kW (3.0 HP), it is ideal for small to medium motor control tasks.
Technical Specifications
| Parameter |
Value |
| Input Voltage |
380-480VAC |
| Input Phase |
3-Phase |
| Input Current |
7.5 A |
| Output Voltage |
0-460VAC |
| Output Current |
6.0 A |
| Output Power |
2.2 kW (3.0 HP) |
| Enclosure Rating |
IP20 / NEMA UL Open Type |
| Frame |
C |
| Control Method |
Volts/Hertz |
| Built-in Communication |
RS485 |
| Optional Protocols |
BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, ControlNet |
The I/O configuration includes five (7) sink/source discrete inputs, one form C contact discrete output, and one analog input (0-10VDC or 0-20mA). This flexibility allows the Allen-Bradley 22F-D024N104 to interface with a variety of sensors and actuators.
Industry Applications
The Allen-Bradley 22F-D024N104 drive excels in conveyor systems, pumps, fans, and mixers where variable speed control reduces energy consumption and mechanical stress. When upgrading from fixed-speed motor starters, this drive offers seamless integration and immediate energy savings. For example, in HVAC fan applications, the drive adjusts airflow based on demand, cutting power usage by up to 30%.

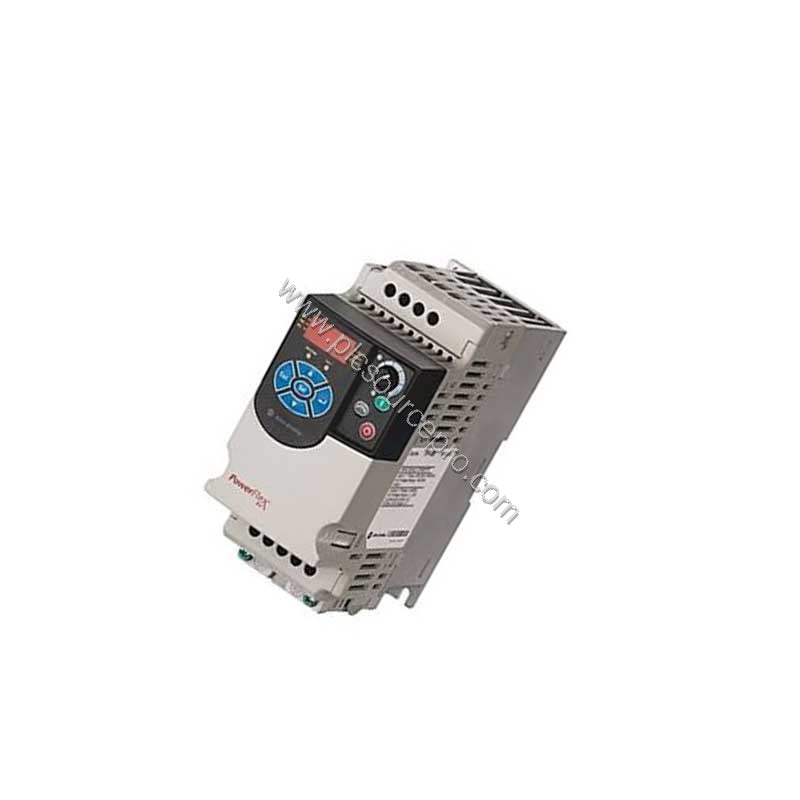

Installation & Setup Guidance
Mount the Allen-Bradley 22F-D024N104 on a flat panel with a minimum thickness of 1.9 mm. Maintain at least 76.2 mm clearance above and below the drive for natural convection cooling. The IP20 enclosure suits indoor environments free of dust and moisture. Use the integral LCD keypad (optional remote keypad) for configuration. The drive supports zero-stacking installation to save panel space.
Compatibility & Integration
The built-in RS485 port enables multi-drop connections for networked control. For advanced integration, install communication adapters supporting DeviceNet, EtherNet/IP, PROFIBUS DP, LonWorks, BACnet, or ControlNet. This makes the Allen-Bradley 22F-D024N104 compatible with Rockwell Automation controllers and third-party systems, simplifying upgrades in mixed-vendor plants.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 22F-D024N104, verify your motor’s full-load amps (≤6.0 A) and voltage (380-480VAC). Confirm the enclosure rating meets your environment. For accessories like keypads or communication cards, check compatibility with the PowerFlex 4M series. For genuine parts and fast delivery, rely on PLC Source PRO.
