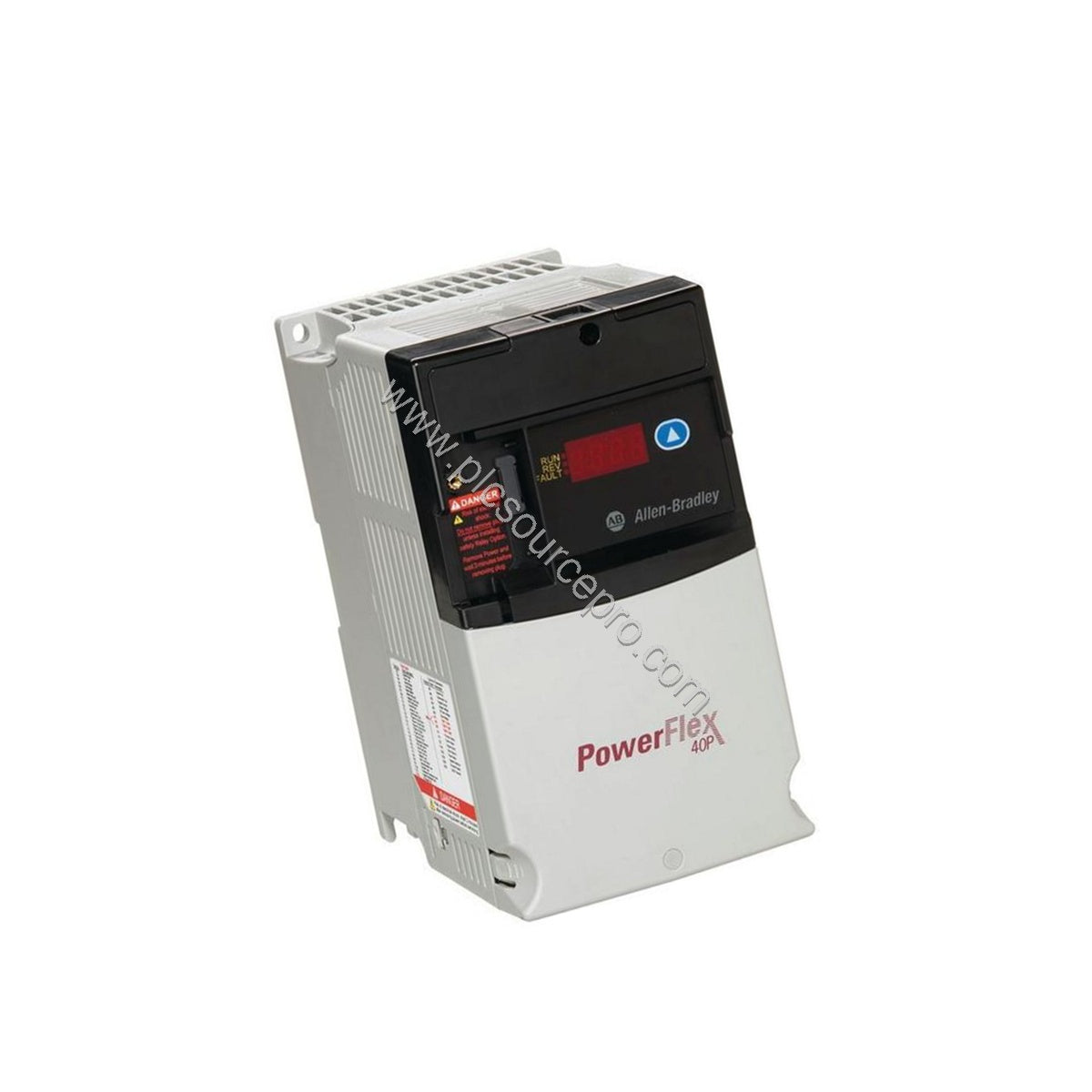

Product Overview: Allen-Bradley 22D-E9P9N104 PowerFlex 40P
Part of the PowerFlex 40P series, the Allen-Bradley 22D-E9P9N104 adjustable frequency AC drive delivers reliable motor control for industrial automation. This 22D-E9P9N104 unit operates at 600 Volts AC, three-phase, with a 9.9 Amp output and 7.5 HP (5.5 kW) rating. Designed as a direct upgrade for older AC drives, it offers a compact frame size C, panel mount IP20 (NEMA Type Open) enclosure, and a display with reset only. Without a CE compliant filter, this drive is ideal for environments where filter requirements are not needed.
Technical Specifications
| Parameter |
Value |
| Input Power |
600 Volts AC, Three-Phase |
| Output Current |
9.9 Amps |
| Horsepower |
7.5 HP (5.5 kW) |
| Frame Size |
C |
| Enclosure |
Open NEMA Type – Panel Mount (IP20) |
| Display |
With Reset Only |
| Filter |
No CE Compliant Filter |
| Voltage Tolerance |
+/- 10% |
| Frequency Tolerance |
48 to 63 Hertz |
| Ambient Temperature |
-10 to 40 °C (14 to 104 °F) |
Industry Applications
The Allen-Bradley 22D-E9P9N104 PowerFlex 40P drive excels in upgrading older conveyor systems, packaging machinery, fiber-spinning lines, and diverters. Its compact design saves panel space while providing precise speed control. In packaging applications, the 22D-E9P9N104 ensures smooth start/stop profiles, reducing mechanical stress. For fiber-spinning, its frequency tolerance maintains consistent tension.
Installation & Setup Guidance
When installing the 22D-E9P9N104, leave adequate vertical clearance between drives to allow the heatsink to dissipate heat properly. Ensure proper grounding to minimize electromagnetic interference. The panel-mount IP20 enclosure requires a dry, non-corrosive environment—avoid exposure to particles, chemicals, or corrosive liquids. Use the display with reset for local control and diagnostics.
Maintenance & Reliability
Routine inspection of the 22D-E9P9N104 includes checking for dust buildup on the heatsink and verifying all power connections are tight. The drive’s robust design operates reliably in temperatures from -10 to 40 °C. As an upgrade option, this model reduces downtime compared to older drives, offering long-term cost savings. For extended life, maintain ambient temperature and avoid overload conditions.
Selection Guide & Purchasing Advice
Before ordering the Allen-Bradley 22D-E9P9N104, verify your input voltage (600VAC, three-phase) and horsepower requirements (7.5 HP). Frame size C suits most panel layouts. This drive ships without a CE filter; confirm local compliance needs. PLC Source PRO stocks genuine Allen-Bradley parts—contact us to confirm availability and compatibility with your system.
Upgrade your automation line today with the reliable, space-saving Allen-Bradley 22D-E9P9N104 PowerFlex 40P drive.
