Product Introduction

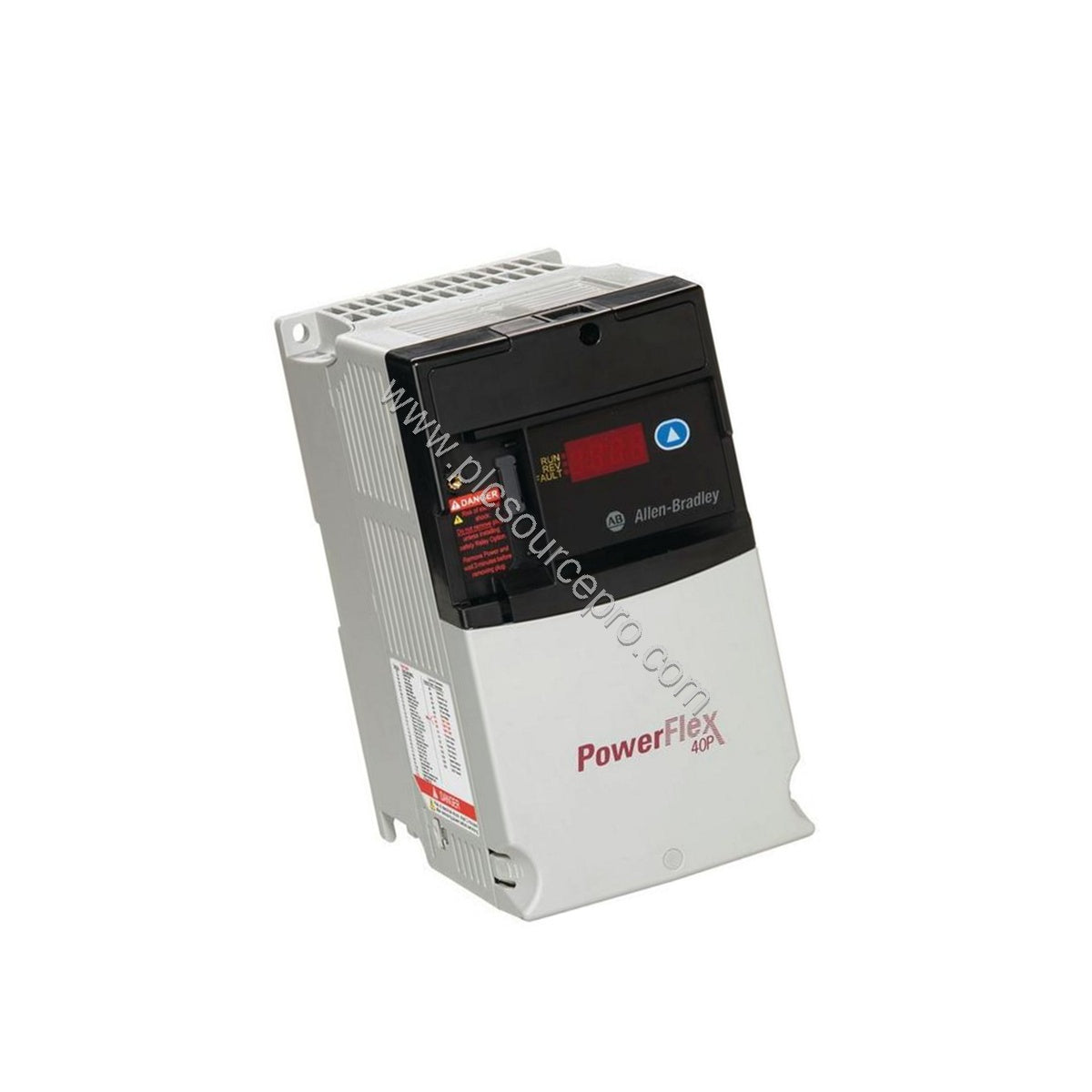

When your production line demands precise motor control and energy efficiency, the Allen-Bradley 22D-E9P9H204 PowerFlex 40P adjustable frequency drive delivers. This industrial automation module is designed for three-phase 600 VAC input, providing 9.9 Amps output current and 7.5 Horsepower (5.5 kW) maximum power. Part of the trusted PowerFlex 40P series, it offers a cost-effective solution for packaging machines, fiber spinning, and smart conveyor systems.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22D-E9P9H204 |
| Product Line |
PowerFlex 40P |
| Amperage |
9.9 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type -Plate Mount (IP20) |
| Input Power |
600 Volts AC |
| Horsepower |
7.5 HP |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
Industry Applications
The Allen-Bradley 22D-E9P9H204 drive excels in applications requiring variable speed control with minimal downtime. Use it on packaging lines to synchronize conveyors, in fiber spinning machines for precise tension control, or on smart conveyor systems that demand energy savings. Its integral RS-485 communications enable easy programming from a PC, while the autotune feature adapts the drive to motor characteristics automatically, reducing setup time and improving process quality.
Installation & Setup Guidance
Mount the Allen-Bradley 22D-E9P9H204 in a clean, dry location with adequate ventilation. The Size C frame allows for plate-mount (IP20) installation. Connect three-phase 600 VAC input power to the designated terminals and ensure proper grounding. Use the integral reset button and four-digit display for local configuration. For remote operation, connect the optional NEMA Type 4X keypad or a PC via RS-485. The drive supports multi-drop network configurations for centralized control.
Maintenance & Reliability
To maximize return on investment, inspect the Allen-Bradley 22D-E9P9H204 drive periodically. Check for dust buildup on the heatsink and ensure cooling fans are unobstructed. The dynamic braking capability uses low-cost external brake resistors—verify resistor condition during routine maintenance. With sensorless vector control and slip compensation, the drive maintains consistent torque and speed even under varying loads, extending motor life and reducing unplanned outages.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system requires a 3-phase 600 VAC input and that the output current (9.9 A) matches your motor rating. For applications needing CE compliance, note that this model does not include a built-in filter; order an external filter separately if required. PLC Source PRO offers genuine Allen-Bradley 22D-E9P9H204 drives with fast shipping. Contact our technical team to confirm compatibility with your existing control setup.
