Product Overview

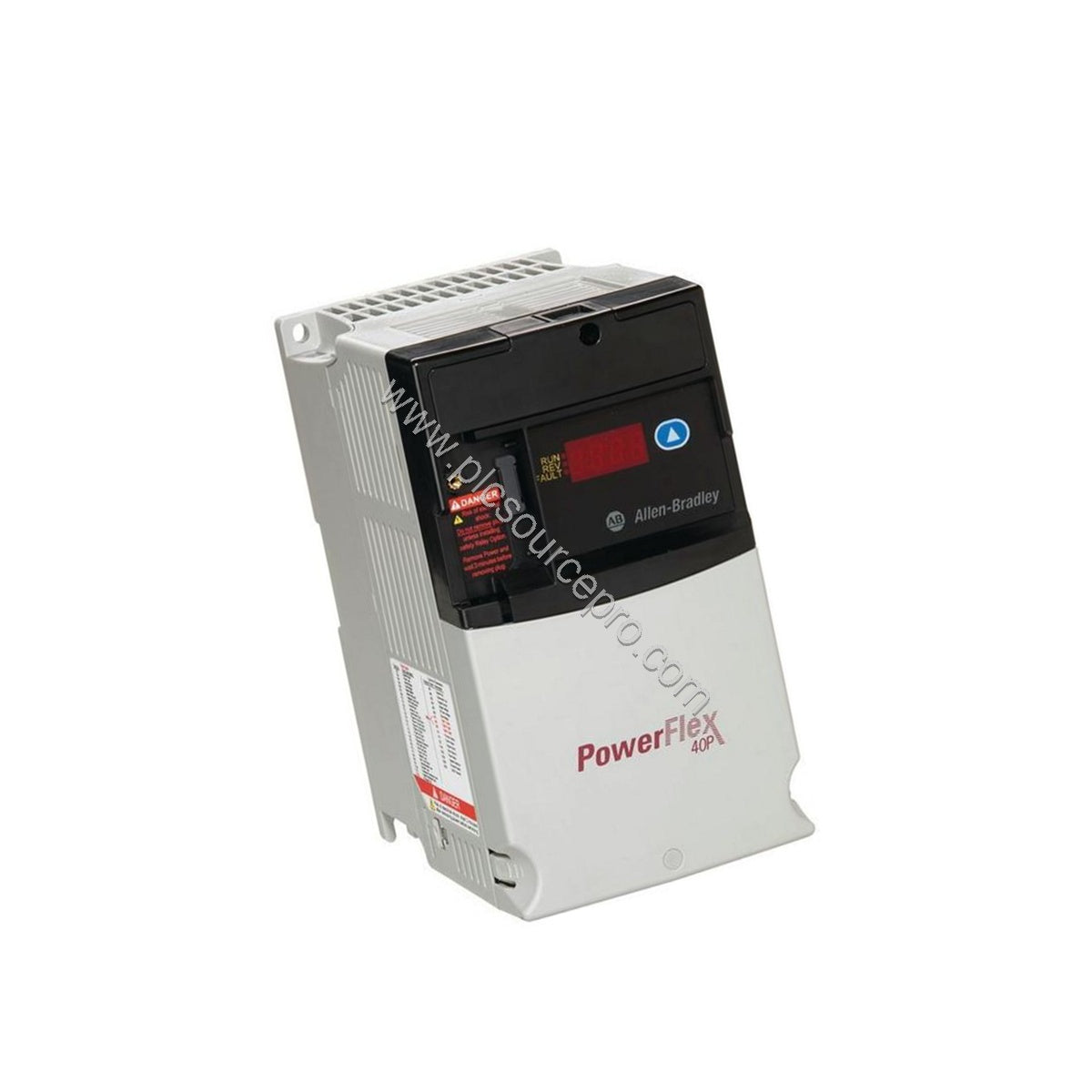

The Allen-Bradley 22D-E6P6H204 from the PowerFlex 40P series is a compact adjustable frequency drive designed for precise motor speed control. With a 5 HP rating and 6.6A output current, this drive delivers reliable performance in closed-loop and safe-off applications. Its 97.5% drive efficiency translates to significant energy savings over time, reducing operational costs. The 22D-E6P6H204's compact zero-stacking design saves valuable cabinet space, allowing for dense installations without compromising cooling.
Key Features and Benefits
-
High Efficiency: 97.5% drive efficiency minimizes energy waste, contributing to lower electricity bills and a faster return on investment.
-
Robust Protection: Phase-to-phase and phase-to-ground Metal Oxide Varistor protection, along with BUS over-voltage/under-voltage trips (1005V DC and 390V DC), safeguard the drive and connected equipment, reducing costly downtime.
-
Flexible Control: Supports Volt per Hertz and Sensorless Vector Control with a 2 to 16 kHz carrier frequency. Programmable output frequency up to 500 Hz offers broad application adaptability.
-
User-Friendly Configuration: Integrated DSI communication port and RS-485 allow PC-based programming via Drive Tools SP or Drive Explorer, simplifying setup and adjustments.
-
Certified Reliability: The 22D-E6P6H204 carries c-UL-us, CE, and CSA certifications, ensuring compliance with international safety and performance standards.
Applications
This Allen-Bradley 22D-E6P6H204 drive excels in applications requiring precise speed control and Category 3 safe-off functionality. Typical uses include conveyor systems, pumps, fans, and material handling equipment. For example, in a water treatment plant, the drive can maintain consistent pump flow while its 100 ms power ride-through and 2 s logic ride-through prevent process interruptions during short power dips. The 0.98 power factor across the entire speed range also reduces demand charges, enhancing ROI in continuous-duty applications.
Installation and Setup
The 22D-E6P6H204 is an open NEMA Type (IP20) plate-mount drive. Mount on a flat, grounded surface within its frame size B dimensions (125 mm x 204 mm x 97.5 mm). Ensure ambient temperature does not exceed 40 °C. Use the integral DSI port for initial configuration via a PC or external HIM. The DIP switch allows selection of source or sink digital input modes. Wire the 3-phase input (460–600 V AC, 8.3 A) and motor output (0–574 V AC, 6.6 A) per local codes. For multi-drop networks, connect via RS-485 using the built-in port.
Maintenance and Reliability
Regularly inspect the 22D-E6P6H204 for dust accumulation on cooling surfaces; clean with dry compressed air. Check input and output terminal connections for tightness. The drive's 5 to 95% non-condensing humidity tolerance and 14 to 122 °F operating range suit harsh industrial environments. The Class 10 electronic motor overload protection extends motor life, reducing replacement costs. Scheduling annual firmware updates and parameter backups ensures long-term reliability and maximum ROI from your Allen-Bradley 22D-E6P6H204 investment.
