Product Overview

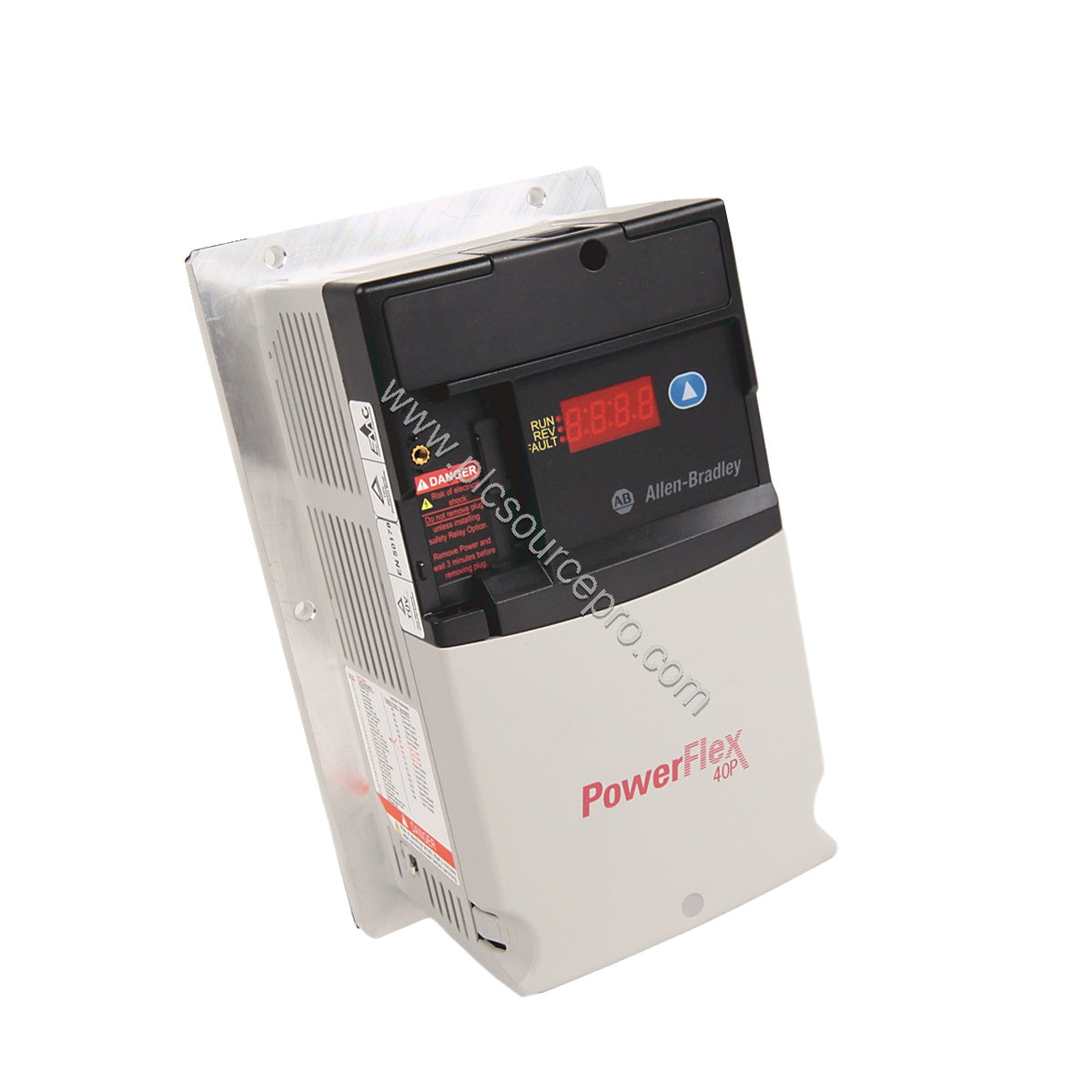

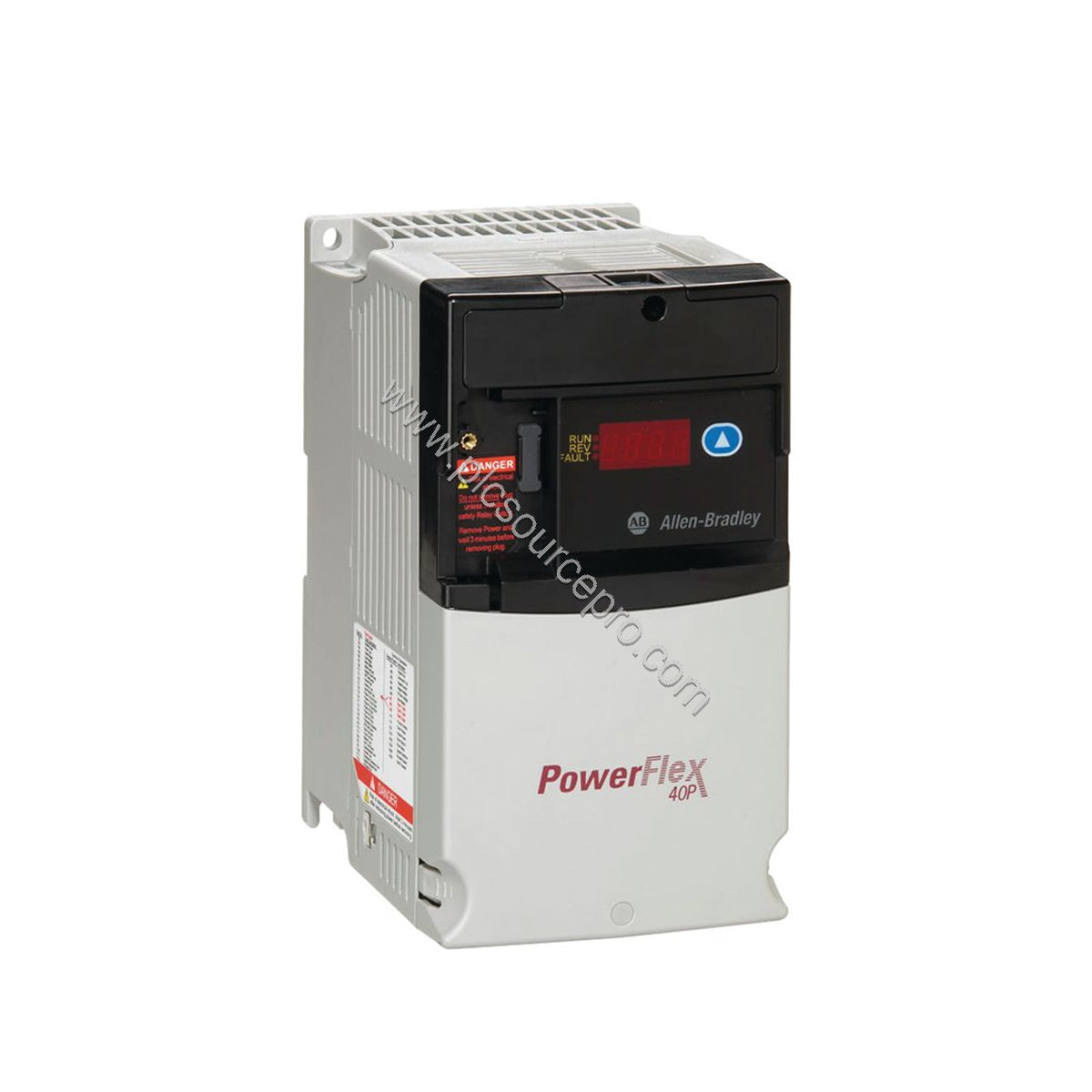

The Allen-Bradley 22D-D012F104 is a PowerFlex 40P series adjustable frequency drive designed for precise motor speed and torque control. This industrial automation module uses adjustable frequency to minimize mechanical friction, enhancing efficiency in various applications. With a 480 VAC three-phase input and a 12.0 A rated output, the 22D-D012F104 delivers up to 7.5 HP. Its compact Size C frame and IP20 (NEMA Type 1) enclosure make it suitable for panel mounting in harsh industrial environments.
Technical Specifications
The table below lists key technical parameters from the manufacturer’s datasheet. Every value is verified and must be used exactly as provided.
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22D-D012F104 |
| Product Line |
PowerFlex 40P |
| Amperage |
12.0 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type - Flange Mount (IP20) |
| Input Power |
480 Volts AC |
| Horsepower |
7.5 HP |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
The Allen-Bradley 22D-D012F104 drive offers a 10% voltage tolerance and operates from 48 to 63 Hz. It can withstand up to 100,000 A symmetrical short-circuit current (actual rating depends on circuit breaker). Built with a simple user interface featuring a 4-digit display, integrated LCD keypad, and three indicators, this drive is easy to program via the local keypad or remotely through CIP RS-485 communication.
Industry Applications
This adjustable frequency drive excels in applications requiring precise speed control, such as conveyors, pumps, and fans. For example, in a conveyor system, the Allen-Bradley 22D-D012F104 reduces energy consumption by matching motor speed to load demand, resulting in lower operating costs and extended equipment life. Its compact Size C frame fits easily into tight control panels, making it ideal for retrofit projects where space is limited.
Installation & Setup

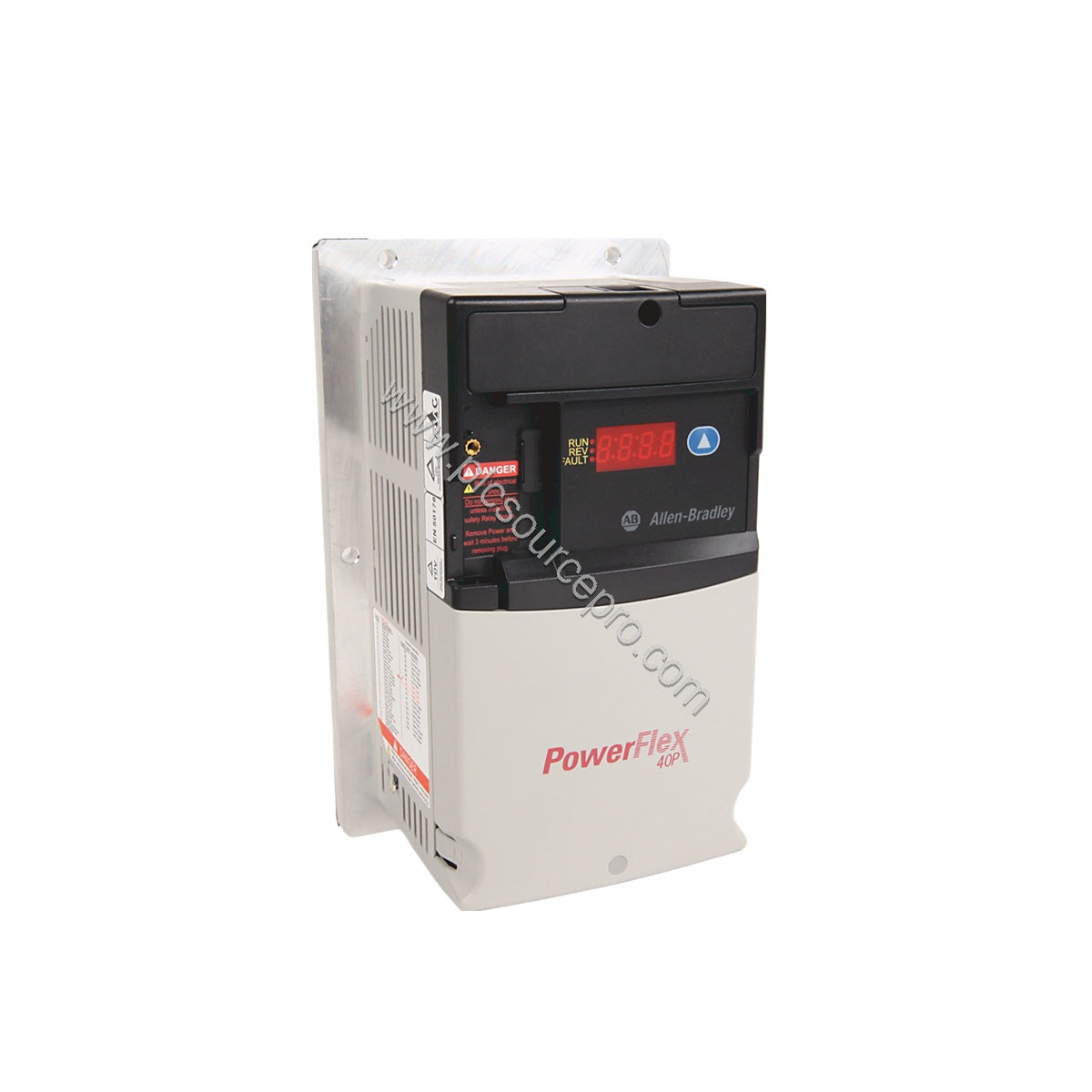

Mount the 22D-D012F104 on a flat, vertical surface using the flange mount (IP20 rating). Ensure proper ventilation around the frame to maintain cooling. Connect three-phase 480 VAC input power to the designated terminals. Use shielded cable for the motor output to minimize electromagnetic interference. The drive supports remote programming via the CIP RS-485 port; configure parameters using the onboard keypad or a connected HMI.
Maintenance & Reliability
Regularly inspect the Allen-Bradley 22D-D012F104 for dust accumulation on the heatsink and ensure fan operation (if present). Clean the enclosure with a dry cloth; avoid solvents. The drive’s built-in protection features, including Category 3 Safe Torque Off, prevent damage from current surges and voltage dips. This reduces unplanned downtime and maintenance costs, enhancing long-term ROI.
Selection Guide
Before purchasing, verify that your motor’s full-load current does not exceed 12.0 A and that the input voltage matches 480 VAC three-phase. The 22D-D012F104 does not include a CE filter; if needed, add an external filter for EMC compliance. For reliable supply, choose PLC Source PRO—a trusted source for genuine Allen-Bradley parts.
