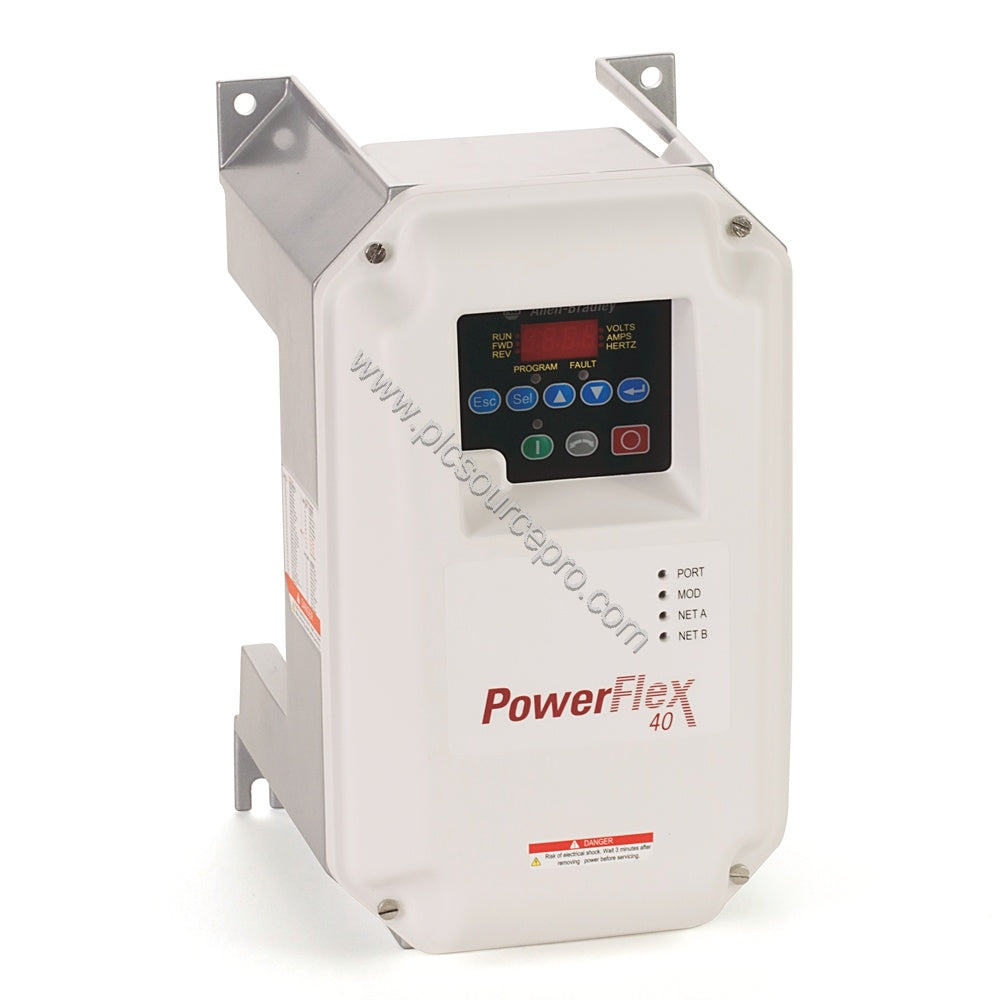

Product Overview
The Allen-Bradley 22B-D017N104 is a compact adjustable frequency AC drive from the PowerFlex 40 series, engineered for reliable motor control in demanding industrial environments. This Variable Frequency Drive (VFD) delivers 17.0 A output and 7.5 kW (10 HP) power, making it a solid choice for conveyors, fans, pumps, and lifting applications. With sensorless vector control and built-in PID capability, the 22B-D017N104 offers precise speed regulation and high starting torque.
Key Features
-
Input Voltage: 380-480VAC, 3-phase (342-528VAC range)
-
Rated Output Current: 17.0 A
-
Rated Power: 7.5 kW (10 HP)
-
Enclosure: Panel Mount, IP20 / NEMA UL Type Open
-
Built-in Communication: RS485 (supports DeviceNet, ControlNet, EtherNet/IP, BACnet, LonWorks adapters)
-
Control Method: Sensorless Vector Control with integral IGBT brake
-
I/O: 3 fixed discrete inputs (START/STOP/REV), 4 fully programmable discrete inputs, 4 programmable discrete outputs, 2 unipolar analog inputs (0-10V / 4-20mA), 1 bipolar analog input (+/-10V), 1 analog output (0-10V / 4-20mA), 1 N.O./N.C. dry contact output, 2 digital/optocoupler outputs
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Part Number |
22B-D017N104 |
| Product Line |
PowerFlex 40 |
| Input Voltage |
380-480VAC |
| Output Voltage Range |
342-528VAC |
| Rated Current |
17.0 A |
| Rated Power |
7.5 kW (10.0 HP) |
| Phase |
3-Phase |
| Enclosure |
Panel Mount - IP20, NEMA/UL Type Open |
| Keypad |
LED Keypad |
| Communication Port |
RS485 |
| Filter |
Without CE Compliant Filter |
| UPC |
820919078606 |
The drive's ambient operating temperature range is 10-50°C (14-122°F) with panel mounting. Storage temperature ranges from -40 to 85°C (-40 to 185°F). Overvoltage trip occurs at 810 VDC bus voltage (575 VAC incoming line), while undervoltage trip occurs at 390 VDC bus voltage (275 VAC incoming line).
Industry Applications
The 22B-D017N104 excels in general purpose applications and is particularly suited for lifting and hoisting equipment due to its high starting torque and sensorless vector control. Common uses include:
- Conveyor systems requiring variable speed and torque control
- Fan and pump applications where energy savings are critical
- Packaging machinery needing precise speed regulation
- Material handling equipment with frequent start/stop cycles
Installation & Setup
Mount the 22B-D017N104 in a panel with adequate clearance for airflow. Ensure the input voltage matches the 380-480VAC rating. Connect the motor to the correct output terminals, observing phase sequence. Use the integral keypad for initial configuration, setting parameters for motor nameplate data, acceleration/deceleration times, and I/O assignments. For RS485 networking, daisy-chain up to 32 drives per segment using two-conductor cable.
Maintenance & Reliability
Periodically inspect the drive for dust accumulation on heatsinks and cooling fans. Verify that ambient temperature stays within the specified range to prevent thermal derating. The integral IGBT brake mechanism reduces wear on mechanical brakes, extending system life. The protective removable MOV to ground ensures trouble-free operation on ungrounded distribution systems.
Compatibility & Integration
The 22B-D017N104 includes essential RS485 communication, with optional adapters for DeviceNet, ControlNet, EtherNet/IP, BACnet, and LonWorks. It integrates seamlessly with Allen-Bradley PLCs and other Rockwell Automation components. Its PID control capability allows it to function as a standalone controller in process applications.
Buying Guide
Before purchasing, verify that the 22B-D017N104 meets your voltage, current, and power requirements. Consider the enclosure rating for your environment. PLC Source PRO offers genuine Allen-Bradley parts with reliable sourcing.
