Product Overview

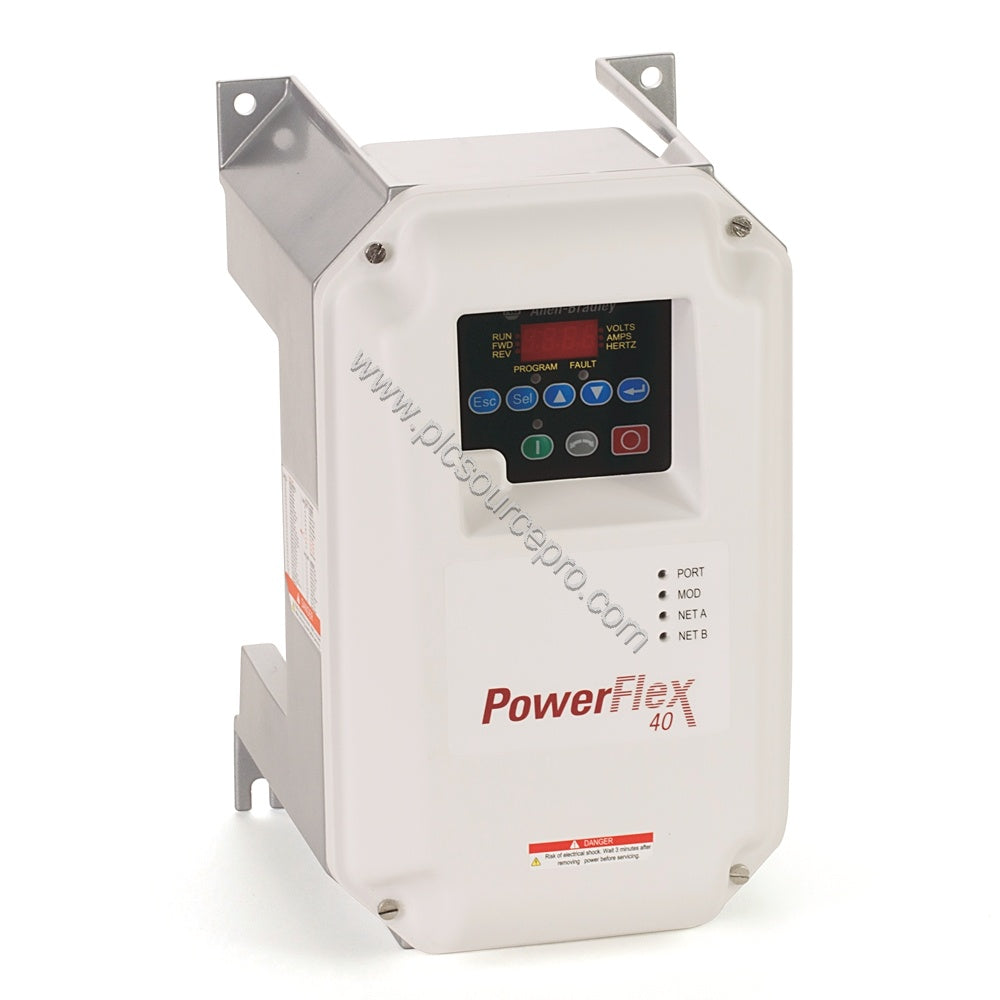

The Allen-Bradley 22B-D010F104 is an AC-powered adjustable frequency drive from the PowerFlex 40 series, engineered for precise motor control in demanding industrial environments. This industrial automation module operates on a 480 Volts AC 3-phase input and accepts a 50 to 60 Hertz input frequency, making it versatile for global applications. With an output current rating of 10.5 Amps, the 22B-D010F104 delivers reliable performance for a range of motor control tasks.
Part of the Rockwell Automation family, this drive incorporates sensorless vector control, enabling excellent low-speed torque and improved application performance. Its compact flange-mount enclosure (IP20, NEMA/UL Type Open) suits panel installations where space is at a premium.
Technical Specifications
The following table outlines the key technical parameters of the Allen-Bradley 22B-D010F104, ensuring you have the exact data needed for system design and integration.
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number / Catalog No. |
22B-D010F104 |
| Product Line |
PowerFlex 40 |
| Voltage |
480AC Volts (380-480VAC) |
| Enclosure |
Flange Mount - IP20, NEMA/UL Type Open |
| Horsepower |
5 HP |
| Amperage |
10.0 A (output current rating 10.5 A) |
| Phase |
3 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
Additionally, the drive supports a frequency range of 50 or 60 Hertz and can run motors up to 5 kW (4 HP). The unit weighs approximately 10 pounds (4.53 kg) and measures 9.84 x 9.61 x 3.71 inches (250.0 x 244.0 x 94.3 mm).
Industry Applications
The Allen-Bradley 22B-D010F104 is well-suited for conveyor systems, pumps, fans, and other variable-torque applications in industries such as automotive, food and beverage, and material handling. Its sensorless vector control ensures stable operation even at low speeds, which is critical for precise positioning and consistent product quality.
For example, in a packaging line, the 22B-D010F104 can maintain accurate speed control on a conveyor, reducing product damage and increasing throughput. In HVAC applications, it adjusts fan speed based on demand, contributing to energy savings—a key consideration for ROI-focused facilities.
Installation & Setup Guidance
Mount the 22B-D010F104 using a flanged mount with an IP20 front opening and a back/heatsink rated IP40/54/65 (type 1/12/4/4X). Ensure the environment meets industrial pollution level 2 standards and avoid direct sunlight or excessive Category II applications. Wiring must be performed carefully—incorrect connections can damage the drive. Always follow the provided wiring diagrams and torque specifications for terminals.
Before power-up, verify that the input voltage matches the 380-480VAC rating and that the motor is properly connected. Use the keypad for initial setup, programming parameters such as acceleration, deceleration, and motor frequency.
Maintenance & Reliability
Routine inspection of the 22B-D010F104 should include checking for dust accumulation on heatsinks, verifying terminal tightness, and monitoring ambient temperature. Because the drive is filterless, regular cleaning of the enclosure vents is essential to prevent overheating. By adhering to a preventive maintenance schedule, you can extend the lifespan of the drive and minimize unplanned downtime, directly improving your operation's bottom line.
Compatibility & Integration
The 22B-D010F104 features RS-485 communication, allowing integration with PLCs and SCADA systems using Modbus RTU or other RS-485-based protocols. This enables remote monitoring and control, enhancing system flexibility. The drive is compatible with standard three-phase induction motors and can be used with external keypads or remote control stations.
Selection Guide & Purchasing Advice
Before purchasing, verify that the 22B-D010F104 meets your voltage, horsepower, and communication requirements. Consider whether you need a CE-compliant filter; this unit does not include one, so additional filtering may be required for certain installations. Always confirm the enclosure type matches your mounting environment.
For genuine Allen-Bradley 22B-D010F104 drives and expert support, PLC Source PRO offers a reliable supply chain and fast delivery. Ensure you source from a trusted distributor to guarantee authentic parts and warranty coverage.
