Product Overview

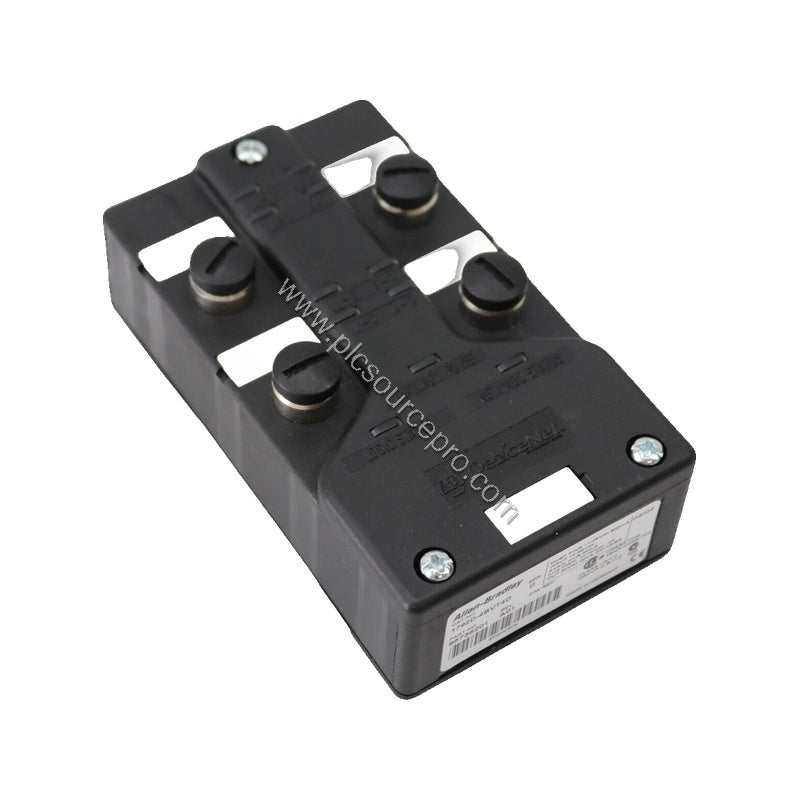

The Allen-Bradley 1792D-4BVT4D is a rugged I/O module from the ArmorBlock MaXum series, designed for distributed control in harsh industrial environments. This 24 VDC device provides 4 digital inputs and 4 digital outputs, communicating over a DeviceNet network. Its sealed housing eliminates the need for an additional enclosure, saving panel space and reducing installation complexity.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Product Type |
I/O Module |
| Product Line |
1792D ArmorBlock MaXum I/O |
| Part Number |
1792D-4BVT4D |
| UPC |
612598186921 |
| Weight |
0.69 lbs (0.31 kg) |
| Type |
Standalone |
| Inputs |
4 |
| Outputs |
4 |
| Voltage |
24 Volts DC |
| Communication |
DeviceNet |
| Housing |
Sealed |
| Maximum Data Rate |
500 kbps at 330 feet |
| Maximum Output Current |
1 Amp |
| Maximum Input On-State Current |
10 milliamps |
Key Features & Diagnostics
- Sealed housing – no enclosure required
- Supports PNP (sourcing) or NPN (sinking) inputs
- Each output can source up to 1 Amp
- Built-in diagnostics: open wire, short circuit, and no load detection
- Communicates over DeviceNet for easy integration
Installation & Setup

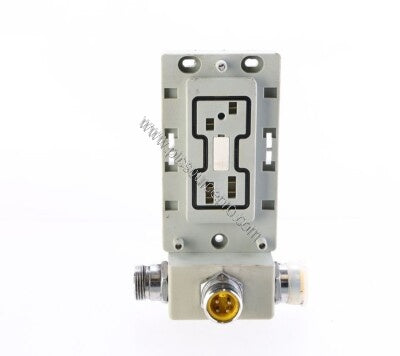

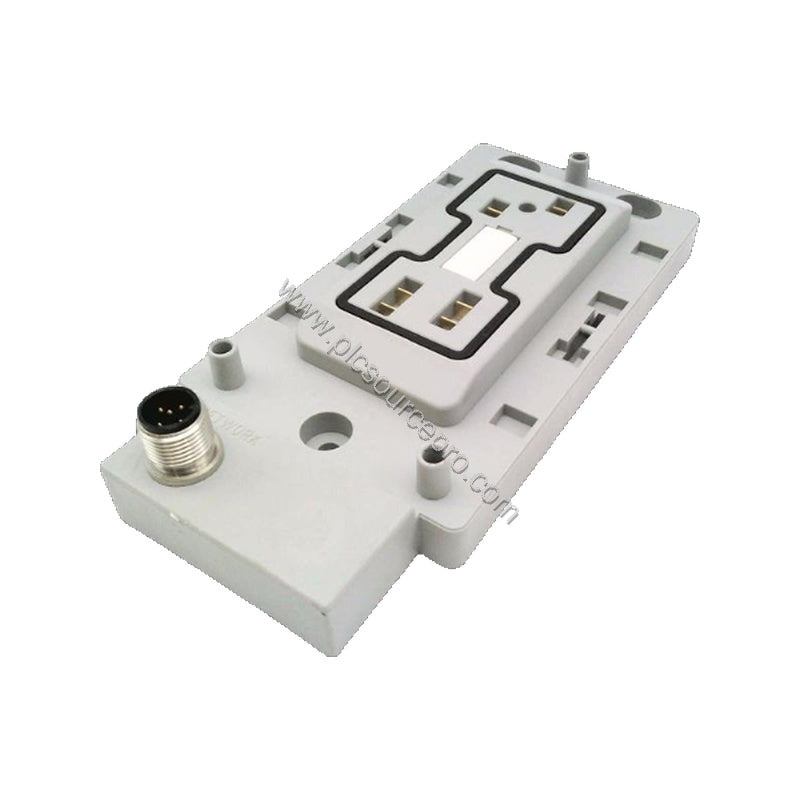

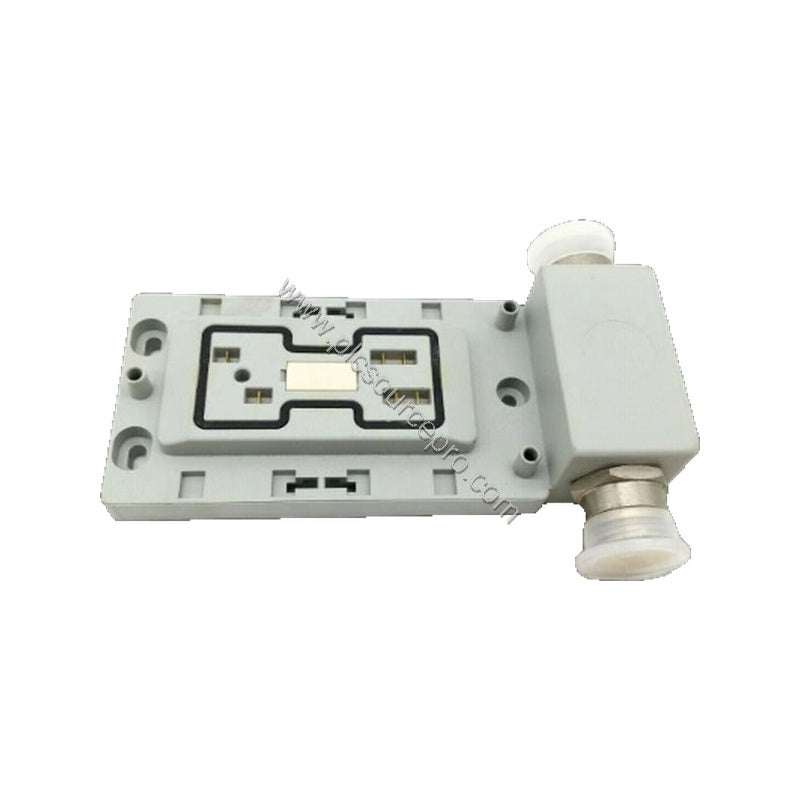

Setting up the 1792D-4BVT4D involves four steps: assign the node address, mount the module to the cable base, connect the cord sets, and establish communication with the network. Inputs and outputs are accessed via a Y splitter cable (ordered separately). The module ships with installation instructions, but cabling must be purchased separately.
Applications
This module is ideal for material handling, packaging machinery, and conveyor systems where reliable remote I/O is essential. For example, in a bottling line, the 1792D-4BVT4D can monitor sensor inputs and control actuator outputs directly on the machine, reducing wiring runs and improving response times.
Maintenance & Reliability
Because the housing is sealed, the module resists dust, moisture, and vibration, minimizing maintenance needs. Regular inspection of cabling and connectors is recommended to prevent loose connections. The diagnostic features help quickly identify open wires or short circuits, reducing downtime.
Compatibility & Integration
The 1792D-4BVT4D is designed for DeviceNet networks, allowing seamless connection to Allen-Bradley controllers and other DeviceNet-compatible devices. It can be used in both new installations and retrofits, providing flexible integration with existing control systems.
Selection Guide
Before purchasing, verify that your network supports DeviceNet and that the required cables and connectors are available. For reliable supply and technical support, consider PLC Source PRO as your trusted source for genuine automation spares.
